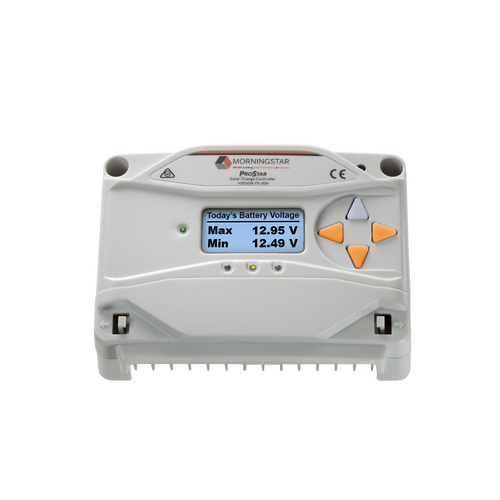

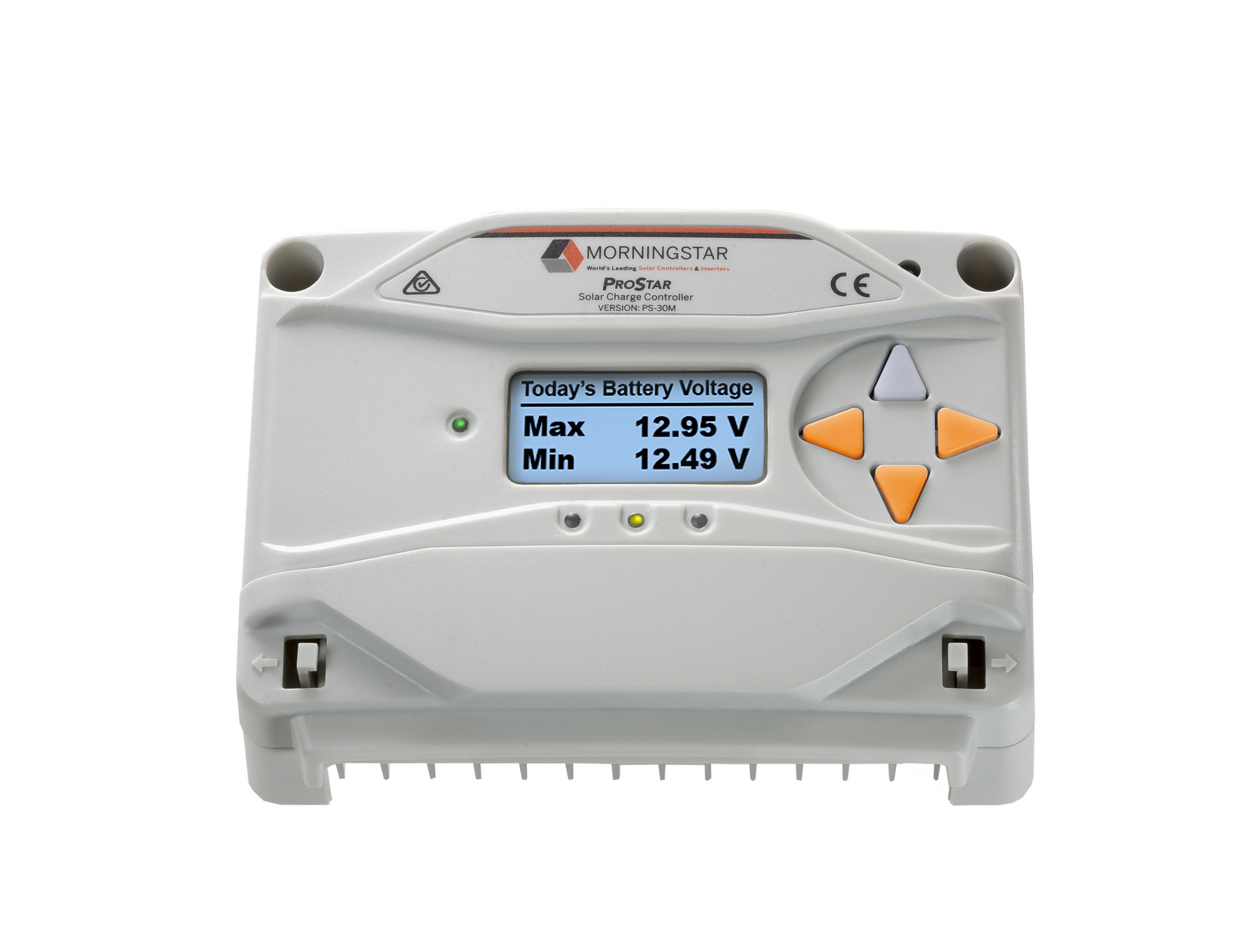

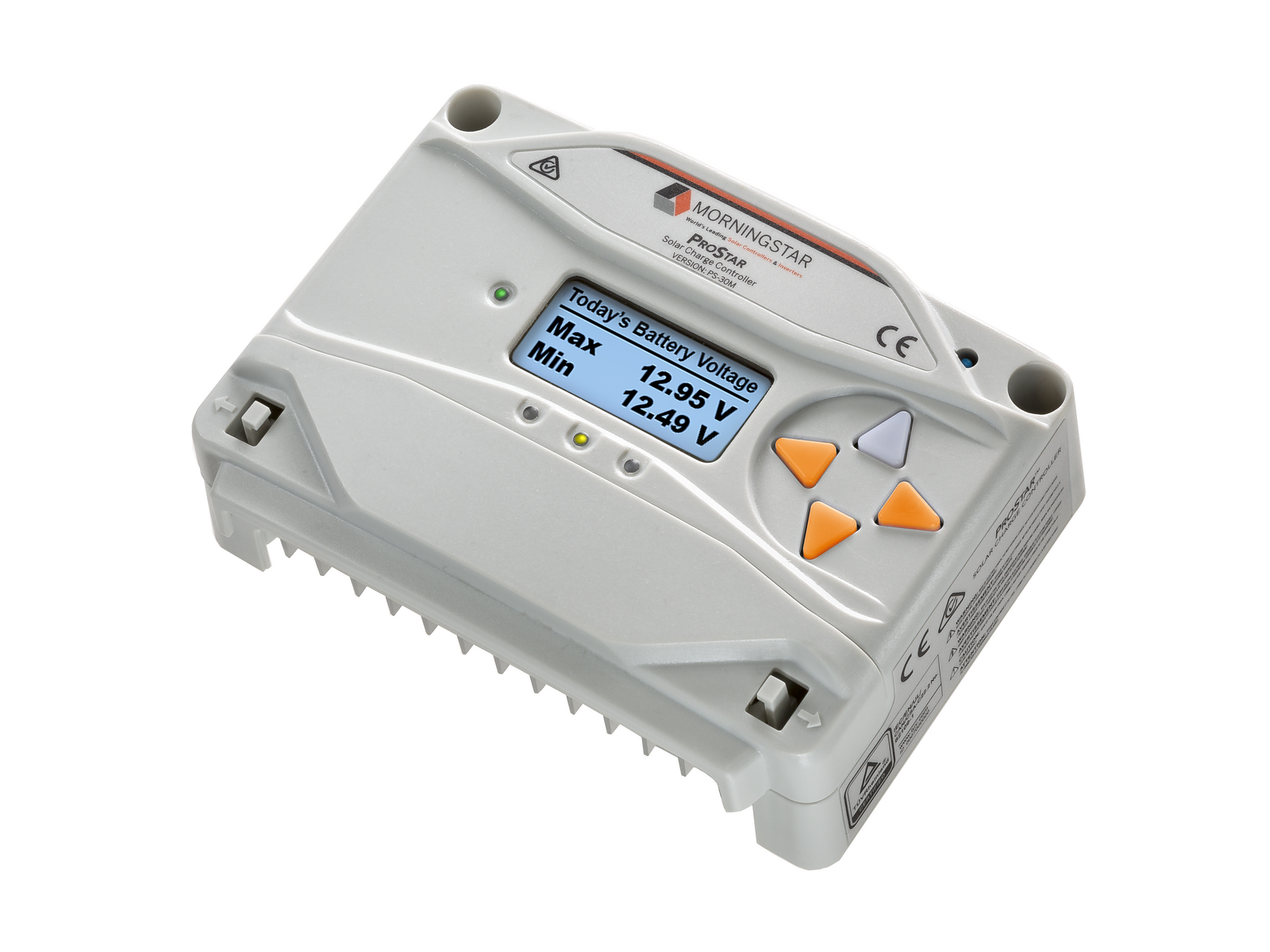

The ProStar solar charge controller has been the leading mid-range pulse width modulation (PWM) controller since 1995. With over 350,000 units installed in the harshest environments in over 100 countries, ProStar sets the standards in performance and reliability for the rest of the solar industry.

The Generation 3 ProStar shares the outstanding build quality and familiar form factor of its predecessors and adds data and lighting control capabilities, a graphical interface, and advanced protection features that meet the needs of today’s most demanding off-grid solar applications. ProStar provides both “the legend and the latest” in a single new product.

  • High Reliability - Latest electronic and environmental protections, quality control, and design considerations comply with IEC 62109 and promote longevity in the harshest environments
  • High Temperature Operation - Full nameplate current rating, both solar and load up to 60°C continuous
  • Auto-Battery-Select - 12V and 24V systems
  • Data Logging - Up to 256 days of solar charge and load consumption data
  • Self-diagnostics - Continuous monitoring and reporting of any errors or system faults through its status LED’s, optional display and communication port
  • Meter - High resolution LCD, multi-lingual backlit graphical display of system voltage, current, temperature, lighting settings, etc
  • Custom Programming - Dip switches, meter interface, or connection with a computer can be used to adjust charging, load communications, and lighting control
  • Low Noise Design - Meets US Federal Communications Commission Class B specifications
  • Automatic Solar-Based Lighting Control - Field adjustable, multi-event load control enables powerful options for solar lighting systems
  • MODBUS Communications - Open standard MODBUS communications protocol allows for control and remote data access
  • SNMP (Simple Network Management Protocol) Monitoring - Provides more detailed monitoring of all system data with existing IT management and architecture when connected to EMC-1 accessory
Nominal Battery Voltage 12V or 24V auto-detect
Battery Voltage Range 10-35V
Voltage Accuracy <= 0.1% +/- 50mV
Maximum Battery Current 30A
Maximum Solar Input Voltage 12V/24V bat: 60Voc
Maximum PV open-circuit voltage 12V bat: 30Voc / 24V bat: 60Voc
Load Current Rating 30A
Self-Consumption <20mA*
LED Indications (1) status, (3) Battery state of charge
Transient Surge Protection 1500 Watts (solar, battery, load)
Operating Temperature Range -40°C to + 60°C
Humidity 100% Non-Condensing
Tropicalization conformal coating, marine-rated terminals
Dimensions (W x L x D) 15.3 x 10.5 x 5.5 cm
Weight 0.4 kg
Enclosure IP20, Type 1

*35 mA for metered versions when meter is at 50% brightness; 50 mA when meter is at 100% brightness.

Electronic Protections:

  • Solar Input: overload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current
  • Load Output: overload, short-circuit, high temperature, reverse polarity
  • Battery: reverse polarity

Load & Lighting Control:

  • Low Voltage Disconnect, Low Voltage Reconnect Settings: 11.4 V / 12.6 V or Custom (x2 for 24 volt systems)
  • Lighting Settings: Dusk to Dawn
Barcode # PS-30M
Brand Morningstar
Shipping Weight 0.8600kg
Shipping Width 0.230m
Shipping Height 0.110m
Shipping Length 0.280m
Shipping Cubic 0.007084000m3
