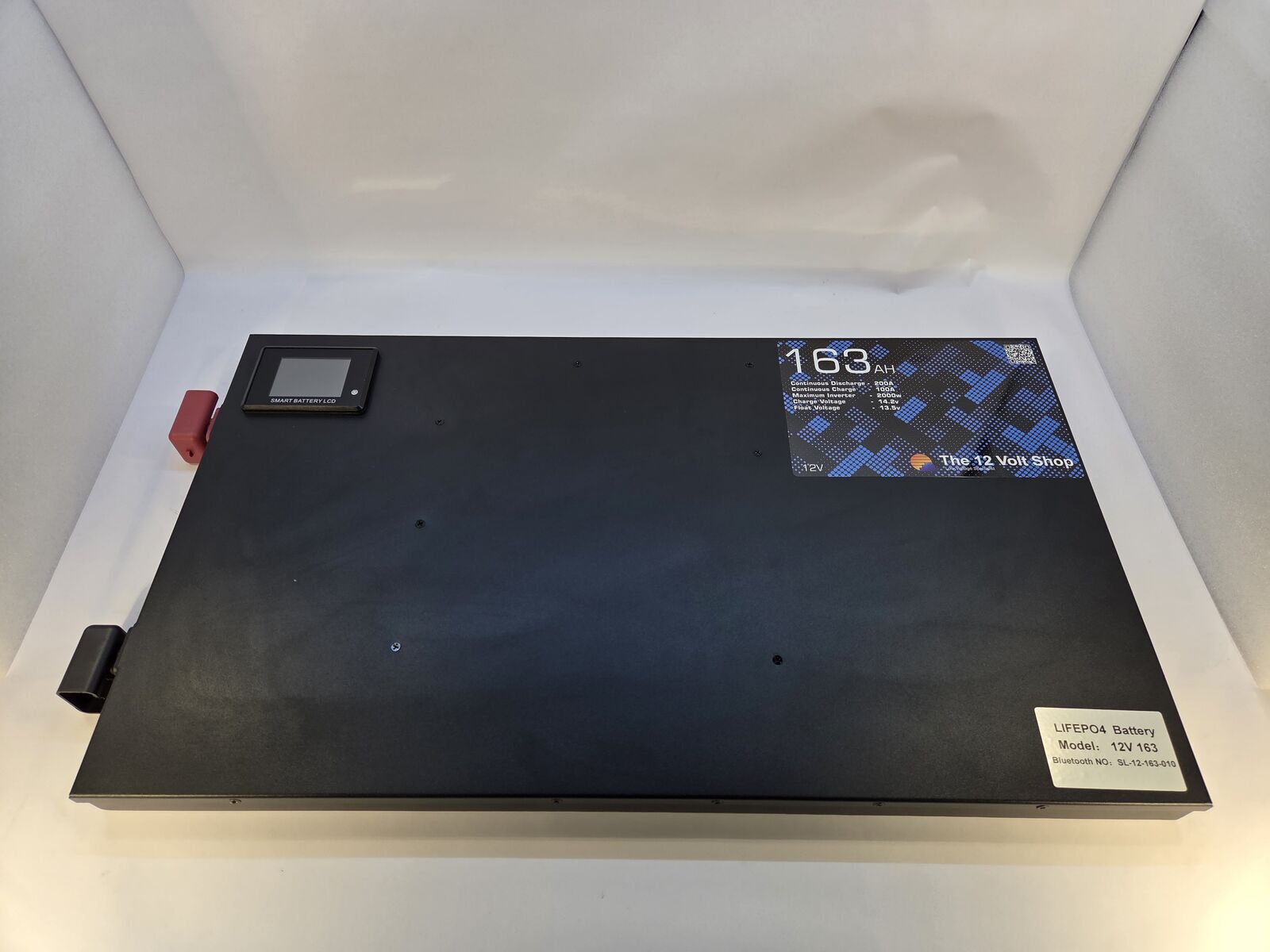

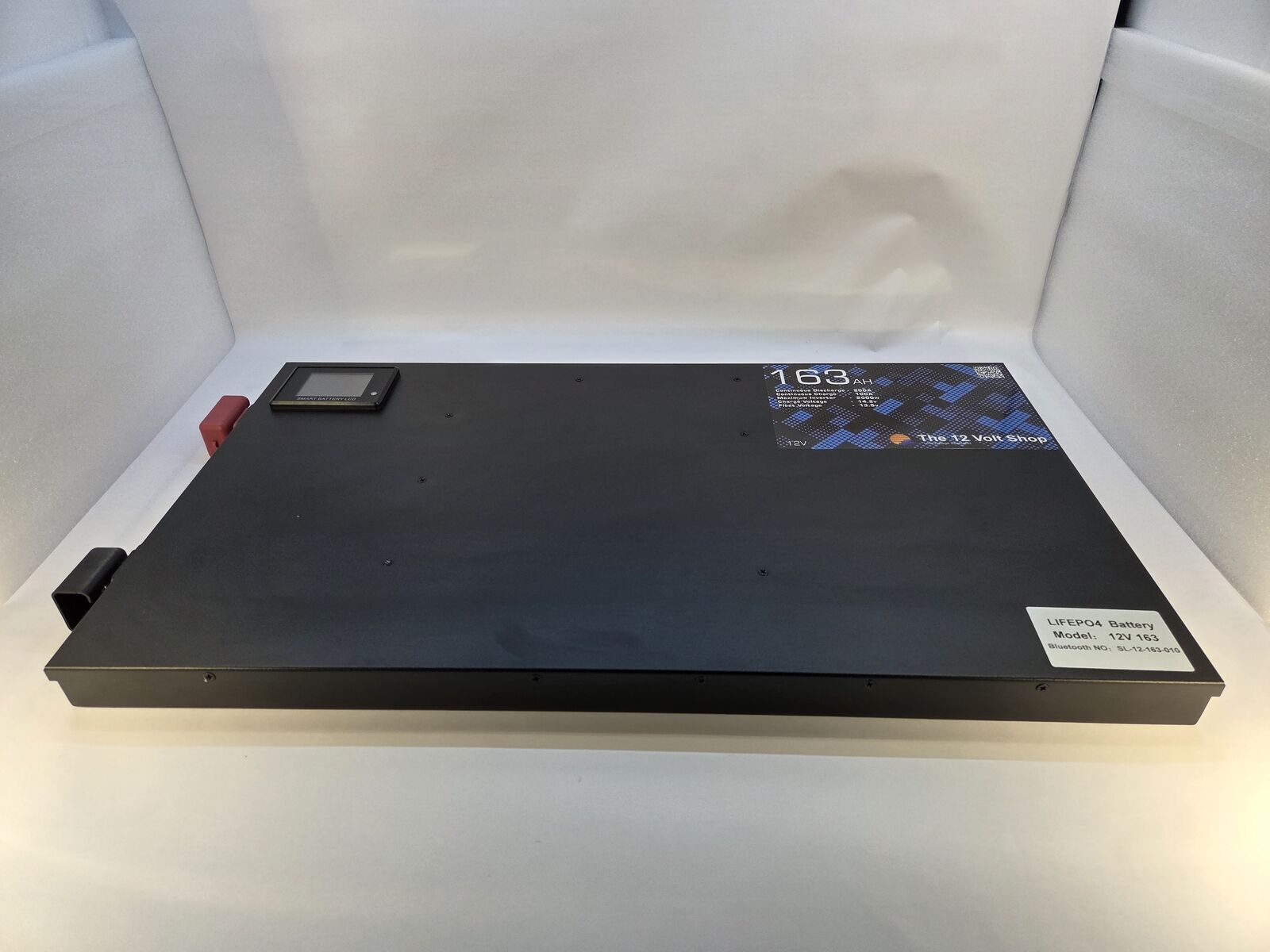

Introducing the SuperSlim 160: The Ultimate 12V 163Ah LiFePO4 Battery for Space-Saving Power!

Razor-Thin 49mm Profile (With Mounting Tray) | 200A High-Output JBD BMS | Grade 304 Stainless Tray Included | Parallel Only Configuration | Australian Designed

Tired of bulky box-shaped batteries dictating your vehicle's layout? From our workshop in Welshpool, Western Australia, we're proud to unveil the revolutionary SuperSlim 160 12V 163Ah LiFePO4 battery – a genuine game-changer for anyone demanding serious power in minimal space. This ultra-thin form factor is specifically engineered for mounting flat against canopy walls, behind rear seats, or in tight cargo false-floors where traditional batteries simply won't fit, reclaiming your storage area without sacrificing a single Amp-hour.

100% Usable Capacity — Power Every Last Amp

Unlike traditional AGM or lead-acid batteries that damage themselves if discharged past 50%, 12VS Lithium batteries deliver 100% usable capacity.

• Get What You Pay For: A 163Ah 12VS battery gives you a full 163Ah of usable power right down to the low-voltage cutoff without dropping voltage or harming the cells.
• Half the Weight, Twice the Power: Because you can use every single amp-hour, this single powerhouse effectively replaces a massive AGM bank more than double its physical size and weight, keeping your vehicle's setup incredibly compact and lightweight.

Unprecedented Power, Designed to Disappear

Don't let the ultra-slender profile fool you. The SuperSlim 160 redefines compact energy storage. Boasting a high-current 200A continuous output, it is engineered to effortlessly run a 2400W inverter and power all your essential gear simultaneously:

• High-Draw Cooking: Run induction cookers, air fryers, and microwaves for quick, convenient meals on the go.
• Morning Brew: Enjoy your domestic camping kettle and coffee machine, no matter how remote your campsite is.
• Living Comforts: Continuous, clean 12V power for chest/upright fridges, cooling fans, and bright LED layouts.
• Field Utility: Effortlessly run heavy-duty 12V air compressors for recovery gear and tires.
• Remote Tech & Communication: Stable, continuous power coverage for high-speed internet via Starlink Mini, plus rapid charging for laptops and camera gear.

Infinite Scalability: Parallel Ready (Not For Series Use)

Whether you need a sleek single-battery layout or are building out a massive flat-profile house bank, the Generation 1 SuperSlim 160 is designed to scale horizontally with ease.

• Parallel Only Configuration: This battery is engineered strictly for parallel configurations to expand your total runtime. Note: This unit cannot be connected in series to increase voltage.
• Unlimited Parallel Capability: Connect multiple units in parallel to expand your total amp-hour capacity and build a massive common power wall. (Important: Batteries must be fully charged and within 0.1V of each other before linking together in parallel).

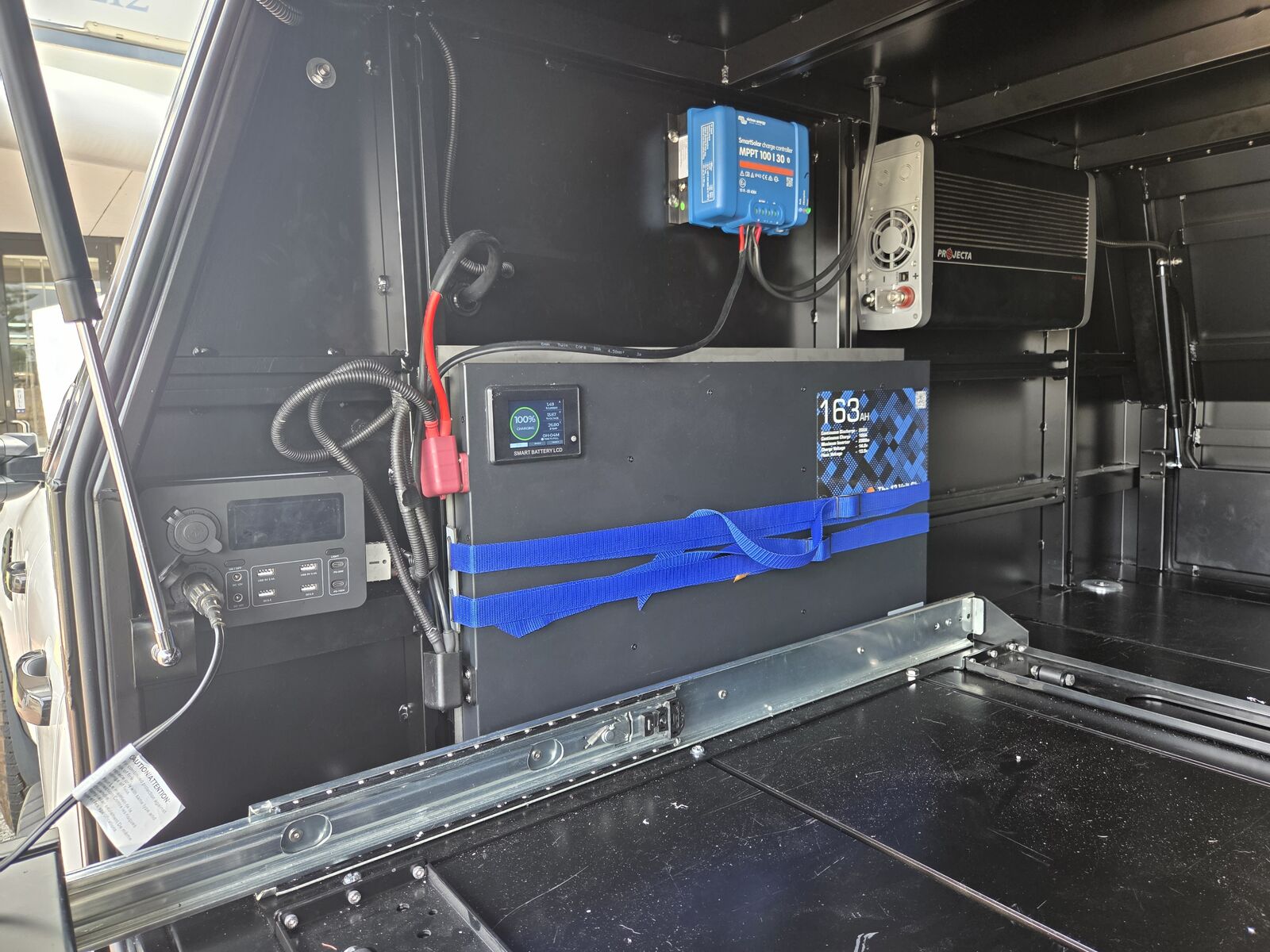

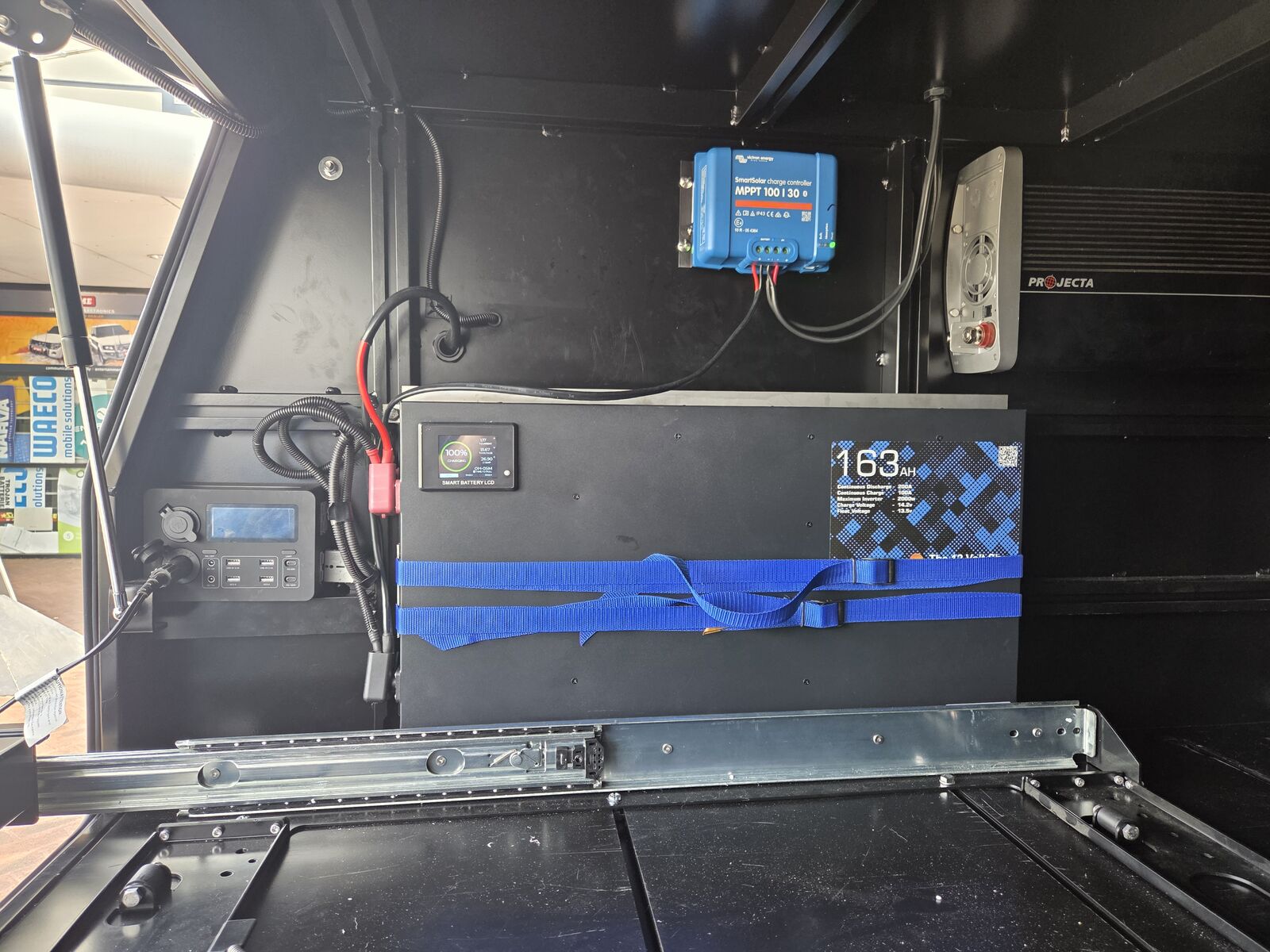

• Total Versatility: The ultimate power foundation for custom 4WD canopy builds, slim marine bulkheads, and narrow caravan storage cavities where maintaining a low profile is critical.

The Slimmest 160Ah on the Market – Built for Australian Adventures

Forget compromise. The SuperSlim 160 features an incredible low-profile design, allowing it to mount completely out of sight and maximize your functional cargo space.

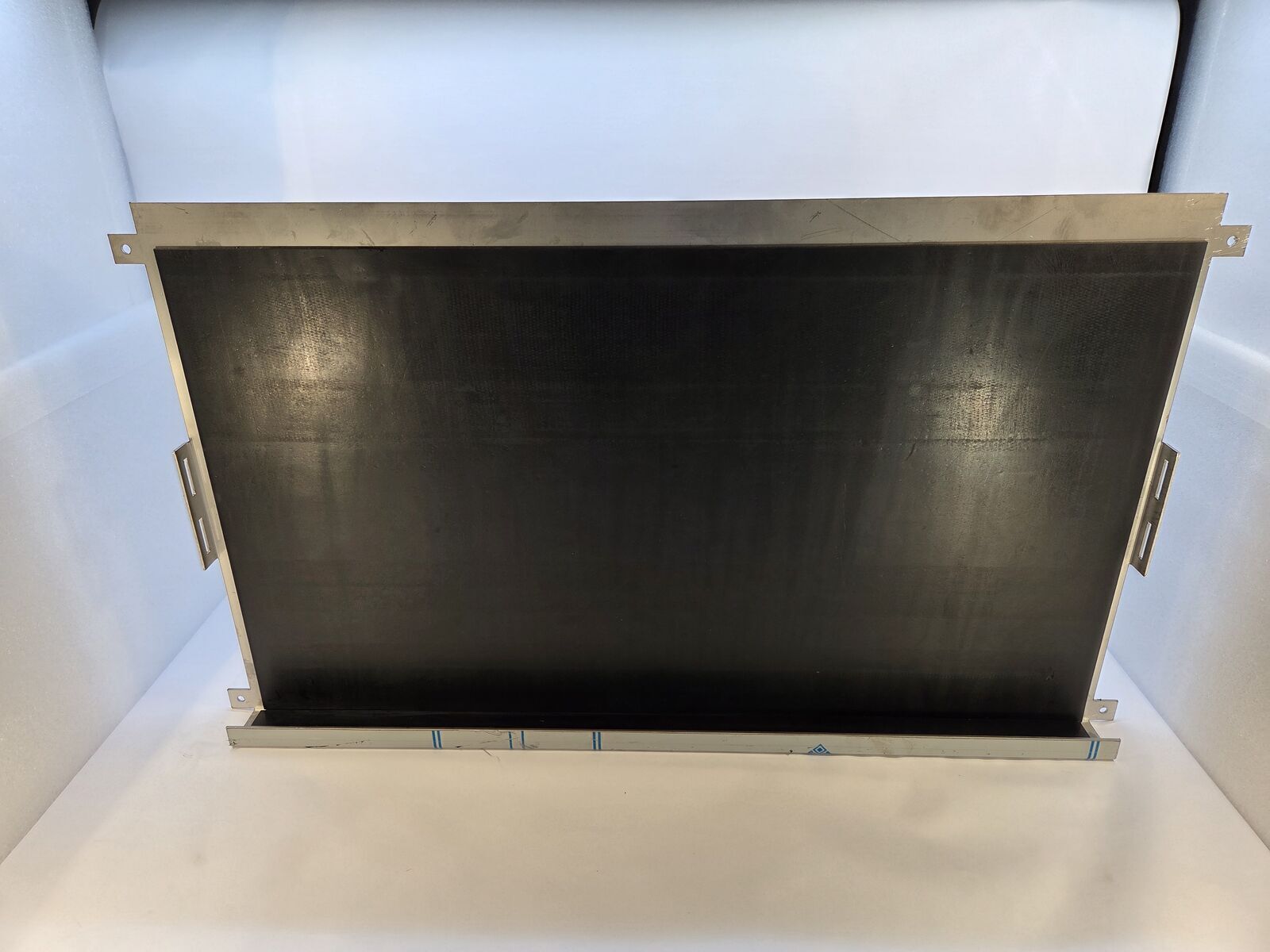

• Premium Stainless Steel Tray: To make installation as seamless as possible, every SuperSlim 160 comes complete with a rugged, custom-fitted Grade 304 stainless steel mounting tray.
• Vibration Protection: The heavy-duty tray features 3mm Neoprene rubber lining for superior vibration resistance—crucial for protecting internal architectures from brutal, corrugated outback tracks.
• Real-World Operational Footprint: With the protective mounting tray installed, the total space-saving dimensions are a remarkably slim 765mm Long x 430mm High/Wide x 49mm Deep. (Bare battery dimensions without tray are 700mm L / 735mm with terminals x 400mm W x 40mm D).

Australian Designed & Engineered for Peak Performance & Ultimate Control

Every SuperSlim 160 is a testament to Australian ingenuity, meticulously designed and engineered right here in Australia to excel in our unique and demanding environment. We've integrated top-tier components for unwavering reliability and longevity:

• Grade A CALB Cells: Utilising premium CALB cells, renowned globally for their exceptional energy density, superior cycle life, and unwavering thermal stability.
• Inbuilt JBD 200A Smart BMS: An advanced internal Battery Management System providing robust safety cutoffs against overcharge, over-discharge, over-current, short circuits, and temperature extremes to safeguard your power investment.
• Separate Heltec 5A Active Balancer: This dedicated active balancer meticulously equalizes cell voltages 24/7. Working independently of the BMS, it physically transfers energy from the highest cells to the lowest cells at a high 5A rate, maximizing efficiency, boosting performance, and significantly extending the overall lifespan of your battery pack.

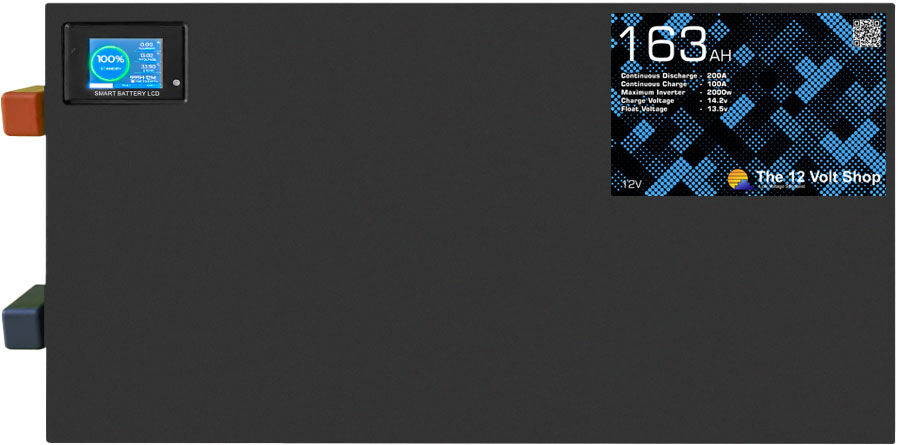

• 4" LCD Touch Screen: Get instant, at-a-glance access to your battery's live status, voltages, and capacity metrics right on the front of the unit!

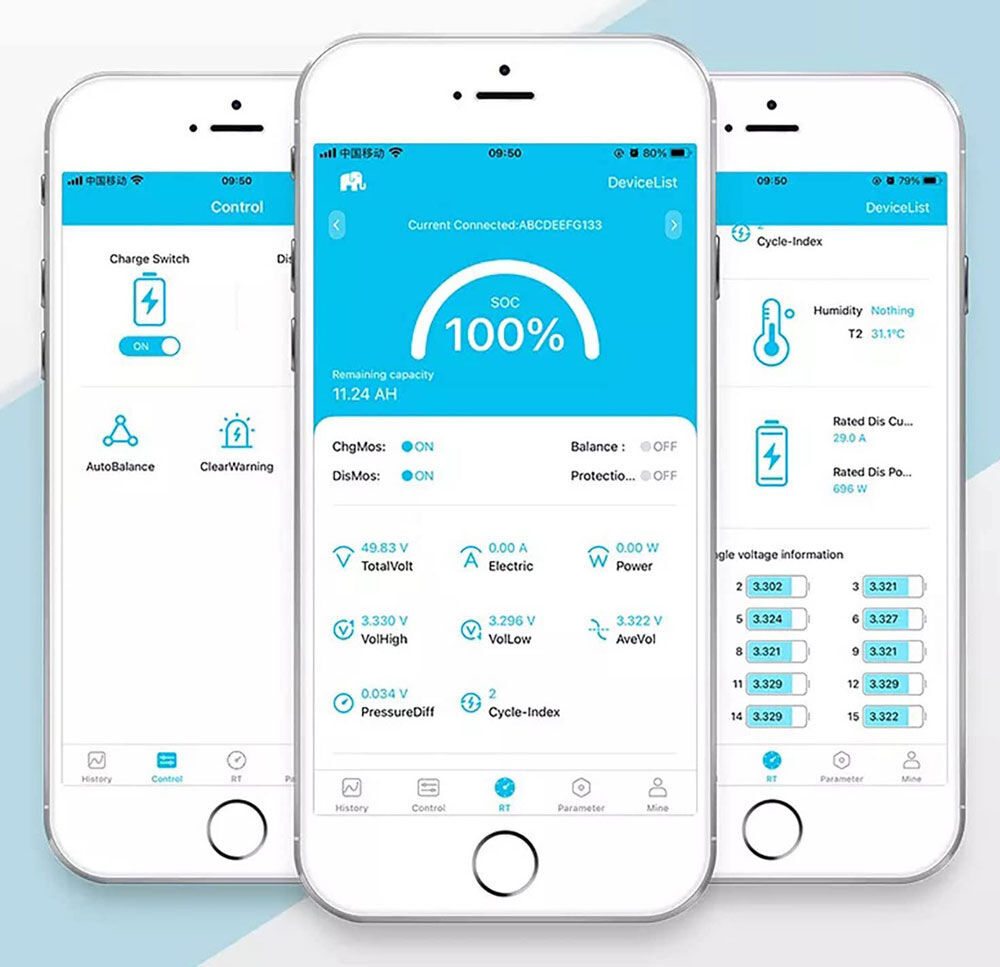

• Bluetooth Monitoring APP: For detailed real-time monitoring on your smartphone, connect via the official XiaoXiang app. Download it here:
  • Apple App Store (iOS): XiaoXiang Electric App Apple Store
  • Google Play Store (Android): XiaoXiang Electric App Google Play Store
• 5-Year Warranty: Our absolute confidence in the SuperSlim 160 is backed by a comprehensive 5-year warranty, guaranteeing a robust and reliable power solution. Technical queries are handled directly by local technicians who understand the specific requirements of Australian off-grid setups.
• Battery Monitor Configuration: If using a Victron SmartShunt or BMV-712 Battery Monitor, settings can be found here: Victron SmartShunt / BMV Settings.

Don't let space limitations dictate your power. The SuperSlim 160 offers unparalleled capacity, a revolutionary razor-thin design, and complete control, all backed by Australian engineering. Get yours today from our base in Welshpool, WA, and transform your custom build into a high-performance power hub!
