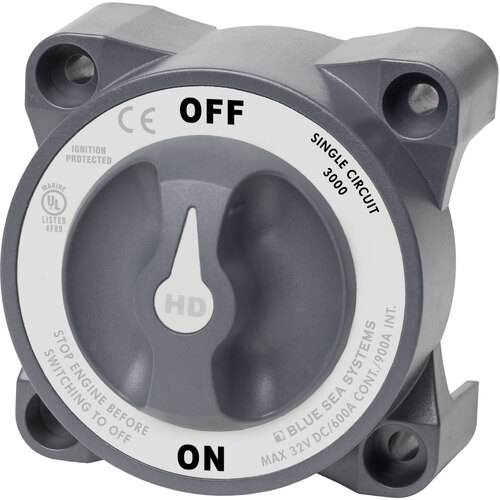

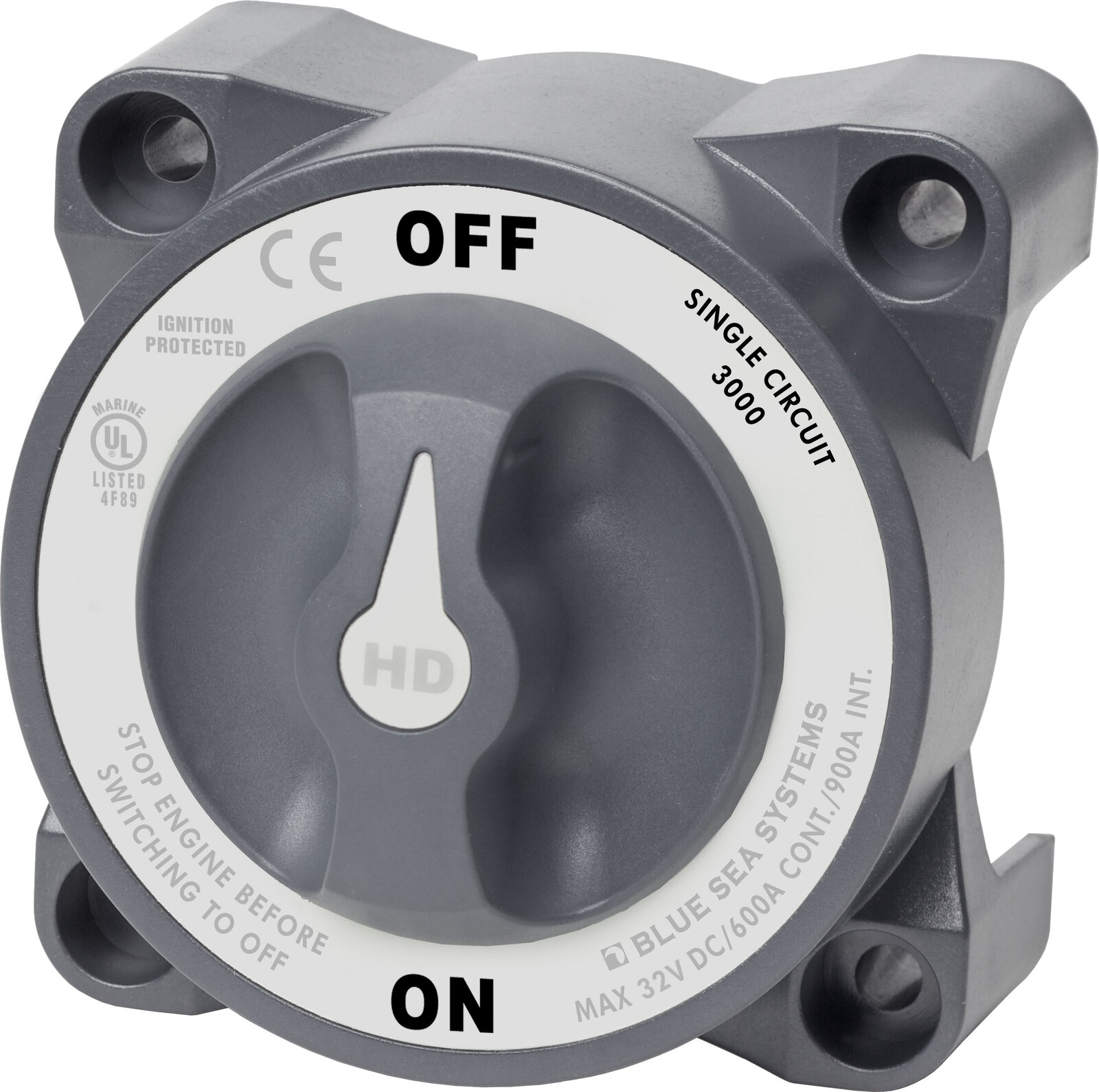

Battery switches isolate the potentially destructive energy in the battery banks when the vehicle is not in use or during emergencies.

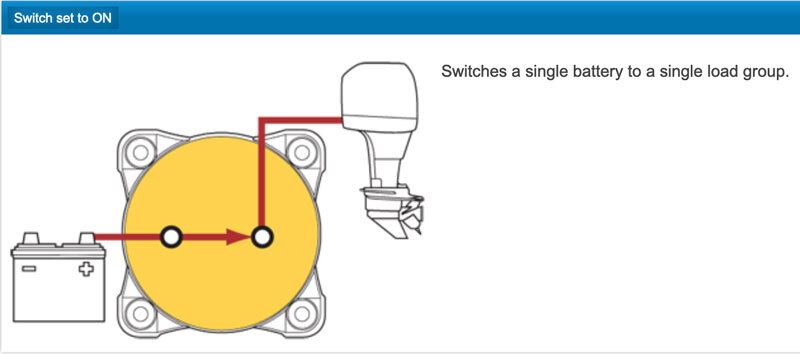

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats

Case design allows surface or rear panel mounting

Accepts two 4/0 AWG (120mm²) battery cables

600 Amps continuous rating for outboards and small gasoline or diesel engines.

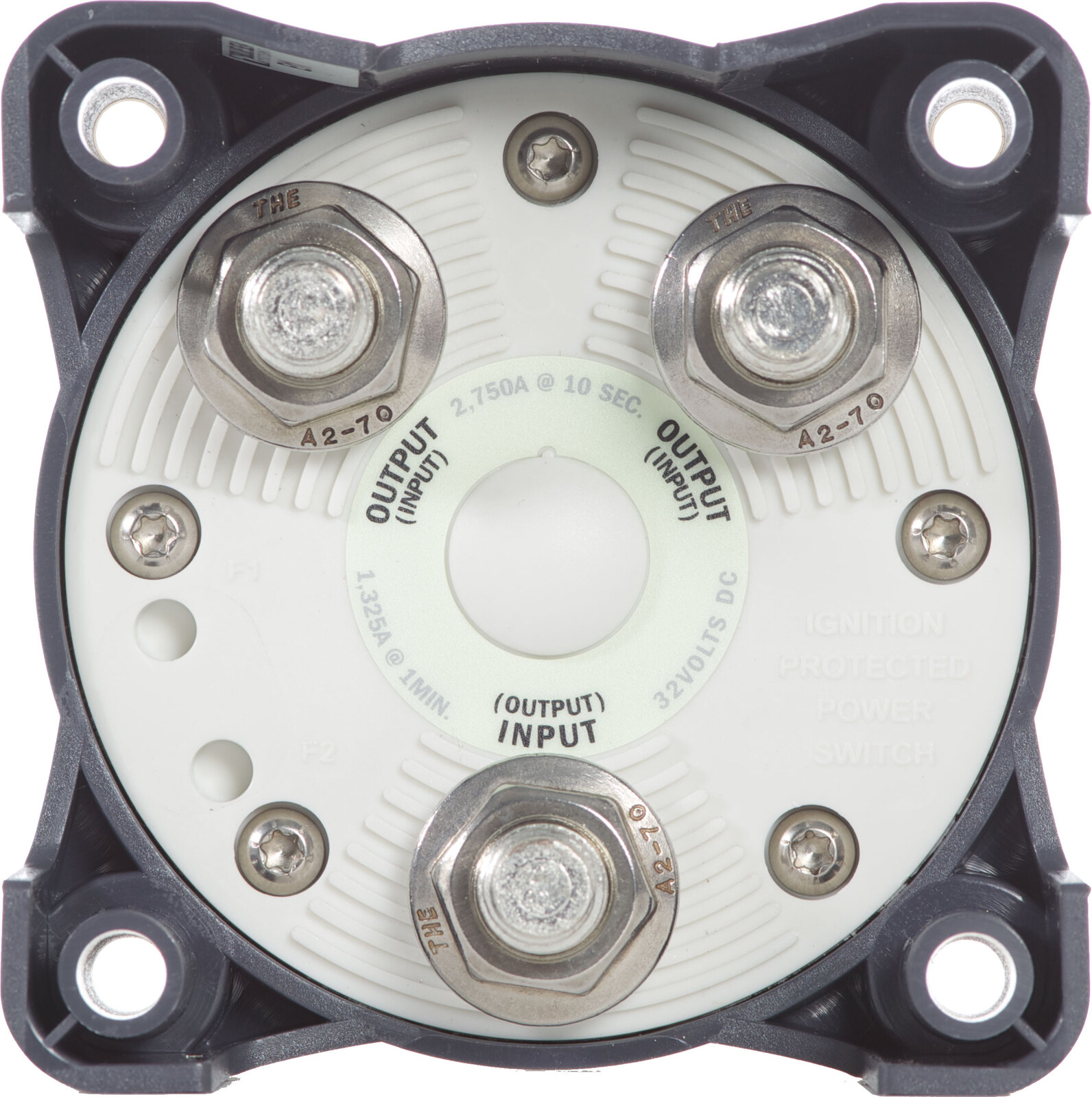

  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 1/2" (M12) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns

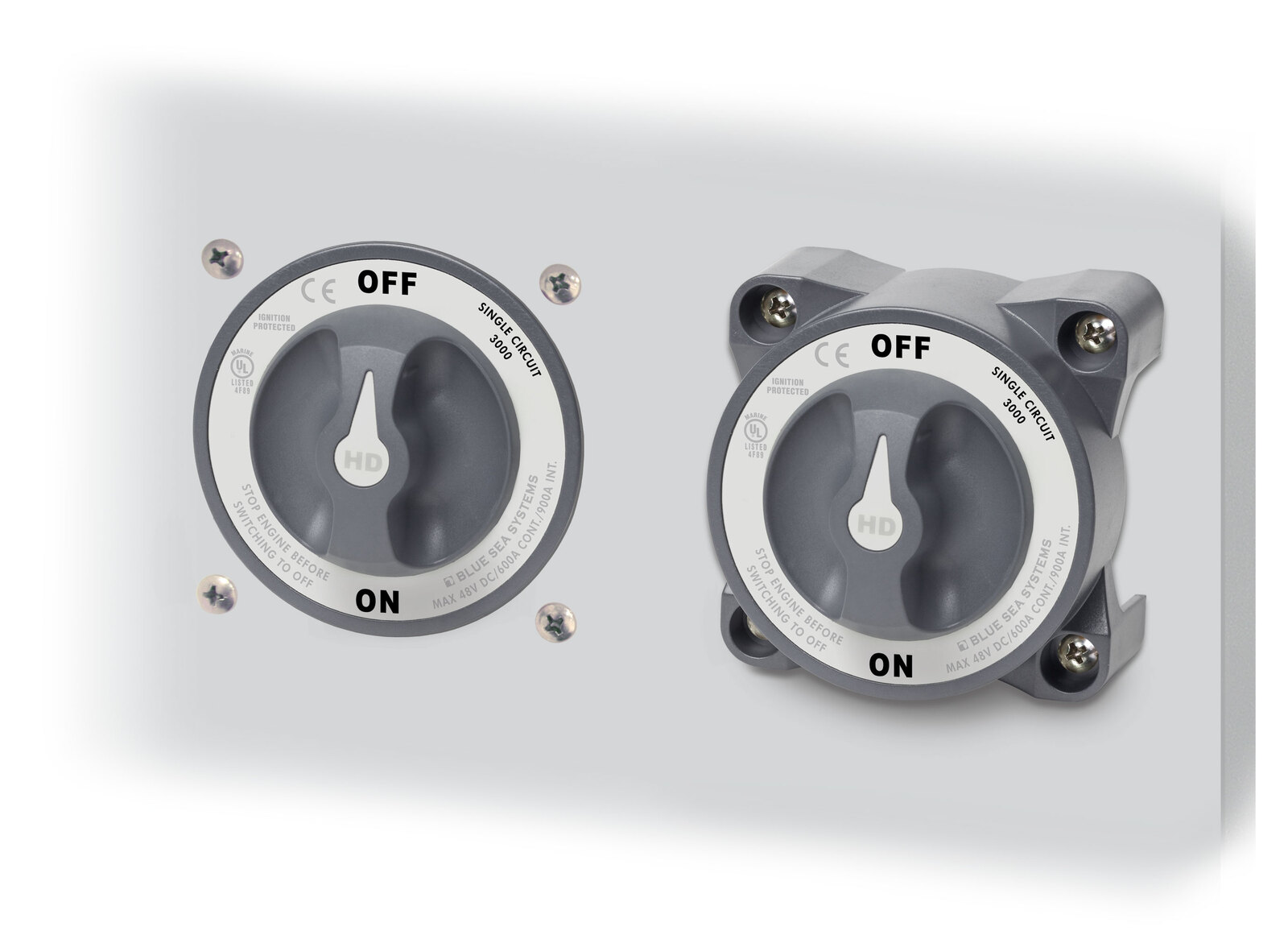

  • Case design allows surface, rear, or front panel mounting options
  • Tactile indicator conveys knob position by feel
  • Waterproof – rated IP66 from water projected in powerful jets
  • Meets American Yacht and Boat Council E-11 requirements.
  • CE approved
  • ISO 8846 Marine
  • UL 1107 Electric Power Systems
  • UL 1500
  • SAE J1171 Marine
Switch Type Single Circuit On/Off
Switch Family HD-Series
Switch Colour Grey
Function Switches a single battery to a single load group
Battery Inputs 1
Switch Positions 2
Battery Combine N/A
Make Before Break N/A
Alternator Field Disconnect No
Maximum Voltage 32VDC
Continuous Rating 600A
Intermittent Rating 900A
Cranking Rating (30 Sec) 1750A
Stud Material Tinned Copper
Stud Size 1/2" (M12)
Stud Torque 220 in-lb (24.86Nm)
Cable Size to Meet Ratings* 4/0 AWG (120 mm²)
IP Rating IP66
Weight 1.30lb (0.59 kg)

*Reducing cable size will reduce current rating
