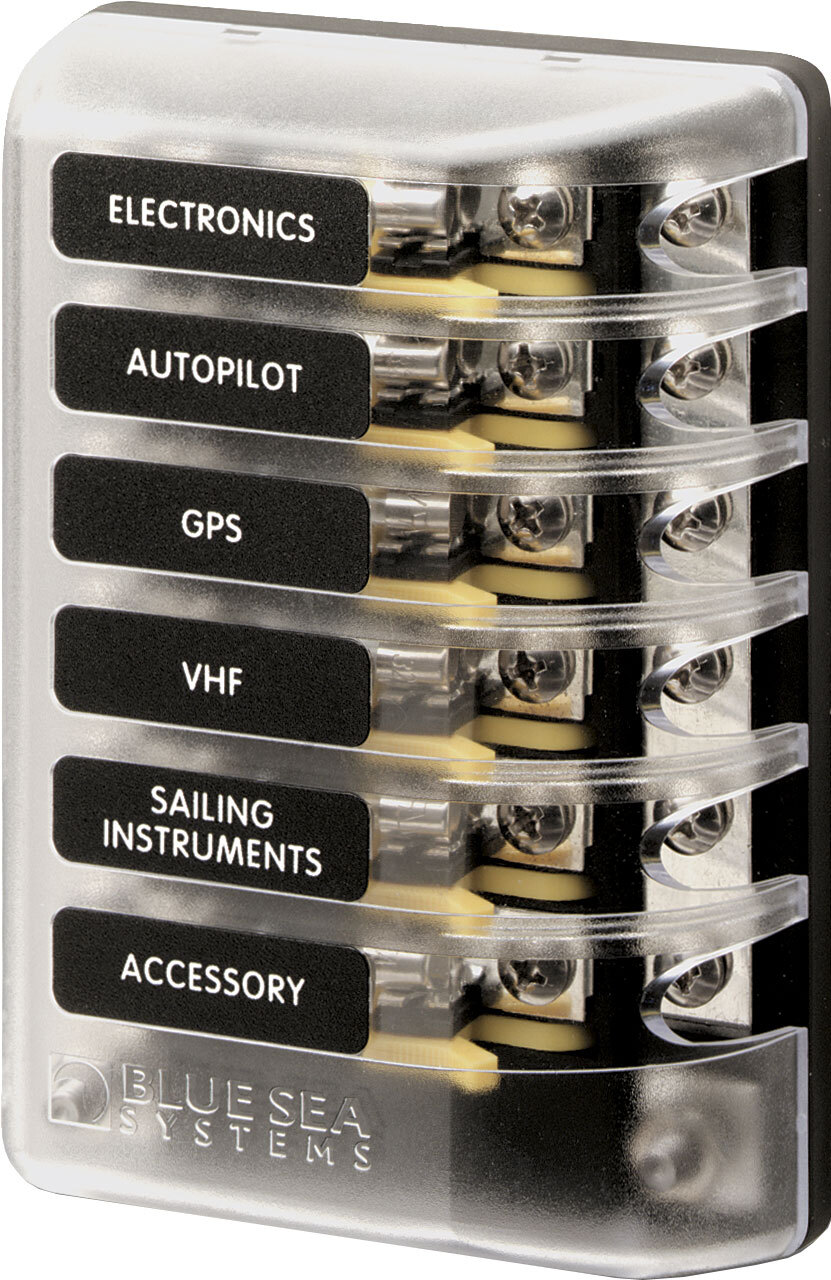

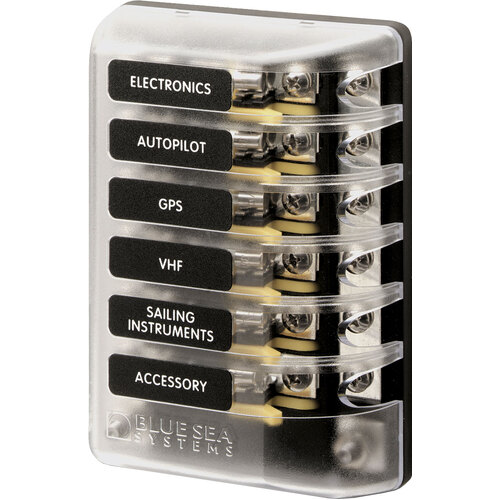

Innovative design allows for labeling, spare fuse storage, and easy fuse removal
  • Clear insulating cover with label recesses for accept Large Format Labels
  • Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
  • Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
  • Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses
Maximum Voltage 32V DC
Maximum Amperage 100A per block / 30A per circuit
Mounting #10 Screw
Base Material Reinforced Polycarbonate
Cover Material Polycarbonate
Screw Terminal Type #8-32 with Captive Star Lockwasher
Weight 0.58lb (0.26 kg)



SKU 632085050153
Barcode # 5015-BSS
Brand Blue Sea Systems
Shipping Weight 0.2400kg
Shipping Width 0.200m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
