Battery switches isolate the potentially destructive energy in the battery banks when the vehicle is not in use or during emergencies.

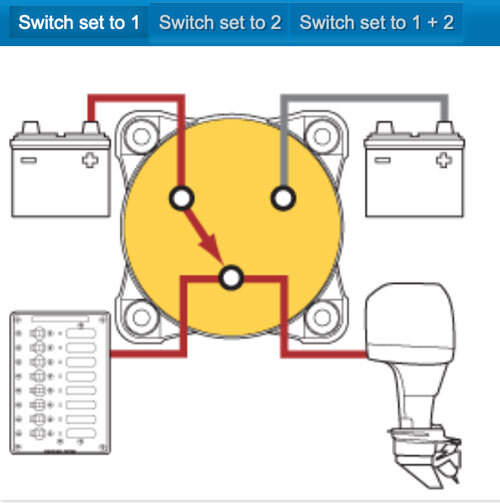

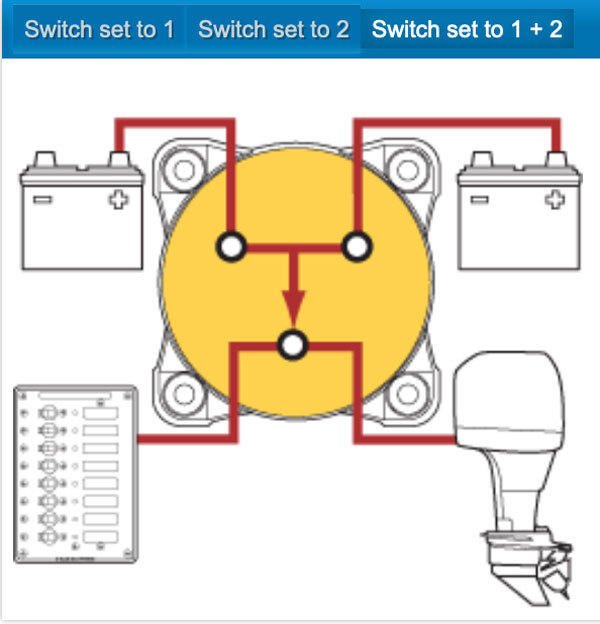

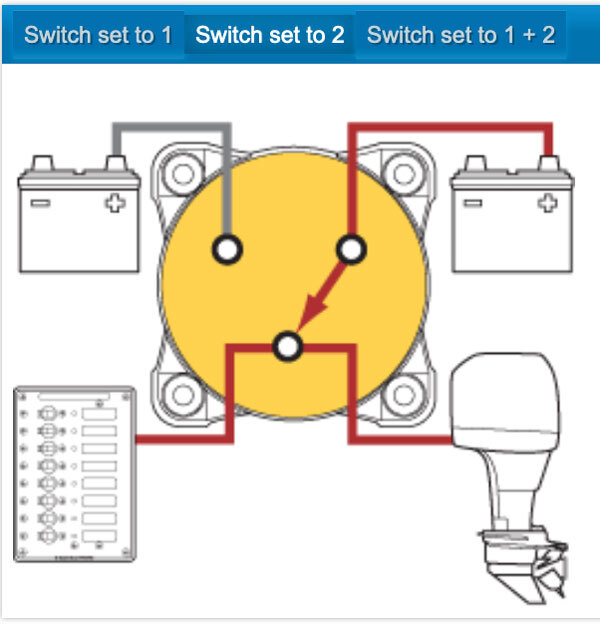

Switches isolated battery banks to all loads or combines battery banks to all loads

Make before break contact design allows switching between battery banks without power interruption

300 Amps continuous rating for outboards and small gasoline or diesel engines.

  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • One-piece stainless flange nuts ensure safe and secure connections

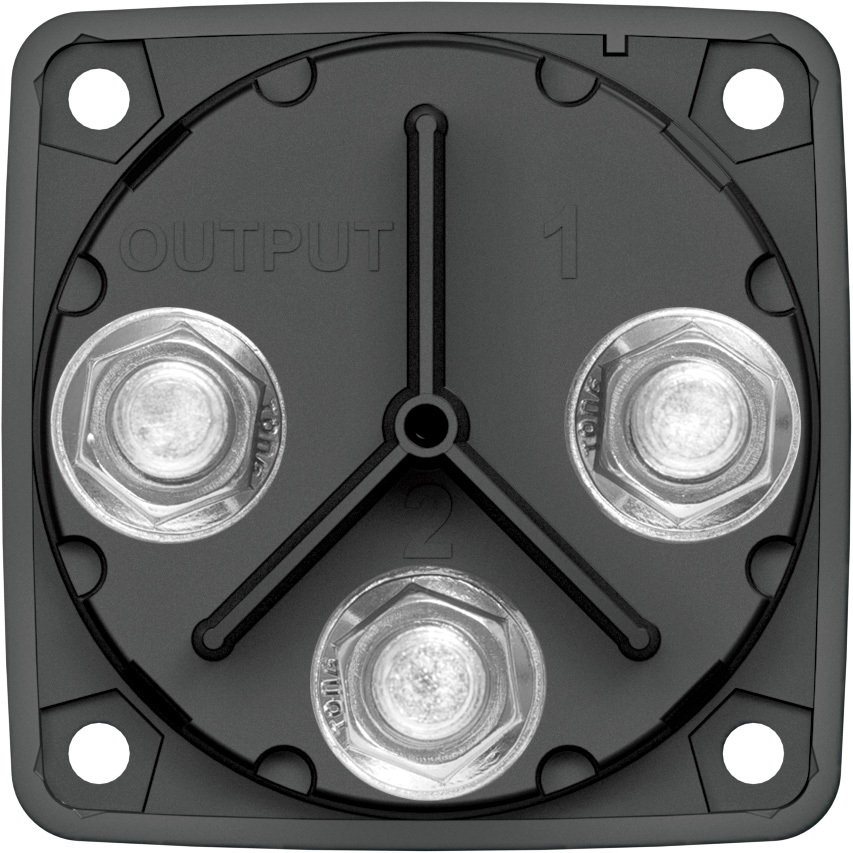

  • Isolating cover protects rear contacts
  • Breakout tabs allow wire access in any direction
  • Waterproof – rated IP66 from water projected in powerful jets
  • Meets American Yacht and Boat Council E-11 requirements.
  • CE approved
  • ISO 8846 Marine
  • UL 1107 Electric Power Systems
  • UL 1500
  • SAE J1171 Marine
Switch Type Selector 4 Position
Switch Family m-Series
Switch Colour Red
Function Switches isolated battery banks to all loads or combines battery banks to all loads
Battery Inputs 2
Switch Positions 4
Battery Combine Yes
Make Before Break Yes
Maximum Voltage 32VDC
Continuous Rating 300A
Intermittent Rating 500A
Cranking Rating (30 Sec) 900A
Stud Material Tinned Copper
Stud Size 3/8" (M10)
Stud Torque 120 in-lb (13.56Nm)
Cable Size to Meet Ratings* 4/0 AWG (120 mm²)
IP Rating IP66
Weight 0.65lb (0.29kg)

*Reducing cable size will reduce current rating
