Battery switches isolate the potentially destructive energy in the battery banks when the vehicle is not in use or during emergencies.

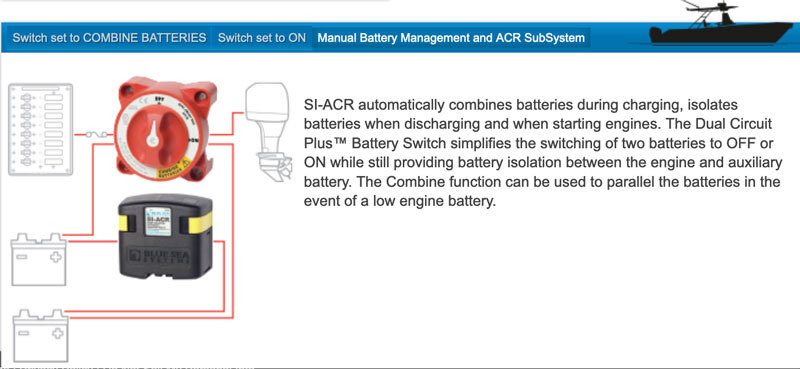

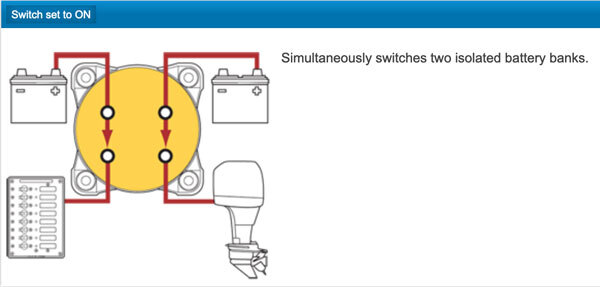

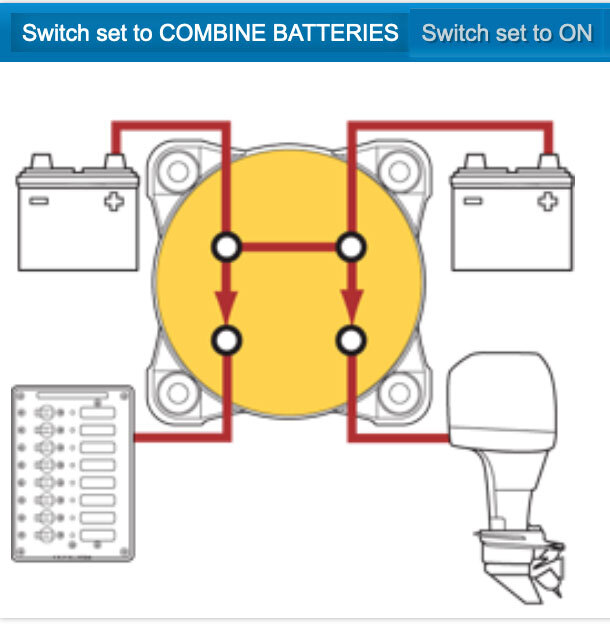

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Make before break contact design allows switching between battery banks without power interruption

300 Amps continuous rating for outboards and small gasoline or diesel engines.

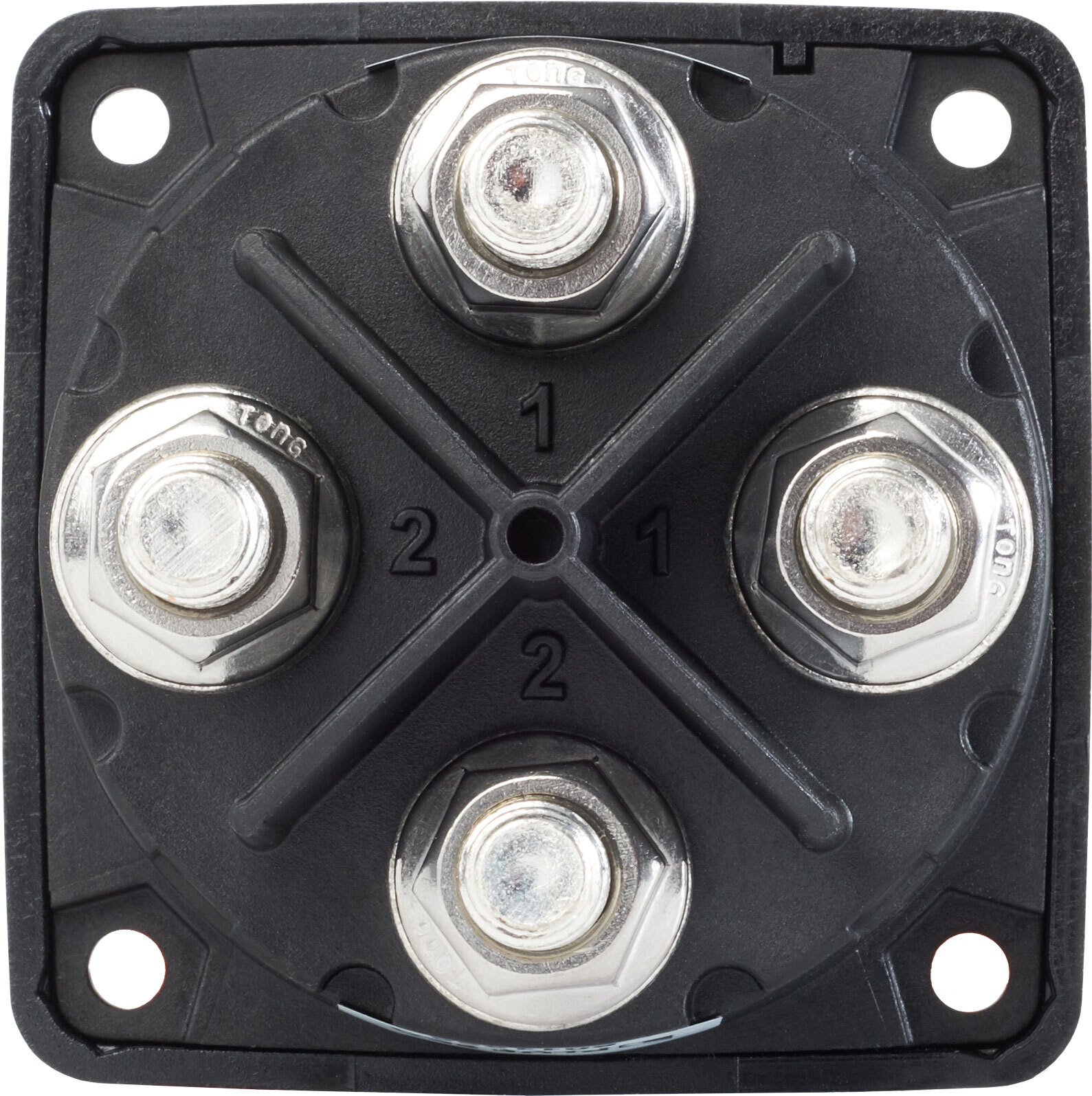

  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • One-piece stainless flange nuts ensure safe and secure connections

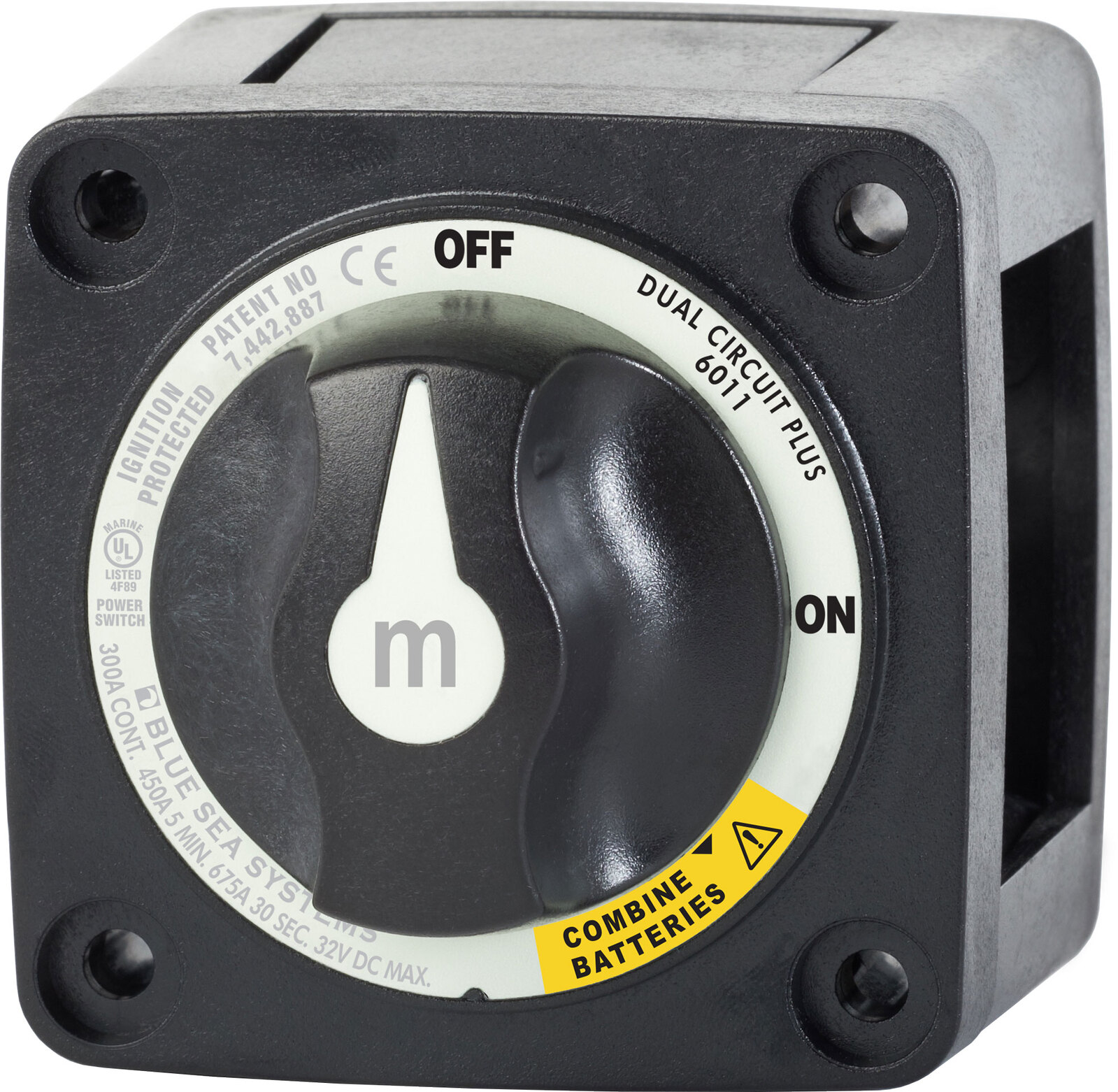

  • Isolating cover protects rear contacts
  • Breakout tabs allow wire access in any direction
  • Waterproof – rated IP66 from water projected in powerful jets
  • Meets American Yacht and Boat Council E-11 requirements.
  • CE approved
  • ISO 8846 Marine
  • UL 1107 Electric Power Systems
  • UL 1500
  • SAE J1171 Marine

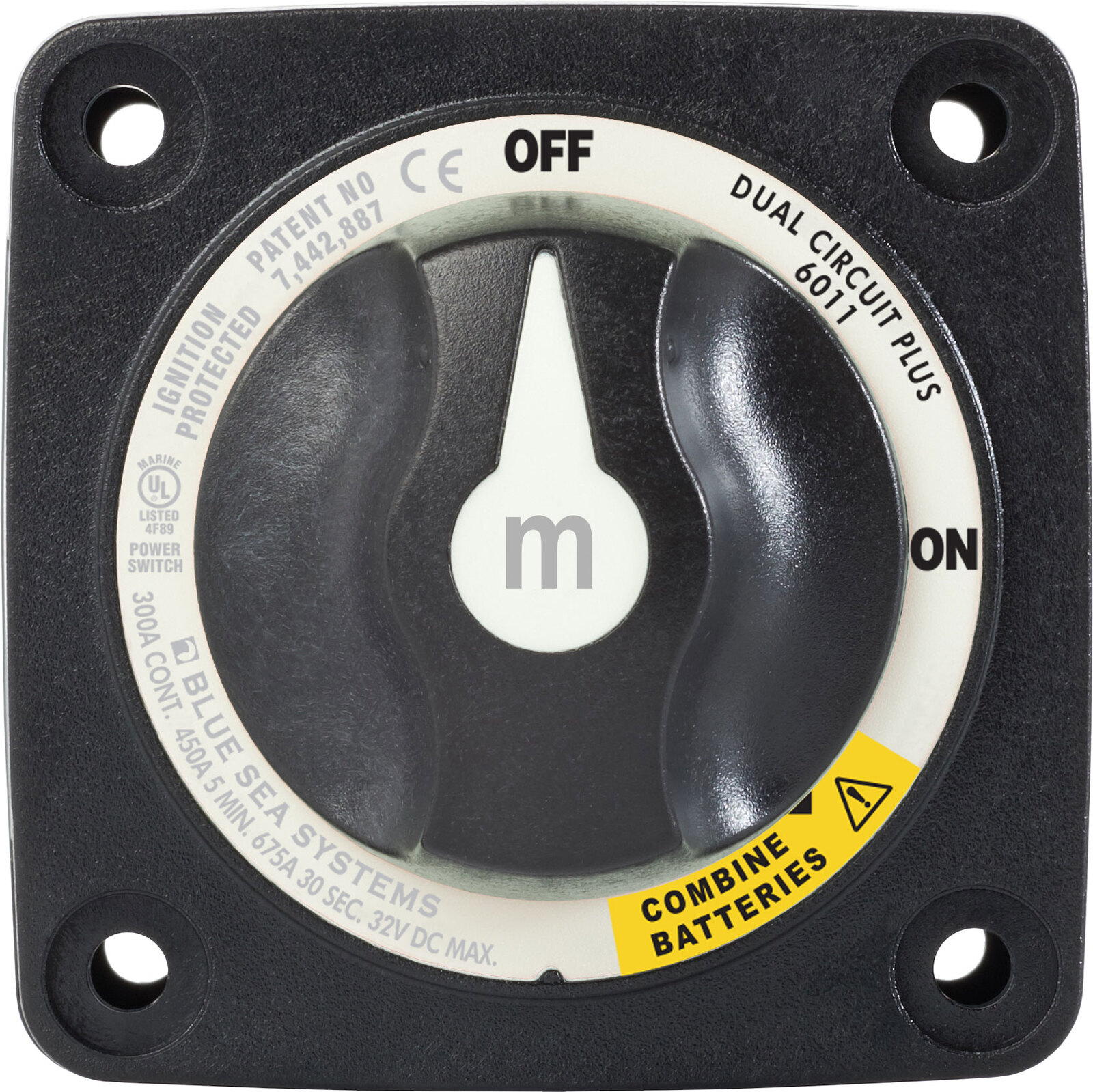

Switch Type Dual Circuit Plus
Switch Family m-Series
Switch Colour Black
Function Simultaneously switches two isolated battery banks or combines battery banks to all loads
Battery Inputs 2
Switch Positions 3
Battery Combine Yes
Make Before Break Yes
Maximum Voltage 32VDC
Continuous Rating 300A
Intermittent Rating 450A
Cranking Rating (30 Sec) 675A
Stud Material Tinned Copper
Stud Size 3/8" (M10)
Stud Torque 120 in-lb (13.56Nm)
Cable Size to Meet Ratings* 4/0 AWG (120 mm²)
IP Rating IP66
Weight 0.65lb (0.29kg)

*Reducing cable size will reduce current rating

SKU 632085601126
Barcode # 6011200-BSS
Brand Blue Sea Systems
Shipping Weight 0.4500kg
Shipping Width 0.180m
Shipping Height 0.090m
Shipping Length 0.100m
Shipping Cubic 0.001620000m3
