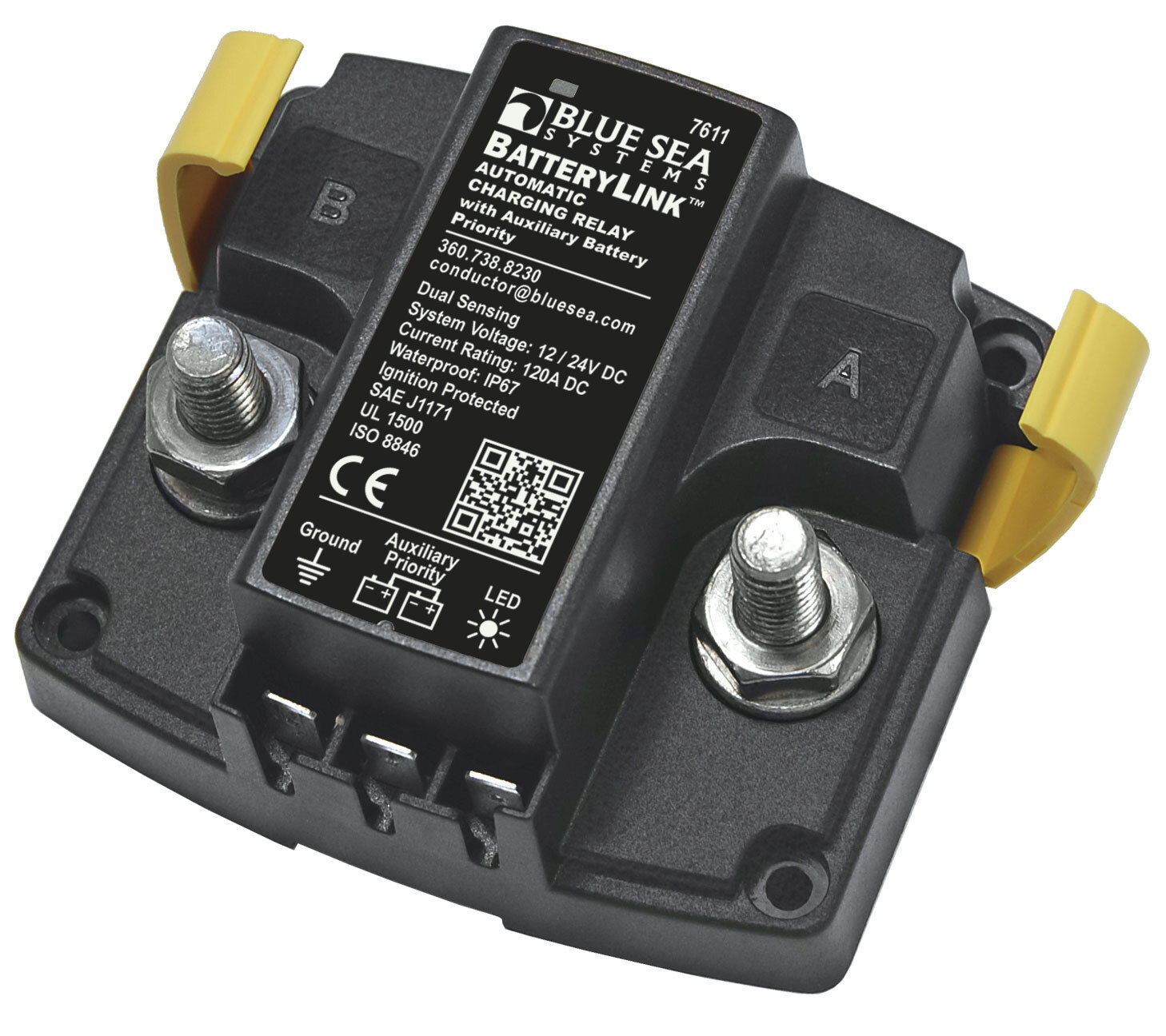

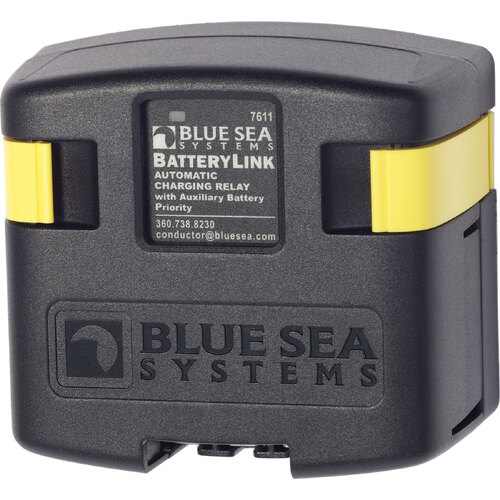

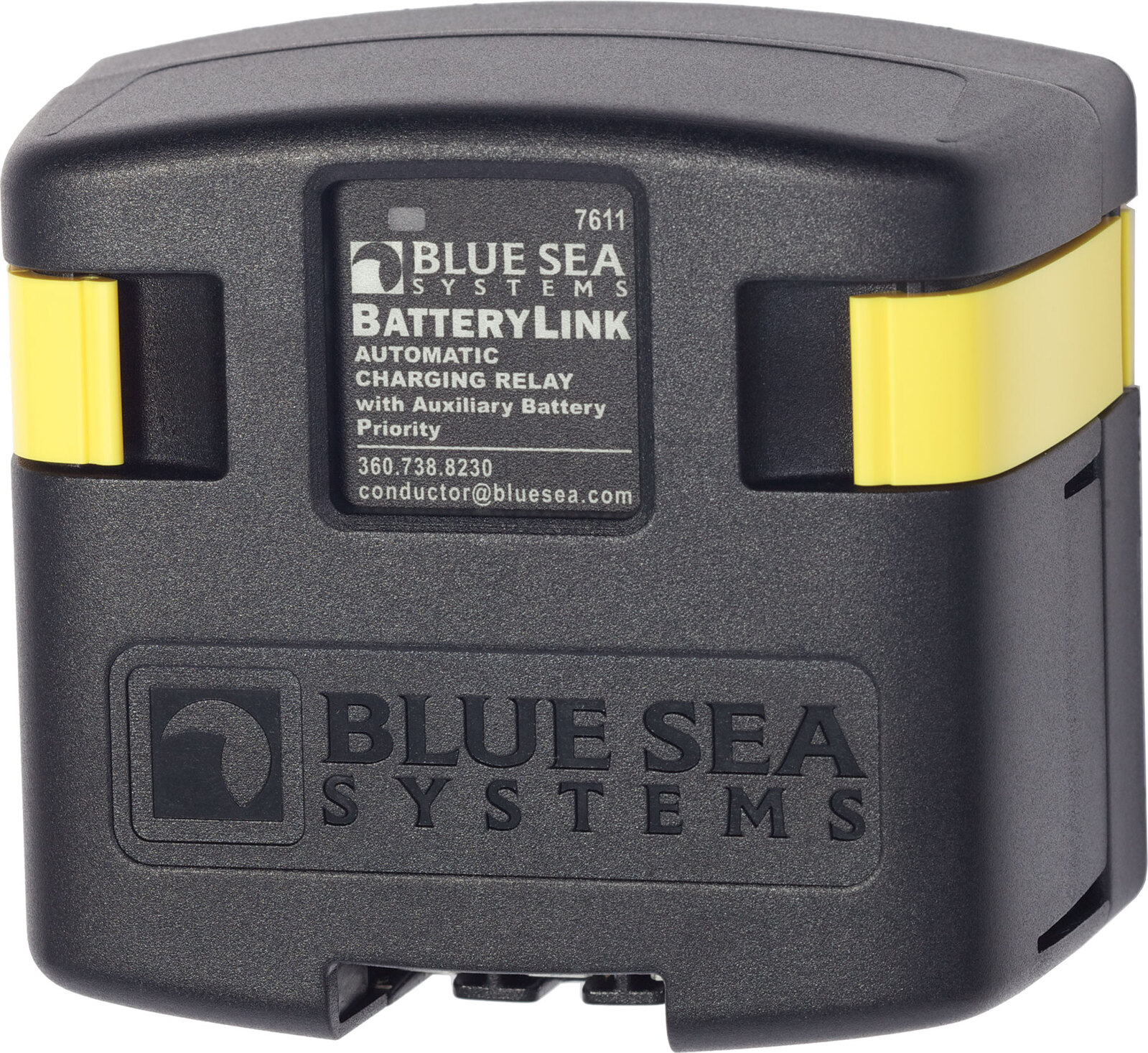

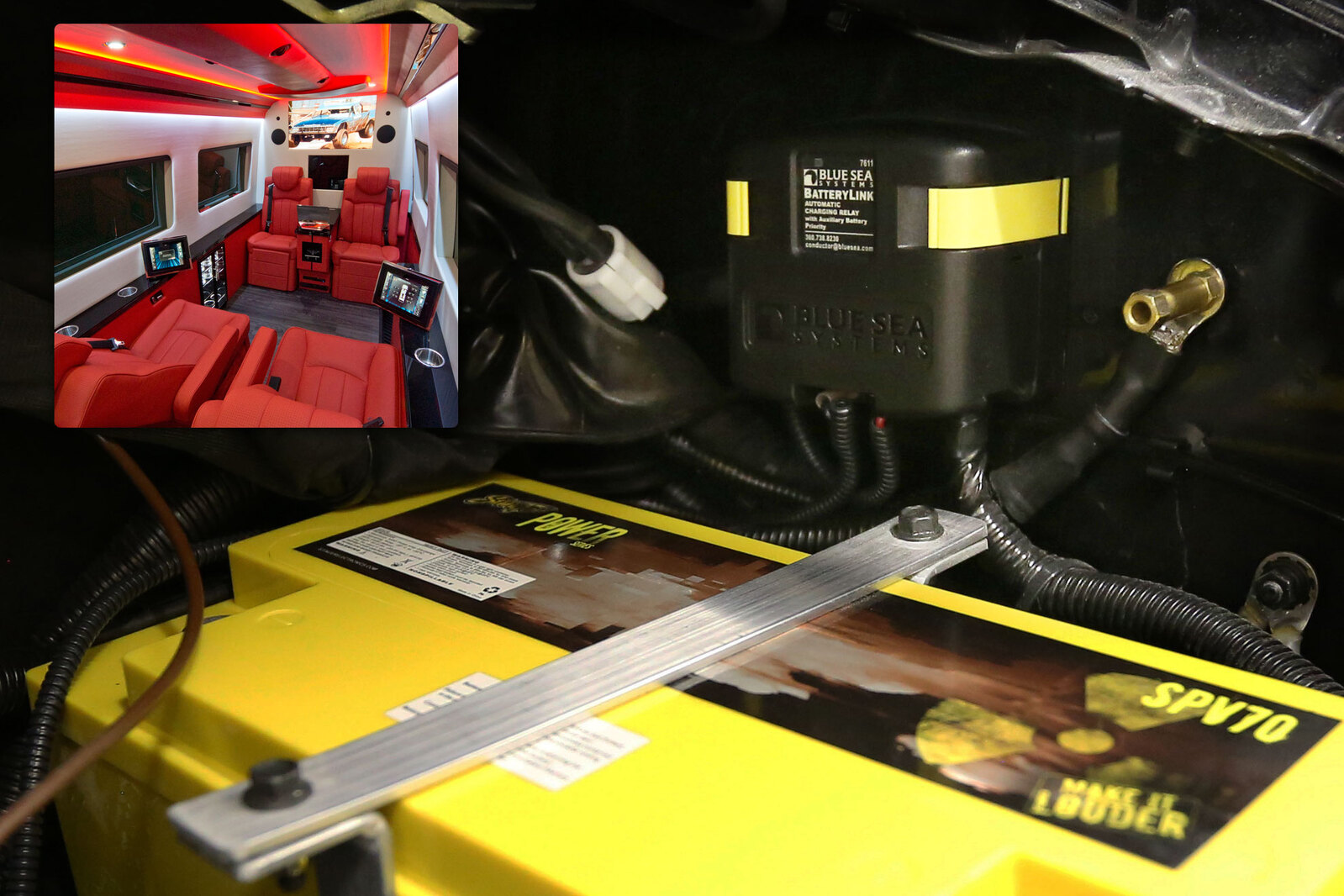

Blue Sea 7611 BatteryLink 120A 12/24V Automatic Charging Relay
Blue Sea 7611 BatteryLink 120A 12/24V ACR
Automatically shares single source of charge with Auxiliary Battery
Features
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7∕8" (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1∕4" × .032" male quick connect terminals for ground and optional features
- Largest battery bank cannot exceed Group 27
Optional Features
- Optional Auxiliary Battery Priority connection shares the alternator charge with the Auxiliary battery longer when the engine is running to allow the use of auxiliary loads for an extended period of time
- Remote LED remotely indicates ACR states - requires optional LED
| Nominal Voltage | 12V DC / 24V DC |
|---|---|
| Start Isolation (1) | Yes |
| Amperage Operating Current | 175mA (Combine) 15mA (Open) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating (2) | 120A |
| Intermittent Rating (3) | 210A (5 min) |
| Cable Size to Meet Ratings | 1/0 AWG |
| Maximum Cable Size | 1/0 AWG |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Ring Diameter Clearance | 1.12in (28.45 mm) |
| Relay Contact Position | |
| Combine 30 sec | 13.6V @ 12 V / 27.2V @ 24 V |
| Combine 2 Mins | 13.0V @ 12 V / 26.0V @ 24 V |
| Over Voltage Lockout | 16.0V @ 12V / 32.0V @ 24V |
| Open Low | 12.75V @ 12 V / 25.5V @ 24 V |
| Auxiliary Priority | |
| Open Low | 12.25V @ 12 V / 24.5V @ 24 V |
| Weight | 1.25lb (0.57 kg) |
1) Condition: Engine starting
- Relay is open isolating batteries
- Batteries are isolated to protect sensitive electronics from voltage sags and spikes
2) The maximum current a switch is designed to conduct for an indefinite period.
3) The maximum amount of current a switch is designed to carry for a minimum of a designated period of time.
4) As a safety feature, some ACR's prevent combining into a severely discharged battery. A dual-sensing ACR will monitor the voltage on both batteries and will not connect if either battery is below the under voltage lockout level. Use caution when combining into a battery with extremely low voltage, because this might represent a faulty battery or a problem elsewhere in the system.
| SKU | 632085076115 |
| Barcode # | 7611-BSS |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.090m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.003024000m3 |
