Battery switches isolate the potentially destructive energy in the battery banks when the vehicle is not in use or during emergencies.

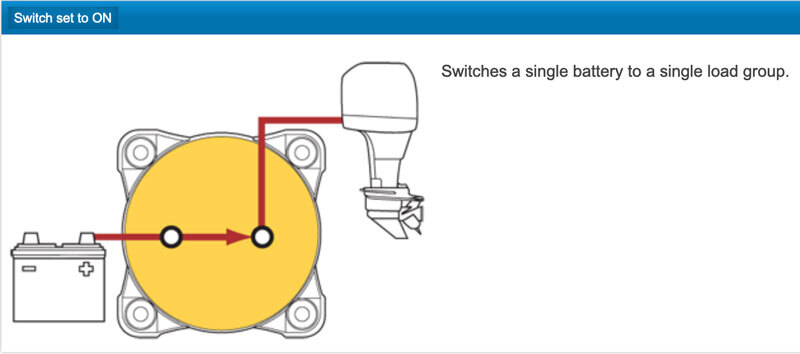

Switches a single battery to a single load group

Includes AFD (Alternator Field Disconnect

Ignition protected—safe for installation aboard gasoline powered boats

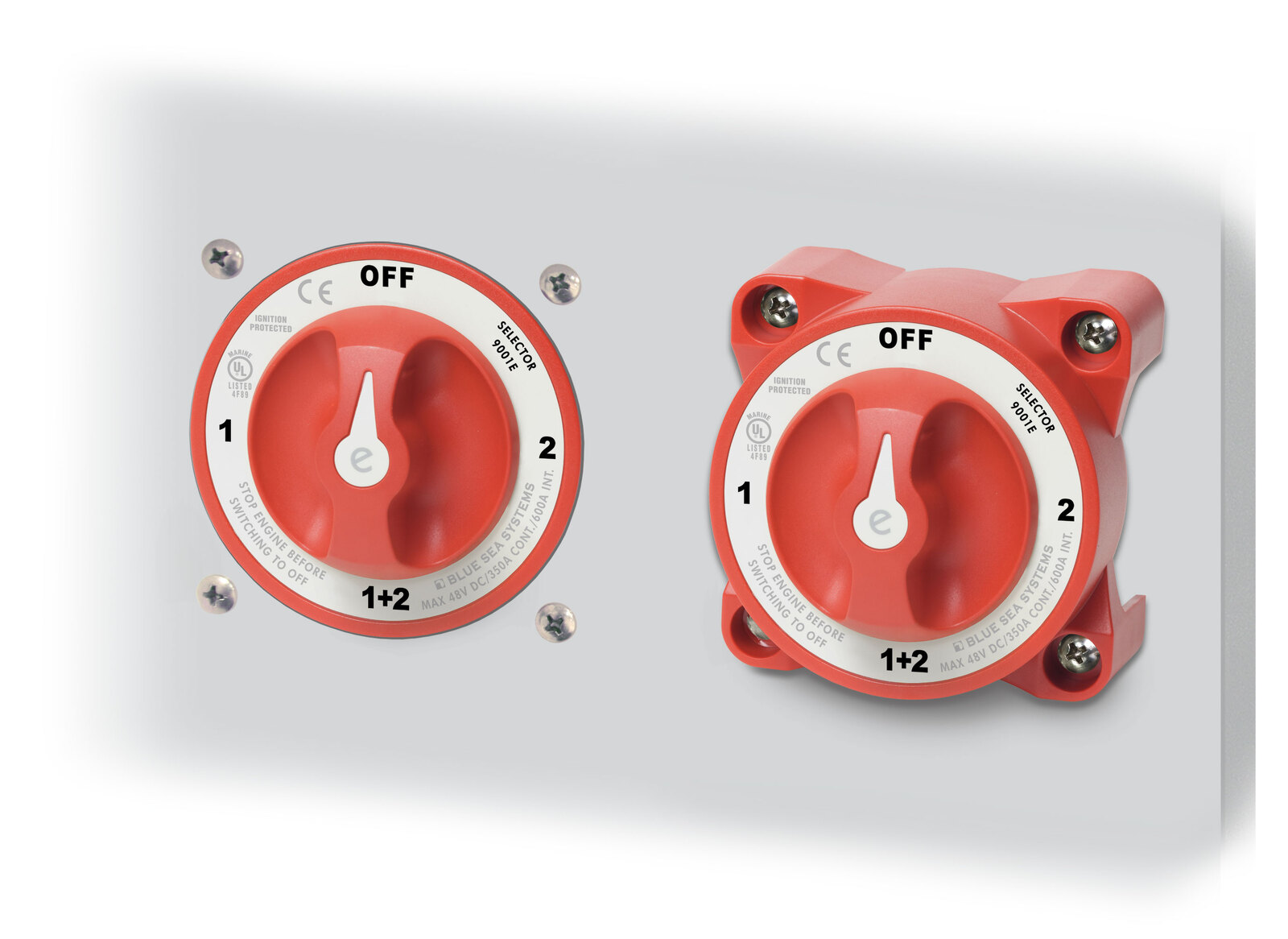

Case design allows surface or rear panel mounting

350 Amps continuous rating for outboards and small gasoline or diesel engines.

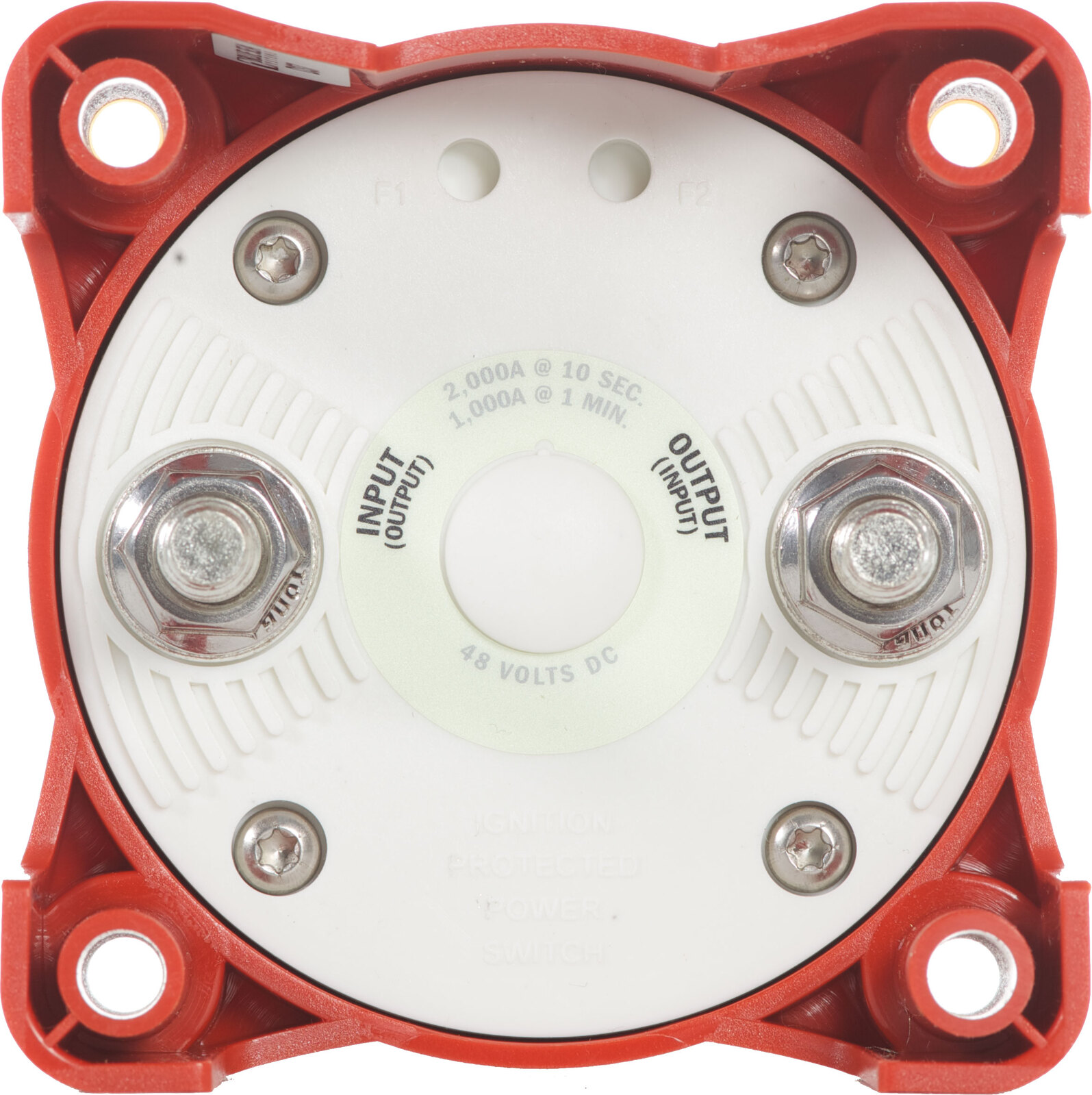

  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 3/8" (M10) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns
  • Case design allows surface, rear, or front panel mounting options
  • Tactile indicator conveys knob position by feel
  • Waterproof – rated IP66 from water projected in powerful jets
  • Meets American Yacht and Boat Council E-11 requirements.
  • CE approved
  • ISO 8846 Marine
  • UL 1107 Electric Power Systems
  • UL 1500
  • SAE J1171 Marine

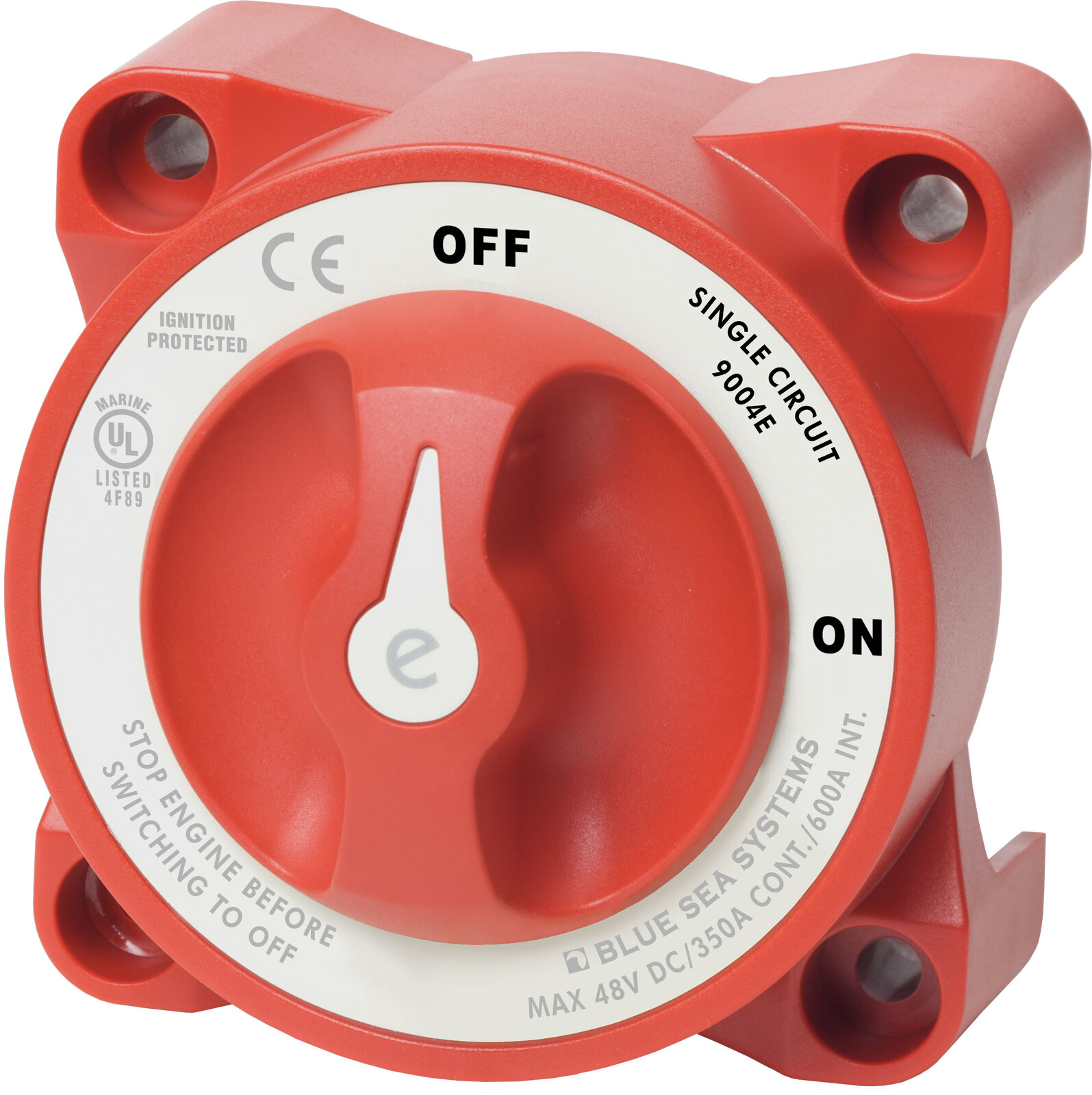

Switch Type Single Circuit On/Off
Switch Family e-Series
Switch Colour Red
Function Switches a single battery to a single load group
Battery Inputs 1
Switch Positions 2
Battery Combine N/A
Make Before Break N/A
Alternator Field Disconnect Yes
Maximum Voltage 48VDC
Continuous Rating 350A
Intermittent Rating 600A
Cranking Rating (30 Sec) 1200A
Stud Material Tinned Copper
Stud Size 3/8" (M10)
Stud Torque 140 in-lb (15.82Nm)
Cable Size to Meet Ratings* 4/0 AWG (120 mm²)
IP Rating IP66
Weight 1.30lb (0.59 kg)

*Reducing cable size will reduce current rating

SKU 632085900458
Barcode # 9004e-BSS
Brand Blue Sea Systems
Shipping Weight 0.6000kg
Shipping Width 0.220m
Shipping Height 0.080m
Shipping Length 0.170m
Shipping Cubic 0.002992000m3
