Rechargeable Lithium LiFePO4 high power modules to handle anything SLA can. Get 100% capacity utilisation at less than half the weight.

Advanced battery technology for cyclic and motive power applications such as mobility, recreational caravan & RV, marine, medical equipment, solar applications and more.

  • Deep cycle power rechargeable lithium batteries with over 2000 cycles to 100% DoD in industrial or high drain applications.
  • All the power without the bulky weight of Lead Acid battery equivalents.
  • High rate discharge capable and superior total capacity utilisation (up to 100% DoD) with a flat discharge curve for strong, consistent power delivery.
  • Low self discharge and long storage life with no risk of sulphation.
  • Integrated layers of safety to IEC62133-2:2017 and UN38.3 standards at the cell level as well as BMS level protection against over charge, over voltage, under voltage and over temperature. Enclosed in IP5x/IP6x rated protective case for better durability in harsh environments.


  • Long Service Life & Reliability - >2000 cycles @100% DoD (25°C) to 80% of original capacity - longer service life than SLA to reduce maintenance costs.
  • High Energy Density - More Power Wh/kg - Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint.
  • Robust Enclosure - Enclosed in IP5x (dust resistant) or IP6x (dust tight) case with closed loop terminals - suitable for harsh environments.
  • Stable Chemistry & Built-in Circuit Protection - IEC & UN38.3 Safety Certified at cell level and integrated BMS protection to ensure safety and prevent damage.
  • Lightweight - Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns.
  • Superior Charge & Discharge Efficiency - Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging.
  • Wide Operating Temperature Tolerance - Suitable for use in a wider range of applications where ambient temperature is atypical: from 20°C up to +60°C.
  • Better Shelf Life - Storage is not a problem thanks to extremely low self discharge (LSD) and no risk of sulphation.
  • Fully Recyclable Battery - An environmentally friendly battery option, with no lead or calcium that can leak into the enviroment.
  • Battery Management System - All Drypower Rechargeable Lithium batteries adhere to strict safety guidelines by incorporating Battery Management Systems (BMS) into each battery.

The BMS comprises different protection components:

  • Integrated Circuit (IC)
  • MOSFET - compact transistor
  • Fuse - protects against excessive current
  • Thermistor - temperature sensor
  • Protection Circuit Module (PCM)

The inclusion of a BMS helps to:

  • Maintain safety for users.
  • Prevent damage to equipment and property.
  • Eliminate concerns about use of the wrong charger for this chemistry type.
  • Minimise the risk of overdischarge causing damage.
  • Provide short circuit and overcharge protection.
  • The BMS ensures optimal operating conditions for your battery to last longer and perform at its best in your devices and equipment

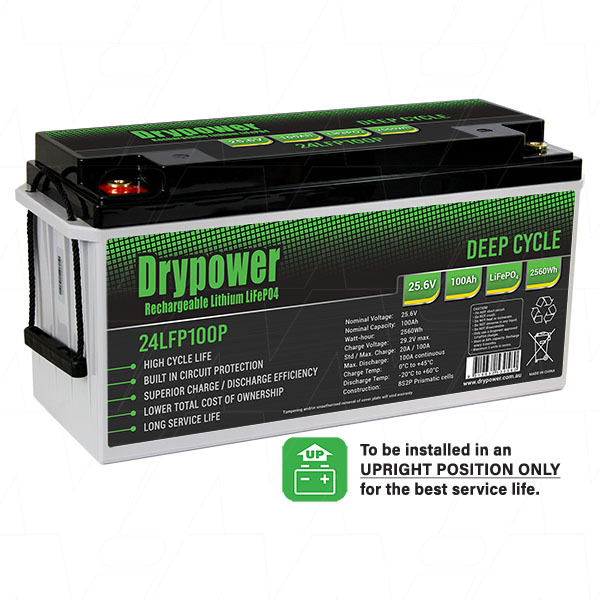

Model 24LFP100P
Nominal Voltage 25.6v
Nominal Capacity 100Ah (2560Wh)
Cycle Life (DOD - 80% under controlled conditions)
>2000 cycles (100% DoD)
>3000 cycles (80% DoD)
>4000 cycles (50% DoD)
Maximum Charge Voltage 28.4V - 29.2V (28.8V recommended)
Maximum Cont. Charge Current 100A
Recommended Charge Current for Maximum Life 20A
Maximum Cont. Discharge Current 100A
Discharge Cut-Off Voltage 20v
Operating Discharge temperature -20 to 60°C
Operating Charge temperature -0 to 45°C
Storage temperature -20 to 45°C
IP Rating
IP64 Rating
Series* Connection Allowed Up to 2S
Parallel* Connection Allowed No
Dimensions (L x W x H) 490 x 170 x 240mm
Weight Approx. 21.2KG



Barcode # 24LFP100P
Brand Drypower
Shipping Weight 22.0000kg
Shipping Width 0.520m
Shipping Height 0.280m
Shipping Length 0.200m
Shipping Cubic 0.029120000m3
