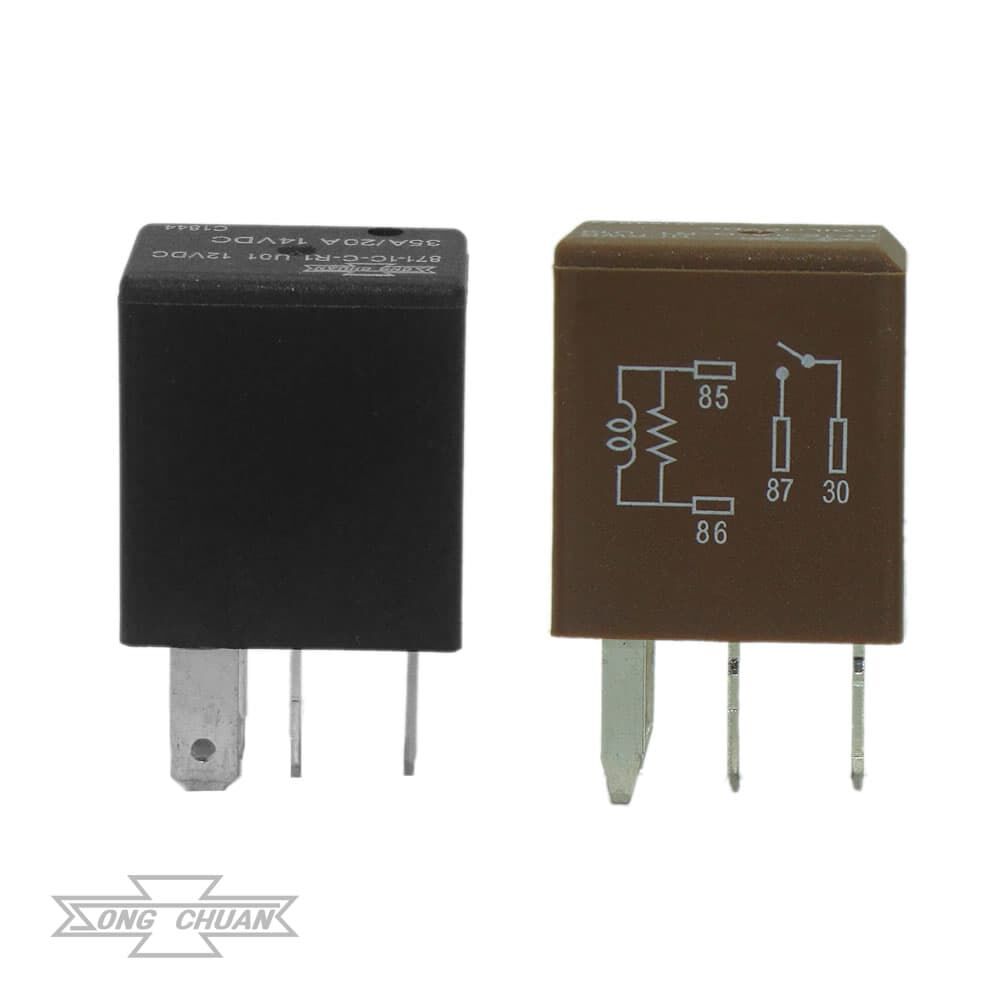

871 Automotive 35A Plug In ISO Micro Relay

Song Chuan Part Series: 871 | Competitor Series: CM | VFM V23074 | G8H | HFV6

Part Series: 871

  • Contact Configuration 1A 1C
  • Contact Rating(Resistive Load) NO: 35A 14
  • VDC; 15A 28VDC; NC: 20A 14VDC; 1-A 28VDC
  • Coil Voltage DC: 9 12 24V
  • Power Consumption DC: 1.2W

Features

  • Micro ISO Automotive Relay.
  • SPNO and SPDT contact configurations.
  • NO contacts switch 35A resistive load, NC contacts switch 20A resistive load, 100,000 ops. 23°C.
  • Operating ambient temperature -40°C to 125°C.
  • Available with plain cover or skirted cover.
  • Optional resistor or diode for coil transient suppression.
  • Complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC
SKU RELM12C
Shipping Weight 0.0200kg
Shipping Width 0.030m
Shipping Height 0.020m
Shipping Length 0.040m
Shipping Cubic 0.000024000m3
