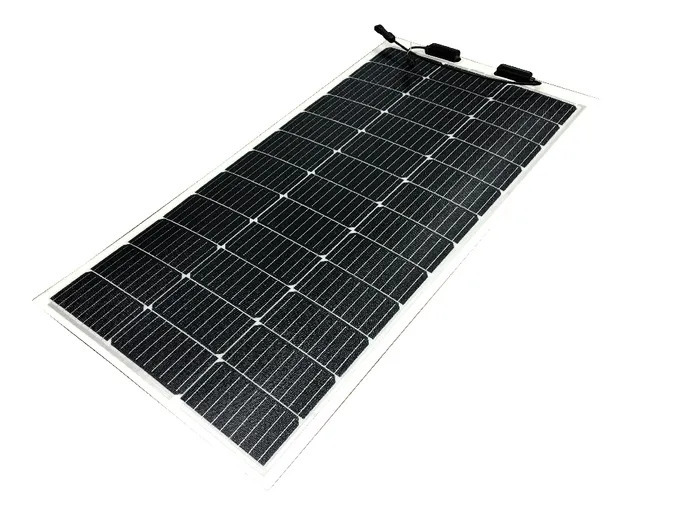

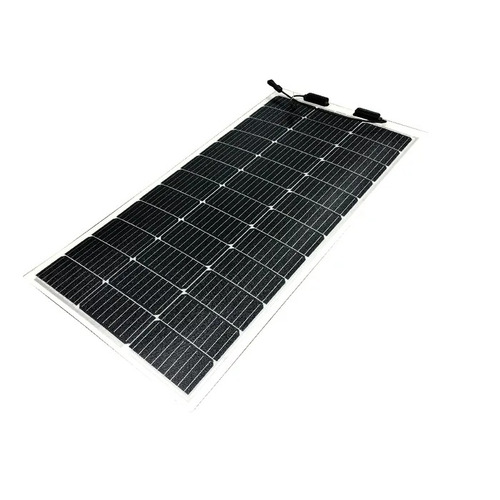

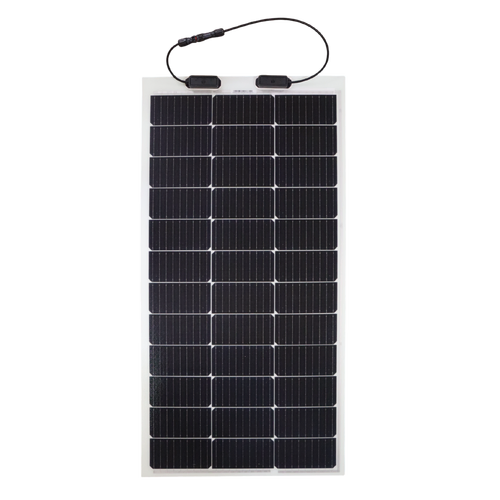

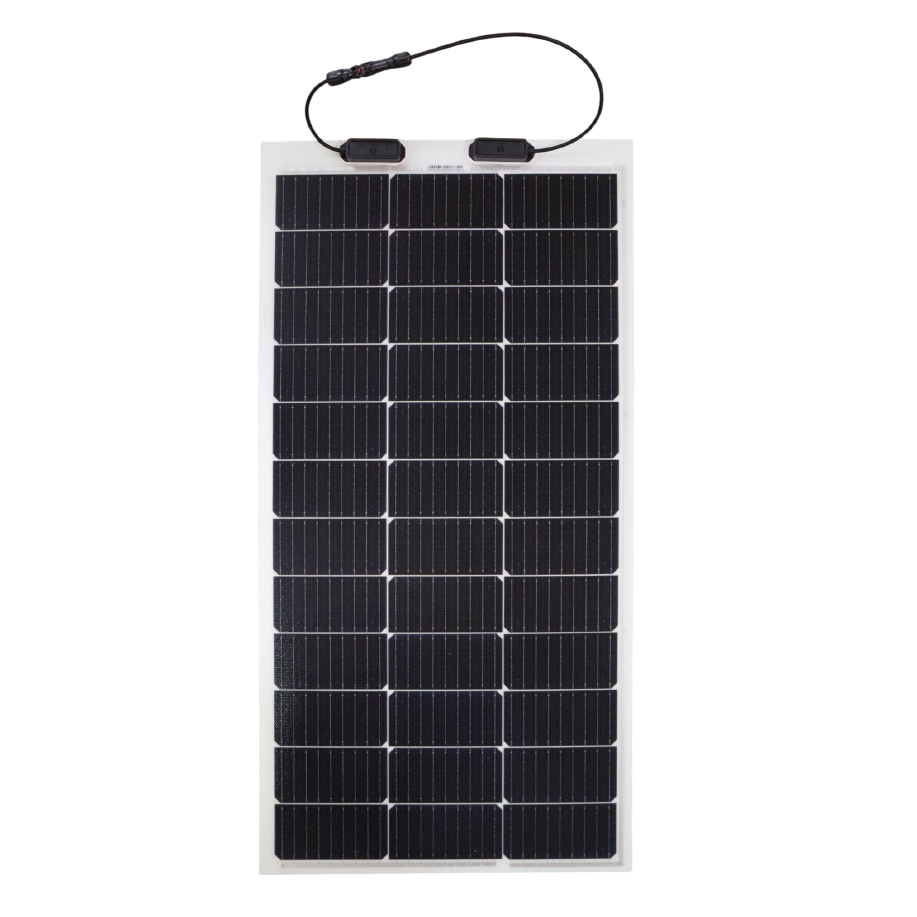

Sunman eArc 12v 100w Flexible Solar Panel
eArc 12v 100w Solar Panel 1093 x 582 x 2mm - 2.1KG
Solar Panel Sunman eArc Light Weight Solar Panel 100w - 1093 x 582 x 2mm - 2.1KG
Sunman eArc 100W Flexible Solar Panel - Compact and Efficient Mono-PERC Solar Panels
Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.
Sunman eArc is a light weight and ultra-thin solar panel made with a fibreglass reinforced composite material similar to aircraft windows, and 75% lighter than conventional solar panels, making it far less costly to transport and install. Sunman eArc light weight solar panels are ideal for caravans, motorhomes, RV’s, Buses, 4WDs, boats, yachts and even trains. Yes trains, in fact the Sunman eArc panels are used on the world’s first solar powered train in our own Byron Bay, NSW.
eArc solar panels are also the first light weight solar panel approved for off grid use by the Clean Energy Council of Australia, meeting the same durability tests that conventional glass solar panels must (IEC61215:2016) as inuse on many home and commercial applications in Australia including the Sydney Maritime Museum Heritage Building.
Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass. Explore the 'About Sunman' tab for more details.
Key Features:
- Ultra-light - Sunman eArc weighs around 75% less than conventional PV panels. Panels measure just 2mm with a 100watt panel weighing just 2.1kgs.

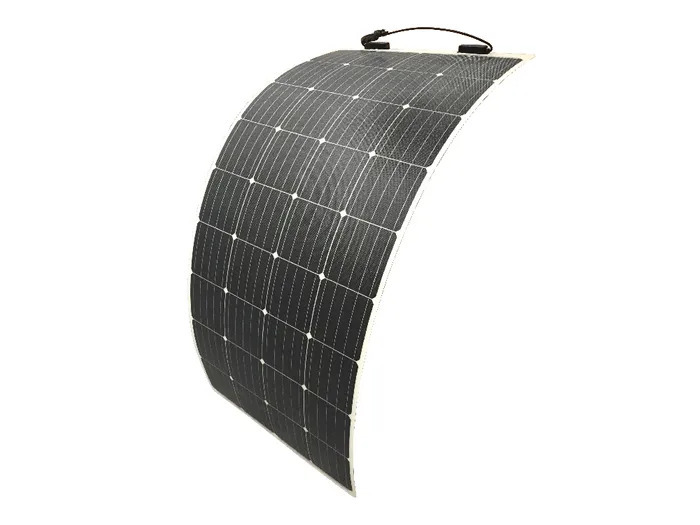

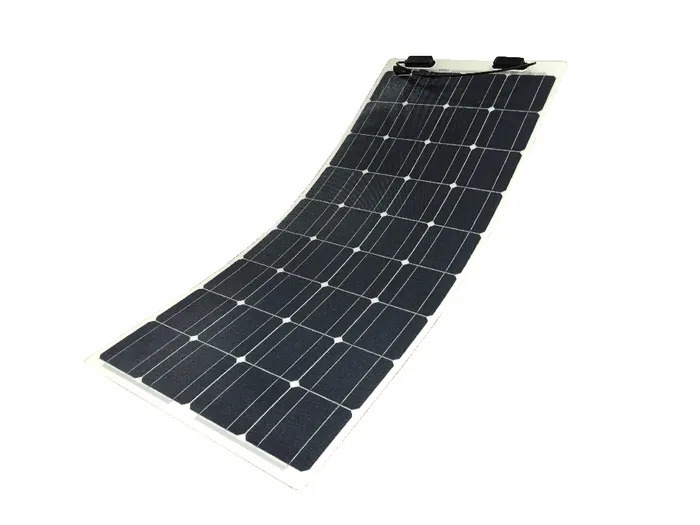

- Flexible - Sunman eArc combines a unique, patented material to produce a superior flexible crystalline-silicon/panel which can be installed on curved surfaces.
- Easy Installation - Sunman eArc can reduce installation cost through ease of handling and faster installation, without the added cost of mounting hardware.
- Durability - Sunman eArc panels are certified to withstand maximum test load (2400 Pascal) and hail tested with 200g/35mm diameter ice stones at 39.5m per second.
- Warranty - 5 Year Warranty.
Optional Mounting Solutions: (Made to Order)
Multiple mounting options available direct from Supplier, ensuring a secure and efficient installation that meets your specific needs. Please carefully follow the mounting instructions here which include the below:
- Vented Gap Kit: Improves panel efficiency and reduces surface heating. Includes high bond double-sided adhesive tape and polycarbonate strips. (Height increase of approximately 15mm)
- High Bond Double-Sided Adhesive Tape: Provides a low-profile, secure bond for smooth surfaces. (2.3mmH x 12mmW x 16.5mL)
- Bi-Adhesive Backing: We can fit a continuous sheet of 1mm bi-adhesive material on the back of the panel for easy peel-and-stick installation on smooth surfaces.
- Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
- Eyelets: We can press eyelets into the panel so it can be secured using bolts or screws.
Experience the difference of Sunman eArc solar panels for yourself, and join the countless satisfied customers who have made the switch to a more sustainable and efficient energy solution.
RATED VOLTAGE: | 12V |
---|---|
CELL TYPE: | Mono (166 half cells) |
NO. OF CELLS | 36 (3x12) |
FRAME: | Frameless |
RATED POWER: | 100W |
OPEN CIRCUIT (VOC): | 25.2V |
SHORT CIRCUIT CURRENT (ISC): | 5.12A |
PEAK POWER VOLTAGE (VMP): | 21.2V |
PEAK POWER CURRENT (IMP): | 4.75A |
PANEL DIMENSIONS (MM): | 1093 x 582 x 2mm |
GROSS WEIGHT (KG): | 2.1KG |
- Sunman recommends the use of Sikasil SG-20 or Fixtech Fix8 construction adhesive product to secure the eArc Panels. If using a Silicon based adhesive such as SG20 or Fix8, apply the product in strips running the width of the panel underneath each cell gap. Do not seal around the edge of the panel as this will trap air under the panel which will expand as the panel heats up, causing damage to both the panel & mounting surface
SKU | SPE100 |
Brand | Sunman |
Shipping Weight | 2.1000kg |
Shipping Width | 1.300m |
Shipping Height | 0.010m |
Shipping Length | 0.600m |
Shipping Cubic | 0.007800000m3 |
