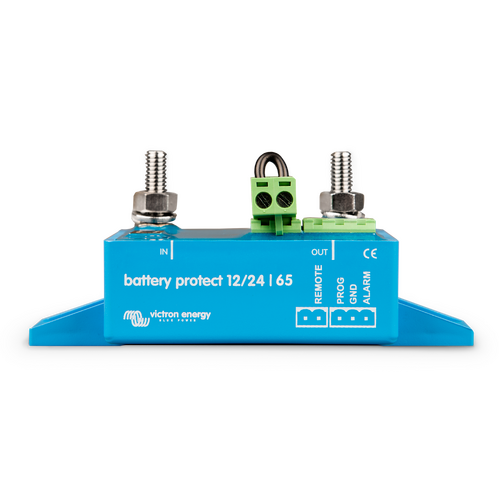

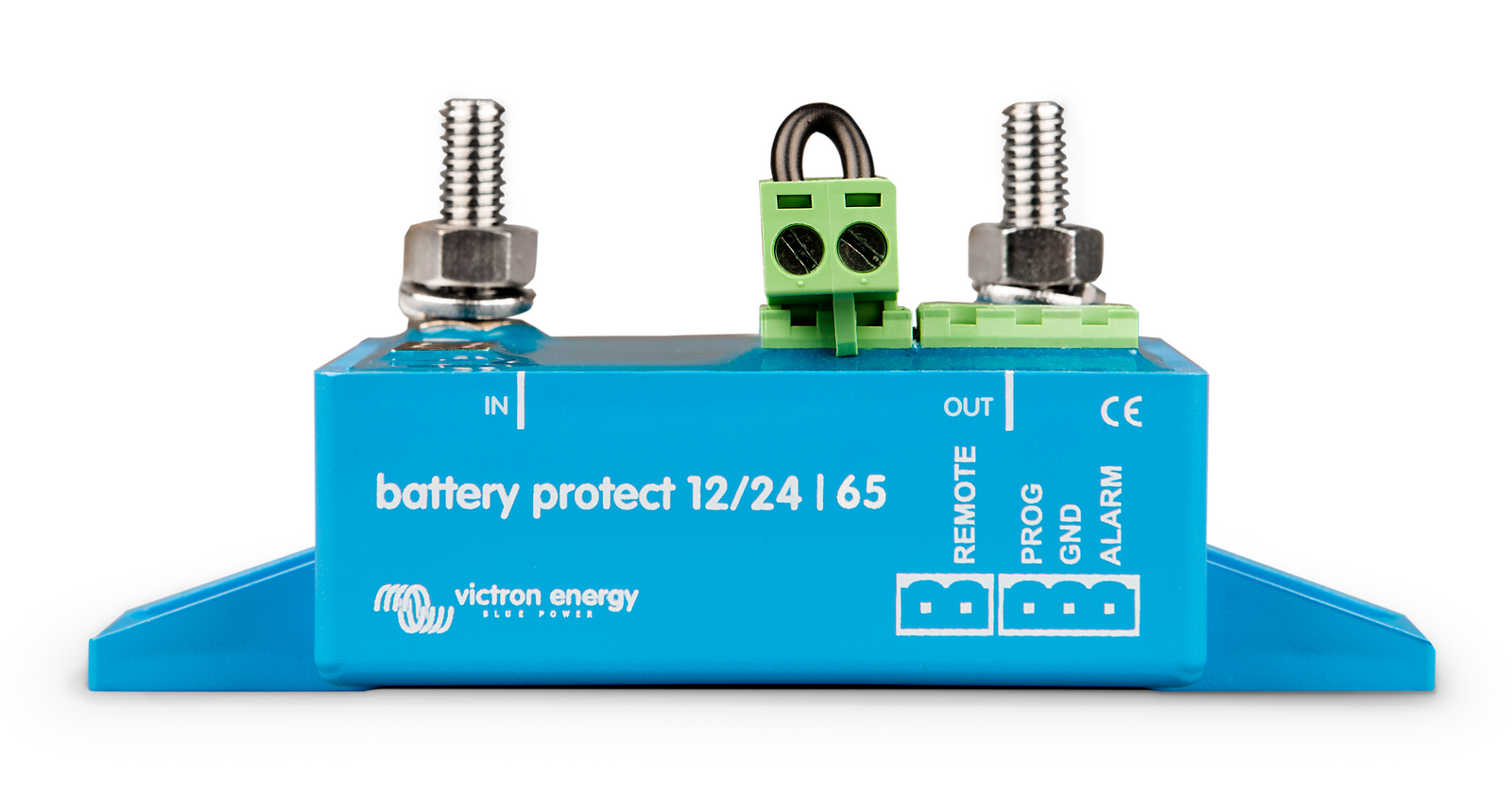

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.

12/24V auto ranging
The BatteryProtect automatically detects system voltage

Programming made easy
The BatteryProtect can be set to engage / disengage at several different voltages.

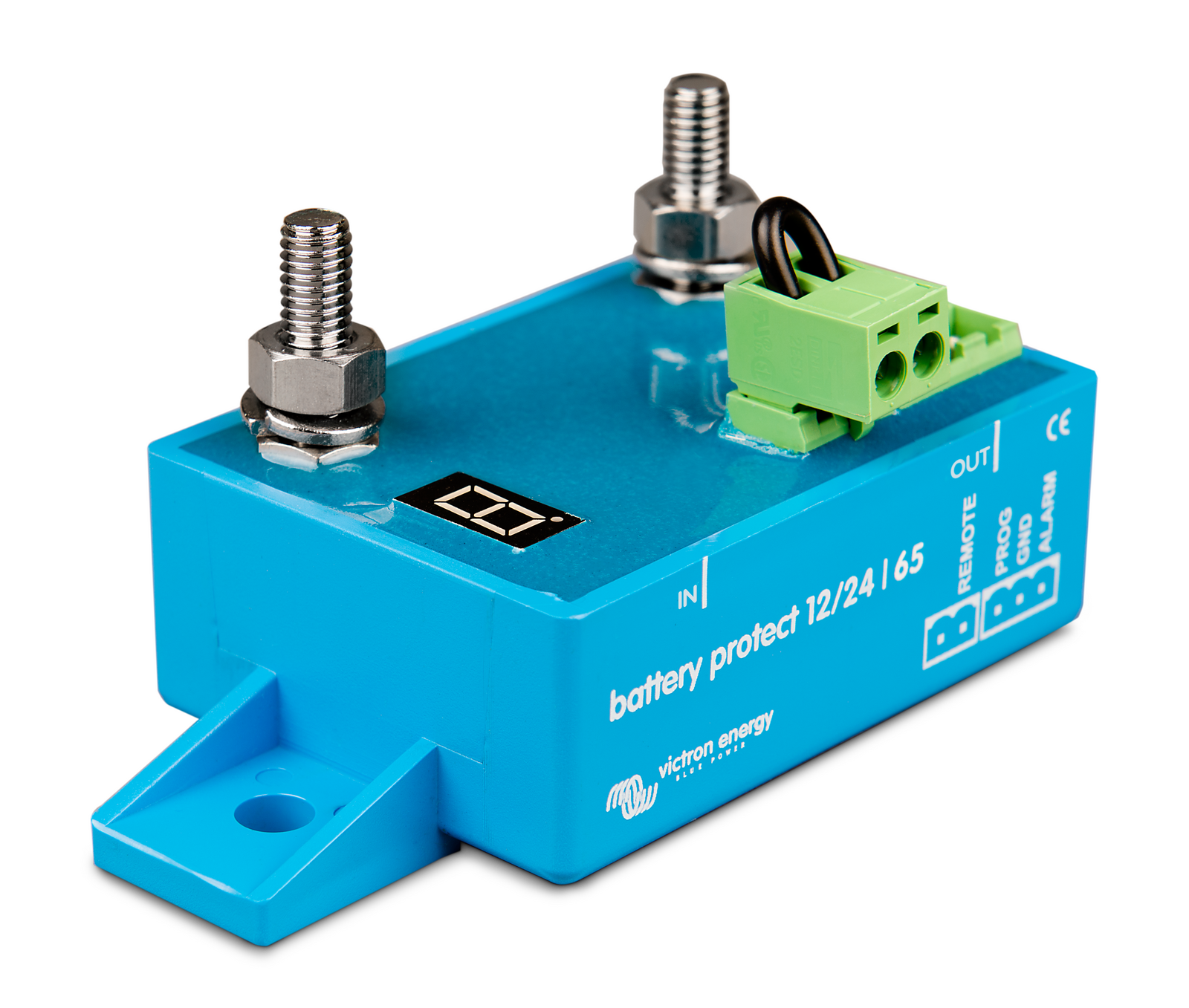

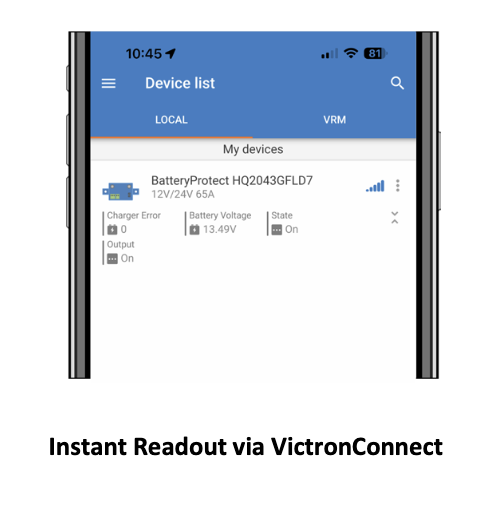

The seven segment display will indicate which setting has been chosen.

A special setting for Li-ion batteries
In this mode the Battery Protect can be controlled by the VE.Bus BMS.

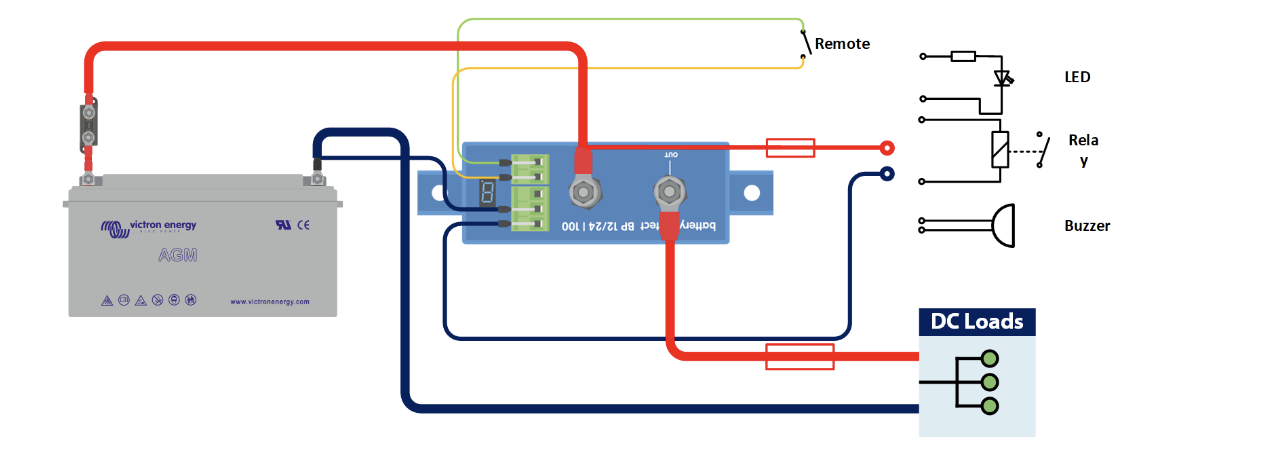

Note: the Battery Protect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual.

Ultra low current consumption
This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.

Over voltage protection
To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16V respectively 32V.

Ignition proof
No relays but MOSFET switches, and therefore no sparks.

Delayed alarm output
The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50mA. The alarm output is typically used to activate a buzzer, LED or relay.

Delayed load disconnect and delayed reconnect
The load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected.
The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

Maximum continuous load current 65A
Peak current (during 30 seconds) 250A
Operating voltage range 6 - 35V
Current consumption When on: 1.5 mA When off or low voltage shutdown: 0.6 mA
Alarm output delay
12 seconds
Maximum load on alarm output
50 mA (short circuit proof)
Load disconnect delay
90 seconds (immediate if triggered by the VE.Bus BMS)
Load reconnect delay
30 seconds
Default thresholds
Disengage: 10.5V or 21V Engage: 12V or 24V
Operating temperature range
Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
IP rating
Electronics: IP67 (potted) / Connections: IP00
Connection M6
Mounting Torque
5 Nm
Weight
0.2 kg (0.5 lbs)



SKU 8719076034193
Barcode # BPR000065400
Brand Victron
Shipping Weight 0.2500kg
Shipping Width 0.155m
Shipping Height 0.060m
Shipping Length 0.085m
Shipping Cubic 0.000790500m3
