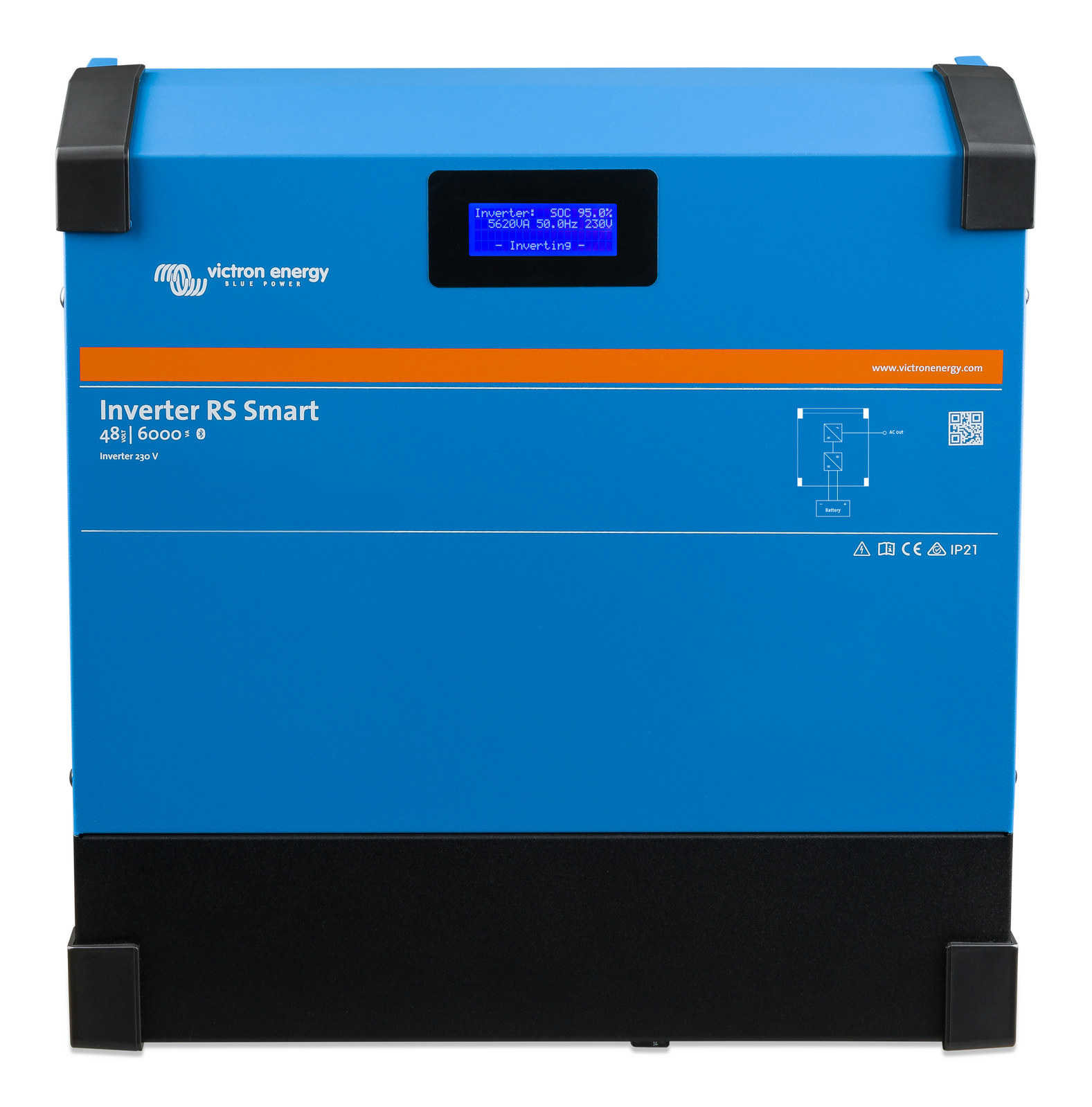

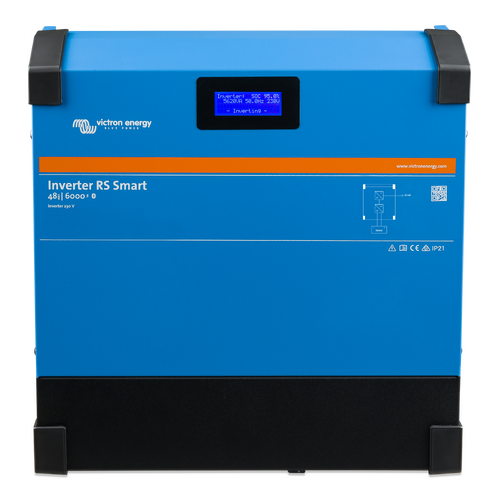

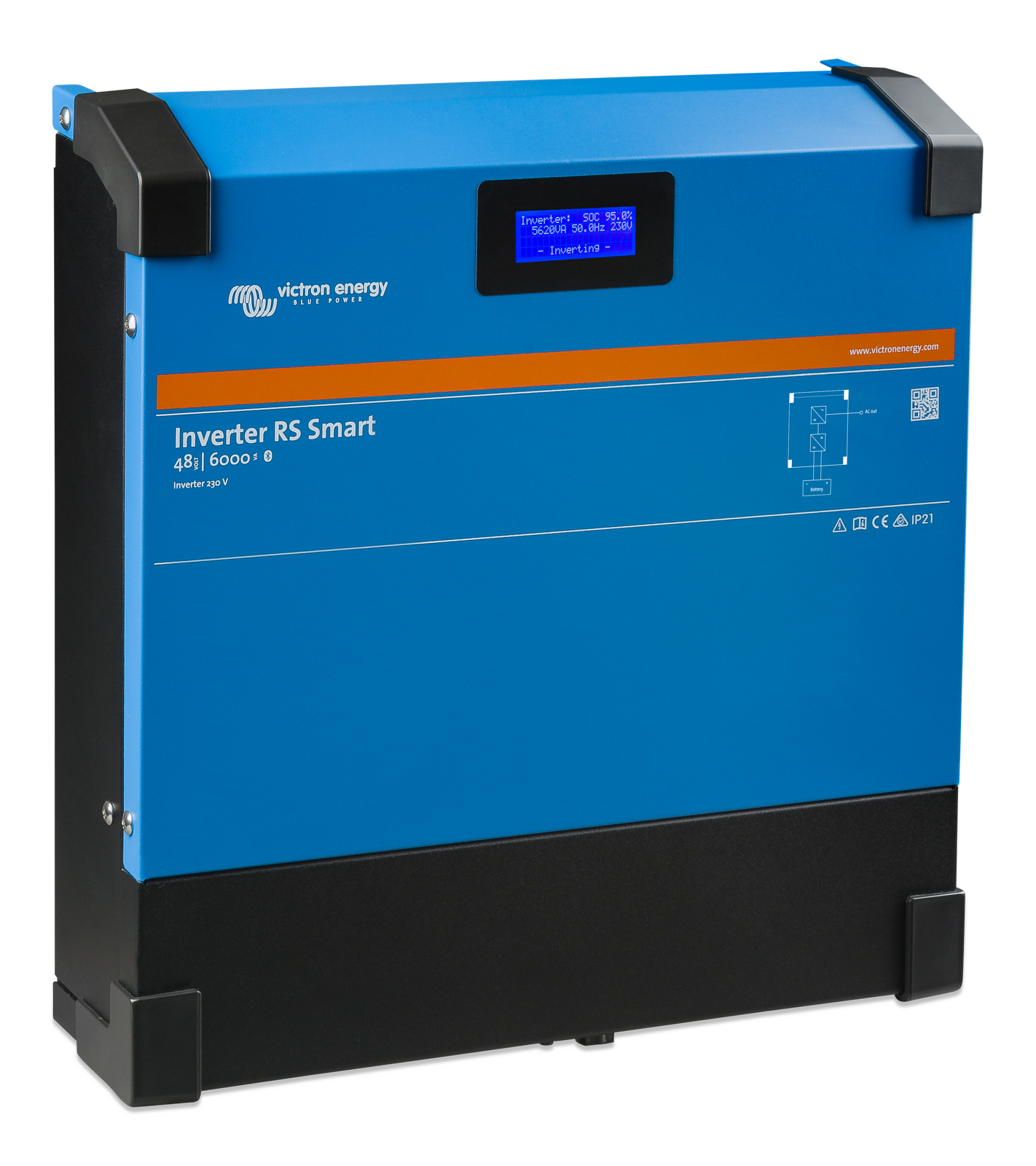

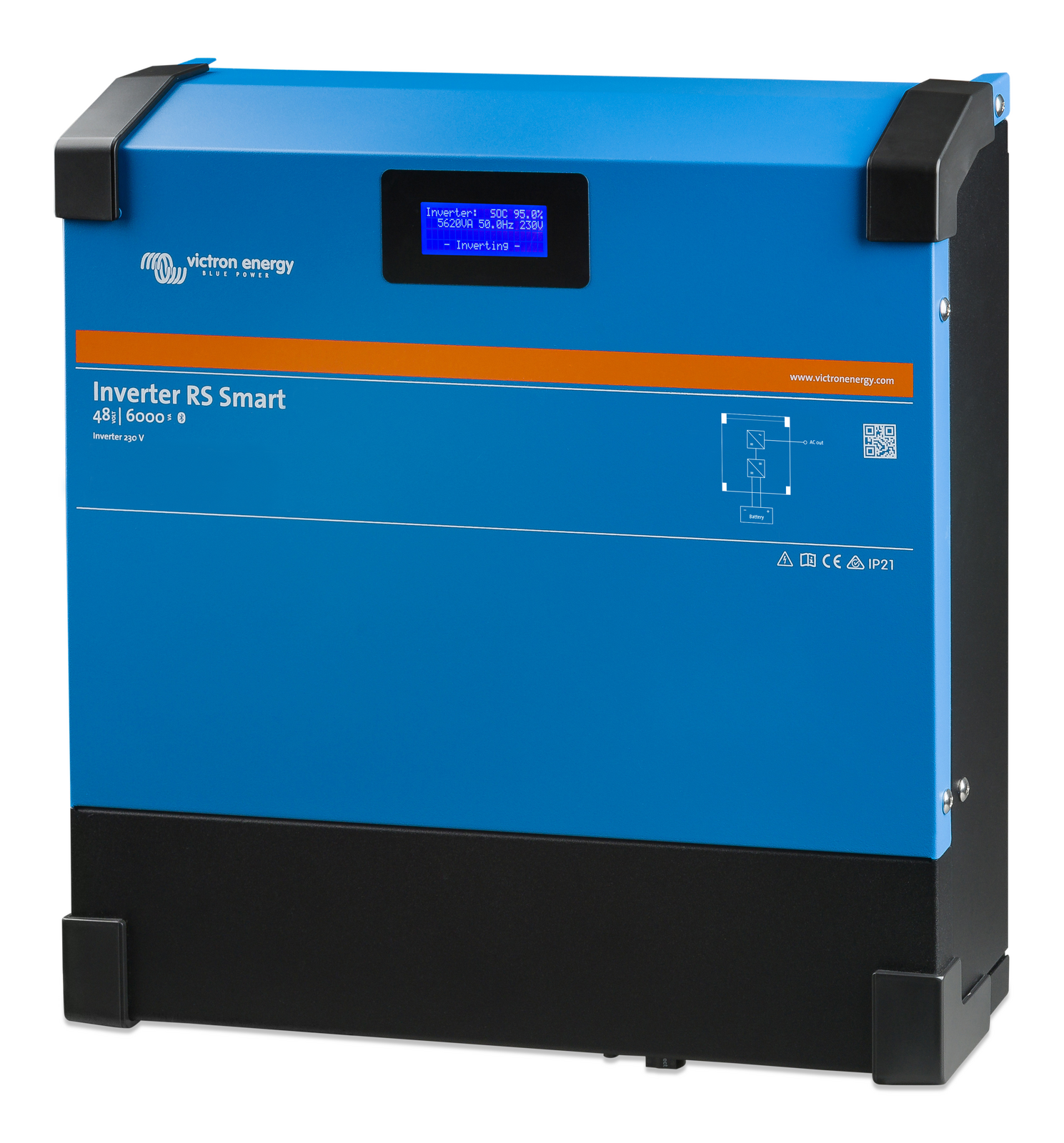

The Inverter RS Smart is a powerful 48 VDC, 6 kVA 230 VAC inverter. It features a modern design and high frequency technology, weighing only 11kg and has excellent efficiency, low standby power, and very quiet operation.

The inverter is equipped with a display to read out battery and inverter details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port, for connection to a GX device for system monitoring.

Light weight, efficient and quiet

Thanks to high frequency technology and a new design this powerful inverter weighs only 11 kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display and Bluetooth

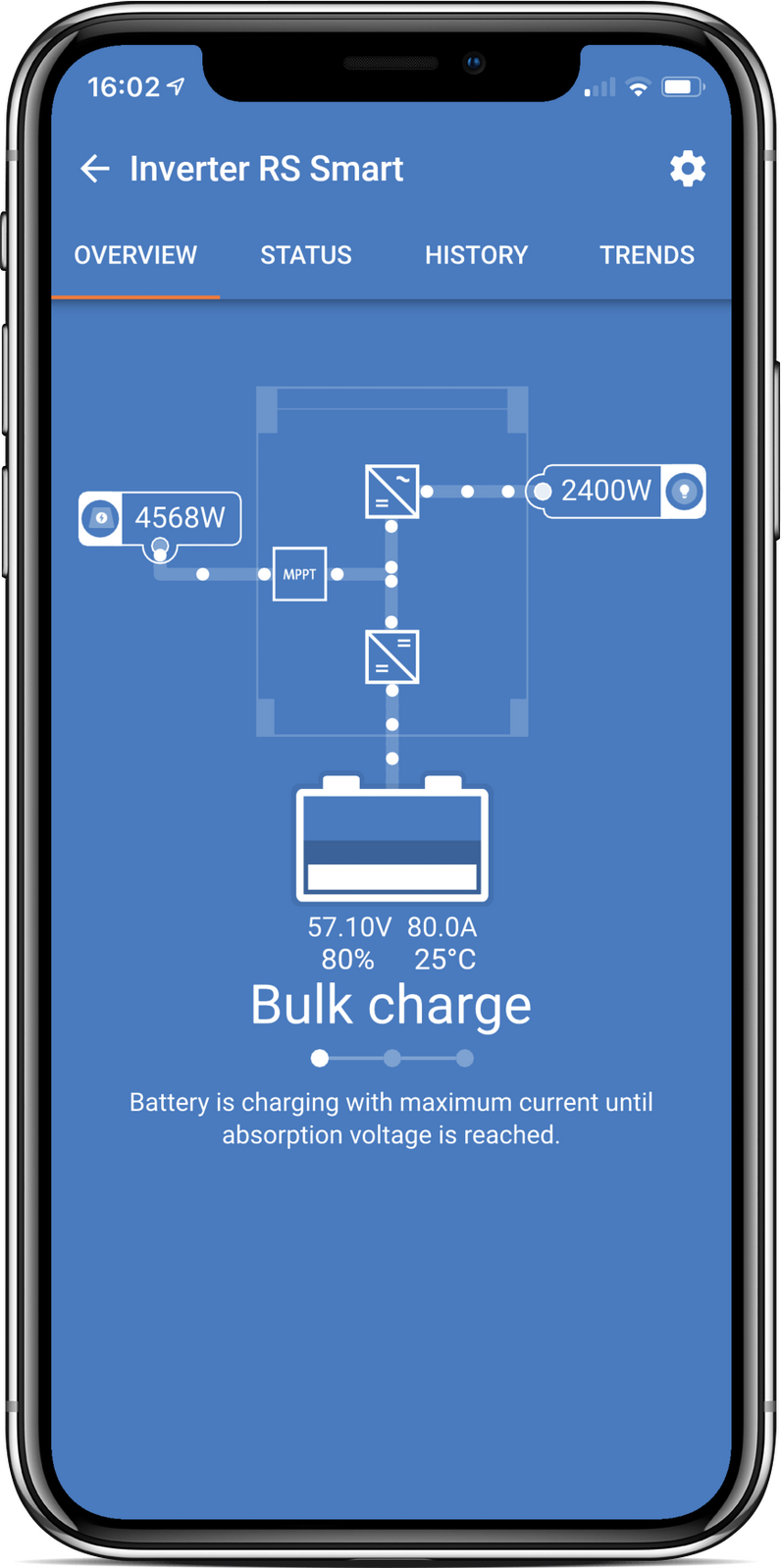

The display reads battery and inverter parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.

VE.Can and VE.Direct port

VE.Can connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Direct connection to a GlobalLink 520 for remote data monitoring.

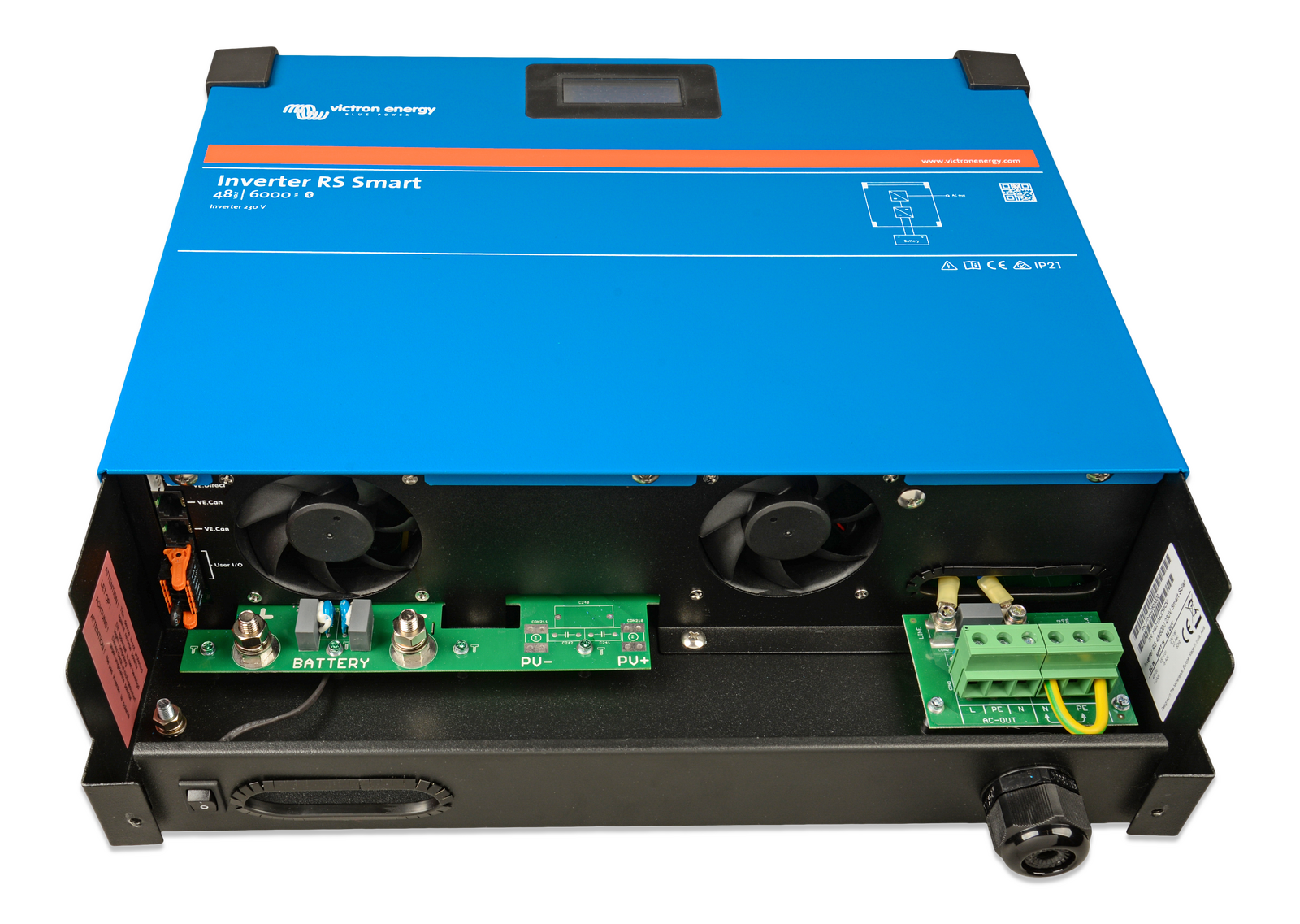

I/O Connections

Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.

Model 48/6000
DC Input voltage range 38 – 62 V (3)
Output Output voltage: 230 VAC ± 2 %
Frequency: 50 Hz ± 0.1 % (1)
Maximum continuous inverter current: 25 Aac
Cont. output power at 25ºC Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC
Cont. output power at 40ºC 4500 W
Cont. output power at 65ºC 3000 W
Peak power 9 kW for 3 seconds / 7 kW for 4 minutes
Short-circuit output current 50 A
Maximum efficiency 96.5 % at 1 kW load / 94 % at 5 kW load
Zero load power 20 W
Programmable Charger voltage range (VDC) 36 – 60 V
Charge voltage 'float' (VDC) Default setting: 55,2 V (adjustable)
Charge voltage 'absorption' (VDC) Default setting: 57,6 V (adjustable)
Maximum AC coupled solar charging power 5000 W (4)
Maximum charge current 88 A @ 57.6V
Battery temperature sensor Included
Battery voltage sense Yes
Parallel and 3-phase operation 12 parallel units supported, 3 phase supports 4 units per phase
Programmable relay Yes (2)
Protection a - g (5)
Data Communications VE.Direct port, VE.Can port & Bluetooth
Bluetooth frequency & power 2402 – 2480 MHz, 4dBm
General purpose analogue/digital in port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +65 °C (fan assisted cooling)
Maximum altitude 2000 m
Humidity (non-condensing) max 95 %
Material & Colour steel, blue RAL 5012
Protection category IP21
Battery-connection M8 bolts
230 VAC-connection Screw terminals 10 mm² (6 AWG) (2)
Weight 11 kg
Dimensions (hxwxd) 425 x 440 x 125 mm
  1. Can be adjusted to 60 Hz.
  2. Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. DC rating: 4A up to 35 VDC and 1 A up to 70 VDC.
  3. Minimum start-up voltage is 41 V. Inverter shutdown can be set as low as 32 VDC, but may shut down on low AC output voltage (due to load). Over-voltage disconnect is 65.5 V.
  4. AC coupled solar charging requires an external PV inverter to be connected on a circuit at the AC output of the Inverter RS
  5. Protection key:
  • a) output short circuit
  • b) overload
  • c) battery voltage too high
  • d) battery voltage too low
  • e) temperature too high
  • f) 230 V AC on inverter output
  • g) input voltage ripple too high
