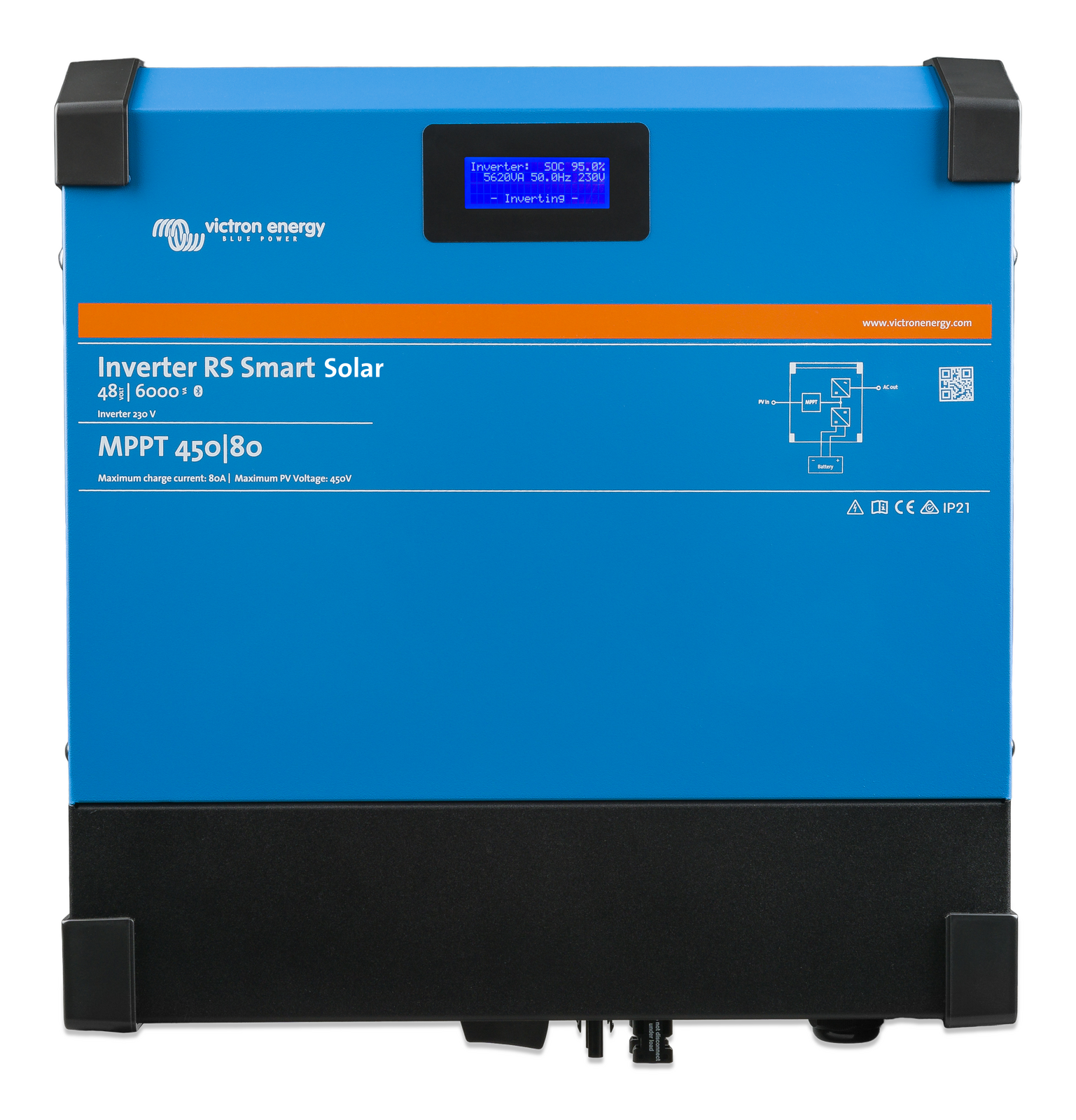

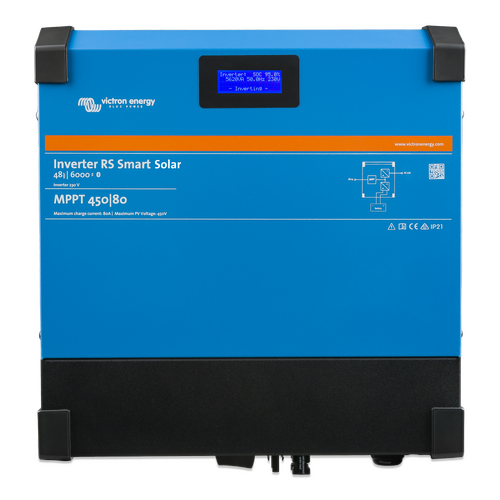

The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high voltage, 80-450VDC, 4kW MPPT solar charger. Thanks to its modern design and high frequency technology the inverter only weighs 11kg and has an excellent efficiency, low standby power, and very quiet operation.

The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port for connection to a GX device for system monitoring; and VE.Direct port for connection to a GlobalLink 520.

Off-Grid solar inverter

The Inverter RS Smart Solar 48/6000 is a 48 V 6 kVA Inverter with 450 VDC 4 kWp PV input. It is used in off-grid solar applications where AC power is required.

Combination of an inverter, bi-directional DC-DC converter and MPPT

The inverter produces a perfect sine wave, able to supply high powered appliances. It is supplied by a bi-directional DC-DC converter, that can either charge the battery when excess solar power is available or convert from the battery when it is needed.

Wide MPPT voltage range

80 – 450 VDC, with a 120 VDC PV startup voltage.

Light weight, efficient and quiet

Thanks to high frequency technology and a new design this powerful inverter weighs only 11 kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display and Bluetooth

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.

VE.Can and VE.Direct port

VE.Can connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Direct connection to a GlobalLink 520 for remote data monitoring.

Built in PV isolator

Both parallel PV strings connected to the MC4 plugs can be safely isolated with the large built-in switch on the bottom of the unit.

I/O Connections

Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.

Model 48/6000
DC Input voltage range 38 – 62 V (5)
Output Output voltage: 230 VAC ± 2 %
Frequency: 50 Hz ± 0.1 % (1)
Maximum continuous inverter current: 25 Aac
Cont. output power at 25ºC Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC
Cont. output power at 40ºC 4500 W
Cont. output power at 65ºC 3000 W
Peak power 9 kW for 3 seconds / 7 kW for 4 minutes
Short-circuit output current 50 A
Maximum efficiency 96.5 % at 1 kW load / 94 % at 5 kW load
Zero load power 20 W
Low Battery shutdown 37.2 V (adjustable)
Low Battery restart 43.6 V (adjustable)
Maximum DC voltage 450 V
Nominal DC voltage 300 V
Start-up voltage 80 – 450 V (5)
Max operational PV input current 18 A (3)
Max PV Short circuit current reverse polarity
protection
20 A
Maximum DC solar charging power 4000 W
Max PV short circuit current (Isc PV) 30 A
Earth leakage trip level 30 mA
Isolation fail level (detection before start-up) 100 kΩ
Programmable Charger voltage range (VDC) 36 – 60 V (6)
Charge voltage 'float' (VDC) Default setting: 55,2 V (adjustable)
Charge voltage 'absorption' (VDC) Default setting: 57,6 V (adjustable)
Maximum AC coupled solar charging power (8) 5000 W (4)
Maximum combined charger current 100 A (7)
Battery temperature sensor Included
Battery voltage sense Yes
Parallel and 3-phase operation 12 parallel units supported, 3 phase supports 4 units per phase
Programmable relay Yes (2)
Protection a - g (10)
Data Communications VE.Direct port and VE.Can port (**)
Bluetooth frequency & power 2402 – 2480 MHz, 4dBm
General purpose analogue/digital in port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +65 °C (fan assisted cooling)
Maximum altitude 2000 m
Humidity (non-condensing) max 95 %
Material & Colour steel, blue RAL 5012
Protection category IP21
Battery-connection M8 bolts
230 VAC-connection Screw terminals 10 mm² (6 AWG) (2)
Weight 11 kg
Dimensions (hxwxd) 425 x 440 x 125 mm
  1. Can be adjusted to 60 Hz.
  2. Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. DC rating: 4 A up to 35 VDC and 1 A
    up to 70 VDC.
  3. Normal operation is regulated to 18 A, with maximum reverse polarity protection 20 A.
  4. MPPT operating range is also constrained by battery voltage - PV VOC should not exceed 8x battery float voltage, e.g. a 50V battery voltage maximum should have 400 V maximum PV array – see product manual for further information.
  5. Minimum start-up voltage is 41 V. Inverter shutdown can be set as low as 32 VDC, but may shut down on low AC output voltage (due to load). Over-voltage disconnect is 65.5 V.
  6. The Charger set-point (float and absorption) can be set to max 60 V. The output voltage at the charger terminals can be higher, due to temperature compensation as well as compensation for voltage drop over the battery cables. The maximum output current is reduced on a linear basis from full current at 60 V to 5 A at 62 V. The equalization voltage can be set to max 62 V, the equalization current percentage can be set to max 6 %.
  7. Maximum charging current from AC and DC sources varies with AC and DC voltages. See product manual for more detailed limitation specifications due to these variables.
  8. AC coupled solar charging requires an external PV inverter to be connected on a circuit at the AC output of the Inverter RS Solar.
  9. ** Note only the VE.Can port can be used for connection to a GX device. The VE.Direct port supports the GlobalLink 520.
  10. Protection key:
  • a) output short circuit
  • b) overload
  • c) battery voltage too high
  • d) battery voltage too low
  • e) temperature too high
  • f) 230 V AC on inverter output
  • g) input voltage ripple too high
