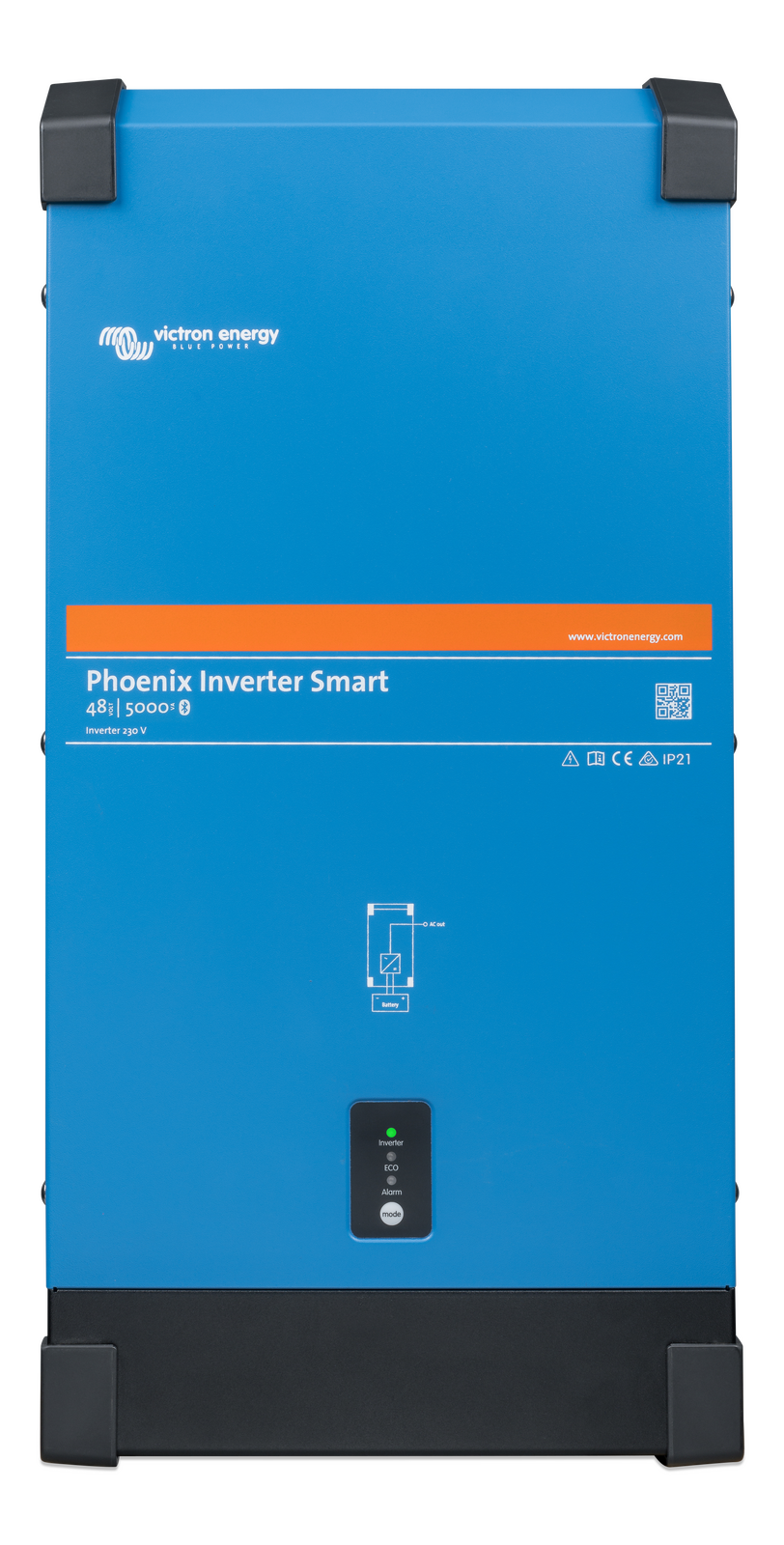

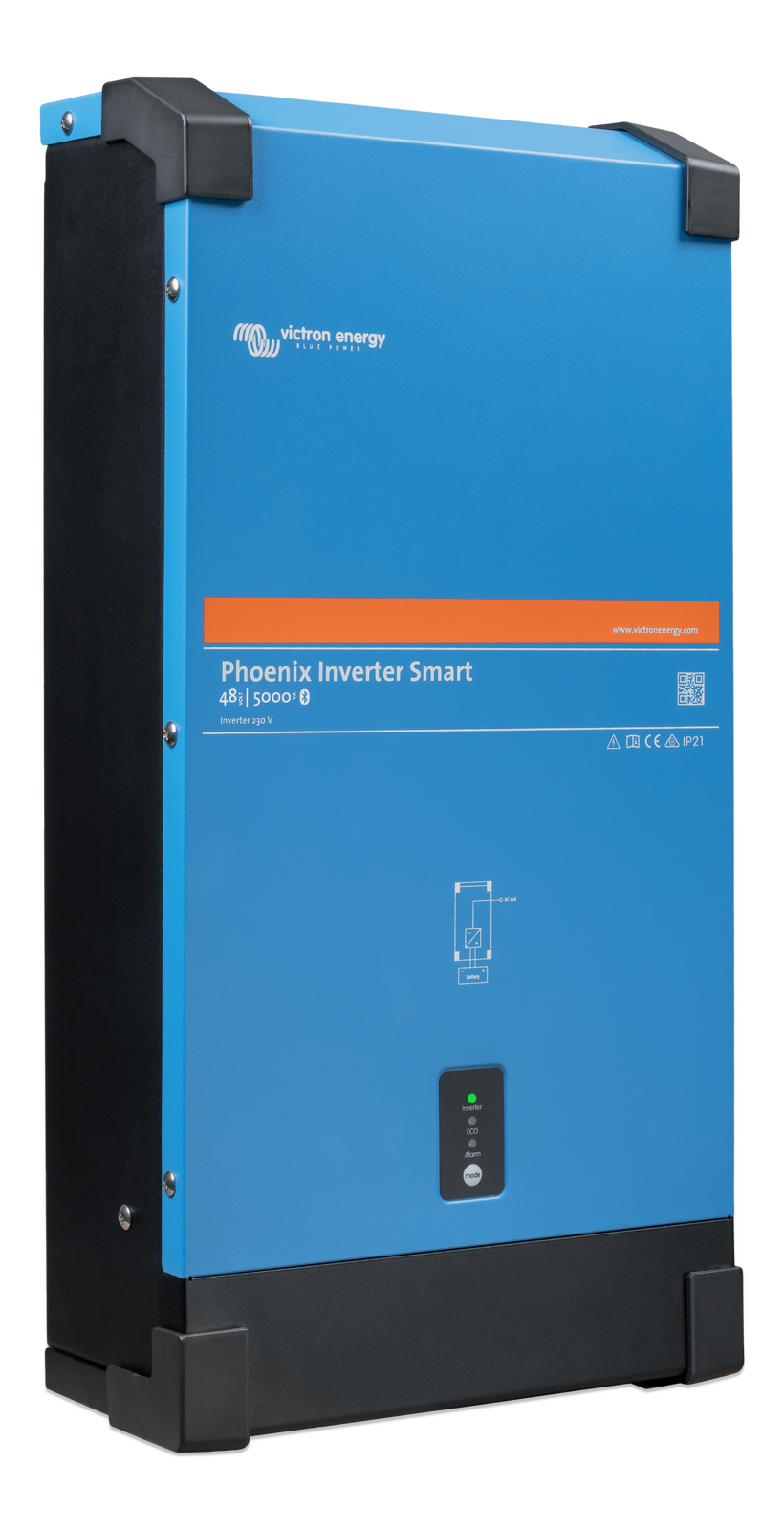

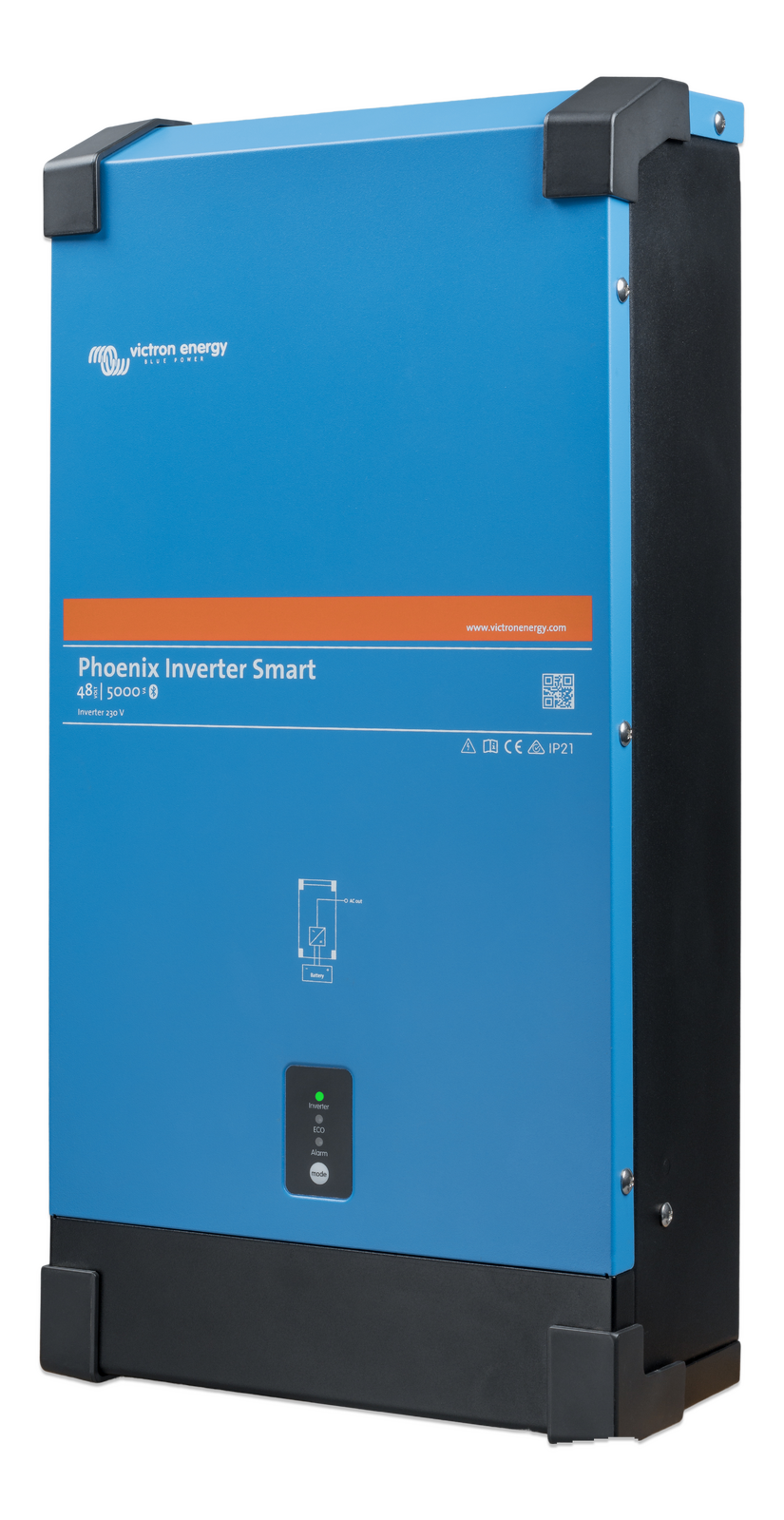

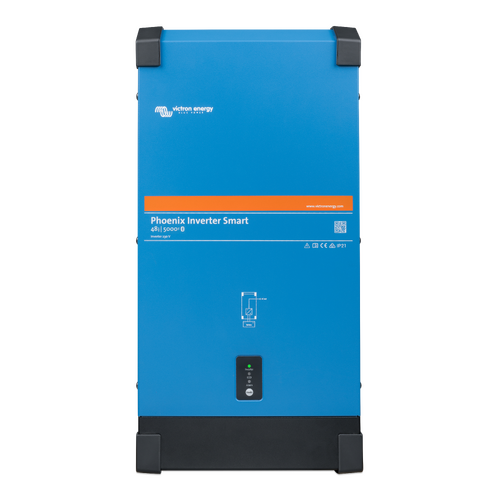

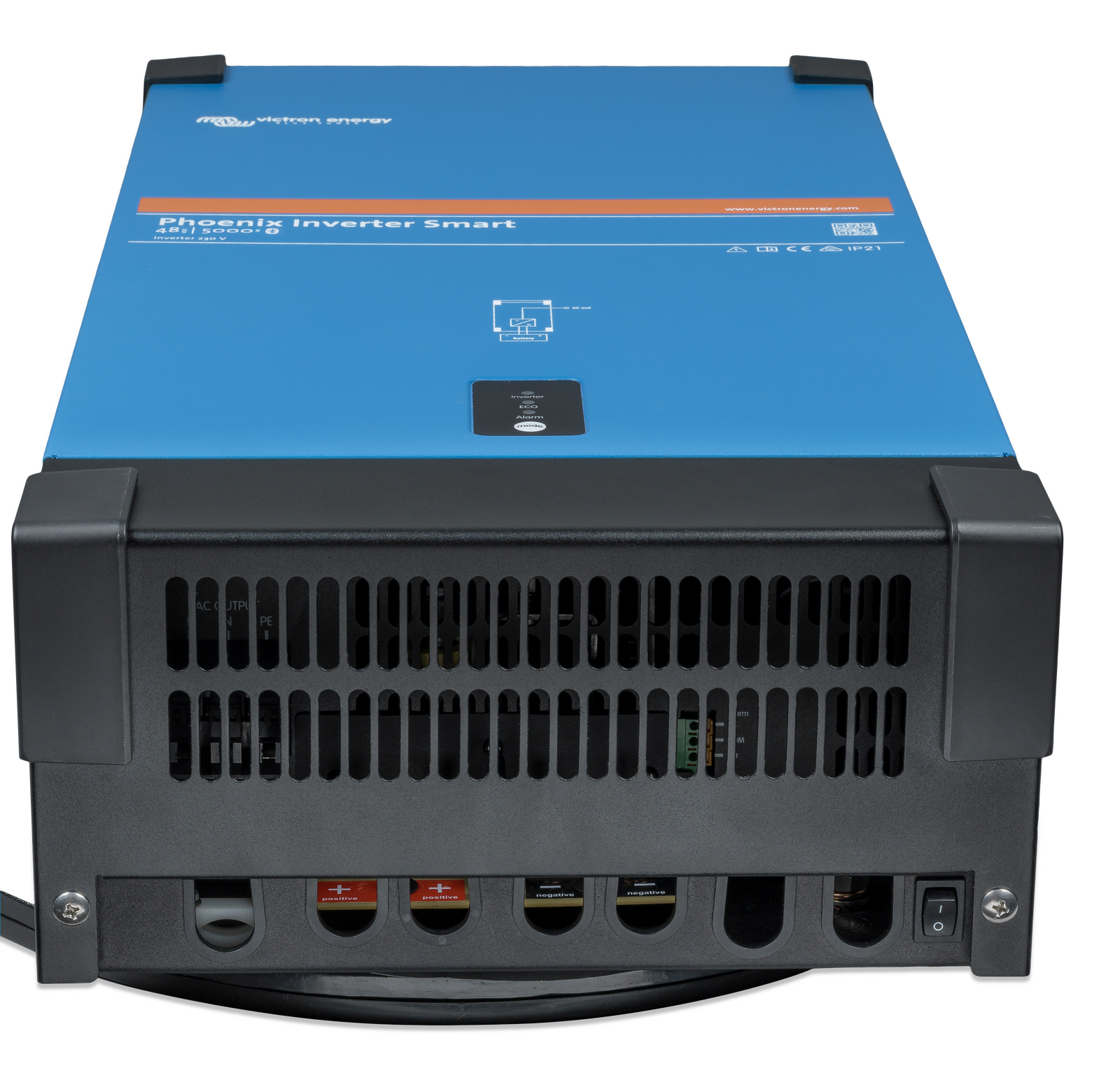

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA, 3000VA and 5000VA for 12, 24 or 48V systems.

It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.

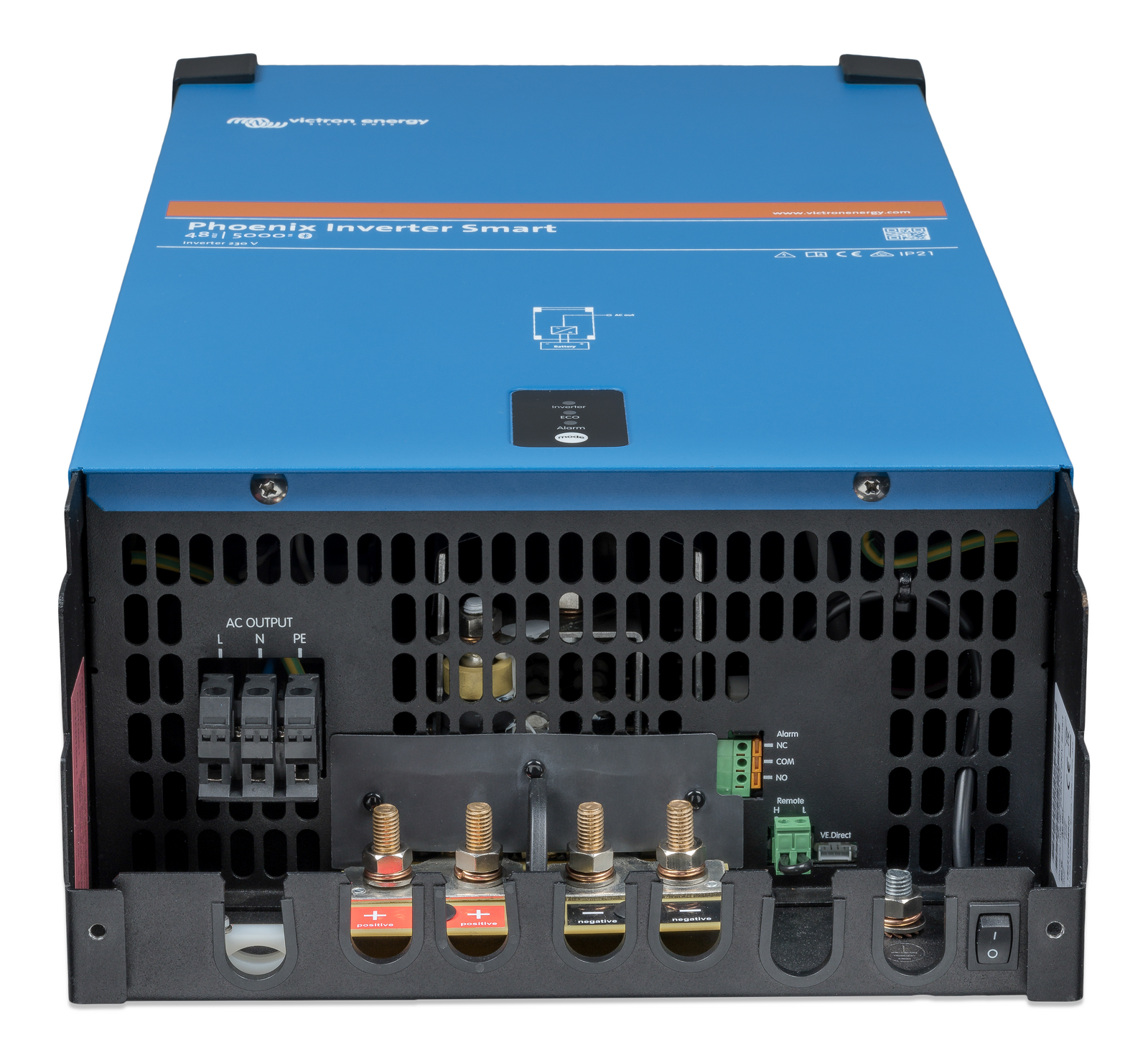

Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect

Bluetooth built-in: fully configurable with a tablet or smartphone

  • Low battery voltage alarm
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load dependent cut-off level
  • Output voltage: 210 - 245V
  • Frequency: 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level
  • Alarm relay
Model 48/5000
Parallel and 3-phase operation No
Input voltage range 37.2 - 68v
Output Output voltage: 230 VAC ±2% 50 Hz or 60 Hz ± 0.1% (1)
Cont. output power at 25ºC (1) 5000 VA
Cont. output power at 25ºC 4000 W
Cont. output power at 40ºC 3700 W
Cont. output power at 65ºC 2800 W
Peak power 10000 W
Dynamic (load dependent) DC low shutdown (fully configurable) Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
Max. efficiency 12/ 24 /48 V 96%
Zero load power 12 / 24 / 48 V 20 W
Zero load power in ECO mode 3.2 W
Programmable relay (2) Yes
Stop & start power ECO-mode Adjustable
Protection (3) A - G
Bluetooth wireless communication For remote monitoring and system integration
VE.Direct communication port For remote monitoring and system integration
Remote on-off Yes
Temperature Range & Humidity Operating temperature range: -40 to +65ºC (fan assisted cooling)
Humidity (non-condensing): max 95%
Enclosure Material & Colour: steel (blue RAL 5012; and black RAL 9017) Protection category: IP21
Battery-connection M8 bolts
230 V AC-connection Screw terminals
Dimensions (H x W x D) 555 x 295 x 160mm
Weight 28kg
  1. Non-linear load, crest factor 3:1
  2. Programmable relay that can a.o. be set for general alarm, DC under voltage or genset start/stop function.AC rating: 230 V / 4 A - DC rating: 4 A / 35 VDC, 1A / 60VDC
  3. Protection key:
  • a) output short circuit
  • b) overload
  • c) battery voltage too high
  • d) battery voltage too low
  • e) temperature too high
  • f) 230 V AC on inverter output
  • g) input voltage ripple too high

Monitoring: - In and output voltage, load and alarms

VE.Direct communication port: - The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.

Proven reliability: - The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power: - Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode - When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.

Remote on/off: - A remote on/off switch or relay contact can be connected to a two pole connector.Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

LED diagnosis: - Please see manual for a description.

To transfer the load to another AC source: the automatic transfer switch: - For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch
