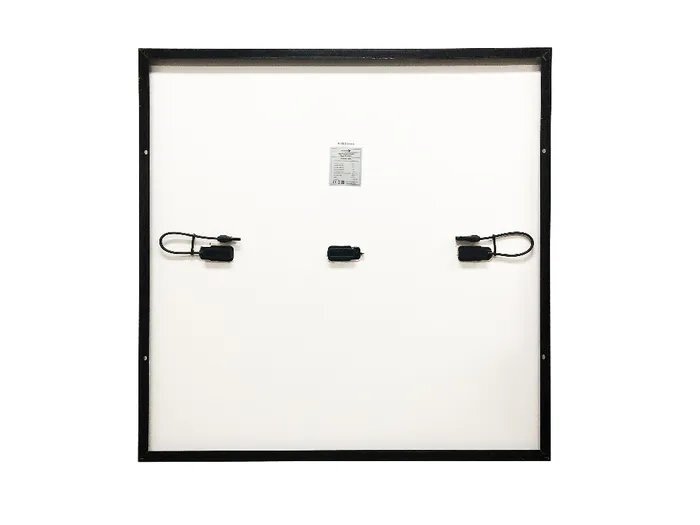

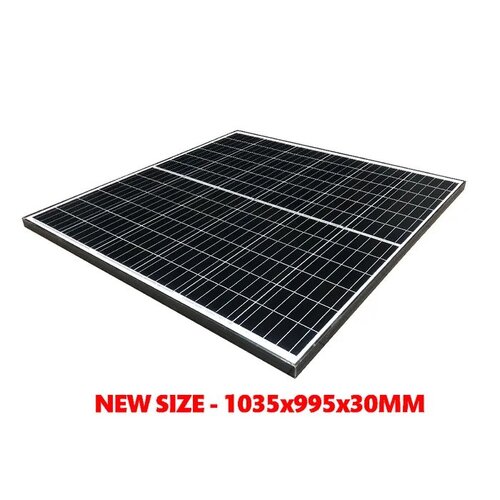

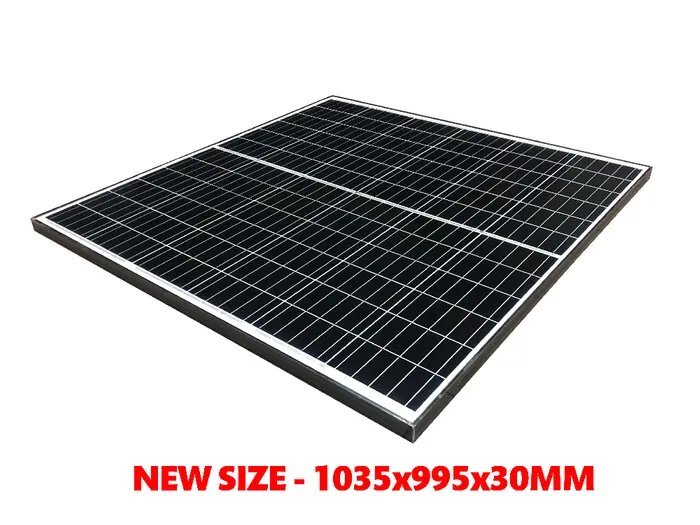

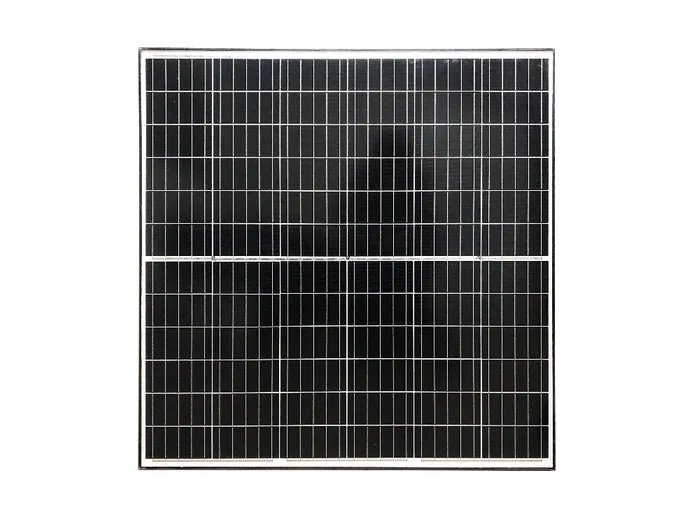

Solar Panel Voltech 200 Watt 1035 x 995 x 30 - Black Frame (New size as of 1/3/24)

The NEW SP200MSB features Twin Cell Technology providing superior performance in shaded conditions.  Effectively 2 x 100w solar panels linked together.  If one is shaded the other continues to produce power.

Voltech solar panels are made with high quality Monocrystalline cells, strengthened glass and have a tough aluminium frame. Our wide range of panels are perfectly suited for caravans, camper trailers, 4x4 vehicles, farming applications, mobile communications, mining and many more applications.

FEATURES

  • A Grade Monocrystalline cells
  • Trusted and reliable Voltech brand
  • New compact and light weight models
  • New lower profile models
  • Mounting points on frame
  • Hardened glass
  • 70-370W with 900mm cable (Excludes SP200MSB which has 100mm of cable due to its Twin Cell design)
  • 100-370W with MC-4 type connectors
  • Preferred by many caravan & RV OEM’s
  • 24 Month warranty
RATED VOLTAGE: 12V
CELL TYPE: Monocrystalline
RATED POWER: 200W
OPEN CIRCUIT (VOC): 21.6V
SHORT CIRCUIT CURRENT (ISC): 11.78A
PEAK POWER VOLTAGE (VMP): 19.0V
PEAK POWER CURRENT (IMP): 11.12A
PANEL DIMENSIONS (MM): 1035 x 995 x 30mm
GROSS WEIGHT (KG): 10.5KG
SKU SPV200SQ
Brand Voltech
Shipping Weight 12.5000kg
Shipping Width 1.100m
Shipping Height 0.050m
Shipping Length 1.100m
Shipping Cubic 0.060500000m3
