Master Your Power: The Ultimate Premium Pre-Wired 12/24V Control Hub

The heart of your setup. Professionally built. Ready for adventure.

Forget the spaghetti wiring, the endless crimping, and the messy installs. Whether you are fitting out a canopy, a van, or a 4WD, our Premium Pre-Built Control Hub is the turn-key solution you’ve been waiting for.

Designed for total versatility, this hub brings together high-speed charging, robust switching, and seamless component integration into one sleek unit.

Indestructible Construction Plastic cracks. We use Powder Coated Iron for the chassis to withstand the corrugated punishment of the outback. Finished with premium Aluminium Fascia Rocker Switches, it looks as good as it performs.

Power at Your Fingertips

This isn’t just a switch panel; it is a complete power distribution center featuring 19 Inputs/Outputs to manage every aspect of your 12V or 24V system.

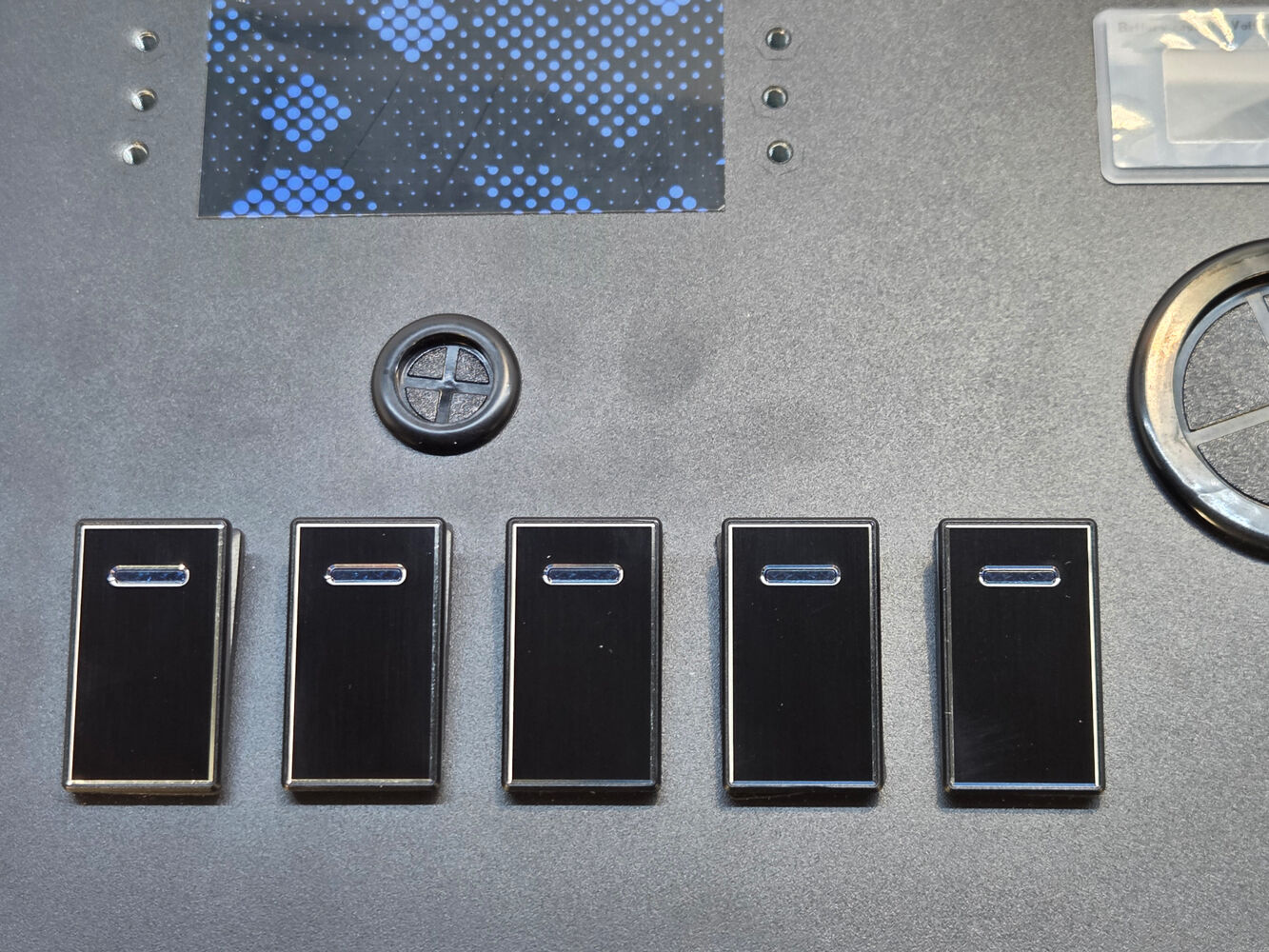

• Premium Switching: 5 x Aluminium Fascia Rocker Switches provide tactical control over your lights, pumps, and fridges.
  • Safety First: 3 switches individually fused at 10A, and 2 switches combined at 15A.
• Universal Connectivity: 2 x Accessory Sockets (Cig sockets) for your standard gear.

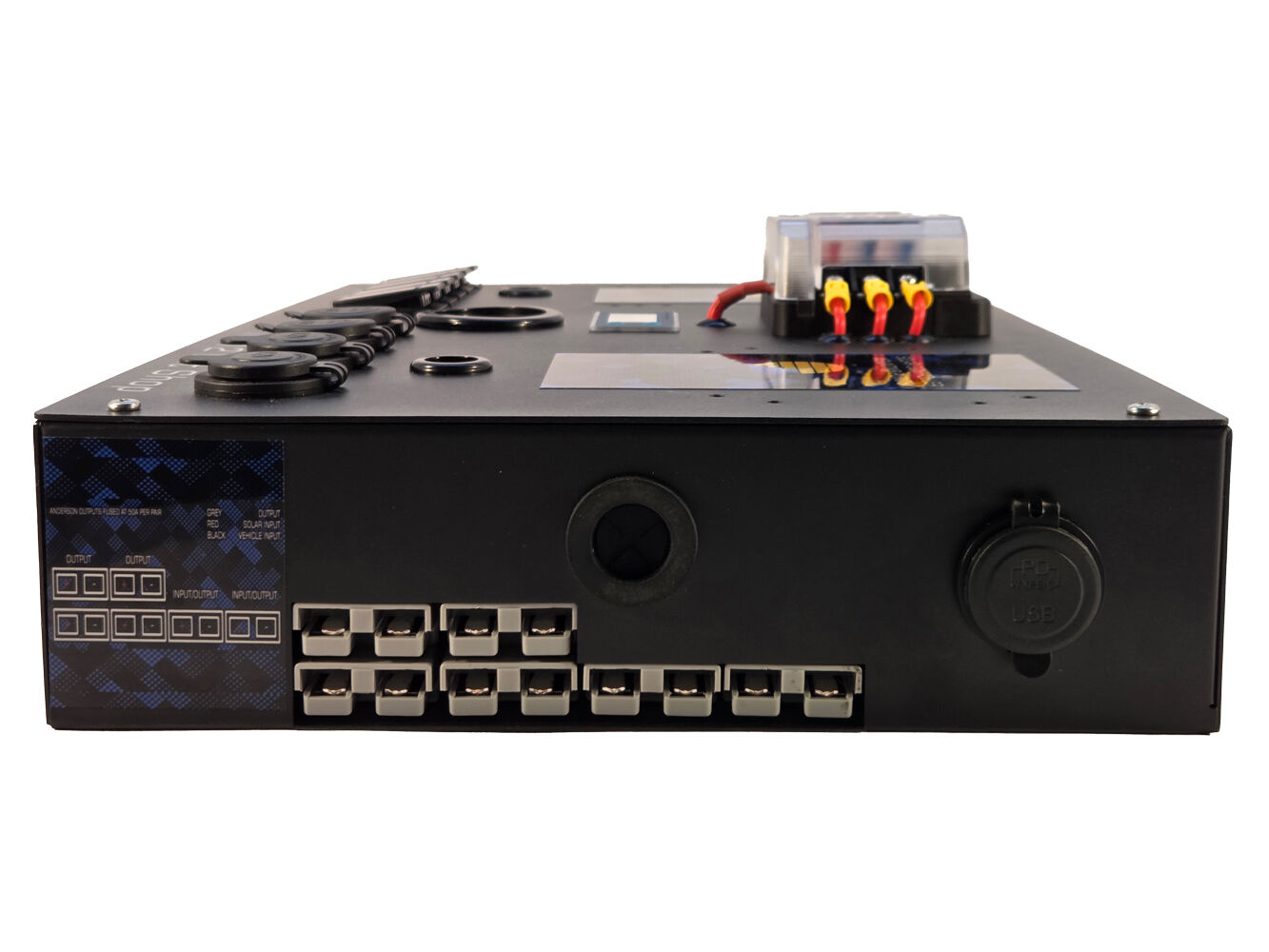

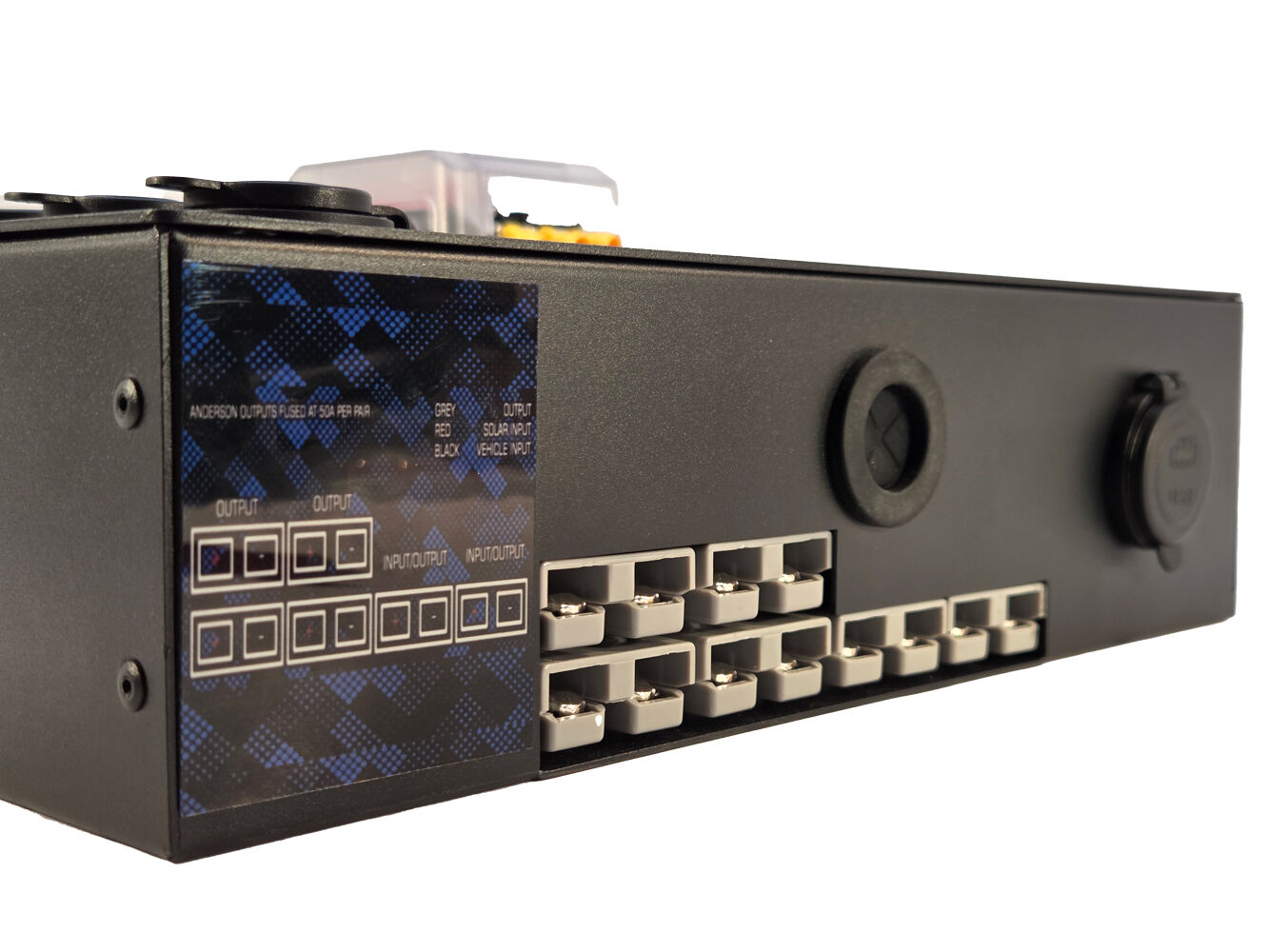

• High-Current I/O: 6 x 50A Grey Anderson plugs handling high-draw appliances with ease.

Smart Config: If DC charging is selected, we swap 2 x Grey plugs for Red & Black Andersons, creating dedicated, fail-safe inputs for Vehicle and Solar power.

Next-Gen Fast Charging (Starlink Ready)

Stay connected wherever the road takes you. We have equipped this hub with the latest PD (Power Delivery) technology.

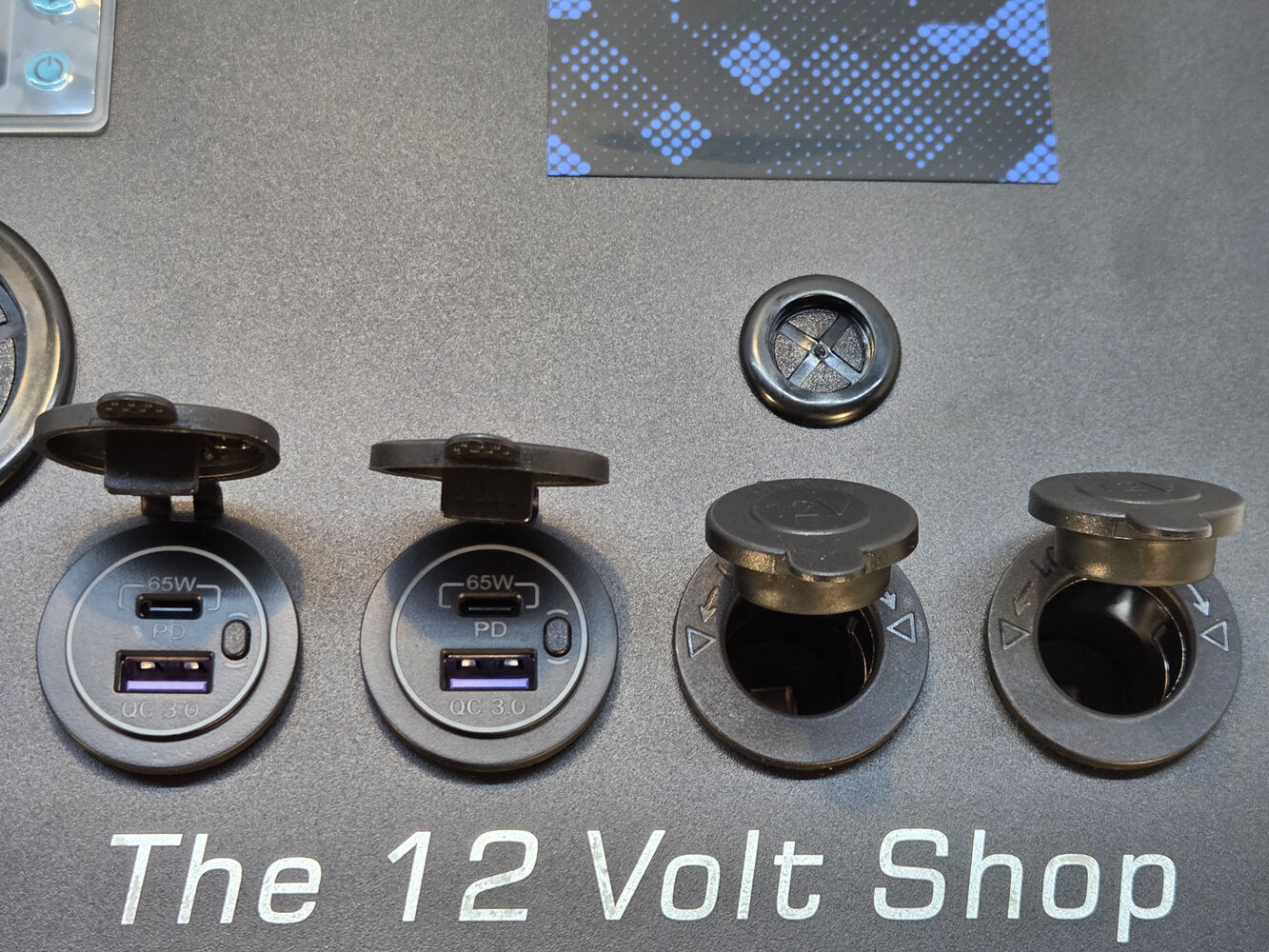

• Standard Fast Charge: 2 x 83W Dual USB-A & USB-C outlets (QC3.0 & PD 65W) to keep phones, tablets, and drones at 100%.

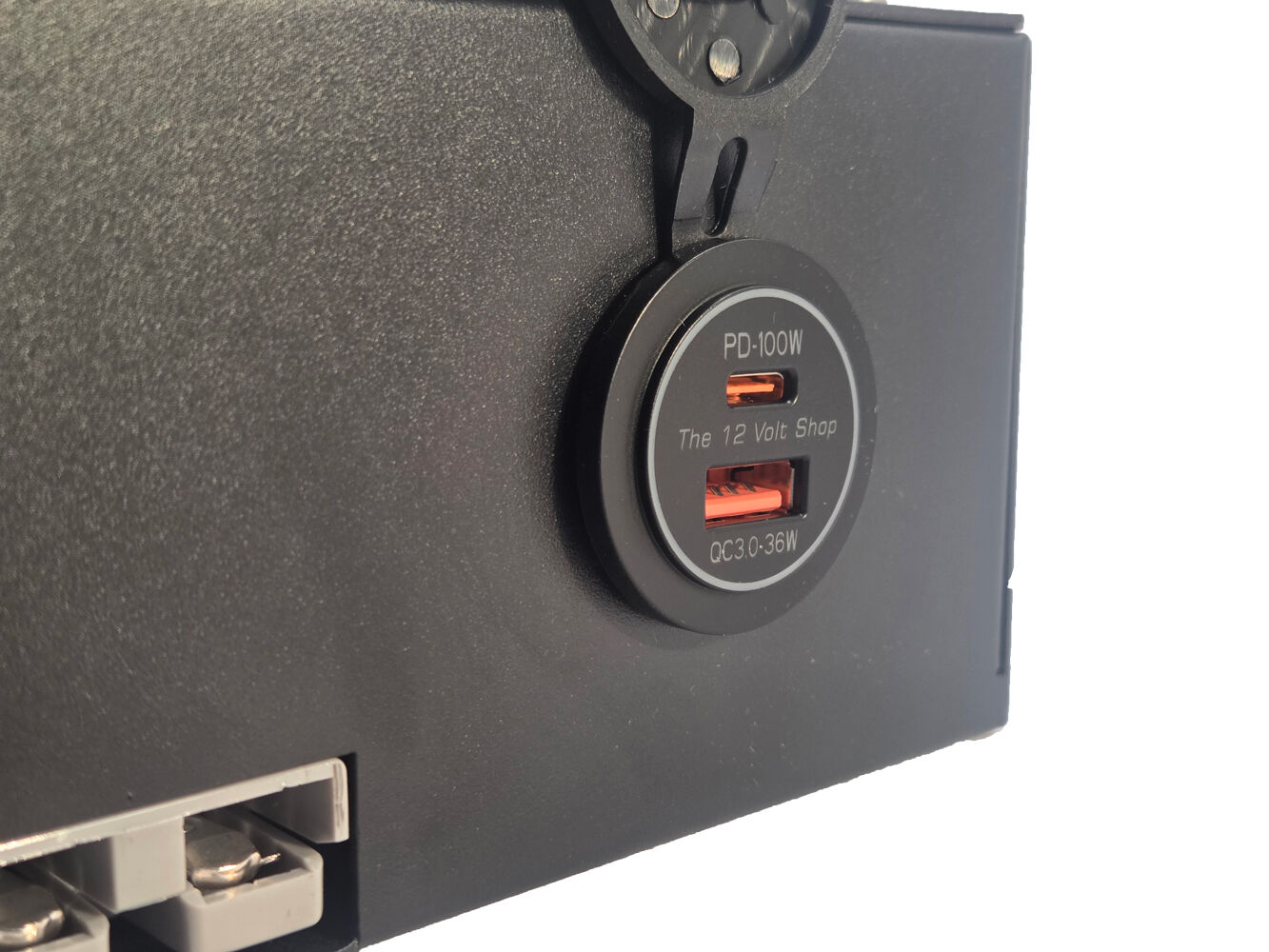

• Starlink Mini Compatible: 1 x Massive 136W Dual USB Outlet. Featuring a 100W QC5.0 PD Port capable of up to 20V/5A.

Why this matters: This dedicated, independently fused port provides enough juice to power the Starlink Mini directly, keeping you online without bulky adapters

The "Build-Your-Own" Brain

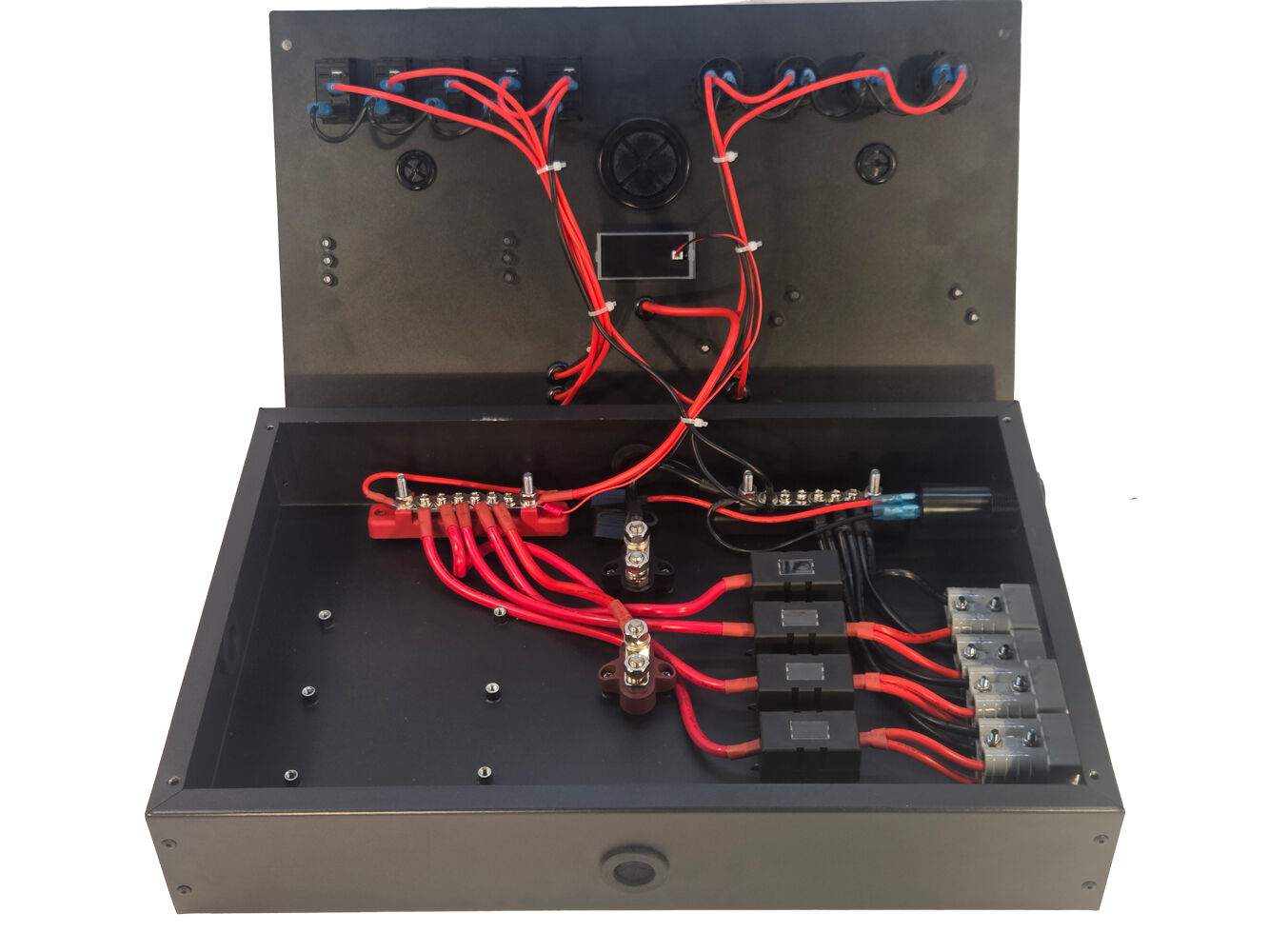

The true genius of this Control Hub is its internal flexibility. It is pre-engineered with mounting points for the world’s best chargers and monitors. You choose the engine; we provide the chassis.

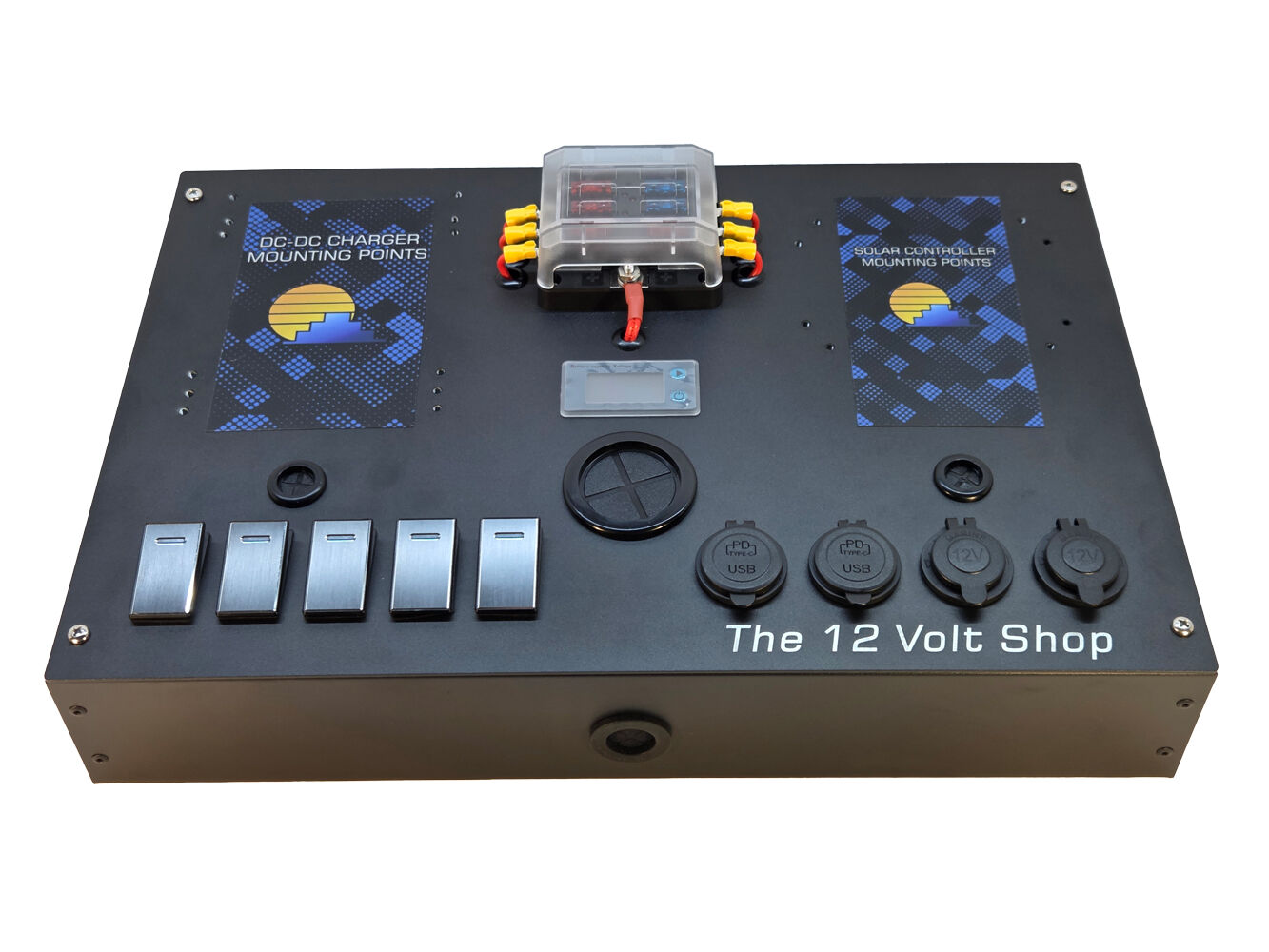

Designed for Victron & Projecta The lid is pre-drilled and ready to mount your choice of DC-DC and Solar Chargers.

DC-DC Charger Ready (Left Lid Mounting): Pre-drilled and ready to mount your choice of powerhouse chargers

• Victron: Orion XS 12/12-50 or Orion XS 1400.
• Projecta: Intelli-Charge IDC25X or IDC50X (with in-built MPPT).

Solar MPPT Ready (Right Lid Mounting): Expand your solar capacity with provisions for:

• Victron: SmartSolar MPPT 75/15 or SmartSolar MPPT 100/20.

Precision Monitoring: The Control Hub comes with a 12/24V voltmeter to Monitor your Lead Acid Batteries (AGM/GEL/Flooded) and provisions for Shunt Monitoring for LiFePO⁴ Batteries so you know exactly what your battery is doing:

• Internal Provisions: Mounts for Victron 300A & 500A SmartShunts or the BMV-712 Shunt
• External Provisions: Dedicated spot on the front lid to mount the Victron BMV-712 screen for at-a-glance data

The Control Hub comes with a 12/24v voltmeter to Monitor your Lead Acid Batteries (AGM/GEL/Flooded) and provisions for Shunt Monitoring for LiFePO⁴ Batteries

Pro Tip: Running a heavy inverter? We recommend mounting your shunt externally for easier cable management, but for everything else, we've got you covered inside the box.

Technical Specifications Breakdown

Note on Inverters: If utilizing an inverter, we recommend mounting the shunt externally to facilitate easier cable runs for the heavy-gauge wire required.

Why Choose This Hub?

1. Time-Saving: Saves hours of wiring design and installation time.
2. Safety: Properly fused, correct wire gauge, and professionally terminated.
3. Future Proof: Provisions for the best chargers (Victron/Projecta) mean you can upgrade your charging system without replacing the control board.

Simplify your setup. Upgrade your adventure.

Take control of your power today.
