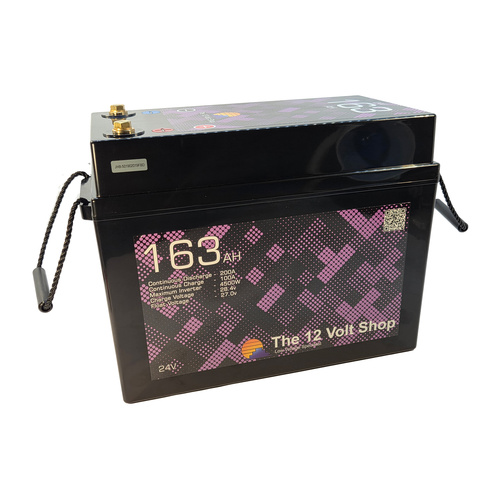

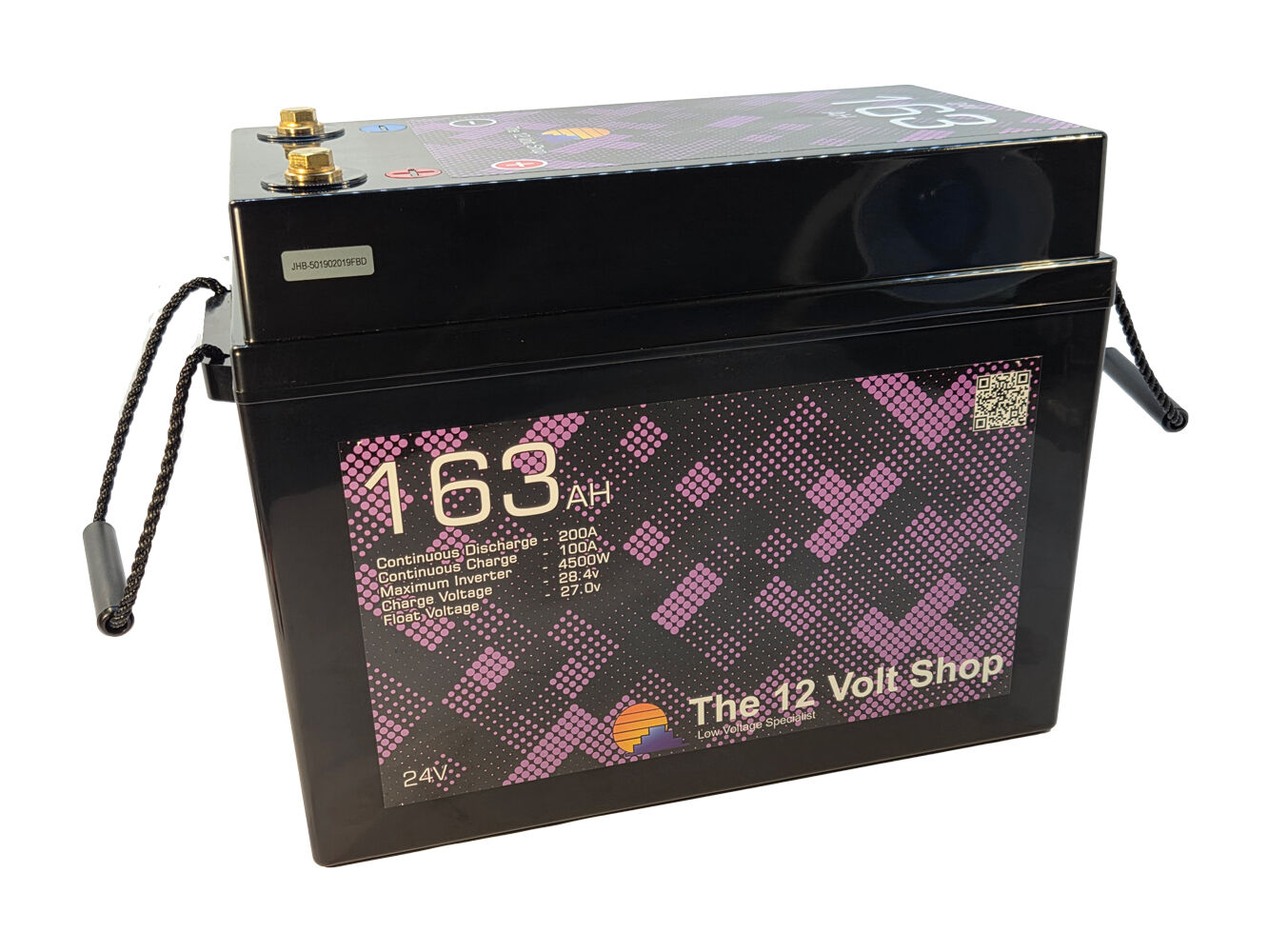

Introducing the 163-24 24V 163Ah LiFePO4 Battery: Compact Powerhouse for Serious Off-Grid Adventures!
Located right here in Welshpool, Western Australia, we're thrilled to unveil the 163-24 24V 163Ah LiFePO4 battery – a revolutionary power solution that delivers immense 24-volt capacity in a footprint significantly smaller than other batteries in its class. Get ready to power your world like never before!
High-Voltage Power, Remarkably Compact
The 163-24 is engineered for peak performance, boasting a formidable 200A continuous output. This robust power delivery makes it the ideal partner for your 5000W inverter, confidently running all your high-demand appliances with ease:
- Induction Cooker: Cook up a storm with ease.
- Kettle & Coffee Machine: Enjoy your morning brew, no matter where you are.
- Microwave: Quick and convenient meals on the go.
- Air Fryers: Prepare delicious, crispy meals on the go.
- Fridge: Keep your food and drinks perfectly chilled.
- Air Con: Stay cool and comfortable even in the outback heat.
- Lights: Illuminate your campsite with reliable power.
- Air Compressor: Inflate tires or gear with confidence.
- Computer & Camera Gear: Stay connected and creative.
- Starlink Mini: Coverage Australia wide
Unprecedented Size-to-Power Ratio
Prepare to be astonished by the 163-24's incredibly efficient design. At just 345mm (L) x 190mm (W) x 272mm (H) (285mm with terminals) and weighing a manageable 32kg, this 24V 163Ah battery is dramatically smaller than other 24V 160Ah batteries on the market. This means more usable power in less space, freeing up valuable room in your caravan, RV, boat, or off-grid installation.
Australian Designed & Engineered for Ultimate Reliability
Every 163-24 battery is a testament to quality, proudly designed and engineered right here in Australia to thrive in our continent's demanding environment. We've integrated only the highest-grade components for unwavering performance and complete peace of mind:
- Grade A+ EVE Cells: Utilising premium EVE cells, renowned globally for their exceptional energy density, superior safety, and extended cycle life, ensuring dependable power for years to come.
- Inbuilt Daly 100Balance Smart Active Balance 200A BMS: A cutting-edge, high-current Battery Management System with smart active balancing, providing comprehensive protection against overcharge, over-discharge, over-current, short circuits, and temperature extremes, safeguarding your investment.
- Separate Heltech 5A Active Balancer: This dedicated active balancer meticulously equalizes cell voltages, maximizing efficiency, boosting performance, and significantly extending the overall lifespan of your battery pack.

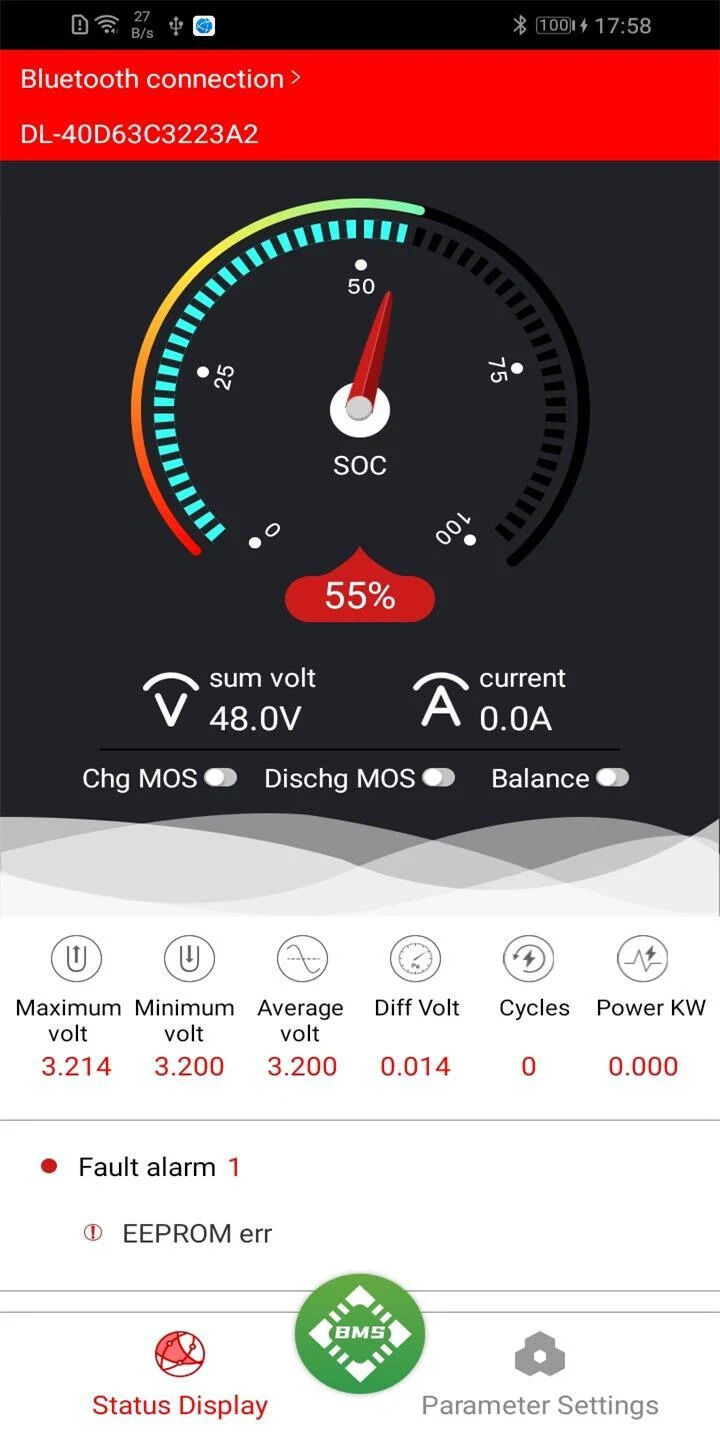

- Bluetooth Monitoring APP: For detailed insights and control from your smartphone, connect via the SmartBMS App. Download it here:
- Apple App Store (iOS): SmartBMS Apple Store
- Google Play Store (Android): SmartBMS Google Play Store
- 5-Year Warranty: Our absolute confidence in the 163-24 is backed by a comprehensive 5-year warranty, guaranteeing a robust and reliable power solution for all your grand adventures.
Don't compromise on power or space. The 163-24 24V 163Ah LiFePO4 battery offers the ultimate combination of high-voltage capacity, compact design, and intelligent control, all backed by Australian engineering.
Visit us in Welshpool, WA, or contact us today to elevate your off-grid power experience to the next level!
Rated Capacity (AH) | 163.0Ah |
---|---|
Maximum Cont. Discharge Current | 200.0A |
Maximum Cont. Charge Current | 200.0A |
Length x Width/Height x Depth | 345 x 190 x 272 (285)mm |
Weight (kg) | 32KG |
Recommended Charge Current | 1 - 100.0A |
Recommended Float Voltage | 27.0v |
Recommended Charge Voltage | 28.40v |
Maximum Charge Voltage | 29.20v |
BMS Charge Cut-Off Voltage | 29.6v |
BMS Low Volt Cut-Off | 20.0v |
Nominal Voltage (V) | 25.6v |
Terminal Type | M8 |
Maximum Inverter Size | 5000W |
*There are many calims about high cycles and while they are true to some extent the are misleading. 3500 cycle life @ 100% Depth Of Discharge at 100% capacity. This equates to draining the battery 100% every day 3500 times, (around 10 years) youre left with around 80% capacity remaining after which will do another few thousand cycles. So while a battery will do 6000 cycles it wont do it at 100% capacity after its initial cycle life.
SKU | BAT163-24 |
Brand | 12 Volt Shop |
Shipping Weight | 32.0000kg |
Shipping Width | 0.280m |
Shipping Height | 0.330m |
Shipping Length | 0.450m |
Shipping Cubic | 0.041580000m3 |
