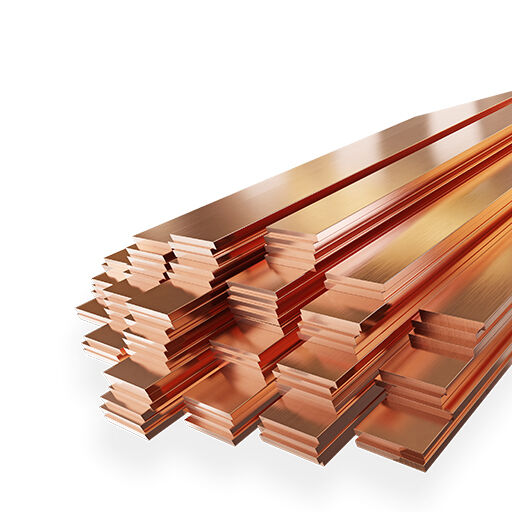

Premium Grade Copper Busbar

Dimensions: 30mm (Width) × 4mm (Thickness) × 300mm (Length)

High-Performance Power Distribution for Switchboards, Industrial Panels & Renewable Energy

Engineered for Maximum Conductivity & Reliability

When high currents demand zero compromises, precision engineering matters. Our 30 x 4mm x 300mm Copper Busbar is manufactured from top-tier, high-conductivity electrolytic copper (ETP Grade / Cu-ETP), designed to deliver superior thermal and electrical performance in demanding power distribution applications.

Whether you're building custom electrical switchboards, upgrading industrial control panels, or wiring high-power solar and EV inverter systems, this busbar provides a robust, low-resistance backbone for your circuit.

Key Technical Specifications

• Material: High-Conductivity Electrolytic Tough Pitch Copper (99.9%+ Cu)
• Width: 30 mm
• Thickness: 4 mm (Cross-Sectional Area: 120 mm²)
• Length: 300 mm (Ideal standard length for modular panel builds)
• Electrical Conductivity: > 100% IACS (International Annealed Copper Standard)
• Current Rating Capacity: Up to ~340A to 400A+ (depending on ambient temperature, enclosure ventilation, and temperature rise limits)
• Finish: Clean mill finish, burr-free edges, ready for punching, bending, or direct installation.
• Compliance: Meets international standards for electrical coppers (ASTM B187 / EN 13601).

Why Choose Our 30x4mm Copper Busbars?

1. Ultra-Low Electrical Resistance: Minimize power loss, voltage drop, and unwanted heat generation across your distribution system.
2. Superior Thermal Dissipation: Excellent thermal conductivity prevents hot spots in tight electrical enclosures.
3. Pristine Quality & Finish: Precision-cut to exact 300mm lengths with clean square edges, saving you critical prep and fabrication time on the shop floor.
4. Versatile Fabrication: Excellent ductility allows for straightforward bending, drilling, or tapping to fit complex panel layouts without cracking.

Typical Applications

• Low-Voltage (LV) Switchboards & Motor Control Centers (MCC)
• Power Distribution Units (PDUs) & Panel Boards
• Solar PV combiner boxes & Inverter connection links
• EV Charging stations & battery bank bus systems
• Grounding and earthing main bars

Ready to Power Your Next Project?

Upgrade your builds with copper you can trust. In stock and ready for immediate dispatch.
