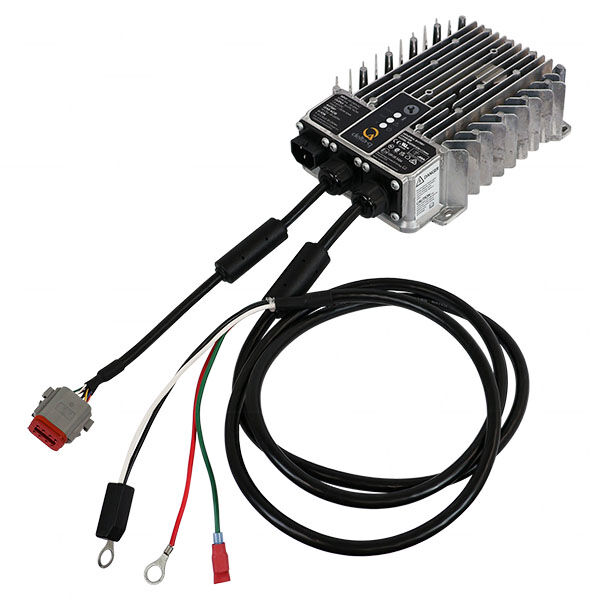

Delta-Q RQ350 Series are compact, rugged and highly efficient automotive grade battery chargers.

Designed for worldwide installation, its latest charging technology effectively charges lead-acid and lithium-ion batteries for optimal performance. CANbus communication (CANopen and J1939 protocols) allows for BMS to control charging, vehicle and telematics integration. Suitable for floor  machines, pallet trucks, scissor lifts, OPE and e-mobility.

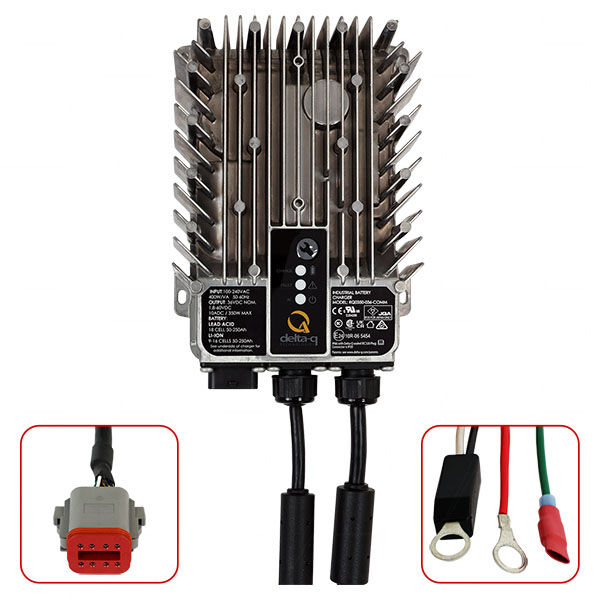

Easy-to-Use Conntrol Panel
Intuitive user interface with three built-in LEDs indicating charging status, errors and faults; A push button to select or change the charge algorithms during machine manufacturing or in the field.

Locking AC Connector
To prevent accidental disconnection during charging

Sealed & Rugged
IP66 rated to protect against water and dirt ingress. Designed to withstand automotive shock and vibration.

Charge Quality
Highly optimised charging to prolong battery life and application requirements using Delta-Q’s extensive library of charging algorithms.

Efficiency
Best in class power conversion efficiency compliant to latest CEC, DOE and NRCAN efficiency standards.

Residential and Automotive Emissions
FCC B / CISPR 14 compliant for installation on residential power circuits. UNECE R10 compliant for electromagnetic compatibility on road vehicles.

Safety
Protects against reverse polarity, short-cirucuit, overcurrent and AC over voltage up to 420V AC.

CANbus Communication
CANopen and J1939 protocols to interact with vehicle, telematics and lithium BMS. CAN bus can be used to also update charger software, load charging profiles, and download charge tracking and  diagnostic information.

IMPORTANT: This Delta-Q battery charger requires a charge profile (algorithm) to be loaded prior to dispatch to ensure your battery is optimally charged. The distribution Warehouse has access to Delta-Q's extensive library of charge profiles and can easily pre-program your charger to suit your specific system.

DC Output 25.6 VDC
Max DC Output Voltage 36 VDC
Max DC Output Current 13 A
Max DC Output Power 350 W
Lithium Cells in Serries 6 to 10
AC Input Range 85-270 VAC
Nominal AC Input Voltage 120 - 240 VAC
Nominal AC Input Frequency 50 / 60Hz
Max. AC Input Current 3.8A
Efficiency 93% Peak Efficiency
Ingress Rating IP66
Operating Temperature -40°C to +60°C
SKU BCDQRQ350-2413CAN
Barcode # DQRQ350-24/13CAN
Brand Delta-Q
Shipping Weight 2.7000kg
Shipping Width 0.200m
Shipping Height 0.180m
Shipping Length 0.390m
Shipping Cubic 0.014040000m3
