Our range of Pre-Insulated and Non-Insulated Compression Terminals has been designed and manufactured to the highest standards to provide terminals that comply with most international codes and standards.

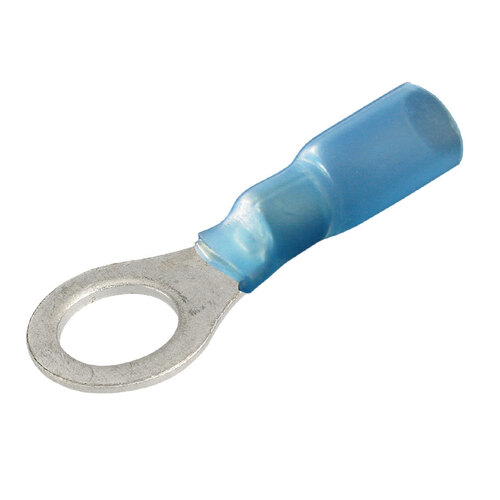

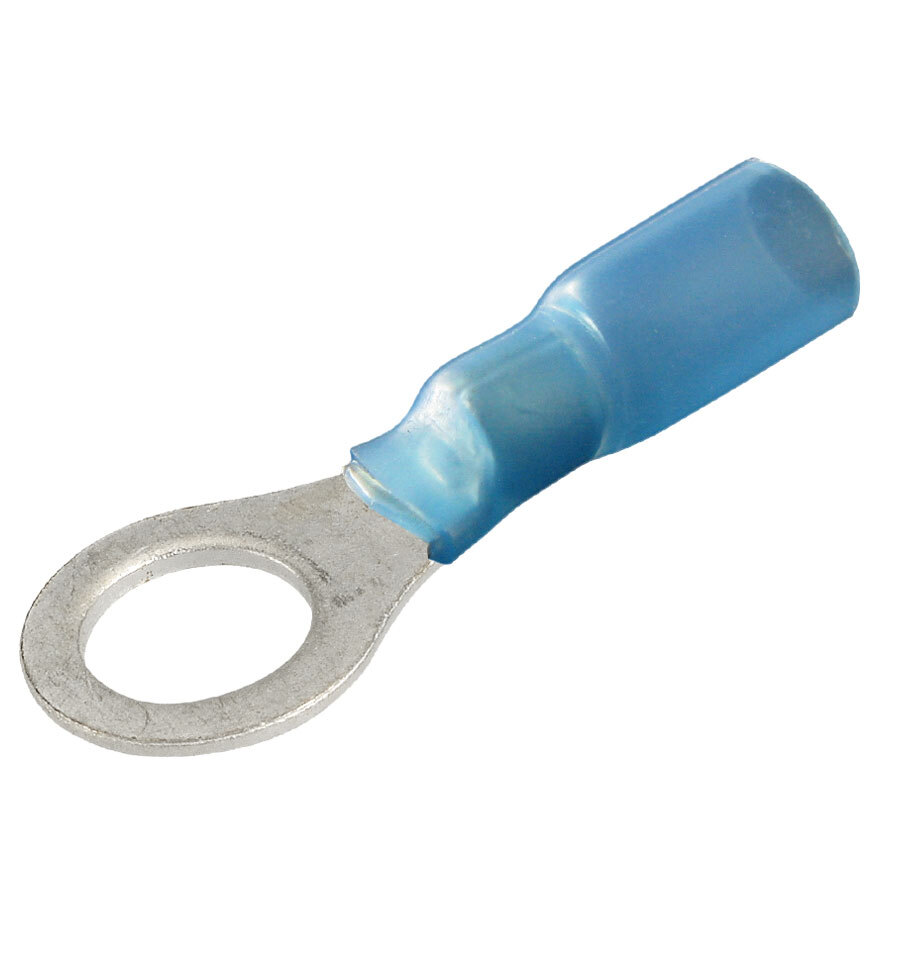

The internal adhesive of the heatshrink terminals bonds securely to both the terminal and cable.

The combination of crimping, heatshrink and adhesive creates a level of strain relief not achievable with standard terminal types.

The shrink/adhesive combination also produces a seal that prevents water and dust getting into the back of the terminal.

Easy entry guides cable strands into position

Eliminates cable strand flares when inserted

Ensures fast, positive and consistent insulation

Comes in packs of 10 or packs of 50

Lugs can either be crimped onto cable using crimping tools or soldered if crimping tools are not accessable.

Insulation Colour Max. Cable Diameter (mm) Max. Cable Diameter (AWG)
Red 0.5 - 1.5 mm² 22 - 16 AWG
Blue 1.5 - 2.5 mm² 16 - 14 AWG
Yellow 2.5 - 6.0 mm² 12 - 10 AWG
SKU CCB6HS
Barcode # CCB6HS
Brand Pacific Components
Shipping Weight 0.1200kg
Shipping Width 0.090m
Shipping Height 0.030m
Shipping Length 0.100m
Shipping Cubic 0.000270000m3
