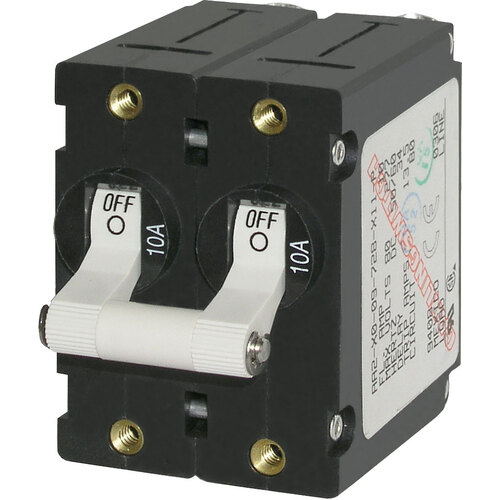

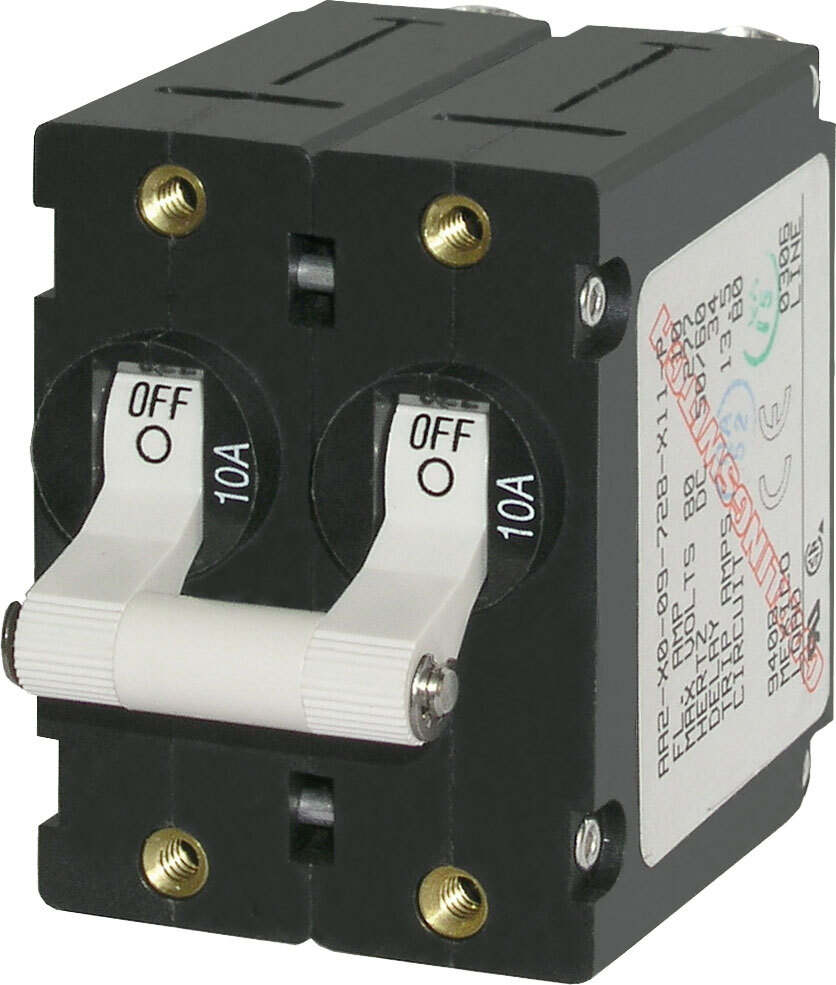

Magnetic hydraulic circuit breakers that combine switching and circuit protection into a single device.
  • The industry standard circuit breaker for Blue Sea Systems electrical panels
  • Double pole typically used for AC Main circuit protection
  • "Trip Free" design cannot ben held "ON" during fault current condition
  • Meets American Boat and Yacht Council (ABYC) standards
  • UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada
Maximum Voltage 65V DC / 240V AC
Mounting Panel Mount
Poles 2
Circuit Breaker Type Magnetic Hydraulic - trip free
Terminal Type #10-32 Screw
Interrupt Capacity 7500A @ 65V DC / 1500A @ 240V AC [TUV]
Operating Temperature -40° C to 85° C
Switching Cycles 10,000
Weight 0.30lb (0.14 kg)



SKU BSSASERIES2P
Brand Blue Sea Systems
Shipping Weight 0.0150kg
Shipping Width 0.110m
Shipping Height 0.045m
Shipping Length 0.070m
Shipping Cubic 0.000346500m3
