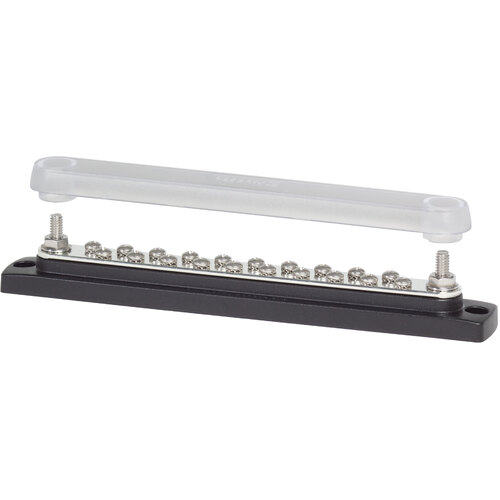

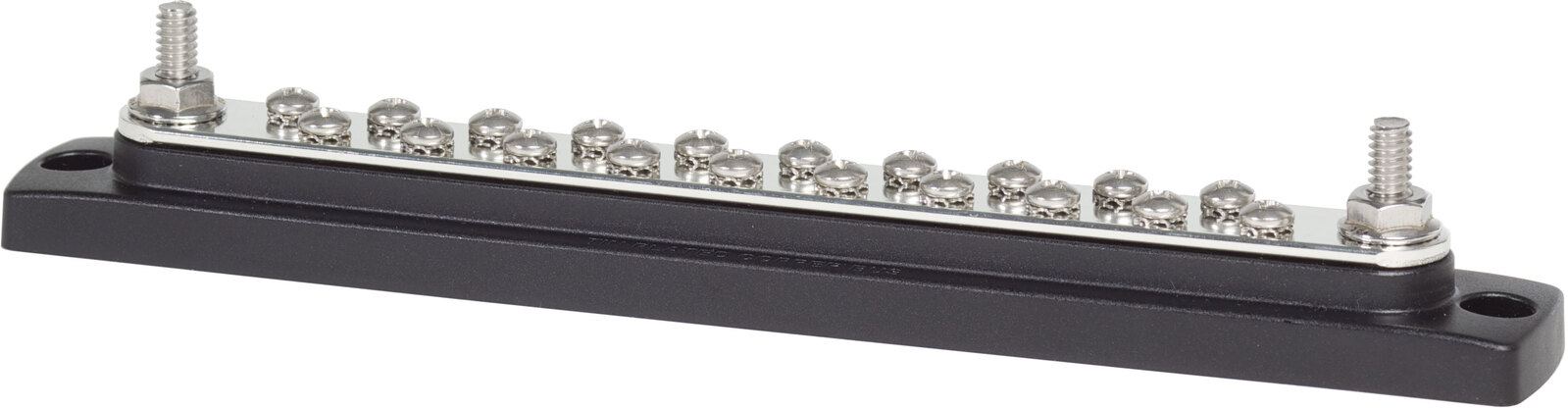

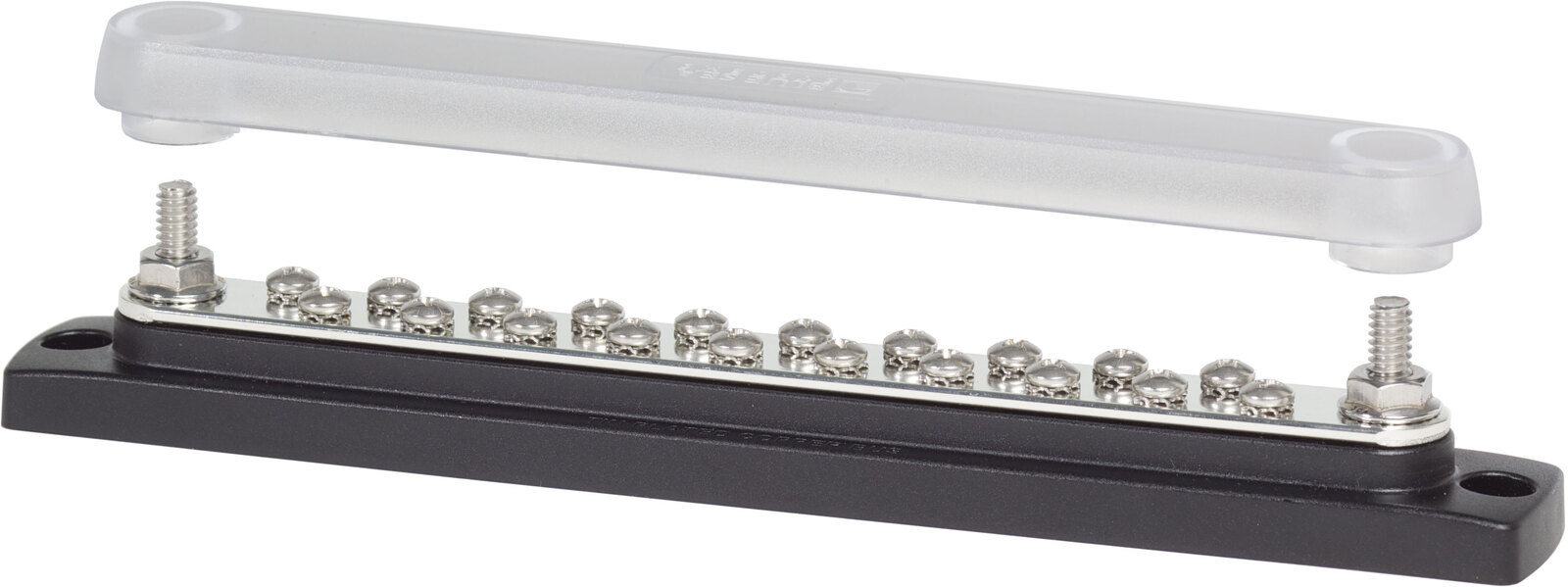

The industry standard busbar for positive distribution

The industry standard busbar for the collection of negative or AC ground circuits

  • Base Material - Reinforced Polycarbonate
  • Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
  • Cover Material - Clear Polycarbonate
  • CE Certified
Maximum Voltage 300V AC / 48V DC
Continuous Rating 130A AC / 150A DC
Number of Screw Terminals 20
Number of Terminal Studs 2
Terminal Type #1/4" Stud / #8-32 Screw
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/ UNS11000
Cover Material Clear Polycarbonate
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.37lb (0.17 kg)



SKU 632085023126
Barcode # 2312-BSS
Brand Blue Sea Systems
Shipping Weight 0.2600kg
Shipping Width 0.305m
Shipping Height 0.045m
Shipping Length 0.070m
Shipping Cubic 0.000960750m3
