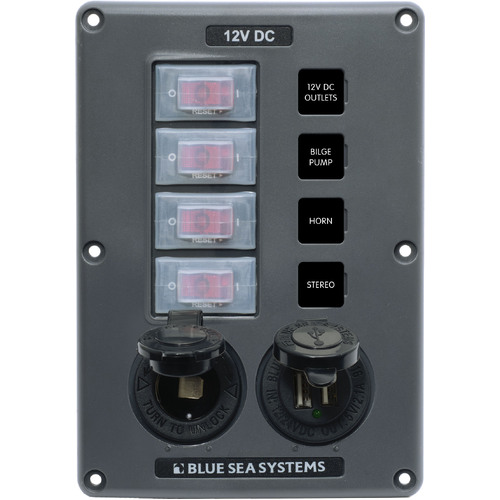

Easy to install accessory panels include a 15A circuit breaker switch and a pre-wired harness.
Panels offer customizable 12V charging and monitoring options.

Designed for exposed mounting applications
  • Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
  • Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
  • Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
  • Silicon breaker boots and gasket protects against water ingress
  • Low profle makes it easy to install in tight spaces
  • Fast-on circuit breaker connectors make it quick to wire
  • Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
  • Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Positions 4 w/Sockets
Nominal Voltage 12V DC
Maximum Amperage 45A
Height 6.625in (168.28 mm)
Width 4.625in (117.48 mm)
Depth 1.75in (44.45 mm)



SKU 632085043216
Barcode # 4321-BSS
Brand Blue Sea Systems
Shipping Weight 0.3500kg
Shipping Width 0.230m
Shipping Height 0.080m
Shipping Length 0.160m
Shipping Cubic 0.002944000m3
