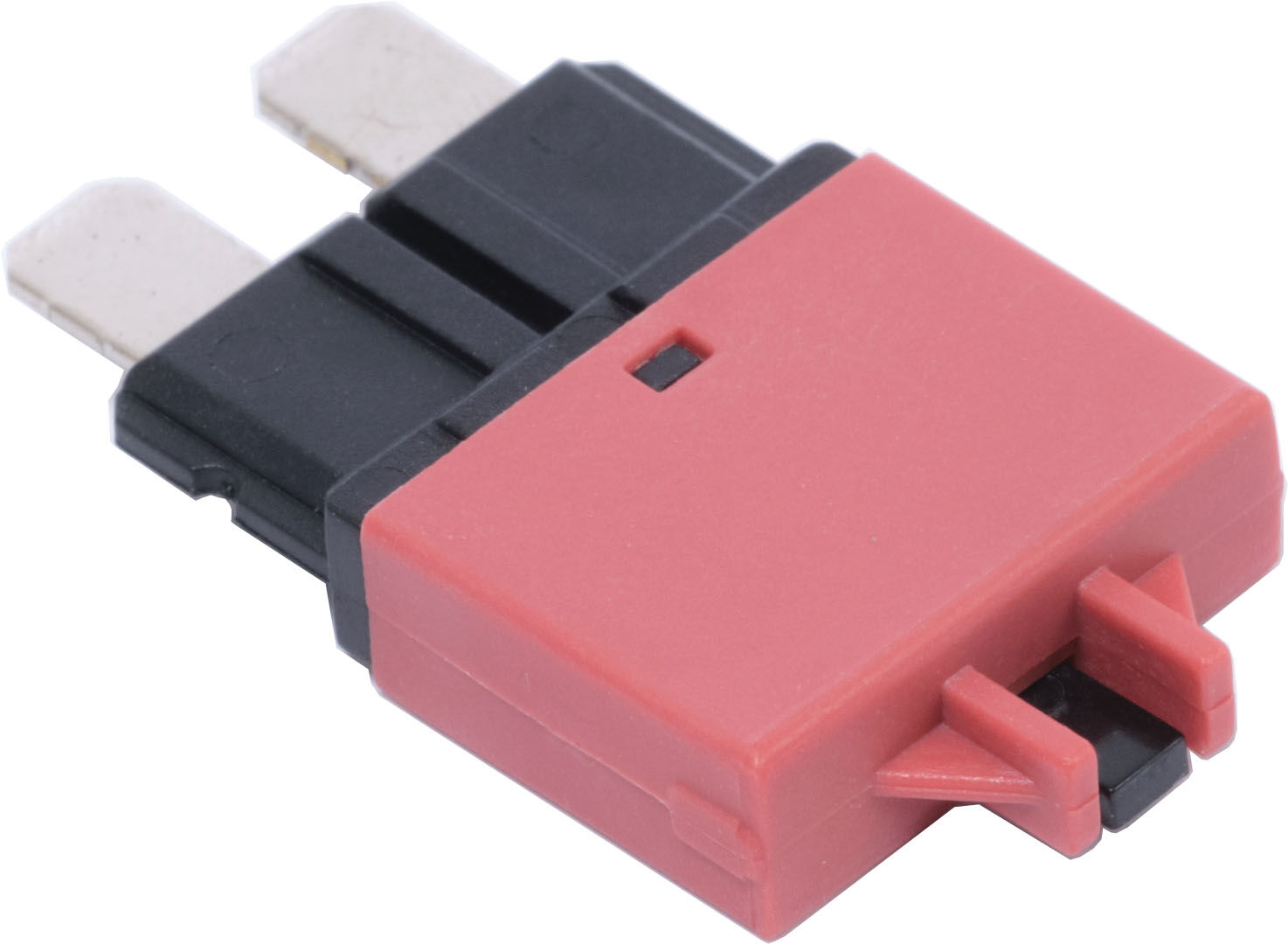

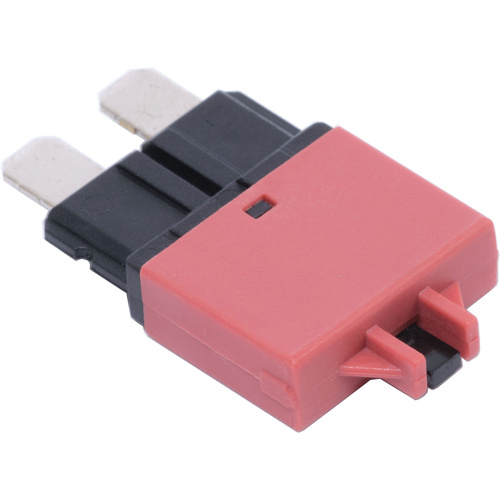

Use a manually resettable circuit breaker instead of an ATO or ATC fuse
  • Drop in replacement for ATO and ATC blade style fuses
  • Manual push button reset complies with ABYC circuit protection requirements
  • Compatible with Water-Resistant ST-Blade Fuse Block with cover secured
  • Compatible with all other ST-Blade Fuse blocks without cover
  • Ignition Protected
  • ISO 10924-4, SAE J1171, SAE J553, UL1500 Certifications
Amperage 10A
Color Red
Maximum Voltage 32V DC
Circuit Breaker Type Thermal trip, manual reset
Interrupt Capacity* 2000A @ 28V DC
Minimum Operating Temperature -30° C
Maximum Operating Temperature 77° C













*the fault current that a device, normalls a fuse or crcuit breaker, is capable of breaking without damage

SKU 632085070649
Barcode # 7064-BSS
Brand Bussmann
Shipping Weight 0.0100kg
Shipping Width 0.040m
Shipping Height 0.015m
Shipping Length 0.085m
Shipping Cubic 0.000051000m3
