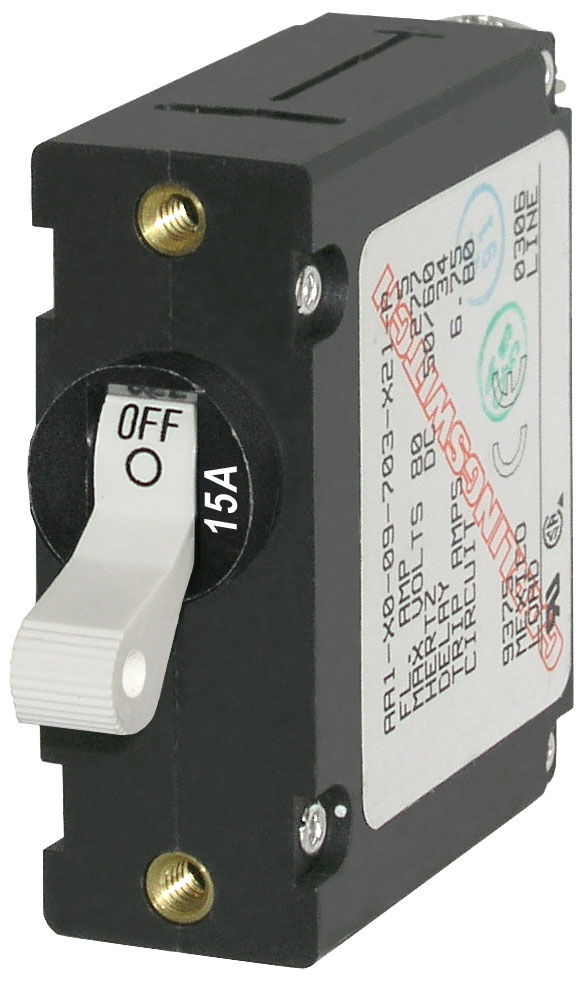

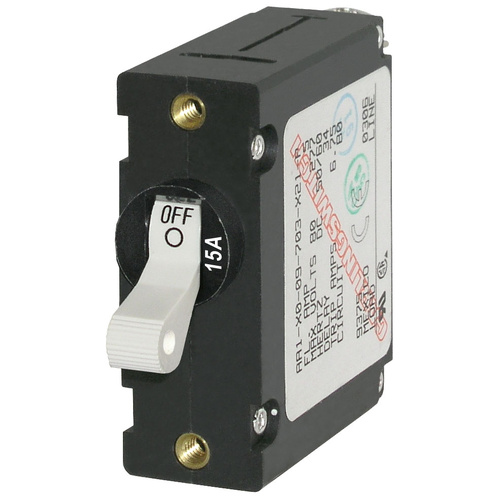

Magnetic hydraulic circuit breakers that combine switching and circuit protection into a single device.
  • The industry standard circuit breaker for Blue Sea Systems electrical panels
  • Double pole typically used for AC Main circuit protection
  • "Trip Free" design cannot ben held "ON" during fault current condition
  • Meets American Boat and Yacht Council (ABYC) standards
  • UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada
Maximum Voltage 65V DC / 240V AC
Actuator Style Toggle
Color White
Mounting Panel Mount
Poles 1
Circuit Breaker Type Magnetic Hydraulic - trip free
Interrupt Capacity 3000A @ 120V AC
1500A @ 240V AC [TUV]
3000A @ 240V AC [UL 1077]
7500A @ 65V DC

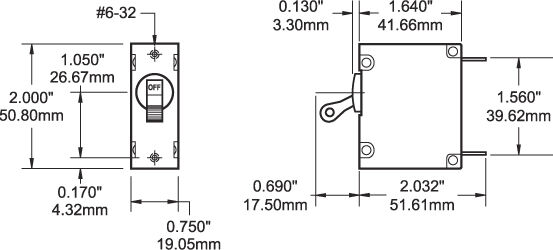

Terminal Screws #10-32 Screw
Mounting Screw #6-32 Stainless Steel
Screw Terminal Torque 14 in-lb (1.58 Nm)
Mounting Screw Torque 6 in-lb (0.68 Nm)
Operating Temperature -40° C to 85° C
Switching Cycles 10,000
Weight 0.17lb (0.08 kg)



SKU 632085072100
Brand Blue Sea Systems
Shipping Weight 0.0800kg
Shipping Width 0.065m
Shipping Height 0.025m
Shipping Length 0.090m
Shipping Cubic 0.000146250m3
