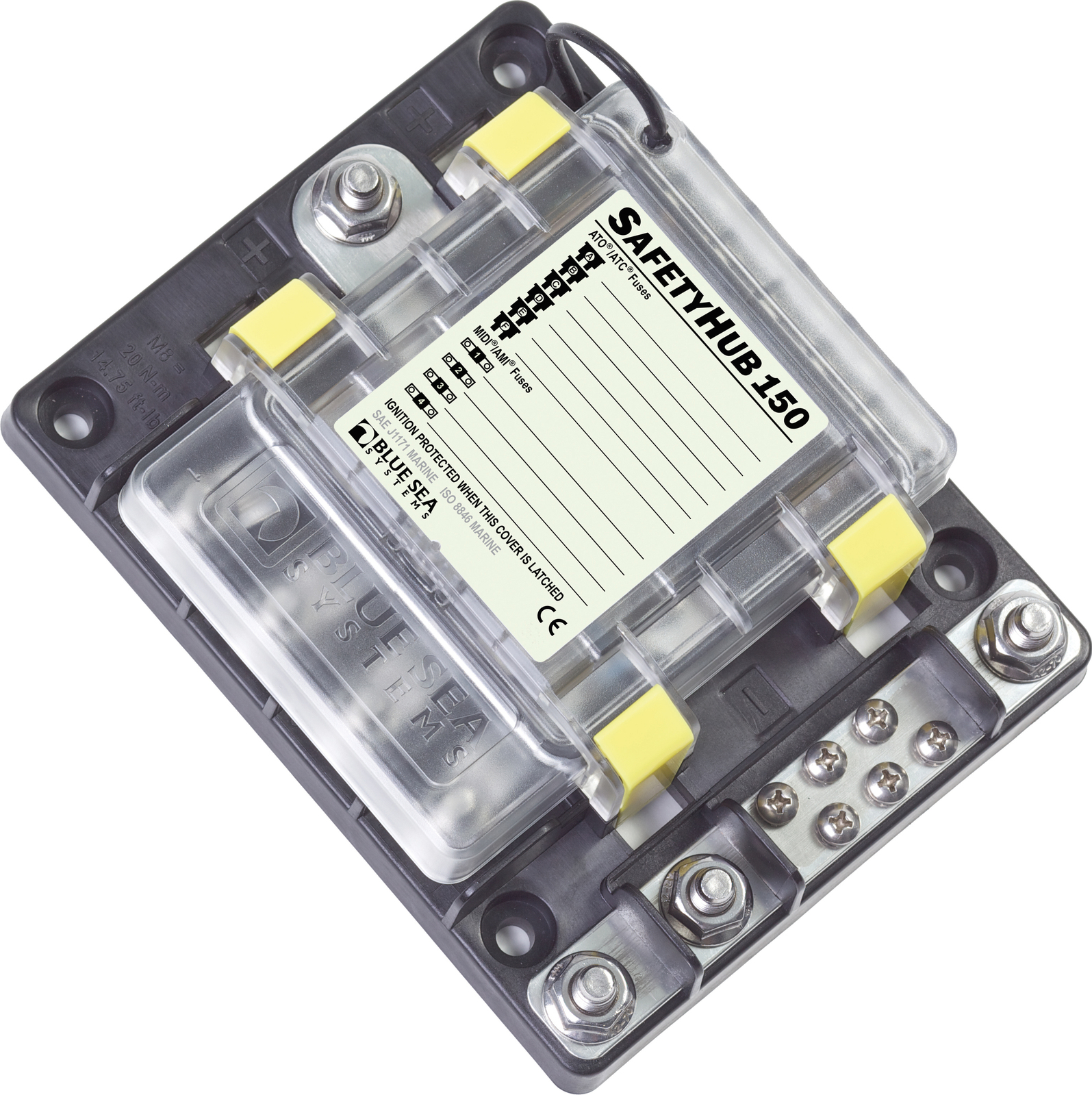

An ignition protected fuse block with screw termination safe for use on gasoline powered boats
  • Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
  • Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights
  • Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
  • Negative bus provides common location for negative connection
  • Circuit identification label with write-on capability
  • Fuse puller easily removes ATO® or ATC® Fuses

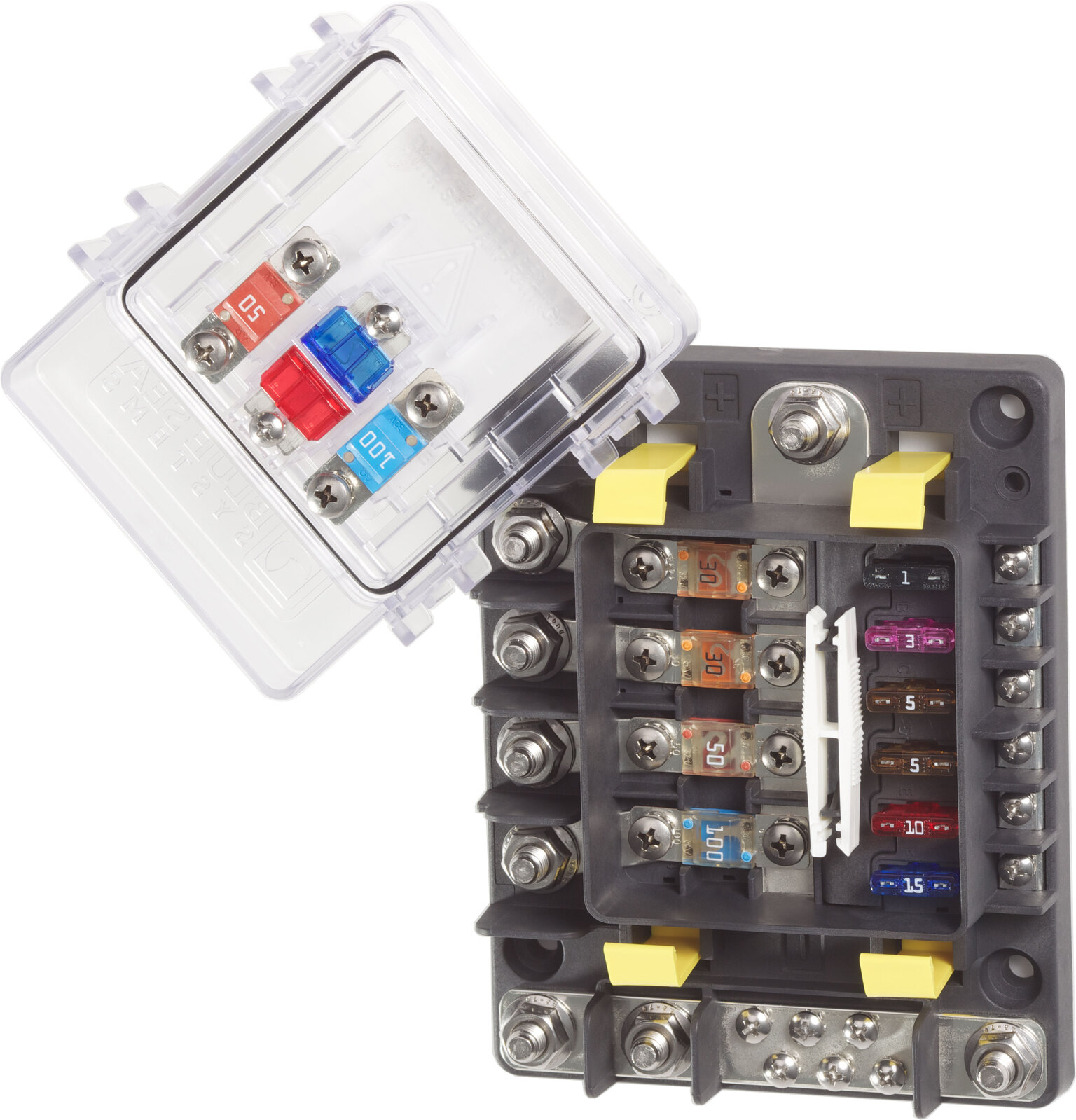

  • Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
  • One-piece stainless flange nuts ensure safe and secure connections
  • Fuses sold separately
Circuits 10
Operating Voltage 32V DC
Amperage Maximum Operating - combined 200A* / 350A* / 600A*
Stud Size M8 x 1.25
Recommended Ring Terminal M8 (5/16")
Screw Torque, 8-32 18in-lb (2.03 Nm)
Screw Torque, M5 27in-lb (3.05 Nm)
Stud Torque 180 in-lb (20.34 Nm)
Weight 3.20lb (1.45 kg)
  • *200A - Using 2/0 AWG (70mm2) Cable
  • *350A - Using 4/0 AWG (120mm2) Cable
  • *600A - Using 2 x 4/0 AWG (120mm2) Cable
SKU 632085077488
Barcode # 7748-BSS
Brand Blue Sea Systems
Shipping Weight 0.8800kg
Shipping Width 0.290m
Shipping Height 0.090m
Shipping Length 0.230m
Shipping Cubic 0.006003000m3
