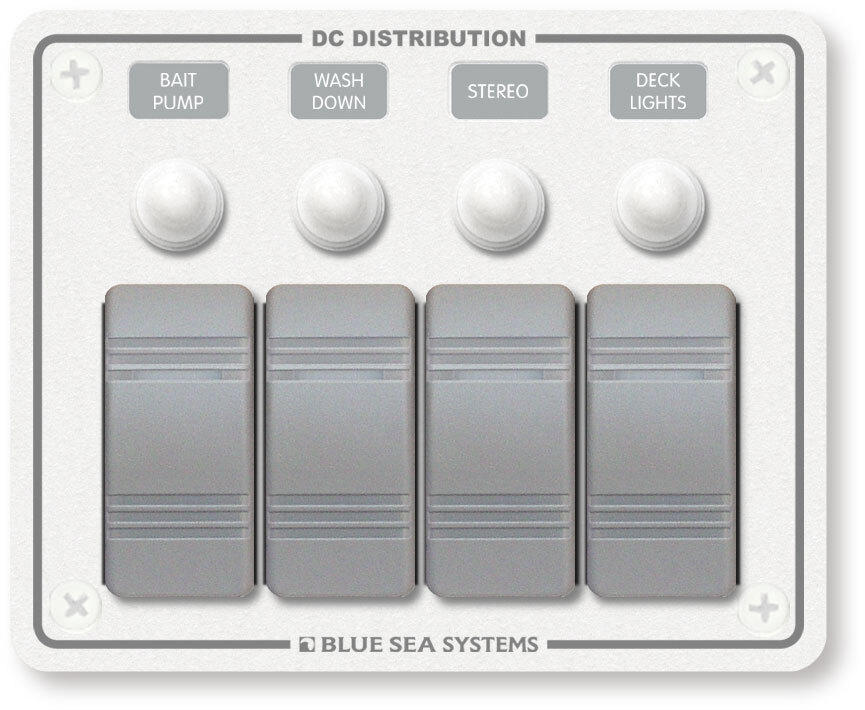

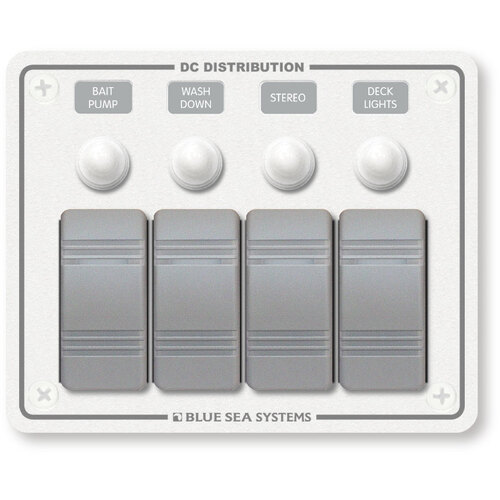

• Designed for flybridge and open cockpit applications
  • Panel front is rated IP66—Protected against powerful water jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switch
  • Watertight mounting gasket
  • Push Button Reset-Only circuit breakers with waterproof boots
Weatherproof* Water Resistant
Positions 4
Nominal Voltage 12V DC
24V DC
Panel Cumulative Rating 45A
Switch Rating 20A @ 12V DC
15A @ 24V DC
Height 4.25in (107.95 mm)
Width 5.25in (133.35 mm)
Depth 3.25in (82.55 mm)
Weight 0.95lb (0.43 kg)










*Constructed or Protected so that exposure to the weather will not interfere with successfull operation in Rain, Spray or Splash

SKU 632085082727
Barcode # 8272-BSS
Brand Blue Sea Systems
Shipping Weight 0.4300kg
Shipping Width 0.170m
Shipping Height 0.130m
Shipping Length 0.225m
Shipping Cubic 0.004972500m3
