Specifically manufactured for use in Blue Sea Systems Contura Water Resistant Panels
  • Vibration, shock, thermoshock, moisture and salt spray resistant
  • Ignition Protected - Safe for installation aboard gasoline powered boats
  • Meets UL1500 and ISO8846 ignition protection requirements
  • Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting panels

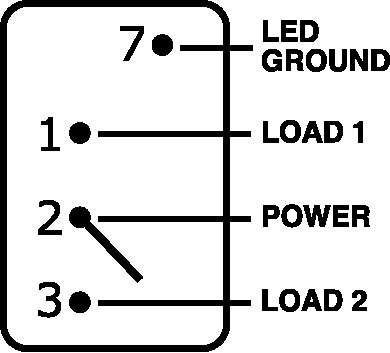

Action ON-OFF-ON
Pole / Throw SPST
Actuator Color Black - Contura III
Common Applications Combining Nav Lights or Anchor Light with independent bulbs
Maximum Amperage 20A @ 12V / 15A @ 24V
Amperage Operating Current 18mA (LED)
Operating Temperature -40° C to 85° C
Actuator Position to Light LED ON
Embedded LEDs 2
Lighting LED rated 100,000 hours half-life
Seals Internal and external gasket panel seal
Weight 0.09lb (0.04 kg)



SKU 632085082833
Barcode # 8283-BSS
Brand Carling Technologies
Shipping Weight 0.0400kg
Shipping Width 0.110m
Shipping Height 0.045m
Shipping Length 0.070m
Shipping Cubic 0.000346500m3
