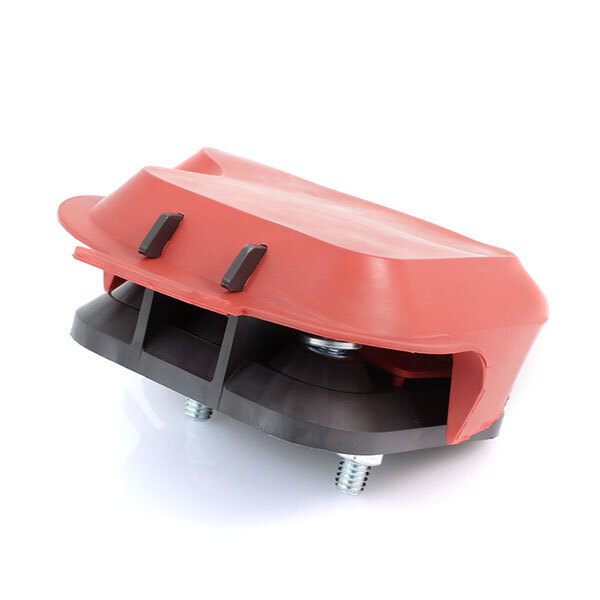

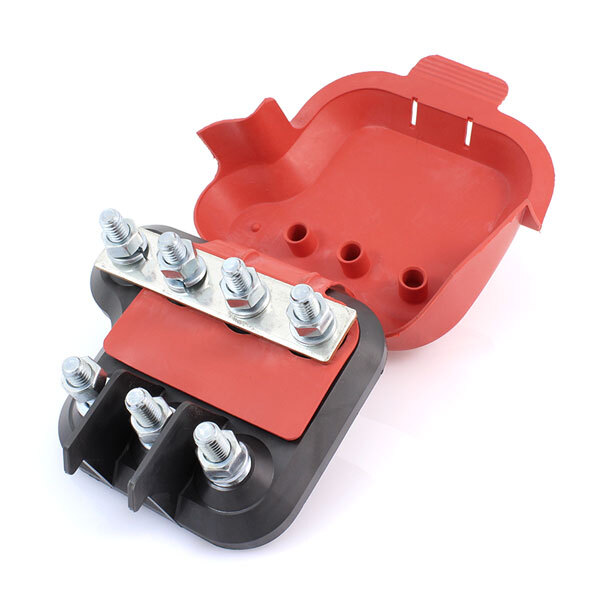

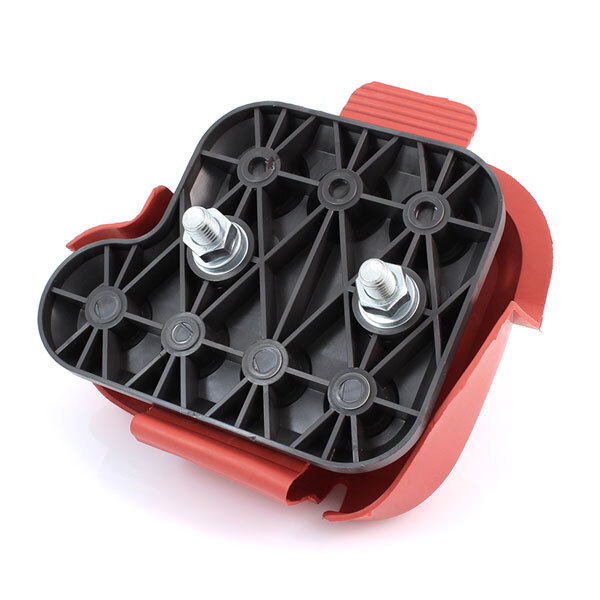

Bussmann now offer a heavy duty power distribution module called the LMG (a.k.a Big Block)

The LMG is used for main branch primary fusing and accepts 3 industry standard AMG / MEGA fuses.

Utilising bus bar, the LMG requires just one input connection to power all fuses.

The Big Block provides efficient power distribution suitable for many “under the hood” applications such as: for Marine, Bus, Caravan/RV, Construction, Emergency, Trucks, Speciality Vehicles etc.

Maximum Amperage 300A Combined
Maximum Voltage
32V DC
Fuse Screw
M8 or 5/16-18 threaded, zinc plated steel studs
Ring Terminal Size
M8 (5/16")
SKU FHMEGA3
Barcode # LMG3-1-001
Brand Bussmann
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
