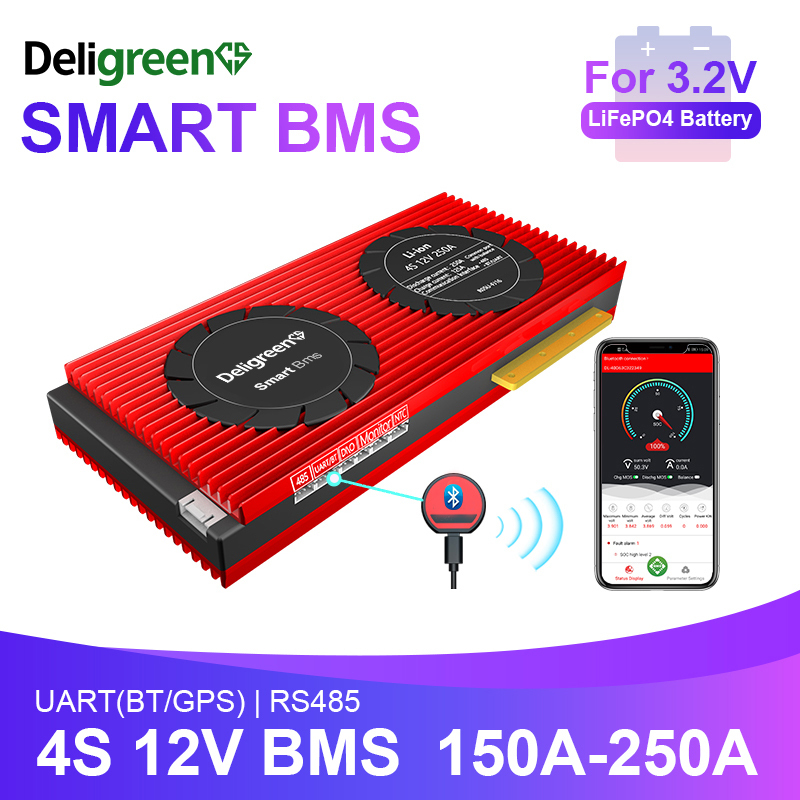

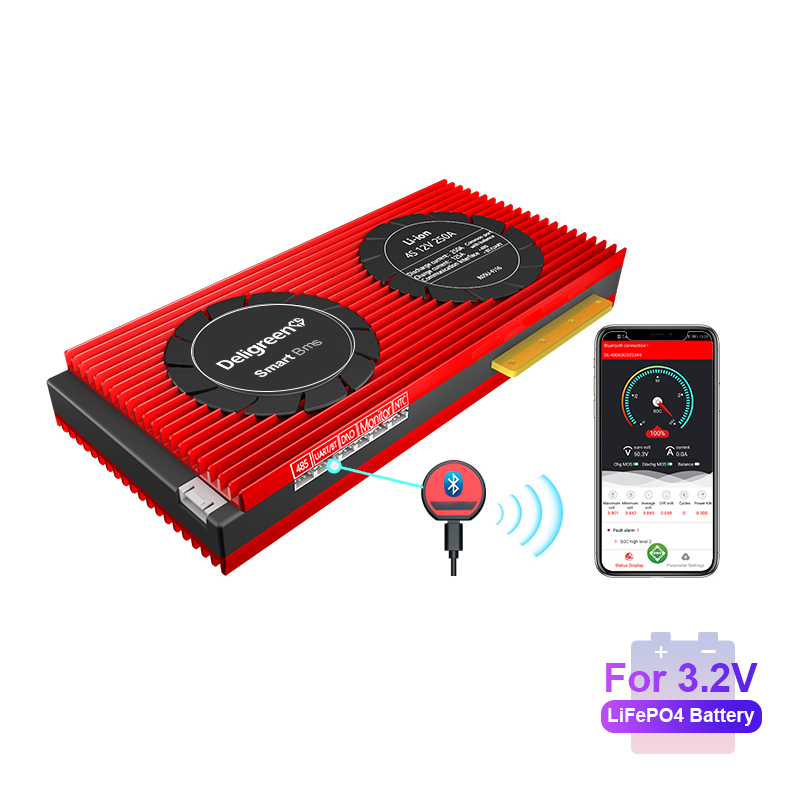

Deligreen Smart Bluetooth BMS 4S 250A 12V
Deligreen Smart Bluetooth BMS 4S 250A 12V
Deligreen is a one stop power system provider, engaged in research and development and sales of lithium battery and its accessories.
The main products are the distribution of large cell of domestic famous brand, BMS, Active balancer, charger, home energy storage and electric vehicle charging cable.
A BMS (Battery Management System) is essential in a Lithium-Ion battery system. If you are connecting your LiFePO4 cells in series to create a 12.8V battery pack, you MUST run a BMS to ensure that your batteries are not over charged/discharged.
This device manages a real-time control of each battery cell, communicates with external devices, manages SOC calculation, measures temperature and voltage, etc.
Intellegent Control Accurate Data
Monitor the Battery status in Real-Time base by checking the battery capacity and observing the voltage of each string in Real-Time.
- Real-Time Positioning
- Remote Power Off
- Remote Sofware Upgrade
This BMS is programmable through either Bluetooth and Smart phone or through a PC.
Features:
- Bluetooth Connectivity
- Over charge/discharge disconnect
- Short-circuit protection
- Temperature sensor
- Over Current Protection
- Low power consumption
- Anti-Corrosion, high water resistance
- 5A Parallel Module (Optional Extra)
UART: UART is Universal Asynchronous Receiver/Transmitter, It transforms the data to be transmitted between serial communication and parallel communication. As a chip to convert parallel input signals into serial output signals, UART is usually integrated into other communication interfaces.
Model | 4S 250A |
---|---|
Constant Discharge Current
|
250 A |
Over-Discharge Current Protection
|
600 A ± 100 A
|
Charge Voltage
|
Series.No *3.65V
|
Charge Current
|
125 A
|
Over Charge Voltage
|
3.75v ± 0.05v |
Over Charge Volt Protect Delay
|
1 Second
|
Over Charge Volt Release
|
3.55v ± 0.05v
|
Power Balance Voltage |
3.5v
|
Balance Release Voltage
|
3.5v
|
Balance Current
|
200 ± 5mA |
Over Discharge Detect Voltage
|
2.2v +- 0.1V
|
Over Discharge Detect Delay
|
1 Second
|
Over Discharge Volt Release
|
2.7v +- 0.05V
|
Over Current Detect Delay
|
1 millisecond
|
Over Current Protect Release |
Off-Load
|
Short Circuit Protection | External load short circuit |
Short Circuit Detect Delay |
1 millisecond
|
Short Circuit Detect Release |
Off-Load
|
Temp Protection | Charge 0°c Discharge 70°c |
Main Circuit Resistor
|
<20 mΩ (milliohm)
|
Working Current
|
500 µA (microamps)
|
Sleepy Current (When Battery is Over Discharged)
|
<20 µA (microamps) |
Working Temp Range
|
-20°c to +70°c |
Storage Temp Range
|
-40°c to +80°c |
Dimesnions L x W x H (mm) | 221 x 130 x 32mm |
Weight | 1.6kg |
SKU | BATLIBMS25012DALY |
Barcode # | 4S250A |
Brand | Deligreen |
Shipping Weight | 1.8000kg |
Shipping Width | 0.500m |
Shipping Height | 0.070m |
Shipping Length | 0.190m |
Shipping Cubic | 0.006650000m3 |
