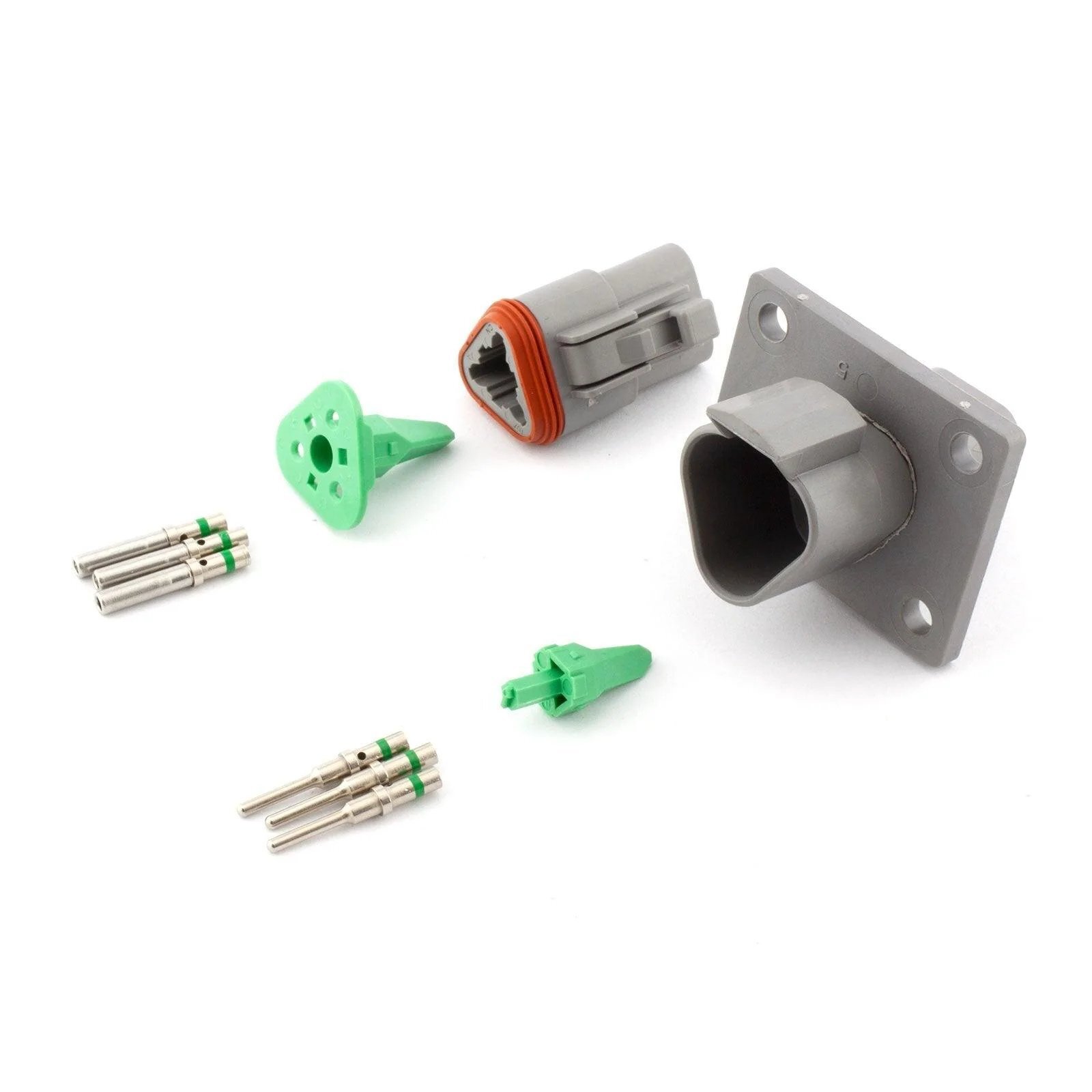

Deutsch DT3FM 3-Way Flange Mount Kit GRY 2.0mm2 Contacts IP68 13A
Deutsch DT3FM 3-Way Flange Mount Kit GRY 2.0mm2 Contacts
Deutsch DT Series connectors offer field proven reliability and rugged quality.
The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility.
The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.
- Accepts contact size 16 (13 amps)
- 14-20 AWG
- 2, 3, 4, 6, 8, and 12 cavity arrangements
- In-line, flange, or PCB mount
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedgelocks assure contact alignment and retention
- Grommet: Silicone rubber
- Insert Retainer: Thermoplastic
- Receptacle Interfacial Seal: Silicone rubber
- Shell: Thermoplastic
- Wedgelocks: Thermoplastic
|Max. Cable Diameter (mm)||Max. Cable Diameter (AWG)||Max. Amperage Rating*|
|1.5 - 2.0 mm²||16 - 14 AWG||10.1 - 20.0A|
