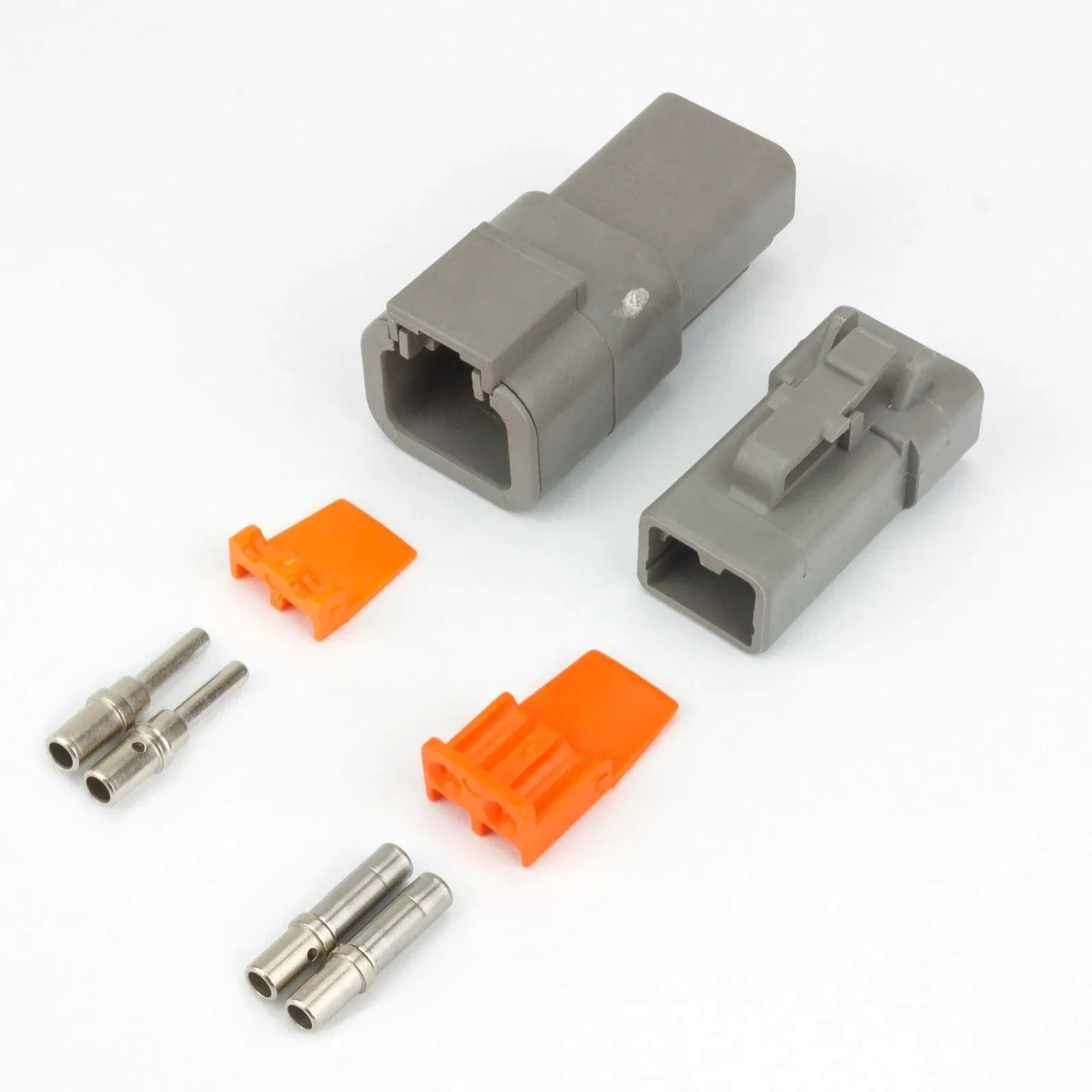

Deutsch DTP Series connectors are the solution for your power application requirements.

Building on both the DT and DTM design strengths, the DTP connector line was developed to fill the need for higher amperage, multi-pin, inexpensive connectors.

The DTP Series offers the designer the ability to use multiple size 12 contacts, each with a 25 amp continuous capacity, within a single shell.

The DTP connectors are currently available in two and four pin configurations.

Features:

  • Accepts contact size 12 (25 amps)
  • 10-14 AWG
  • 2 and 4 cavity arrangements
  • In-line, flange, or PCB mount
  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedgelocks assure contact alignment and retention
  • Grommet: Silicone rubber
  • Insert Retainer: Thermoplastic
  • Receptacle Interfacial Seal: Silicone rubber
  • Shell: Thermoplastic
  • Wedgelocks: Thermoplastic
Max. Cable Diameter (mm) Max. Cable Diameter (AWG) Max. Amperage Rating*
1.5 - 3.0 mm² 14 - 10 AWG 10.1 - 25.0A


*Amperage rating dependent on cable used

SKU DTP2
Barcode # DTP2
Brand TE Connectivity
Shipping Weight 0.0400kg
Shipping Width 0.115m
Shipping Height 0.035m
Shipping Length 0.065m
Shipping Cubic 0.000261625m3
