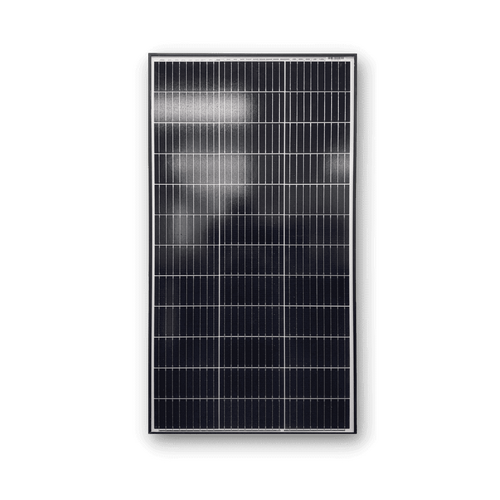

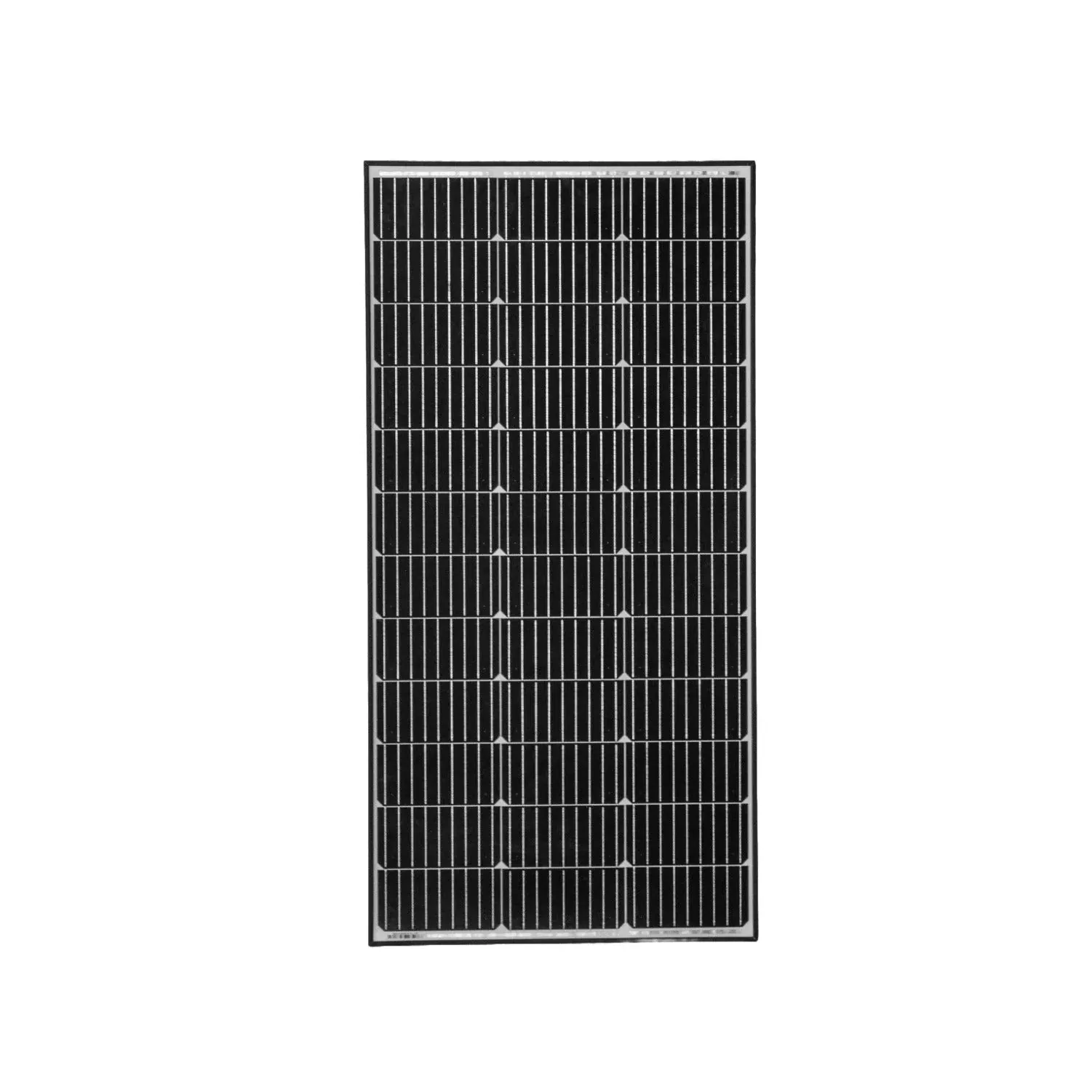

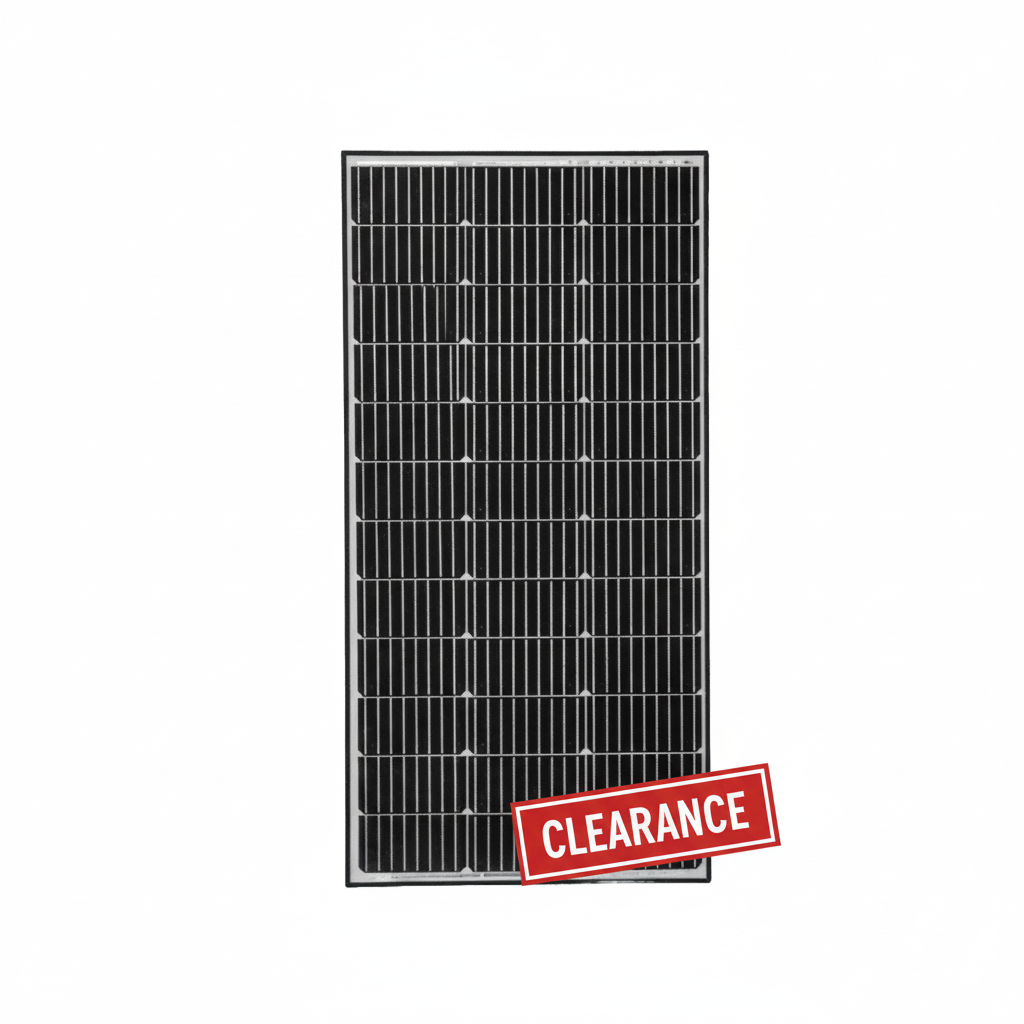

Solar Panel Exotronic - 110 Watt (Narrow) - 1050 x 525 x 25mm - 6.05KG

The Exotronic range of panels has been meticulously designed to harmonize voltages across all sizes, enabling all modules to be wired in parallel. This harmonization facilitates optimal compatibility and ease of installation.

FEATURES:

  • Maximize Solar Efficiency with M6 Mono-PERC Solar Panels - Leverage the power of advanced solar technology with M6 Mono-PERC solar panels, offering an efficiency rate of 23% and equipped with square cut cells. Incorporating a modern 9-wire bus-bar low-loss design, these panels deliver high efficiency and a positive power tolerance, demonstrating a competitive edge over traditional counterparts.

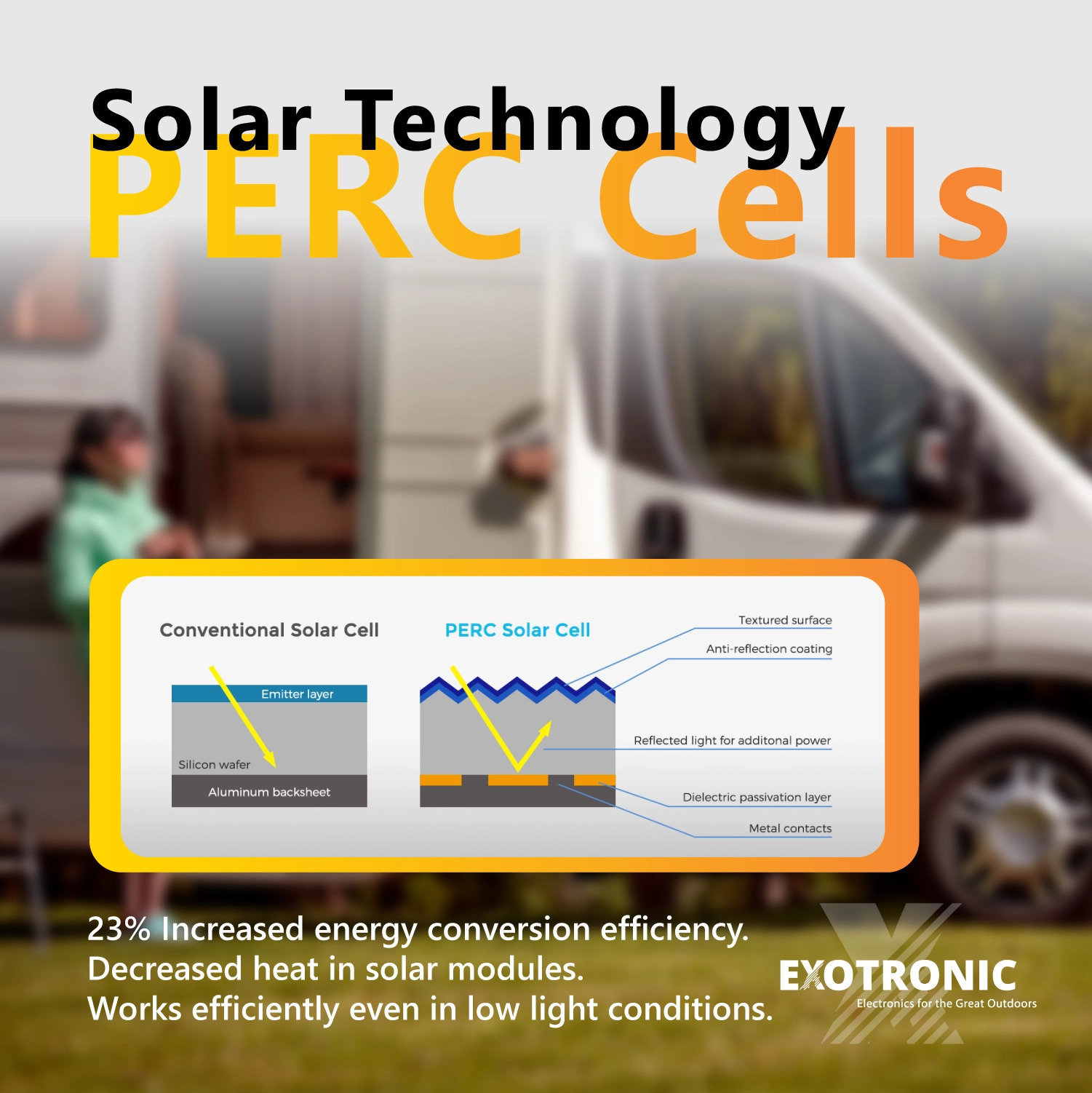

  • PERC Cells: Power and Efficiency Redefined - The inclusion of Passivated Emitter and Rear Cells (PERC) technology enhances the overall performance of these panels. In contrast to standard monocrystalline silicone designs, PERC cells exhibit improved low light performance by effectively utilizing the light that would otherwise pass through the cell, converting it back into electricity.
  • Optimized Power Output with 9-Wire Busbar Design - The cutting-edge 9-wire busbar design is pivotal in enhancing the performance of our solar panels. It effectively mitigates the resistance of the module and evenly distributes current across the entire surface of the cells. This sophisticated design significantly minimizes power losses within the module and curtails uneven cell heating and hot spots.

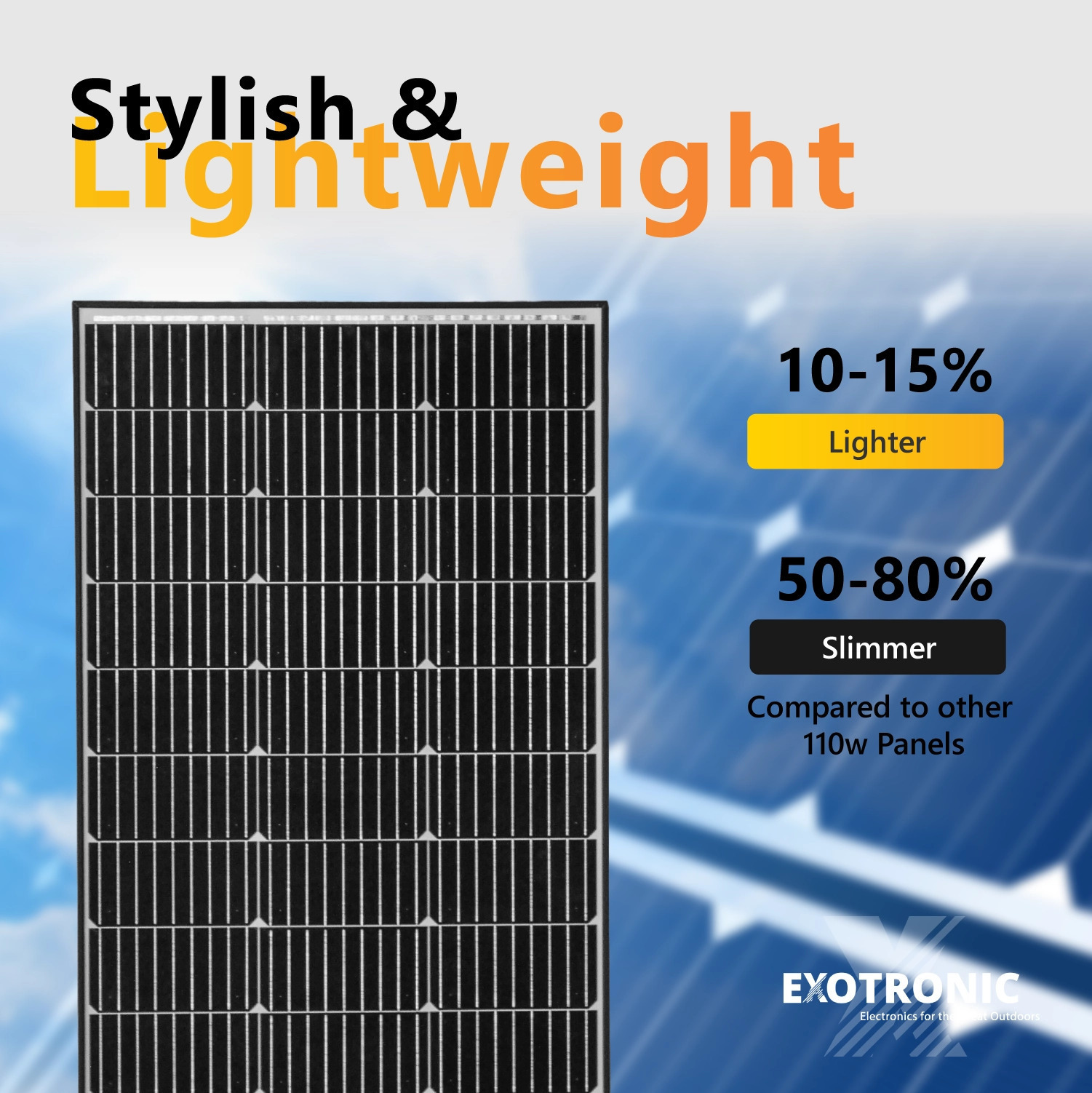

  • Robust Construction Paired with Sophisticated Aesthetics - The panels feature a durable anodised aluminium frame, fortified by a black protective coating and a streamlined 25mm profile. This refined design reduces the module's weight without compromising its structural integrity, effectively protecting the module from vibrational and torsional stresses. The use of tempered, high transmissivity, low-iron glass ensures superior low light performance and high resistance to impact.

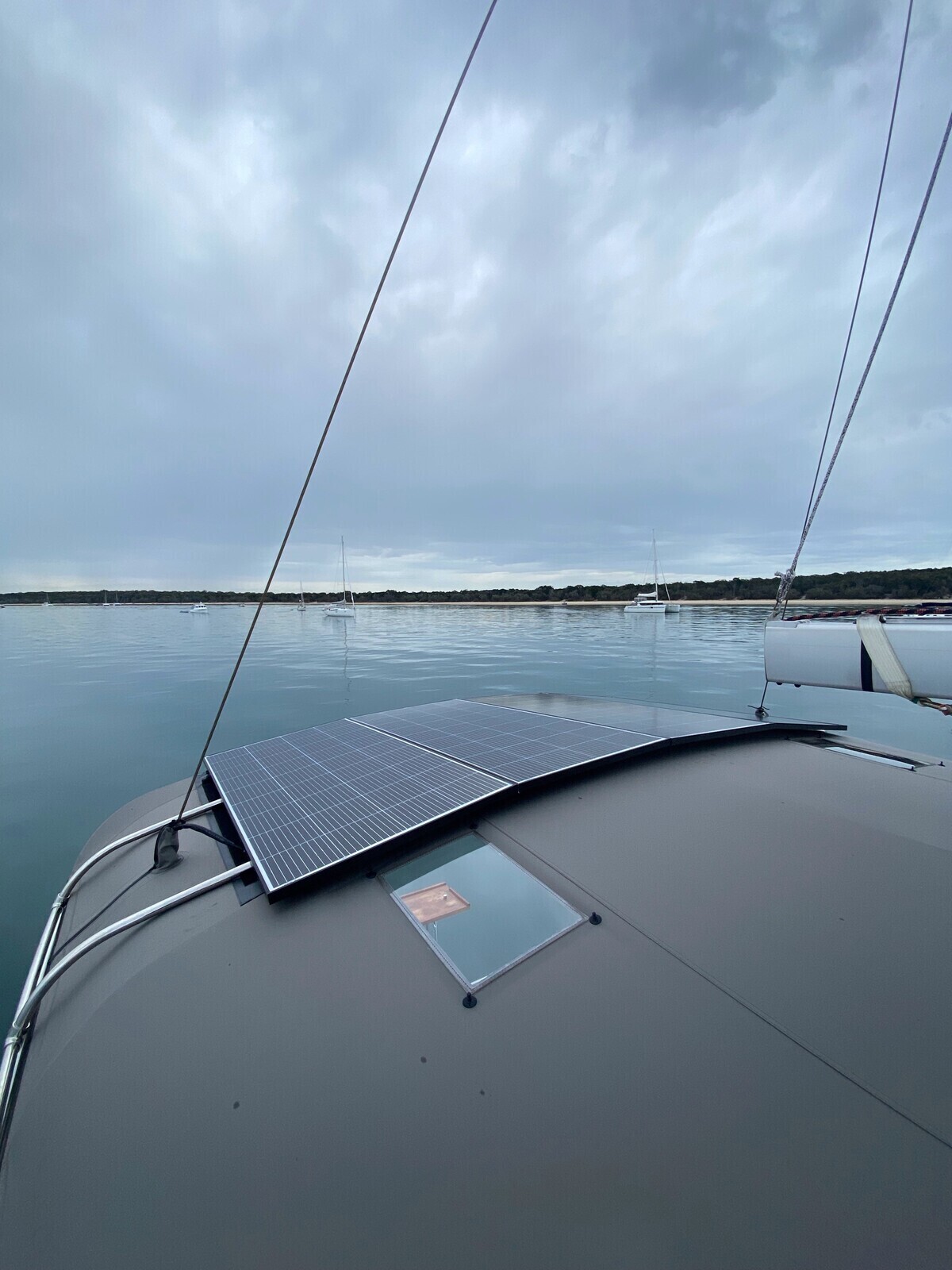

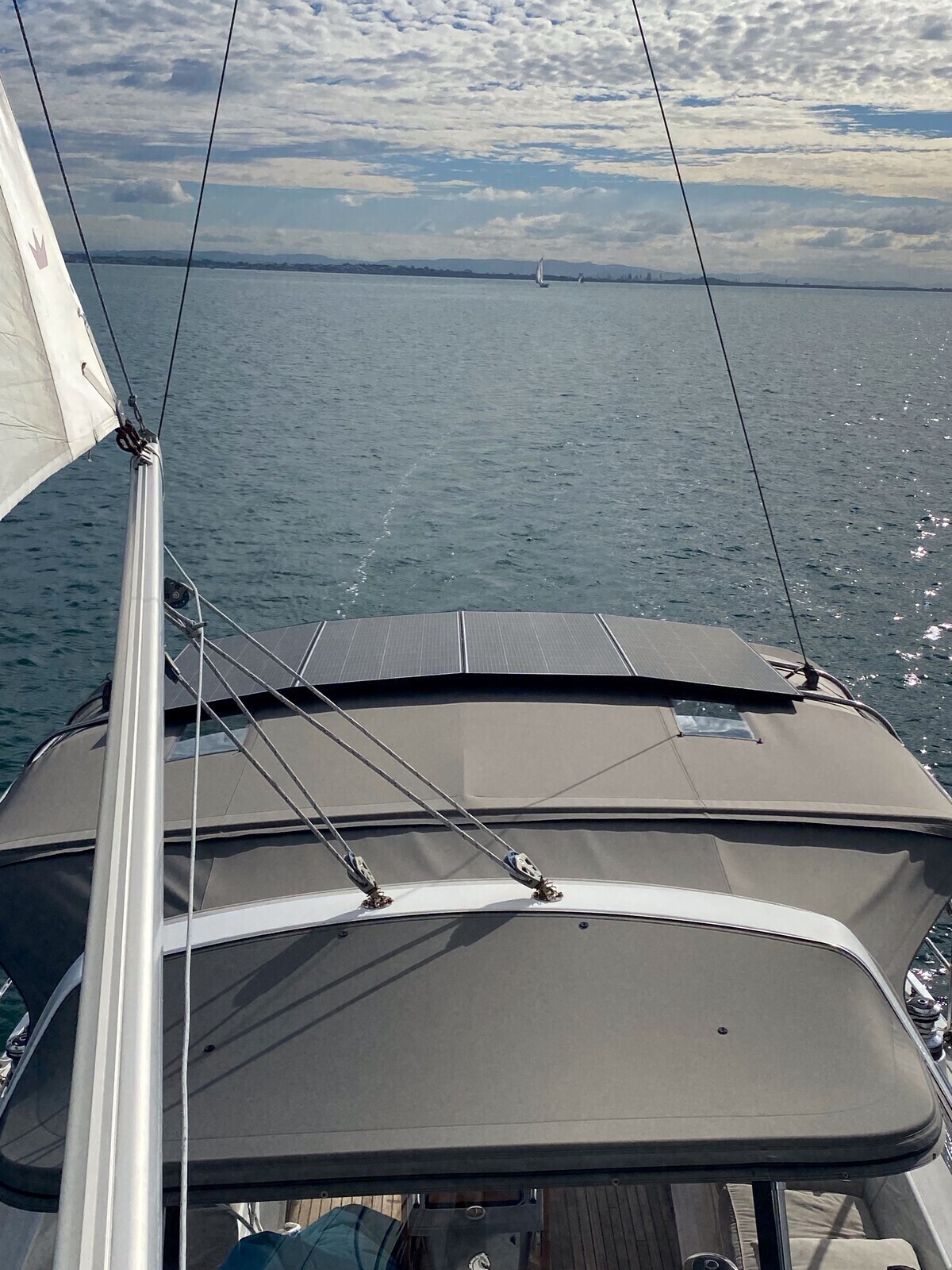

  • Optimal for Light RVs, 4x4s Roof Racks, Marine and Medium-Scale Energy Needs - Our Mono-PERC solar panels are crafted for versatility, making them an excellent choice for powering amenities in light RVs and 4x4s. Whether it's keeping fridges running smoothly or ensuring your laptops and phones are charged during your off-road adventures, these panels provide reliable energy on the go. Their adaptability extends to innovative applications such as integrating with toolboxes to maintain a consistent charge for worksite batteries. Perfect for the avid traveler or the busy professional, these solar panels offer the efficiency and durability needed for a range of medium-scale energy requirements.
  • Engineered for Resilience under Adverse Conditions

Resistance to salt mist and ammonia

Wind load resistance - up to 2400 Pascal

Snow load resistance - up to 5400 Pascal

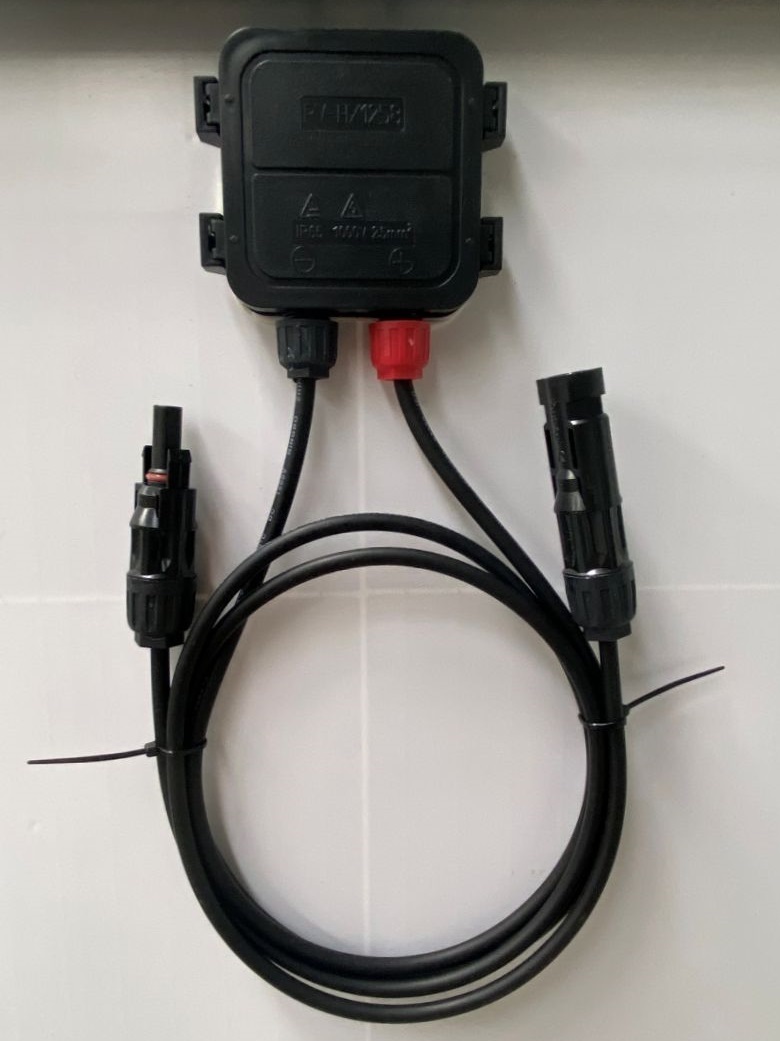

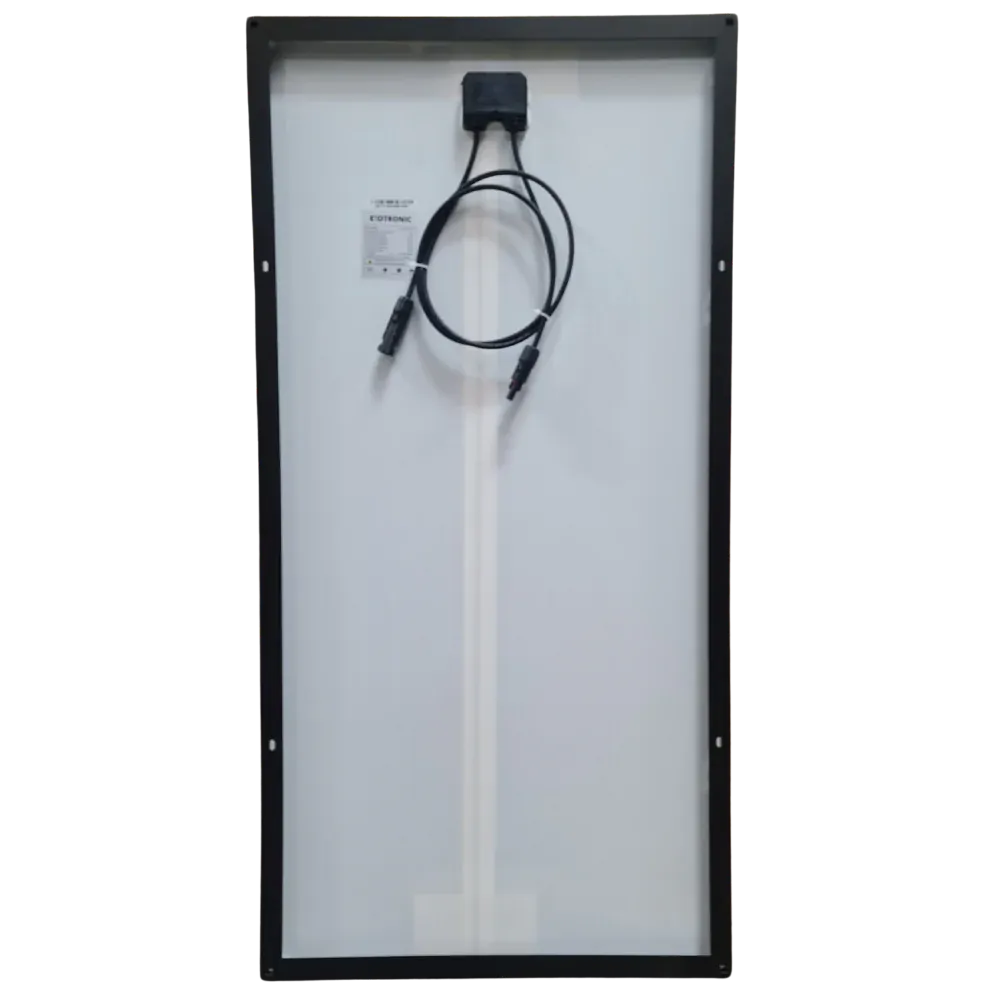

  • Each solar panel is equipped with an 800mm lead from the junction box, inclusive of MC4 connectors, for effortless installation.

RATED VOLTAGE: 12V
CELL TYPE: Monocrystalline
RATED POWER: 110W
OPEN CIRCUIT (VOC): 24.3V
SHORT CIRCUIT CURRENT (ISC): 5.87A
PEAK POWER VOLTAGE (VMP): 20.40V
PEAK POWER CURRENT (IMP): 5.40A

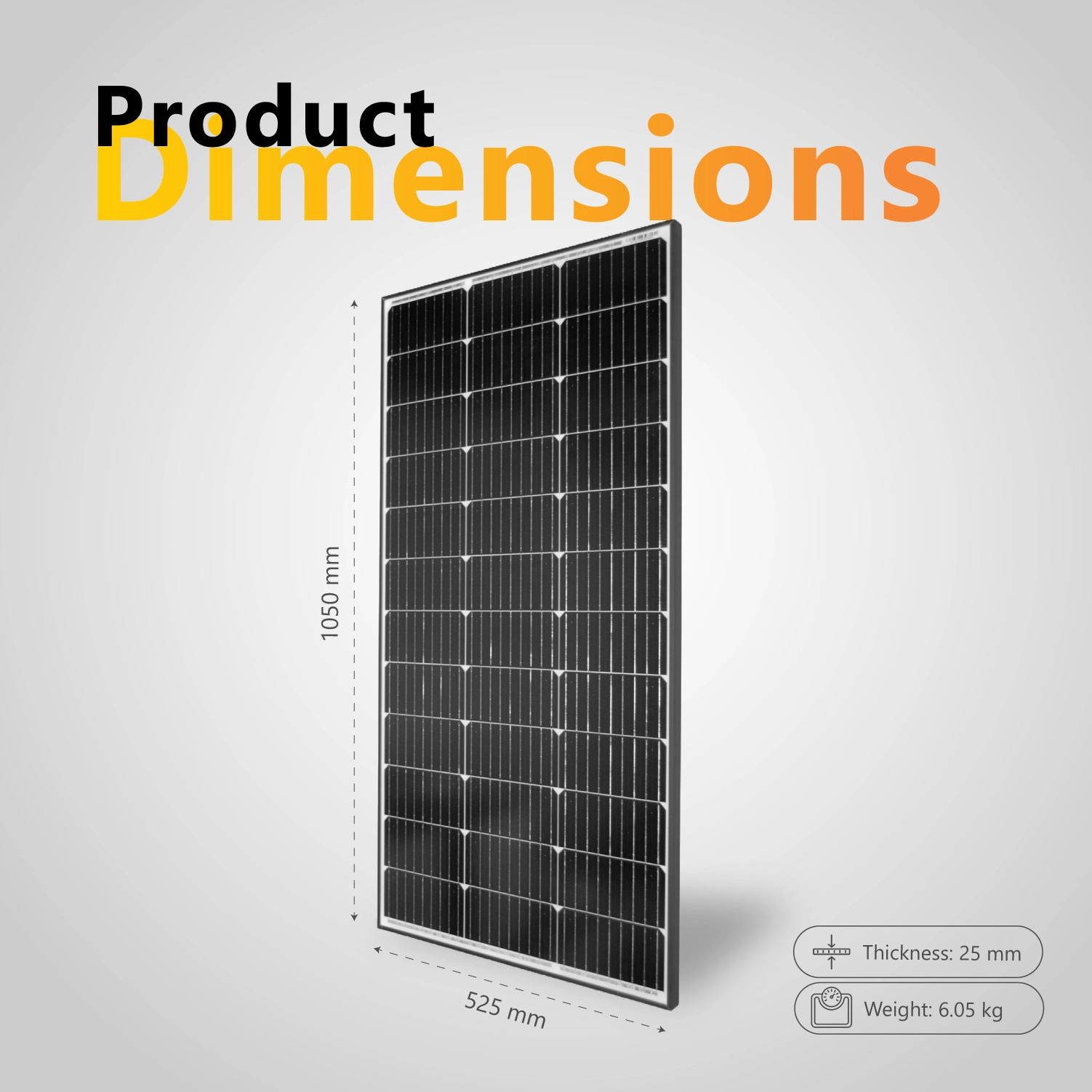

PANEL DIMENSIONS (MM): 1050 x 525 x 25mm
GROSS WEIGHT (KG): 6.05KG
SKU SPEX110
Brand Exotronic
Shipping Weight 6.0000kg
Shipping Width 1.200m
Shipping Height 0.050m
Shipping Length 0.590m
Shipping Cubic 0.035400000m3
