Victron Cerbo GX
Victron Cerbo GX
This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance.

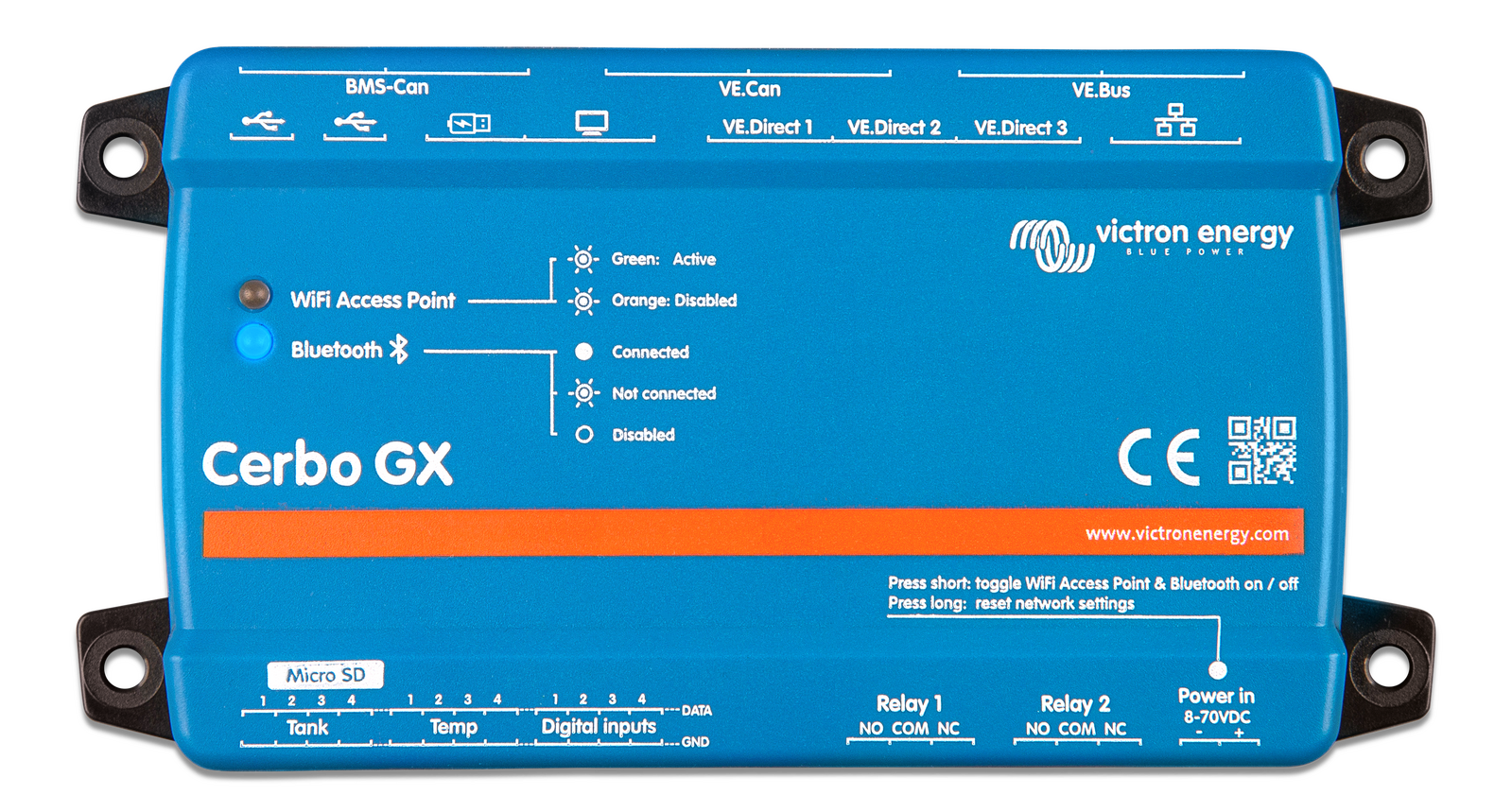

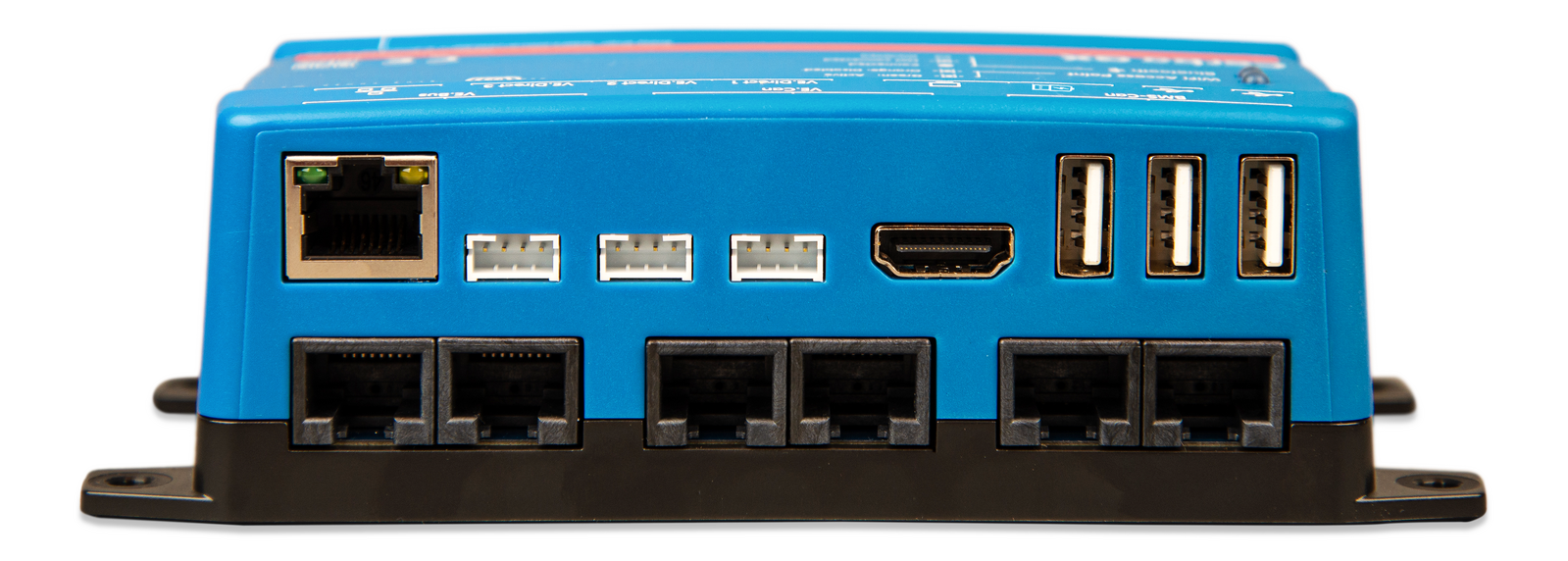

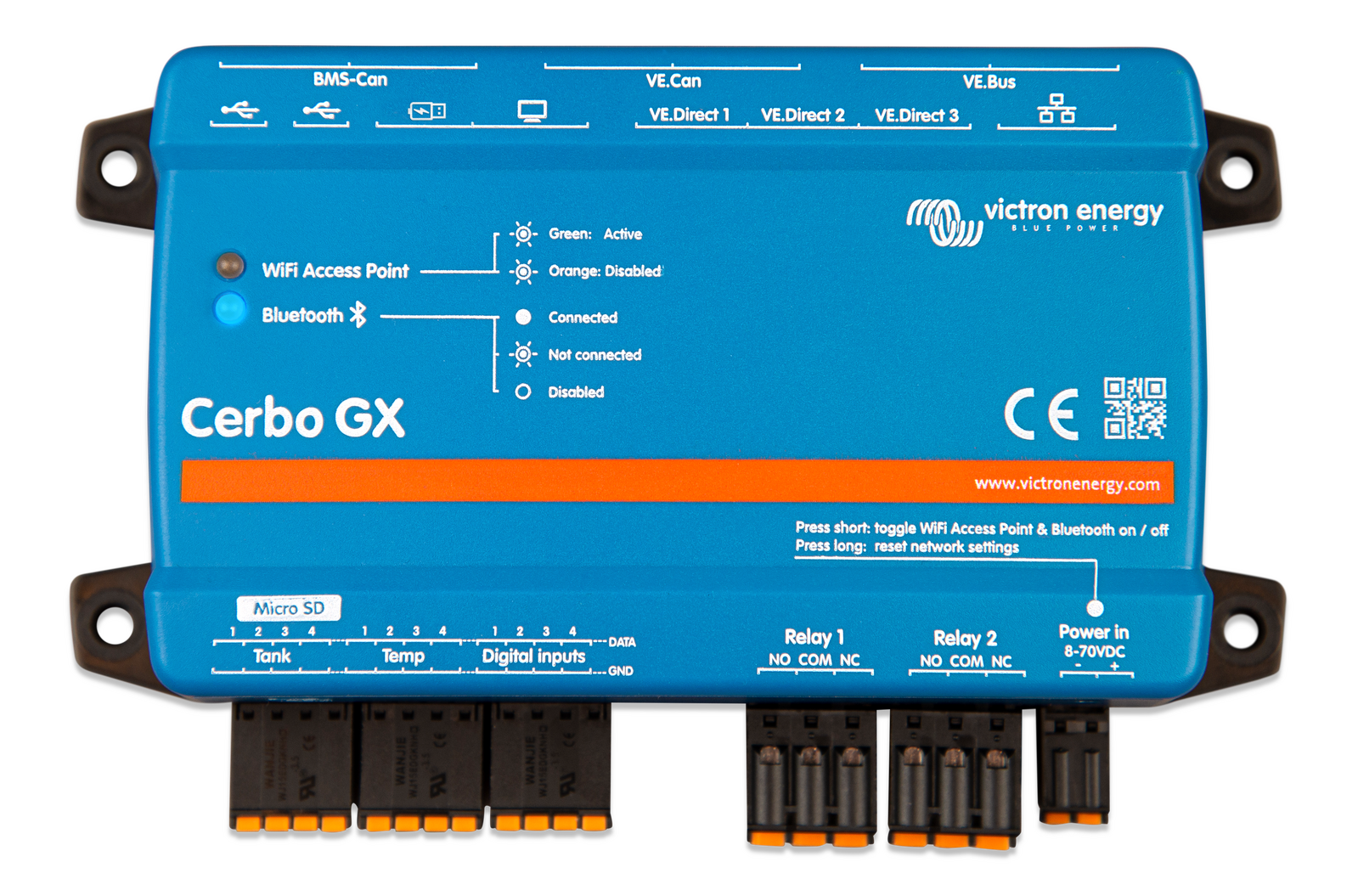

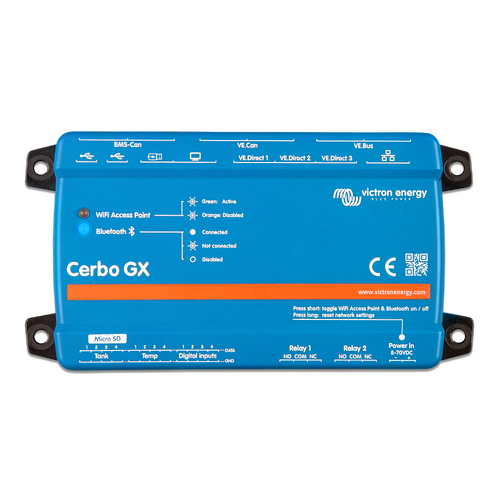

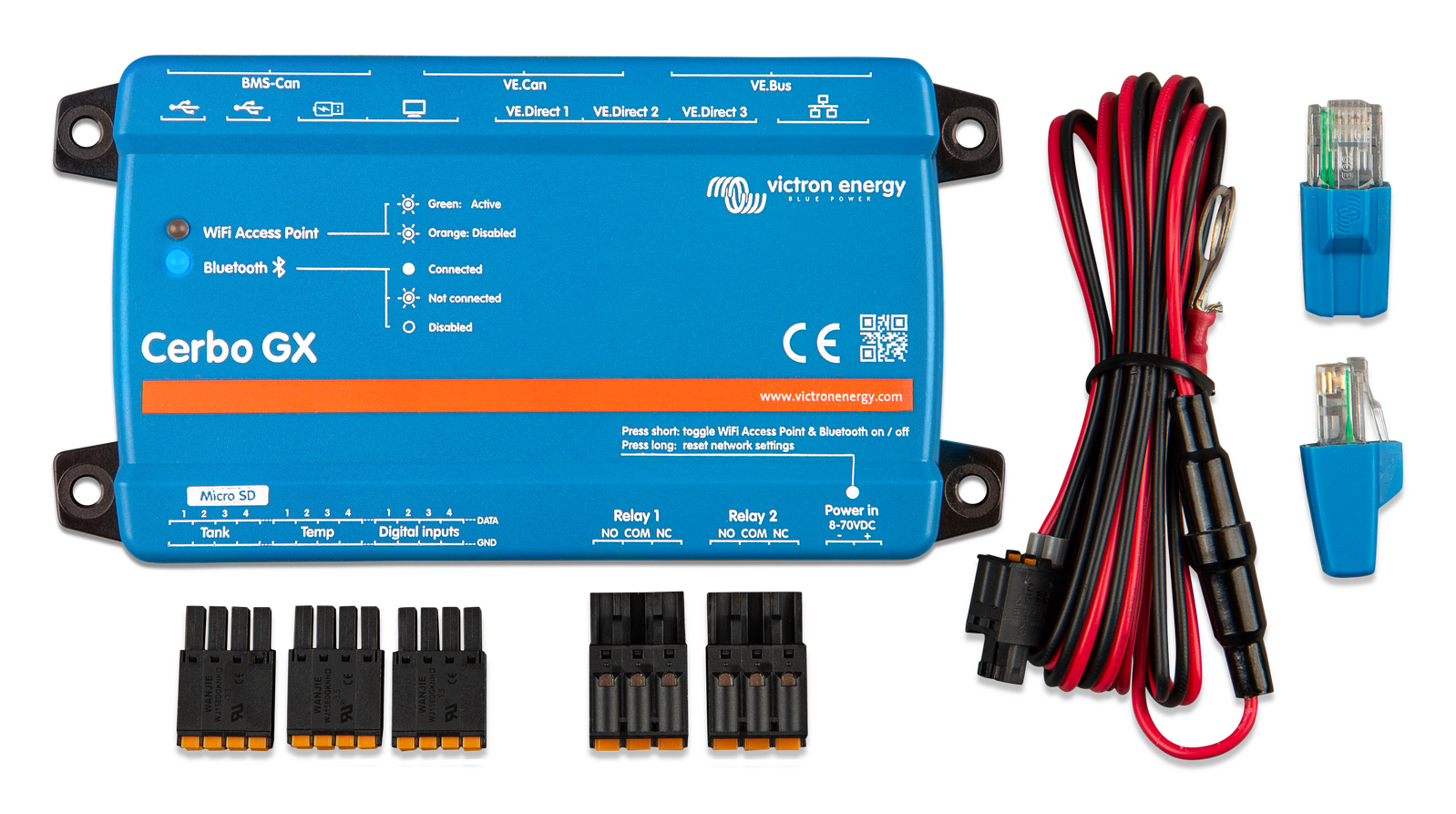

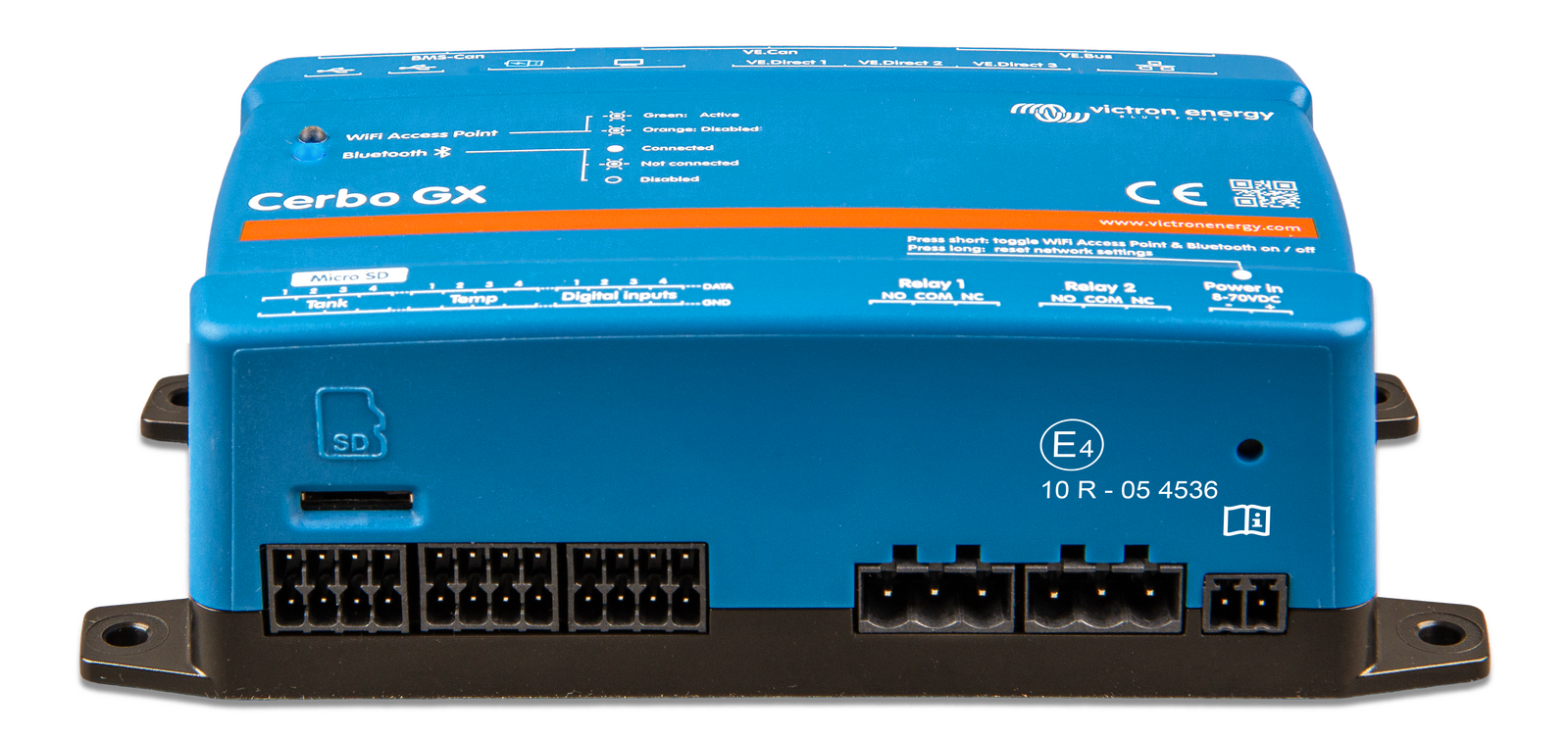

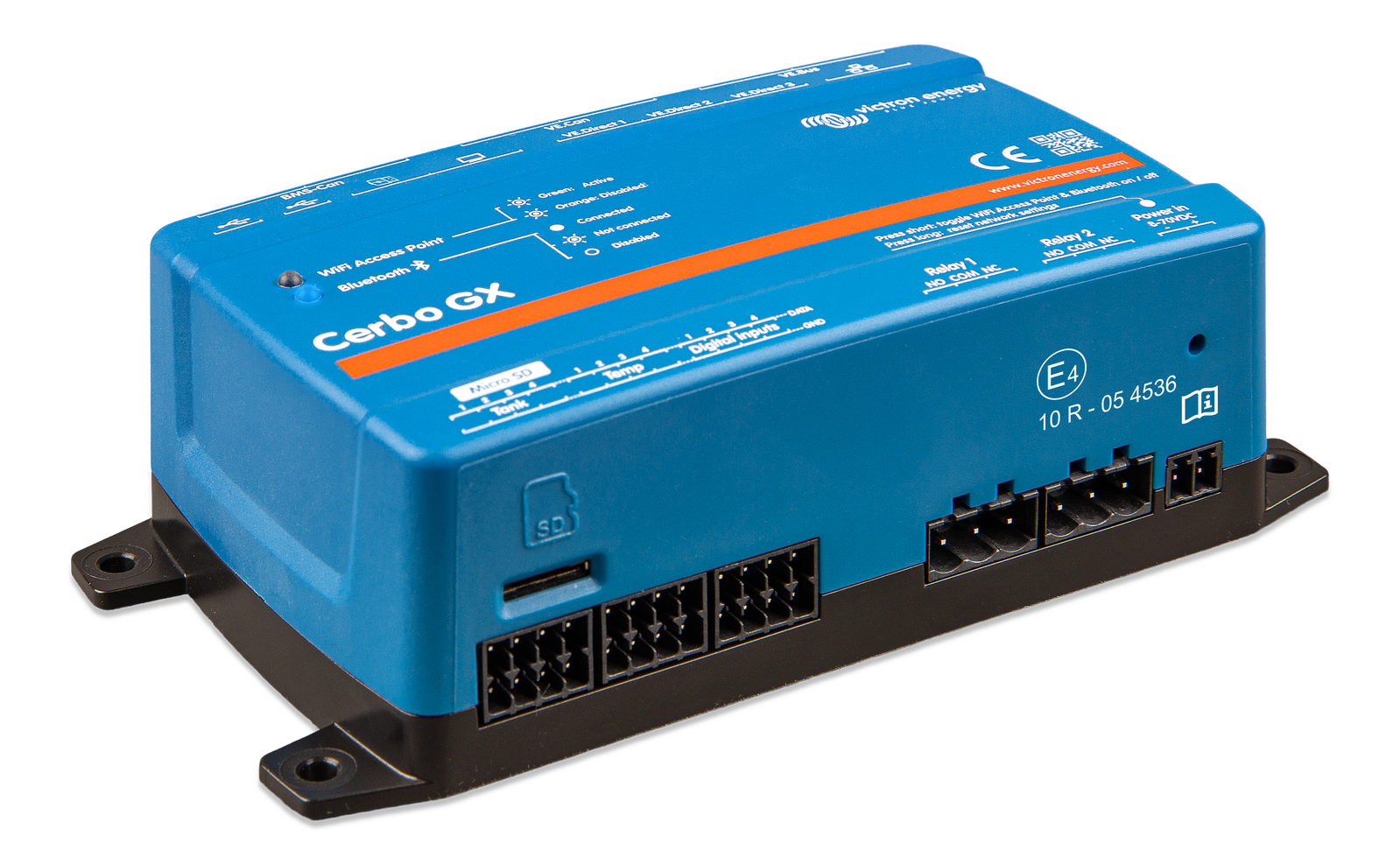

Cerbo GX: communication-centre
This communication-centre allows you to always have perfect control over your system from wherever you are and to
maximise its performance. Simply access your system via our Victron Remote Management (VRM) portal, or access it directly, using the optional GX Touch screen, a Multi-Functional Display (MFD) or our VictronConnect app thanks to its Bluetooth capability.
GX Touch: display accessory
The GX Touch 50 and GX Touch 70 are display accessories for the Cerbo GX. The five inch and seven inch touch screen displays give an instant overview of your system and allows you to adjust settings. Simply connect the display to the Cerbo GX with just one cable. Both GX Touch displays have a waterproof design, a top-mountable setup and are simple to install. The supplied (from serial number HQ2242) protection cover prevents damage from UV light during prolonged exposure to the sun.
Remote Console on VRM
Monitor, control and configure the Cerbo GX remotely, over the internet. Just like if you were standing in front of the
device, using Remote Console. The same functionality is also available on the local network LAN, or using the WiFi
Access Point of the Cerbo GX.
Perfect monitoring & control
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or
check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop
generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve complications remotely.
Simple mounting and configuration
The Cerbo GX is easily mountable and can also be mounted on a DIN-Rail using the DIN35 adapter small, (not
included). Its separate touchscreen can be bolted on a dashboard, eliminating the need to create perfect cut-outs
(like with the Color Control GX). Connection is easy via just one cable, taking away the hassle of having to bring many wires to the dashboard. The Bluetooth feature enables a quick connection and configuration via our VictronConnect app
| Supply voltage | 8 – 70 VDC |
|---|---|
| Power draw without GX Touch | 2.8 W @ 12 V |
| Power draw with GX Touch | Backlight off: 3.8 W @ 12 V | Backlight at max: 4.8 W @ 12 V |
| Mounting (2) | Wall or DIN rail (35 mm) |
| VE.Direct ports (always isolated) (3) | 3 (max. possible VE.Direct devices: 15) |
| VE.Bus (always isolated) | 2 paralleled RJ45 sockets |
| VE.Can | Yes VE.Can 1 isolated | VE.Can 2 non-isolated |
| BMS-Can port | Yes – BMS-Can only |
| Bluetooth (4) | Yes |
| Ethernet (7) | 10/100 RJ45 socket - isolated except shield |
| WiFi | Built-in |
| USB | 2 USB Host ports & 1 power only port |
| Resistive tank level inputs | 4 |
| Temperature sense inputs | 4 |
| Digital Inputs (6) | 4 |
| Relays (5) | 2 x NO/NC | DC up to 30 VDC: 6 A DC up to 70 VDC: 1 A | AC: 6 A, 125 VAC |
| Outer dimensions (h x w x d) | 78 x 154 x 48 mm |
| Operating temperature range | -20 to +50 °C |
| IP Rating | IP20 |
| Safety | IEC 62368-1 |
| EMC | EN 301489-1, EN 301489-17 |
| Automotive | ECE R10-6 |
| SKU | 8719076048763 |
| Barcode # | BPP900450100 |
| Brand | Victron |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.215m |
| Shipping Height | 0.060m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.001548000m3 |
