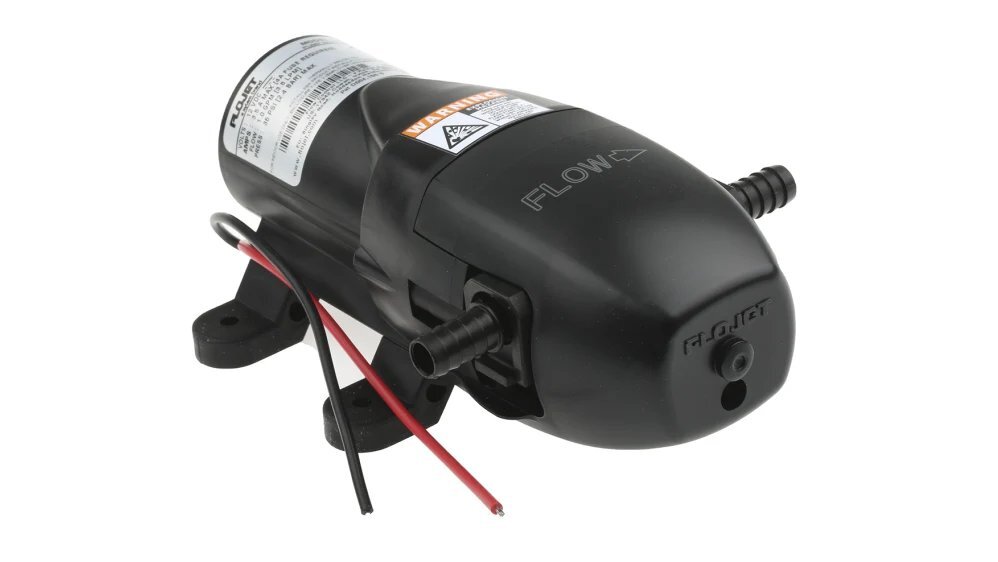

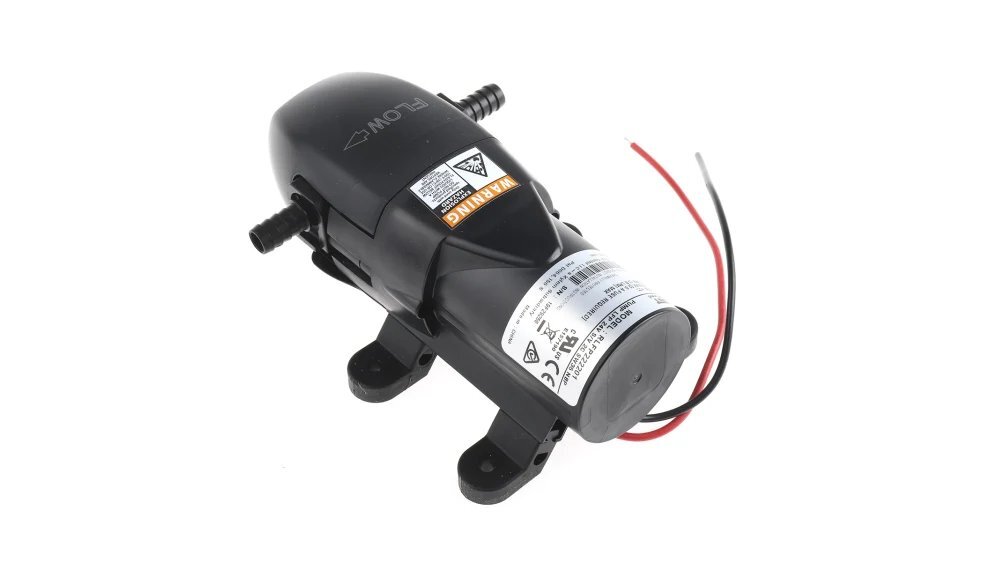

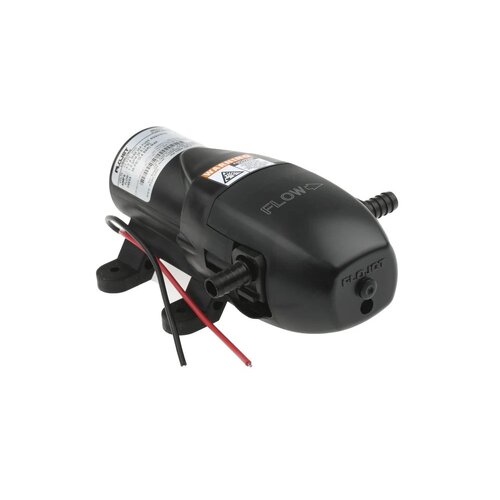

FLOJET Industrial LF Pumps are designed for a wide range of applications and are constructed from a selection of materials suitable for handling a broad range of chemicals. The LF series of diaphragm pumps are self-priming and can be run dry without harm. They are intended for intermittent duty cycles but can be run continuously for short periods of time. The higher the duty cycle the shorter the expected life of the pump.
Typical pump uses are liquid transfer, spraying, circulation, filtration and dispensing.


• Duplex Diaphragm Design
• Compact automatic demand pump.
• Sealed pressure switch automatically starts and stops pump when discharge valve is opened and closed.
• Self-priming so pump can be located above supply tank.
• Can run dry for extended periods of time without damage.
• Built-in thermal protector,
• Low amp draw for battery powered applications.
• Soft compliant Santoprene mounting system.

Pump Design Reciprocating Diaphragm
Voltage 12V DC
Current Draw 2.5 Amp nominal @ 25PSI (1.7 Bar)
Flow Rate 1.0GPM (3.8L/min) Nominal @ Open Flow
Duty Cycle Intermittent
Operating Pressure 25PSI (1.7 Bar) Maximum
Pressure Switch Setting 35PSI (2.4 Bar) Off / 25PSI (1.7 Bar) On
Self Priming Up to 2.5ft (0.76m) vertically
Liquid Temperature 110°F (43°C) Maximum
Motor Type Permanent Magnet Motor
Port Type 3/8" (9.5mm) Hose Barb


Barcode # RLFP122202D
Brand Xylem
Shipping Weight 0.7800kg
Shipping Width 0.240m
Shipping Height 0.090m
Shipping Length 0.115m
Shipping Cubic 0.002484000m3
