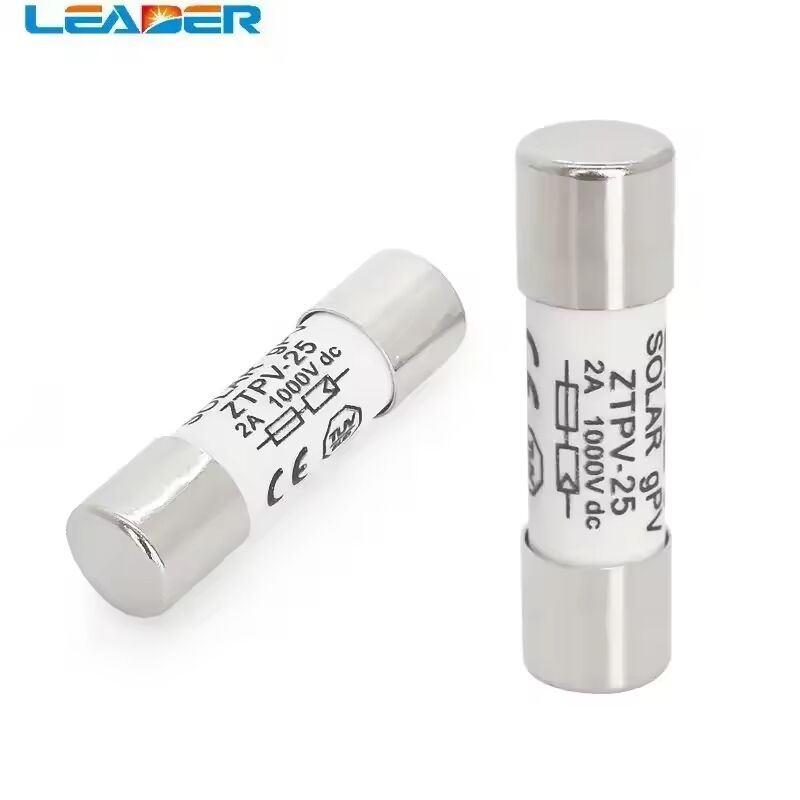

LEADER® solar fuse 10x38mm 1000Vdc PV fuses is for protecting and isolating photovoltaic strings. Rated voltage: DC 1000V, Rated current: 2-32A, The fuses are specifically designed for use in PV systems with extreme ambient temperature, high cycling, and low fault current conditions(reverse current, multi-array fault) string arrays.
  • Meets UL and IEC photovoltaic standards for global acceptance
  • Low watts loss performance for energy efficiency
  • Low-temperature rise performance for more precise sizing
  • In-ine crimp terminal version is easy to apply in wire harness construction
  • Typical applications: Combiner boxes, Inverters, PV wire harnesses
  • 10x38mm photovoltaic fuses -1000Vdc,2-32A.
Rated voltage DC 1000V
Number of DC Poles 1P
Fuse Link size(mm) 10x38
Rated Current(A) 8A,10A,15A,20A,25A
Rated Breaking Capacity(KA) 33
Class of Operation gPV
Working Temperature -50℃-+105℃
Standard IEC60269.6



SKU MC4F
Shipping Weight 0.0050kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.038m
Shipping Cubic 0.000004000m3
