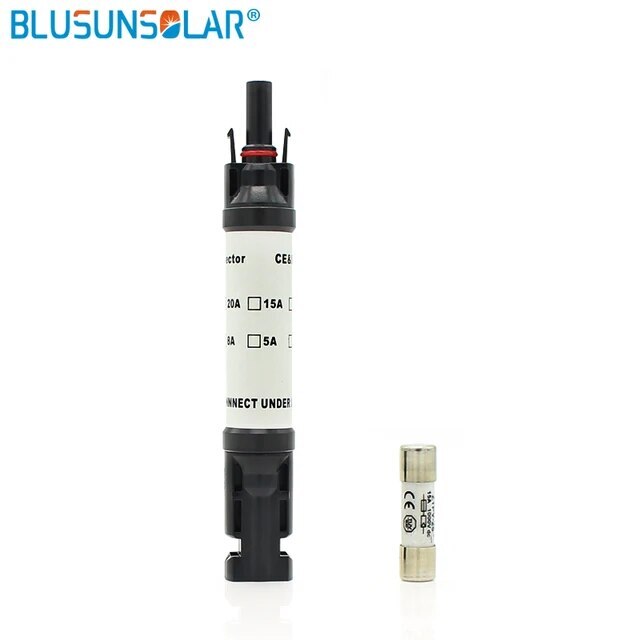

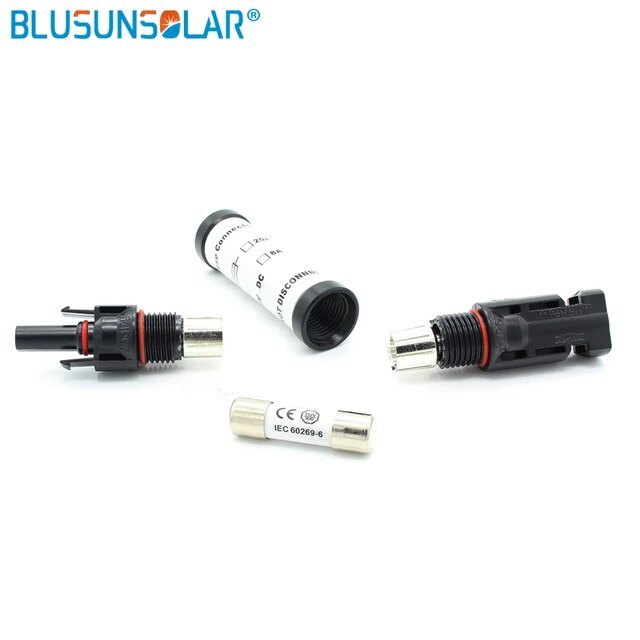

LEADER® pv inline fuse is used for safe and simple series or parallel connecting solar PV modules, inverters, or solar power plant systems. Certification with TUV/UL/IEC/CE standards, suitable for Ø2.5-Ø16mm² photovoltaic solar cables. The connector design is based on the 25-year working lifetime of the photovoltaic power station and has long-term stable electrical contact performance.

  • Contact with drum-type crown spring, make electrical connection safety and fastness.
  • TUV/UL/IEC/CE certificated, compatible with 2000+ popular solar module connectors.
  • Self-locking between the female and male connector, installation conveniently and reliably.
  • Ratchet mechanism desigh to lock the nut cover, avoid being loosened after long term using.
  • Contact resistance less than 0.35mΩ with Multi-Contact, less heating and low power consume.
  • Strong ageing resistance and UV resistance, suitable for use in multiple harsh outdoor environments.

It is suitable for various harsh outdoor environments such as deserts, lakes, seasides, and mountains (climate environment with high temperature, high humidity, and strong salt content). It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.

Insulation material PPO/PC
Rated voltage 1000V
Rated current 1A~25A
Test voltage 6KV(50Hz,1Min)
Contact material Copper, Tin-plated
Contact resistance Less than 0.35 mΩ
 Degree of protection IP68
Ambient temperature -40℃ up to +90℃
Certification IEC62852 /UL6703



SKU MC4FH15A
Shipping Weight 0.1000kg
Shipping Width 0.150m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.000060000m3
