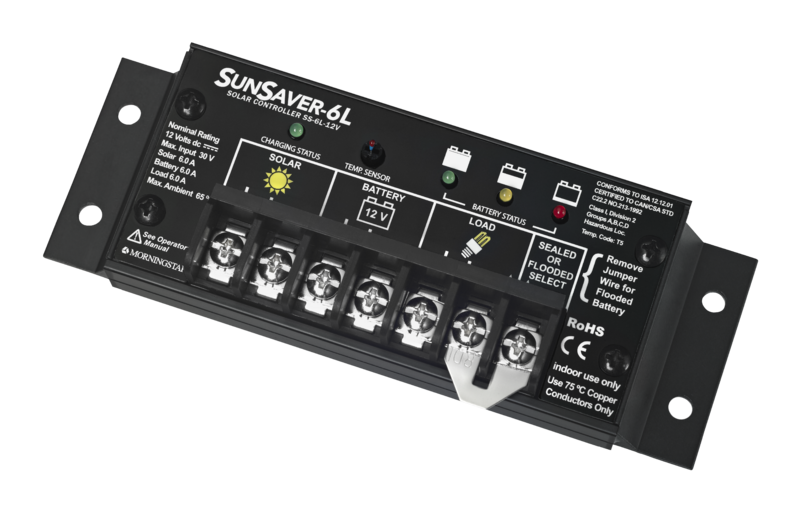

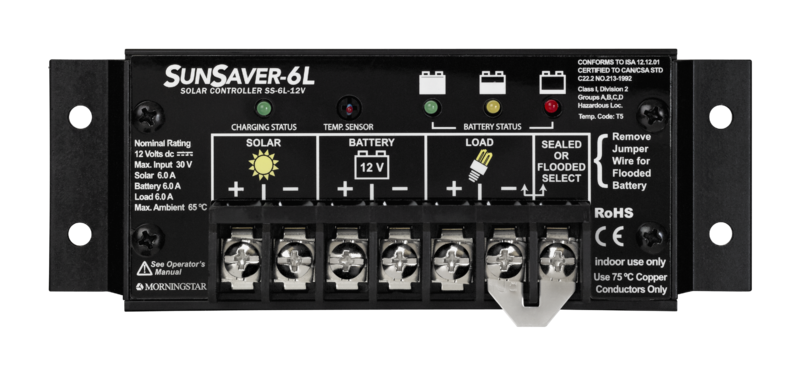

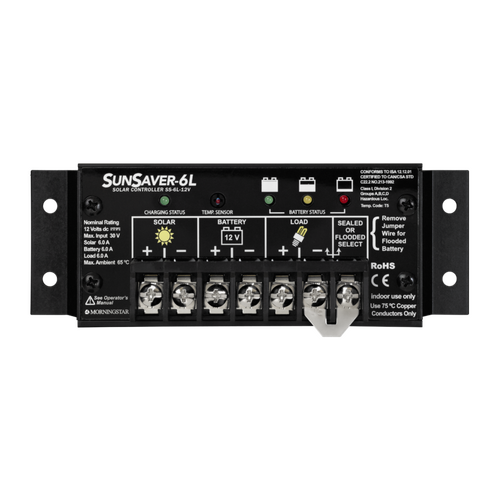

Morningstar Sunsaver SS-6L-12V PWM Solar Controller 12v 6A with Low Volt Disconnect - Not compatible with Lithium

Max. Solar Currant: 6A

Since the introduction in 1996, more than 1.5 million SunSaver Controllers have set the standard for reliability and performance in demanding oilfield and mining installations in nearly 90 countries around the globe. Today, SunSaver is the world’s leading small solar controller for industrial and consumer markets, proven in mission critical applications where failure is simply not an option.

This third generation SunSaver brings over two decades of advances in software and electronics to the same rugged, hardened design that made the original famous. Own both a legend and the latest in a single product.


Extremely High Reliability
Failure rate of less than 1 per 1,000 shipped (<0.1%)
100% solid state. Power MOSFET design
Manufactured in an ISO 9001 factory
100% pre-shipment functional testing
Longer Battery Life
Series design (not shunt) for cool operation
Longer battery life through PWM 4-stage charging and temperature compensation
Sealed or flooded battery select
Low voltage load disconnect on several versions

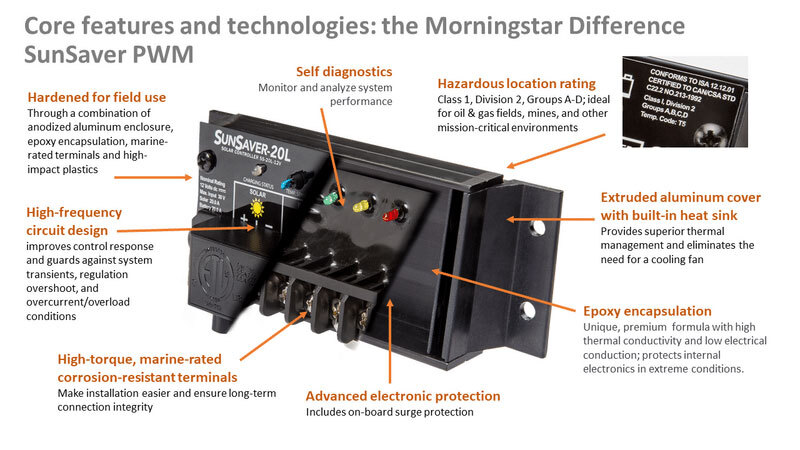

Designed for Harsh Environments and Hazardous Locations Around the Globe
Temperature rating of -40°C to +60°C
Ideal for Oil/Gas applications. Approved for use in hazardous locations: UL/CSA Class 1, Division 2, Groups A-D; ATEX/IECEx Zone 2, Gas Group IIC
Tropicalization—hardened for field use with anodized aluminum enclosure, epoxy encapsulation and marine-rated terminals

Easy to Install and Use
Factory pre-sets result in no required install settings
Electronic protections prevent damage from wiring mistakes
Fully automatic operation and fault recovery
Additional features include full electronic protections, 3-state
battery LED indicators, terminal cover, dead battery recovery,
high voltage load protection for sensitive loads
Wire terminal cover included with every SunSaver

System Voltage 12v
Max. Solar Voltage 30v
Max. Solar Current 6.5A
Max. Load Current 6A
Min. Battery Voltage 6v*
Regulation Voltage 12v
Sealed battery 14.1v
Flooded battery 14.6v
Self-consumption < 8 mA
Load disconnect 11.5 V
LVD reconnect 12.6 V
Voltage accuracy 12V: +/– 25 mV (typical) 24V: +/– 48 mV (typical)
Ambient temperature -40°C to +60°C
Storage temperature -55°C to +80°C
Humidity 100% non-condensing
Tropicalization Epoxy encapsulation, Marine rated terminals, Anodized aluminum case
Dimensions 15.2 x 5.5 x 3.2 cm
Weight 0.23kg

*In periods following excessive battery drain, provided the controller is not power cycled, the controller can self-recover from a battery voltage of 1V and provide intermittent charging operation up to 6V at which normal operation will resume.

Barcode # SS-6L-12V
Brand Morningstar
Shipping Weight 0.3500kg
Shipping Width 0.190m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000912000m3
