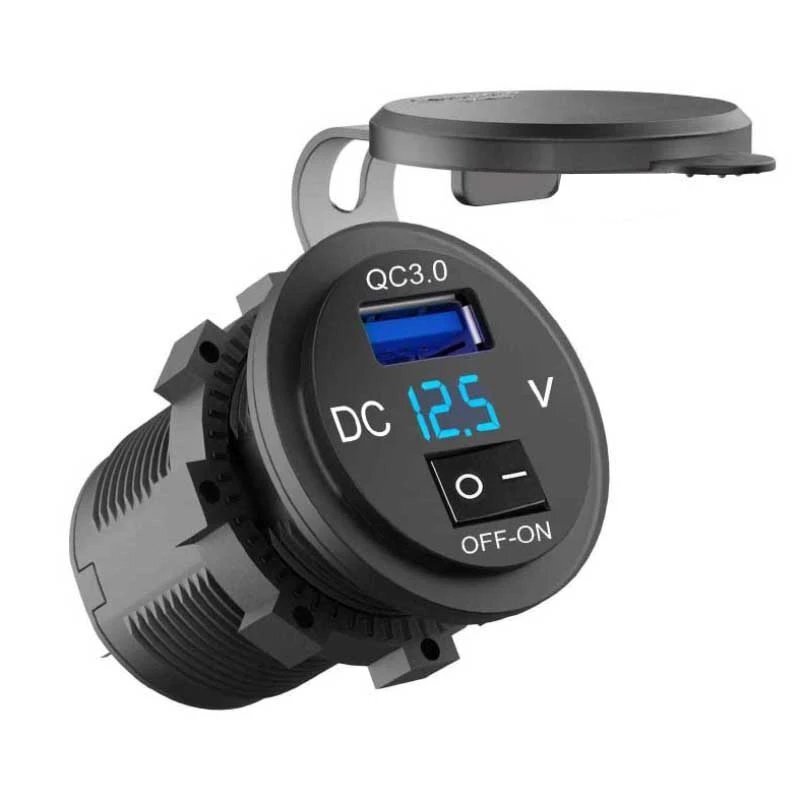

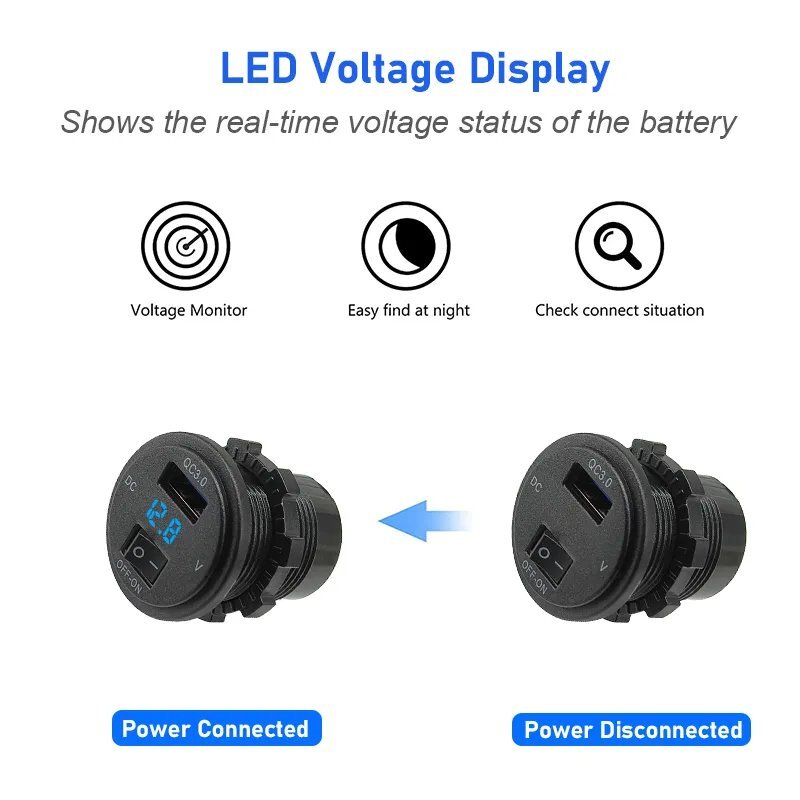

12 Volt digital voltmeter with Digital Volt Meter display.

Unique on/off switch design not only helps you control the battery voltage monitor and USB charging together but also better protects your battery.

Supplied with fixing nut for through hole mounting.

Recommended mounting hole size 29mm.

Suitable for marine, motorcycle or other automotive use.

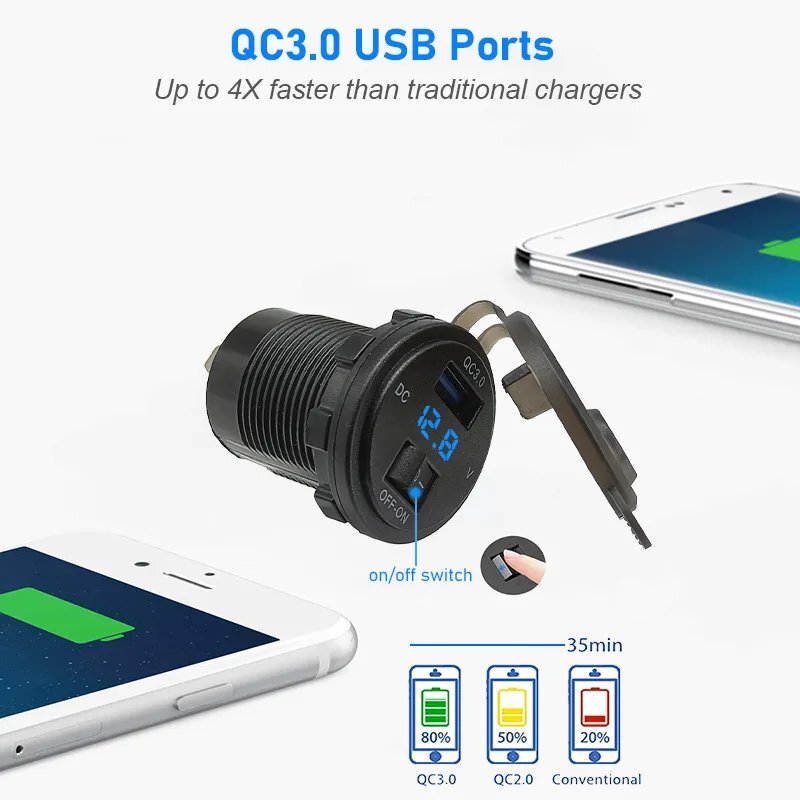

Quick Charge 3.0 Technology: Charge compatible devices up to 75% faster than conventional charging 4 times faster than normal charger, the QC 3.0 port is capable of charging compatible devices up to 80% in 35 minutes. It also compatible with QC2.0 and 1.0 Technology.

Maximum Output Current 3.0A DC (total)
USB 3.0
Maximum Voltage 12V / 24V DC
Output Voltage 5V DC +/- 5%
Cut Out Dimensions 1 18 in (28.58 mm) dia. hole
Input Voltage Range 9-32V
Port Configuration Intelligent Device Recognition
Reverse Polarity Protection Yes
Short Circuit Protection Yes
Thermal Overload Protection Yes
Weight 0.10lb (0.05 kg)



SKU USBQCVM
Shipping Weight 0.0400kg
Shipping Width 0.065m
Shipping Height 0.060m
Shipping Length 0.045m
Shipping Cubic 0.000175500m3
