The Anderson Power Products SB®120 plug is perfect for camping, caravan, 4X4 and other applications where a reliable, rugged, affordable power connection.

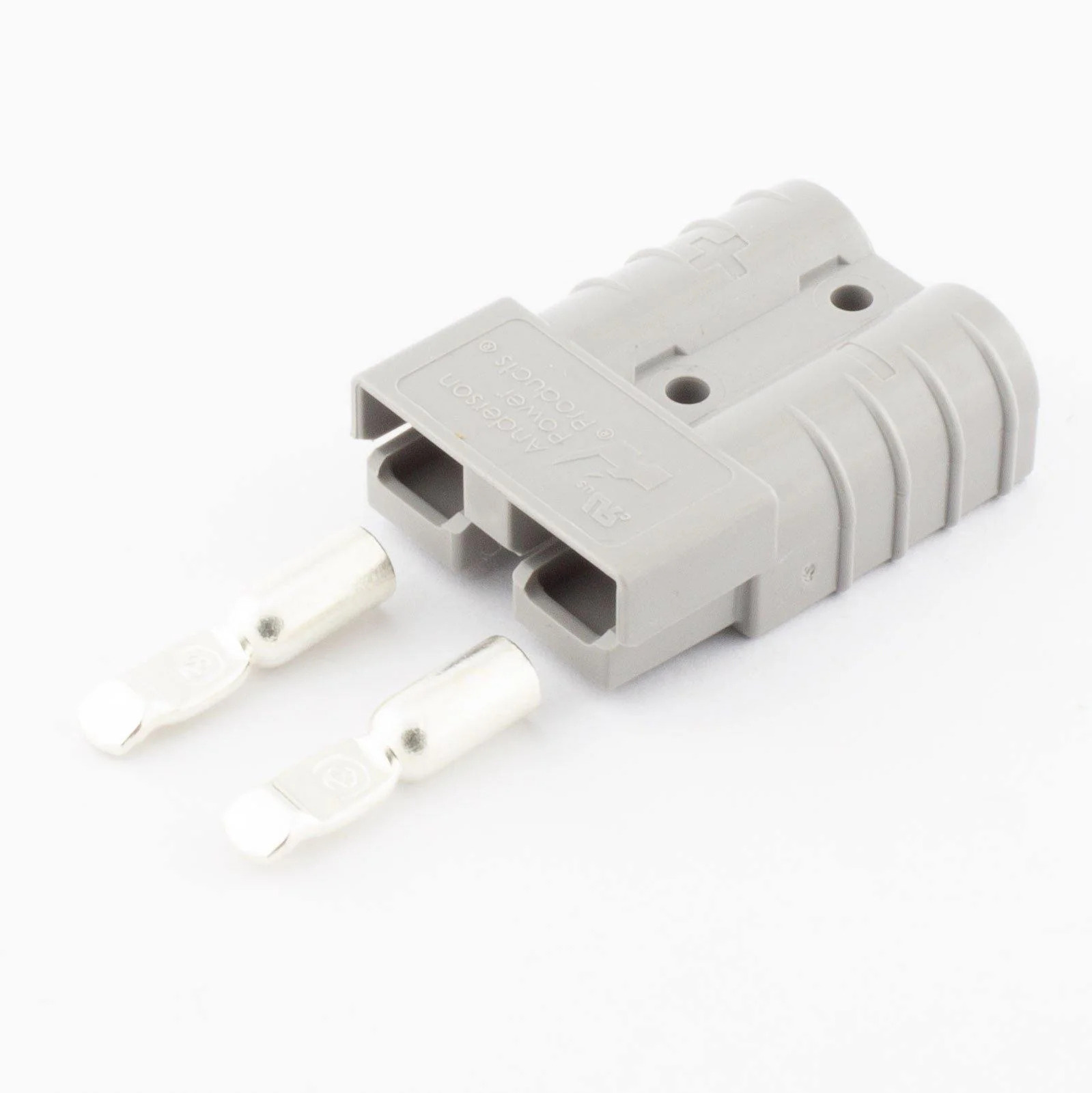

The 6800G1 is a 120 Amp plug kit featuring a Grey housing and 33.6mm2 (2AWG) contact(s).

The SB®120 series is rated to 600 Volts and will accept from 13.3mm2 to 42.4 mm2 wire.

Genderless design mates with itself.

These are Colour Matching but Grey and Black can plug together, no other colour can connect to each other so Grey will not connect to Red, Blue, Yellow, Green or Orange and vice versa.


  • Contact Rating: Allows UL rated currents up to 240 amps
  • Disconnect Rating: UL Rated for Hot Plugging up to 120 Amps
  • Contact Wire Size: 68001G1 #2 AWG / 6800G2 #4 AWG / 6800G3 #6 AWG
  • Voltage Rating: 600V (AC or DC)
  • Max Wire Insulation Diameter: 11mm
  • Contact Retention Force: 50lbs
  • Operating Temperature: -20 to +120 degrees C
Barcode # 68001G1
Brand Anderson Power Products
Shipping Weight 0.0300kg
Shipping Width 0.065m
Shipping Height 0.020m
Shipping Length 0.045m
Shipping Cubic 0.000058000m3
