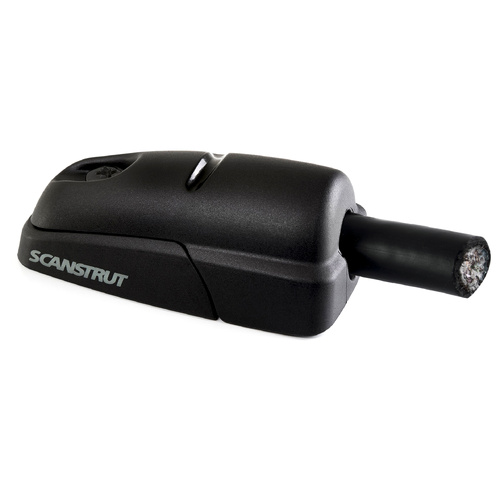

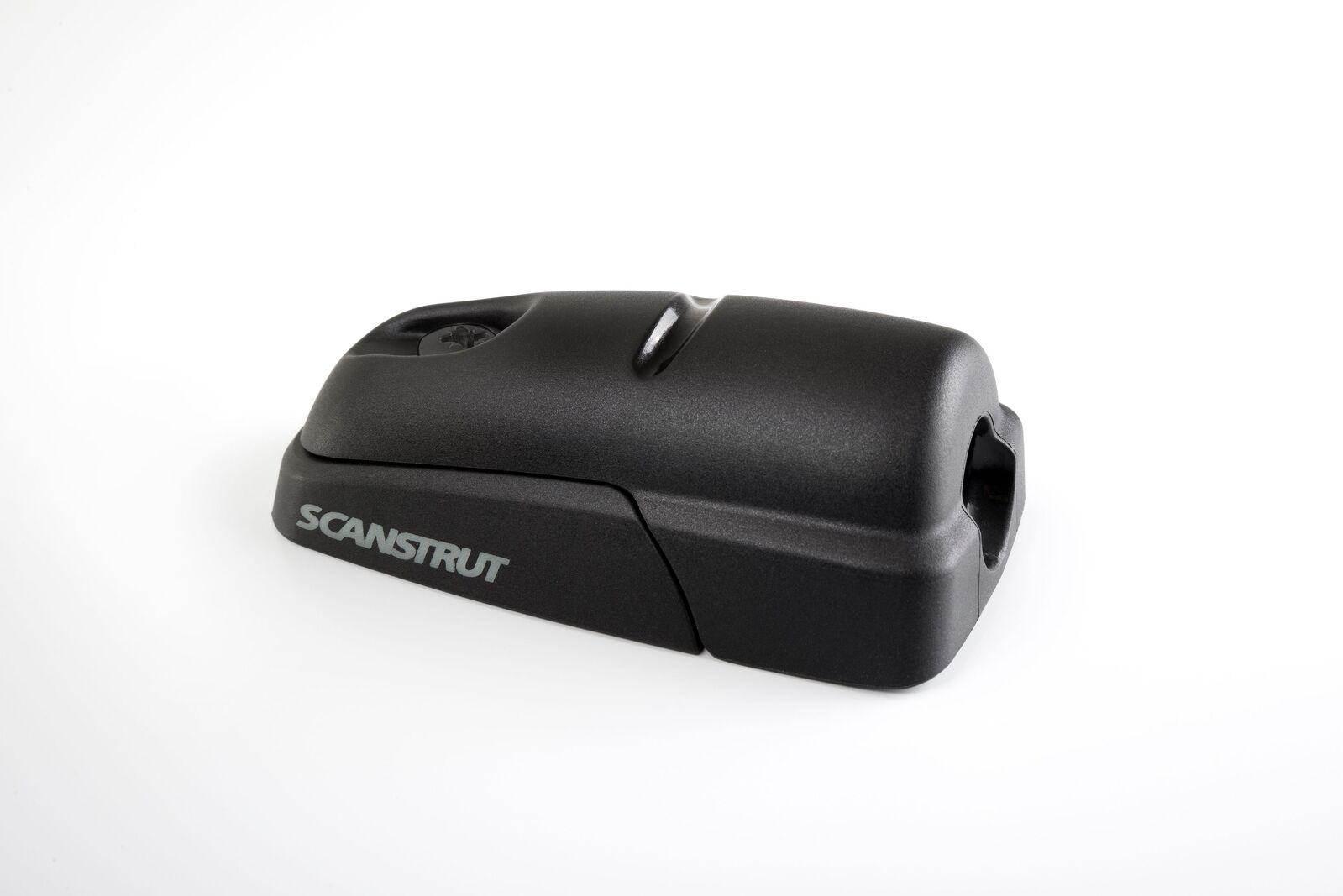

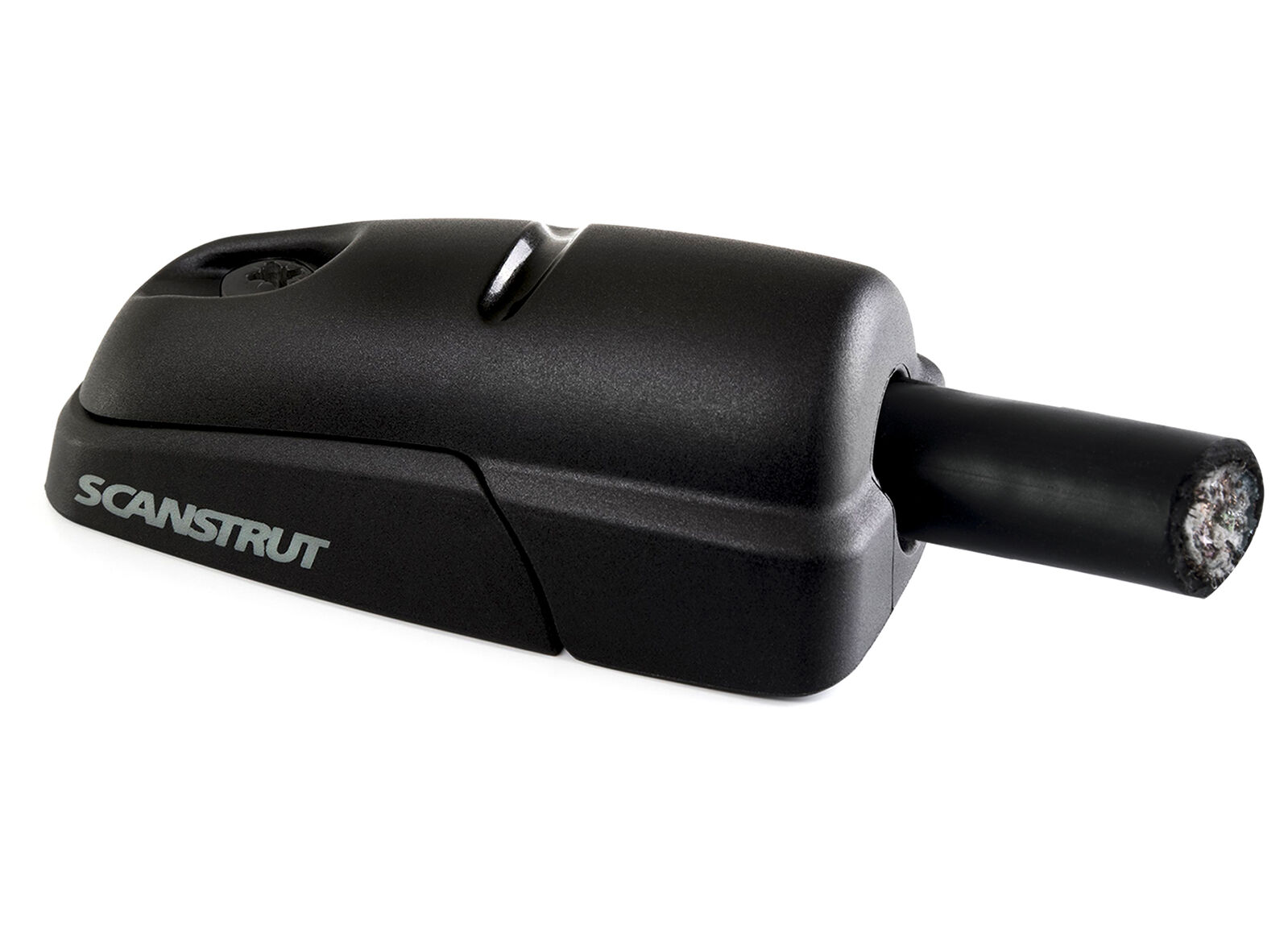

Our most popular horizontal entry cable seal is suitable for cables ranging from 6 to 10 mm (0.24” to 0.39”). It is perfect for applications like solar panels, light bars, lights, and other rooftop electronics.

Design
Designed for a range of cable diameters the DS-H10 is ideal for almost every installation, with different bung sizes and self drill options. The low-profile construction is impact-resistant and provides extra protection from water.

Marine Grade Materials
Our materials have been selected due to their UV-stable and hard-wearing properties. Rated to IP68 to ensure a guaranteed 100% watertight seal and long-lasting performance.

Easy Installation
Designed with repeated and reliable installation in mind, the captive nuts ensure a quick and easy process. To further cut down on installation time, this premium IP68 waterproof range provides easy-fit cable routing, to speed up each cable seal fitting.

Key Features

  • IP68 rated seal, for a guaranteed 100% watertight seal
  • Available in grey or black high-impact plastic
  • No messy sealant on bungs
  • Premium UV-stable and hard-wearing materials
  • Captive nuts ensure an easy and reliable repeat installation

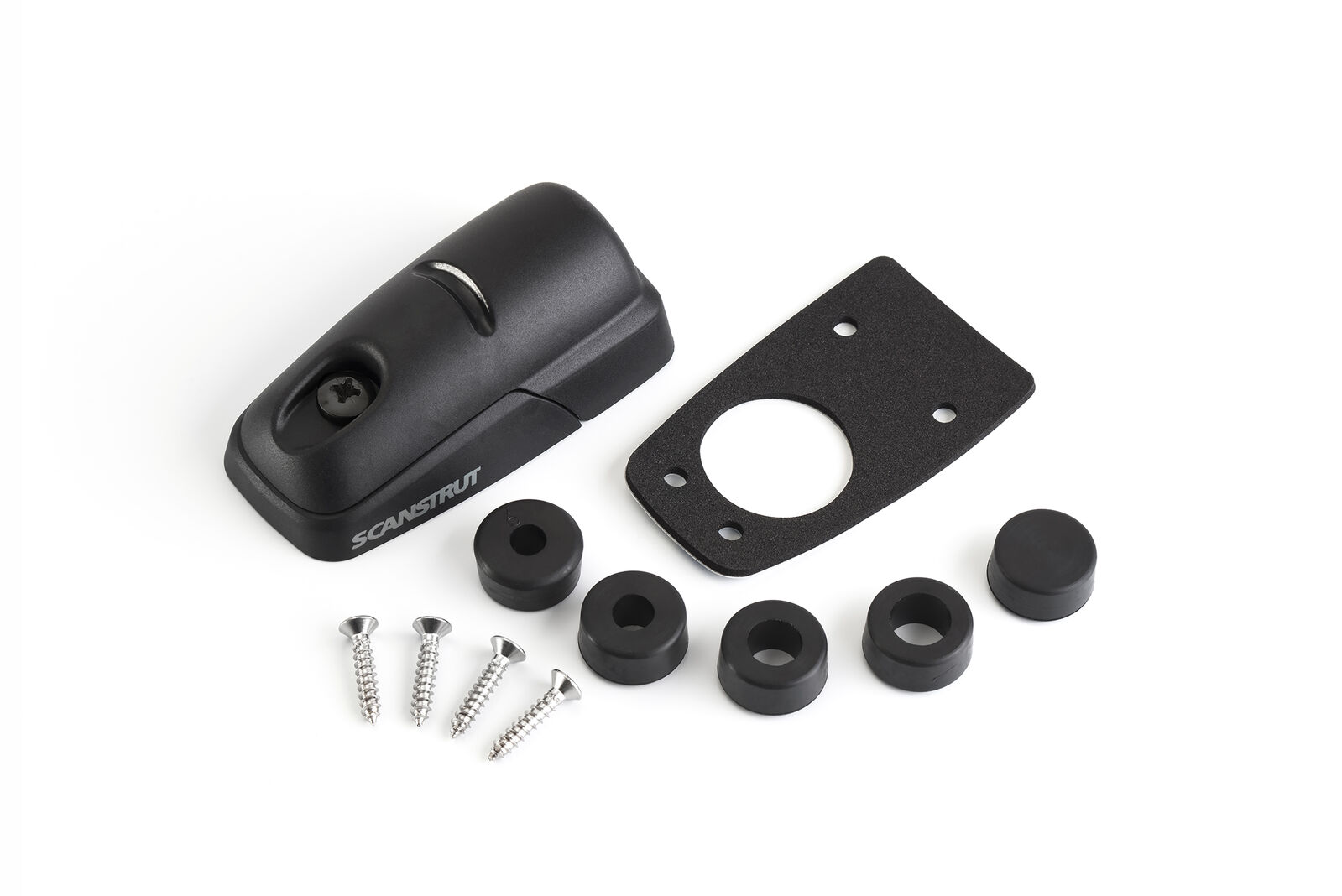

  • Supplied with both predrilled and blank inner bungs
  • Fully customizable with self-drill bung options
  • Ideal for solar panels, light bars, lighting fixtures, and other rooftop electronic equipment

Technical Specification

Material High Impact Plastic
Height 27mm (1.06”)
Length  77.50mm (3.05”)
Colour Black
Cable Diameter 6-10mm (0.24-0.39”)
Bungs  1 x 6mm (0.23") / 1 x 7mm (0.27") / 1 x 8mm (0.31") / 1 x 9mm (0.35") / 1 x 10mm (0.39") / 1 x Self Drill
SKU 5060114797406
Barcode # DS-H10-BLK
Brand Scanstrut
Shipping Weight 0.1100kg
Shipping Width 0.100m
Shipping Height 0.040m
Shipping Length 0.220m
Shipping Cubic 0.000880000m3
