Sunman eArc 230W Flexible Solar Panel - Compact and Efficient Mono-PERC Solar Panels

Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.

Key Features:

  • Lightweight and durable construction with cutting-edge technology
  • Highly efficient monocrystalline cells for optimal energy production

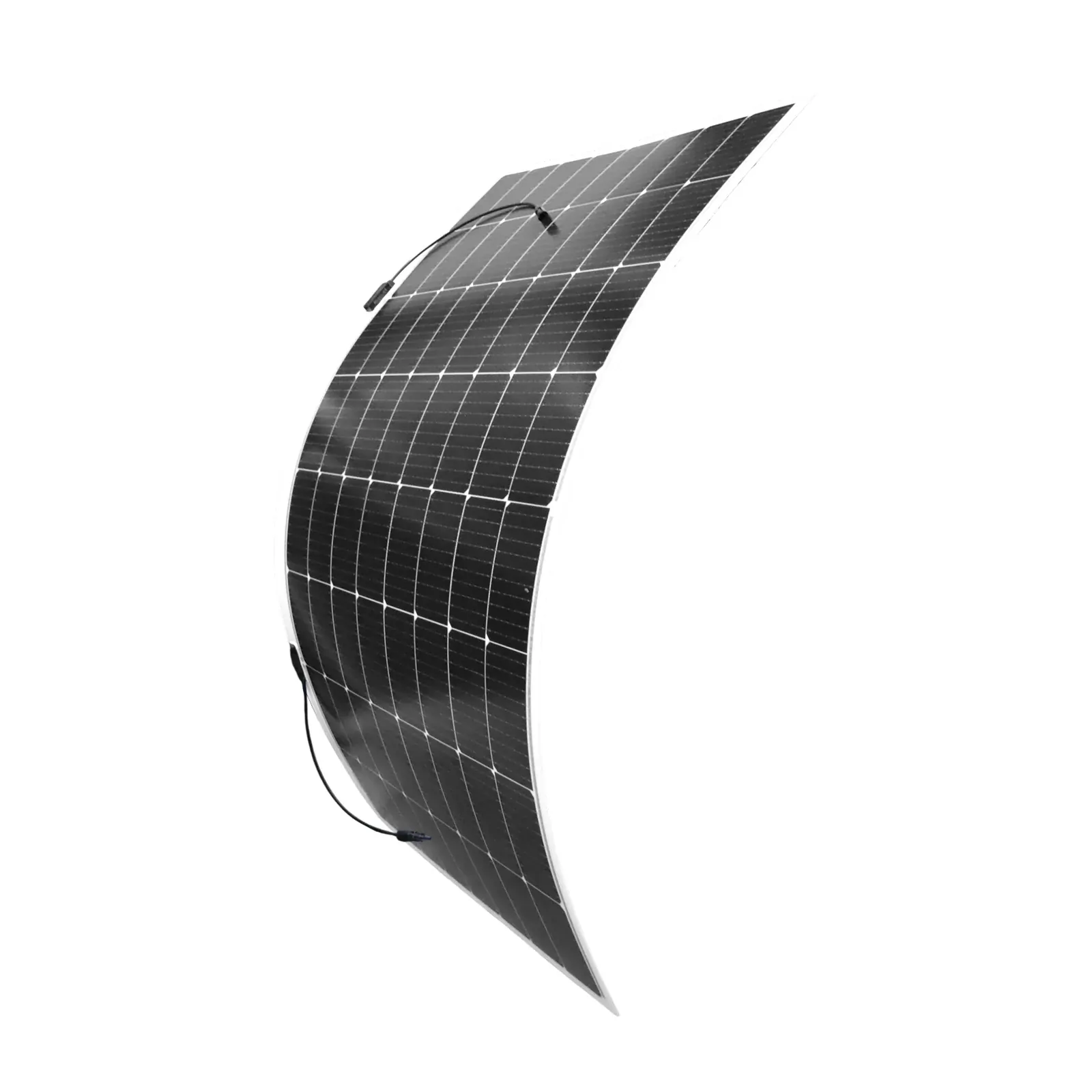

  • Flexible design for easy installation on various surfaces
  • Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
  • CEC-approved for residential and commercial use
  • 10-year product warranty for buildings and 5 years for mobile applications

Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass. Explore the 'About Sunman' tab for more details.

Optional Mounting Solutions

Multiple mounting options available, ensuring a secure and efficient installation that meets your specific needs. Please carefully follow the mounting instructions here which include the below:

  • High Bond Double-Sided Adhesive Tape: Provides a low-profile, secure bond for smooth surfaces. (4.6mmH x 12mmW x 16.5mL) + Structural Silicone (Fix8)
  • Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
  • Eyelets: We can press eyelets into the panel so it can be secured using bolts or screws.

Ensure you read the Flexible and Lightweight Solar Panel Mounting Instruction Guide before mounting

Experience the difference of Sunman eArc solar panels for yourself, and join the countless satisfied customers who have made the switch to a more sustainable and efficient energy solution.

RATED VOLTAGE: 12V
RATED POWER: 230W
OPEN CIRCUIT (VOC): 21.4V
PEAK POWER VOLTAGE (VMP): 18.9V
SHORT CIRCUIT CURRENT (ISC): 13.56A
PEAK POWER CURRENT (IMP): 12.3A
OPERATING TEMPERATURE (°C) -40 °C to 85 °C

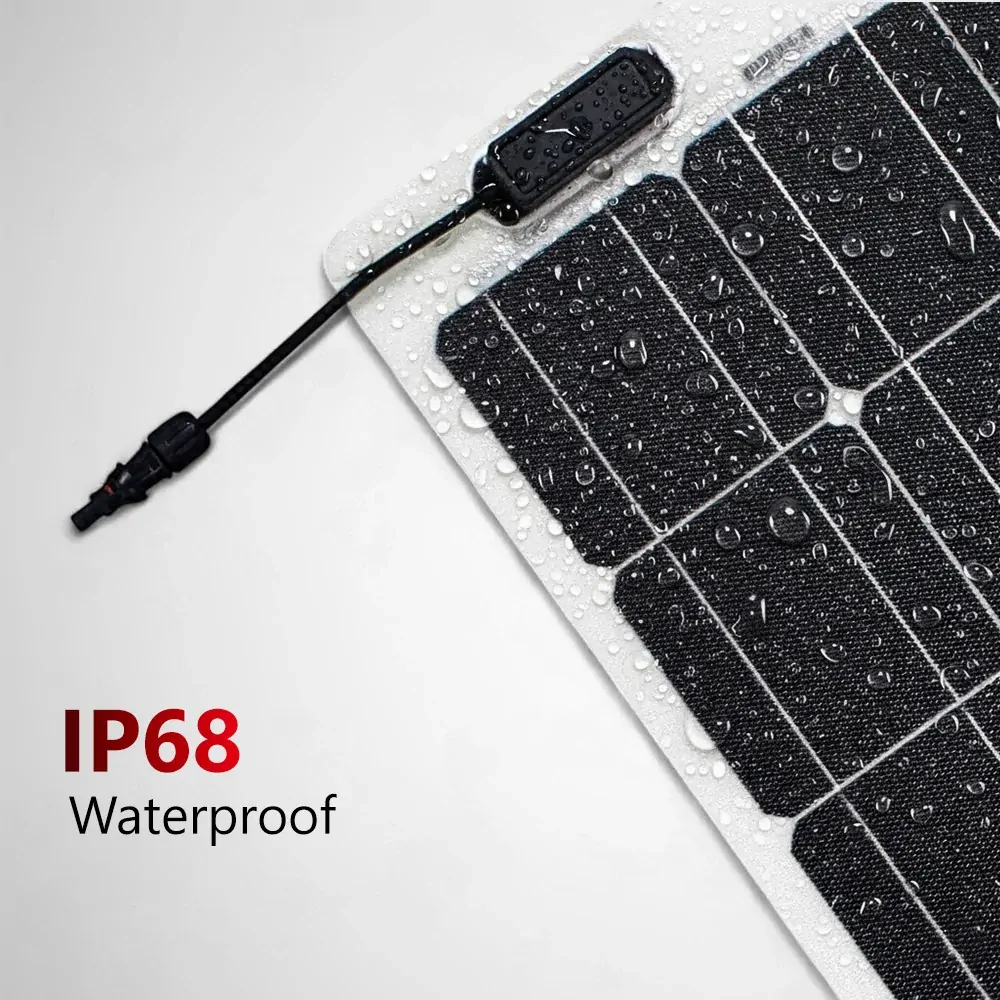

JUNCTION BOX IP 68 rated (each j-box has one by-pass diode)

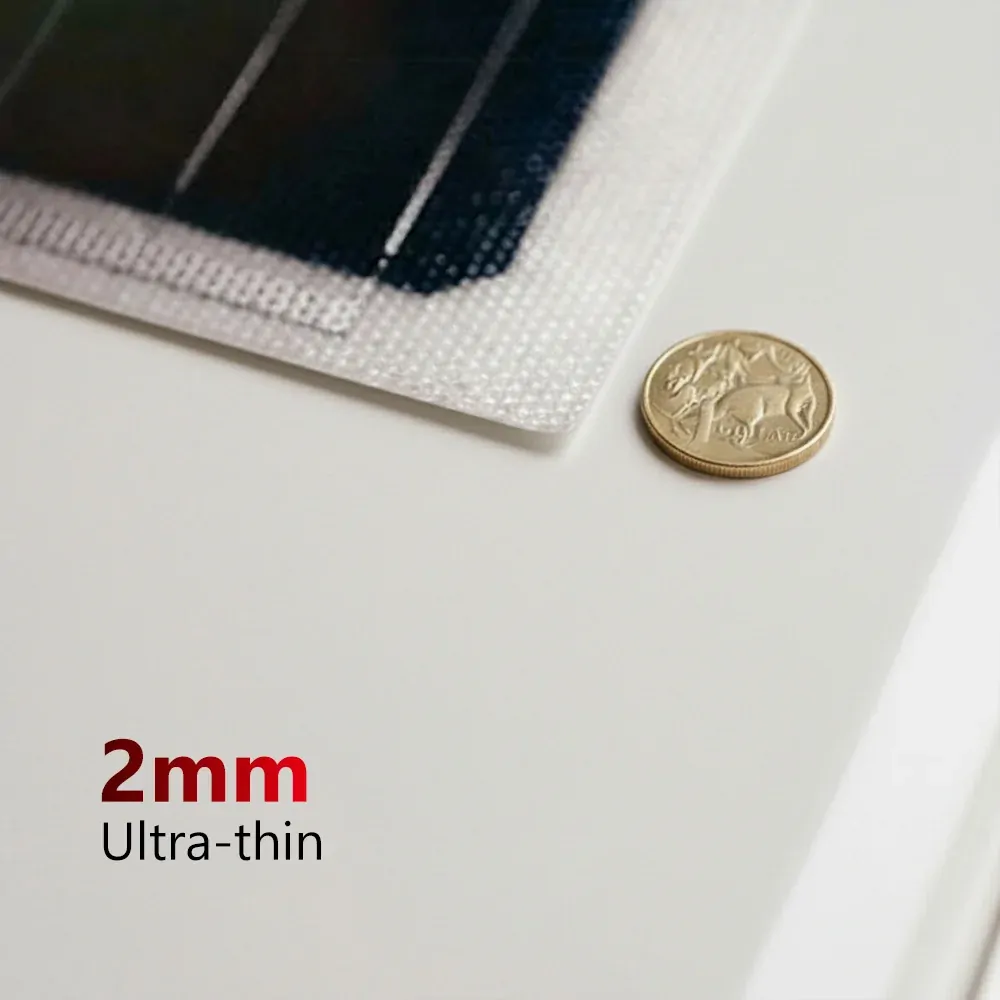

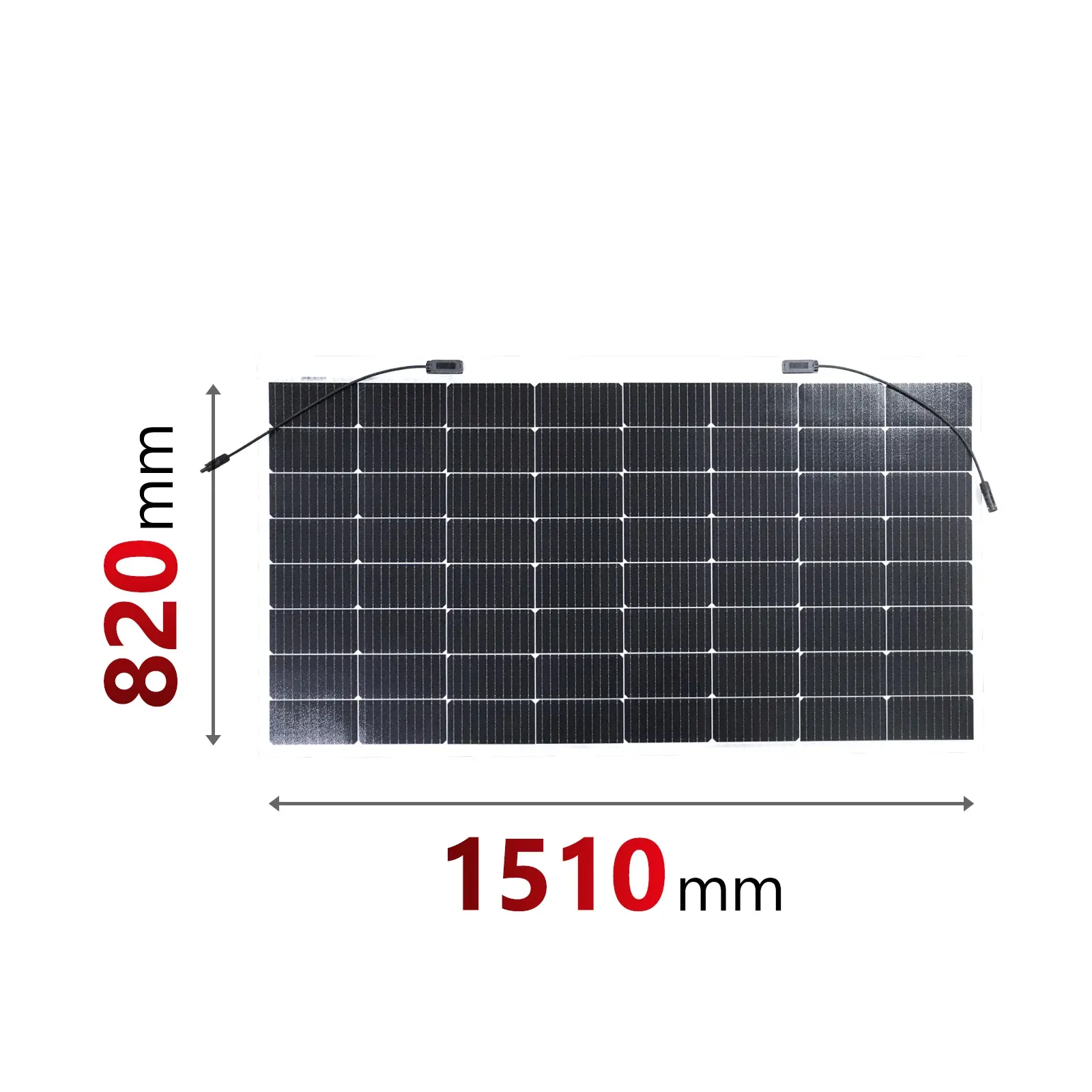

PANEL DIMENSIONS (MM): 1510 x 820 x 2mm
GROSS WEIGHT (KG): 3.31KG

In some instances there may be slight manufacturing changes between batches. If you are adding to an existing array, please check with the sales team to review any variances.

SKU SPE230
Barcode # SMF230J-8X8UW
Brand Sunman
Shipping Weight 5.0000kg
Shipping Width 0.930m
Shipping Height 0.030m
Shipping Length 1.600m
Shipping Cubic 0.044640000m3
