Heat shrink is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical engineering. It can also be used to repair the insulation on wires or to bundle them together, to protect wires or small parts from minor abrasion, and to create cable entry seals, offering environmental sealing protection.

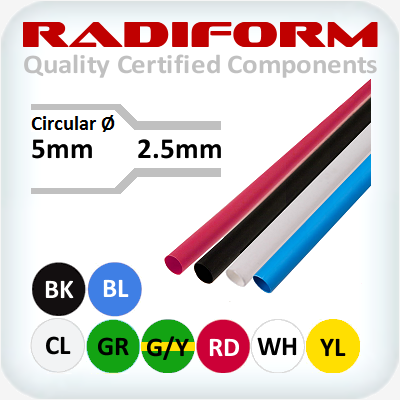

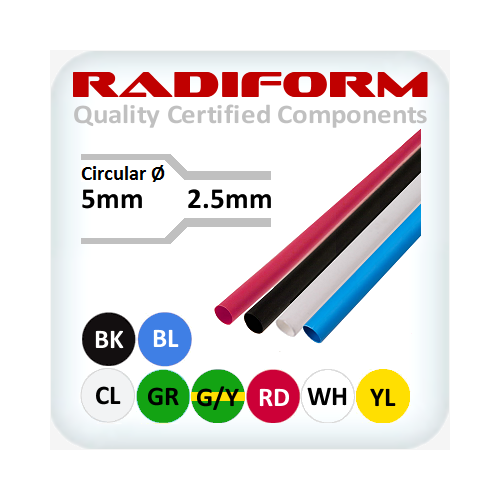

Product: 5.0mm ID to 2.5mm ID 1.2m Lengths
Heat Shrink - SCG Thin Wall

Applications:

  • Light duty wire harnessing for electrical and electronic applications.
  • Provides electrical insulation and protection for in-line components.
  • Bundles wires and cables.
  • Used as strain relief for electrical wire connection.
  • Bus bar insulation for switchgear.
  • Colour coding for wires, cables, terminals and components.

General:

  • Shrink ratio 2:1
  • UL Listed File E523862 (Except Clear)
  • Flame retarded and self extinguishing (Except Clear)
  • Rated for up to 600 volts
  • Resistance to chemical, copper corrosion and fungus
  • UV stabilised (Except Clear)
SKU HS5
Brand Radiform
Shipping Weight 0.0100kg
Shipping Width 0.090m
Shipping Height 0.020m
Shipping Length 0.060m
Shipping Cubic 0.000108000m3
