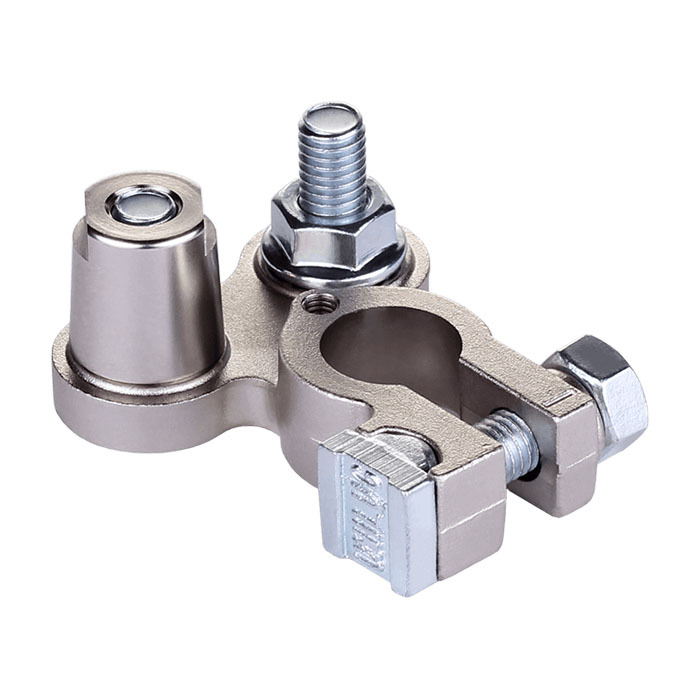

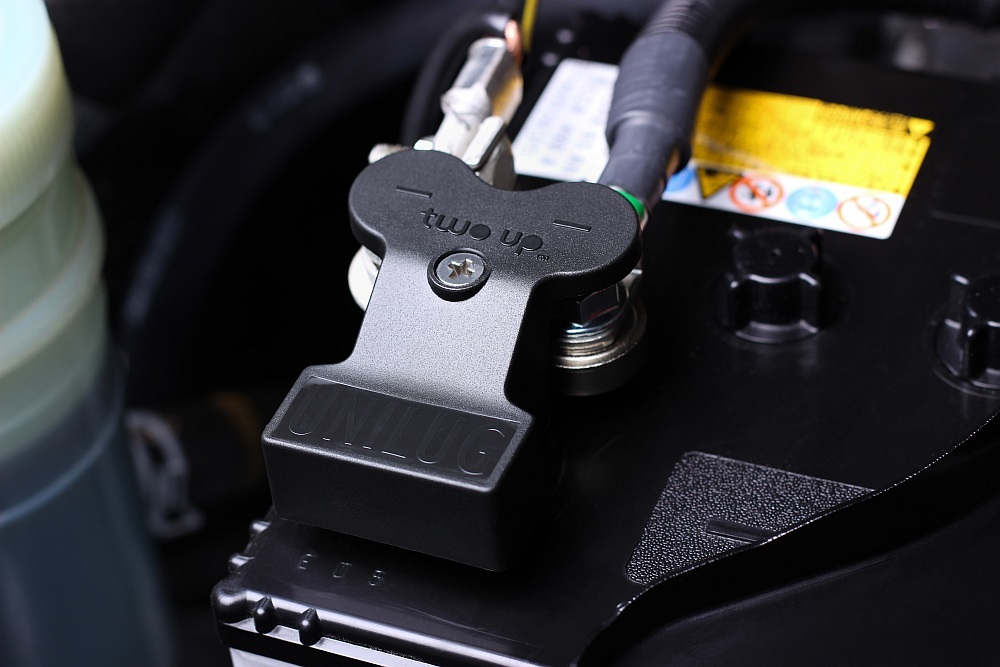

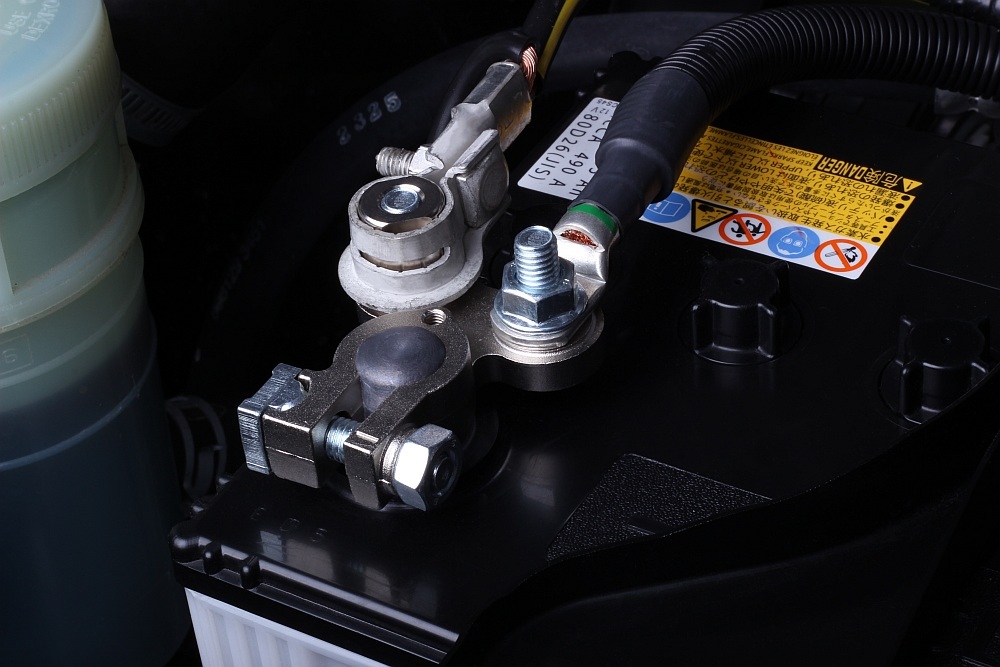

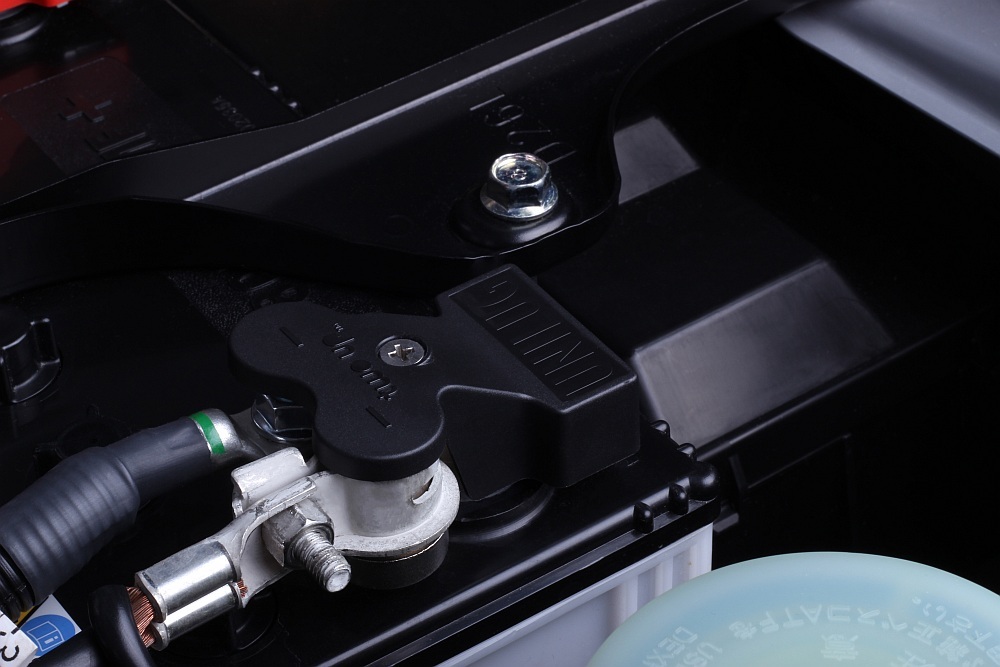

Two Up battery terminal lugs are purpose designed for dual battery installations where it is not desirable to cut or modify the factory battery leads or terminals. The concept allows factory strap type battery terminals to be fitted to a special tapered adaptor at the same time providing an additional terminating post to connect auxiliary batteries and/or ancillary equipment.

Forged not cast and built to last!

  • Forged from high grade brass for ultimate strength and greater conductivity.
  • Mating surfaces are machined then satin nickel plated for superior performance.

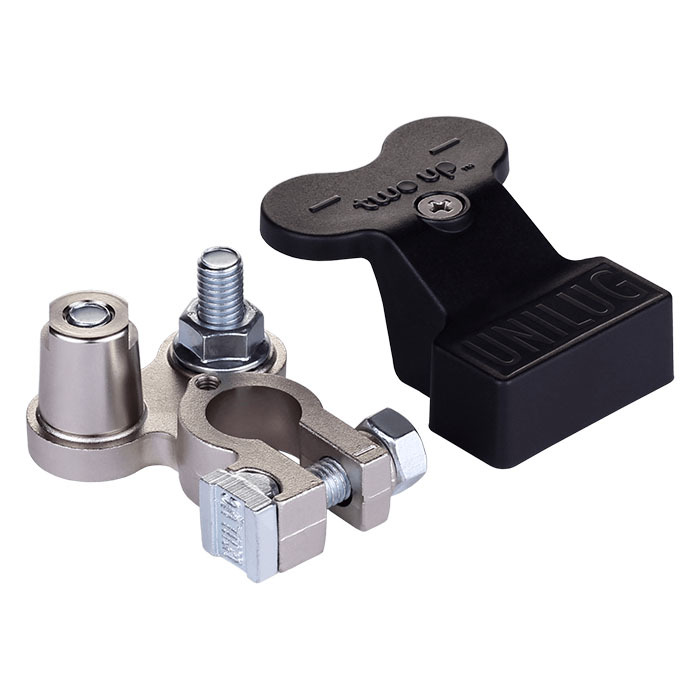

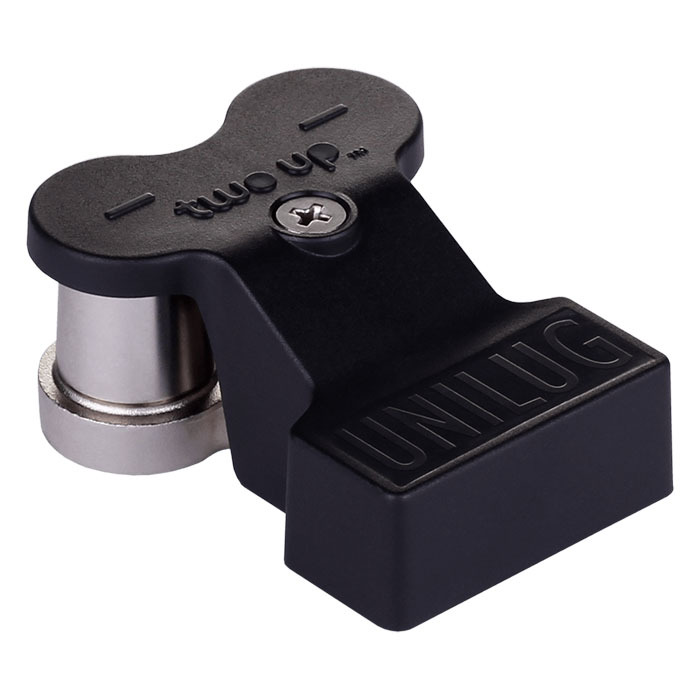

  • Moulded Nylon lug cover protects against accidental short circuit.
  • Design allows wiring to rotate through an arc of 180° at either terminating post.
Material - Lug Assembly Forged JIS 3771 brass satin nickel plating
Material - Adaptor Post Machined JIS C3604 brass satin nickel plated
Material - Protective Cover Impact/Temperature resistant PA-6 (Nylon)
Hardware Cover screw SUS304, all other zinc plated steel
Dimensions 35 H x 103 W x 200 L mm
Weight 205 g (with packaging)





SKU 9350857000007
Barcode # 9350857000007
Brand Amelec
Shipping Weight 0.2200kg
Shipping Width 0.105m
Shipping Height 0.035m
Shipping Length 0.205m
Shipping Cubic 0.000753375m3
