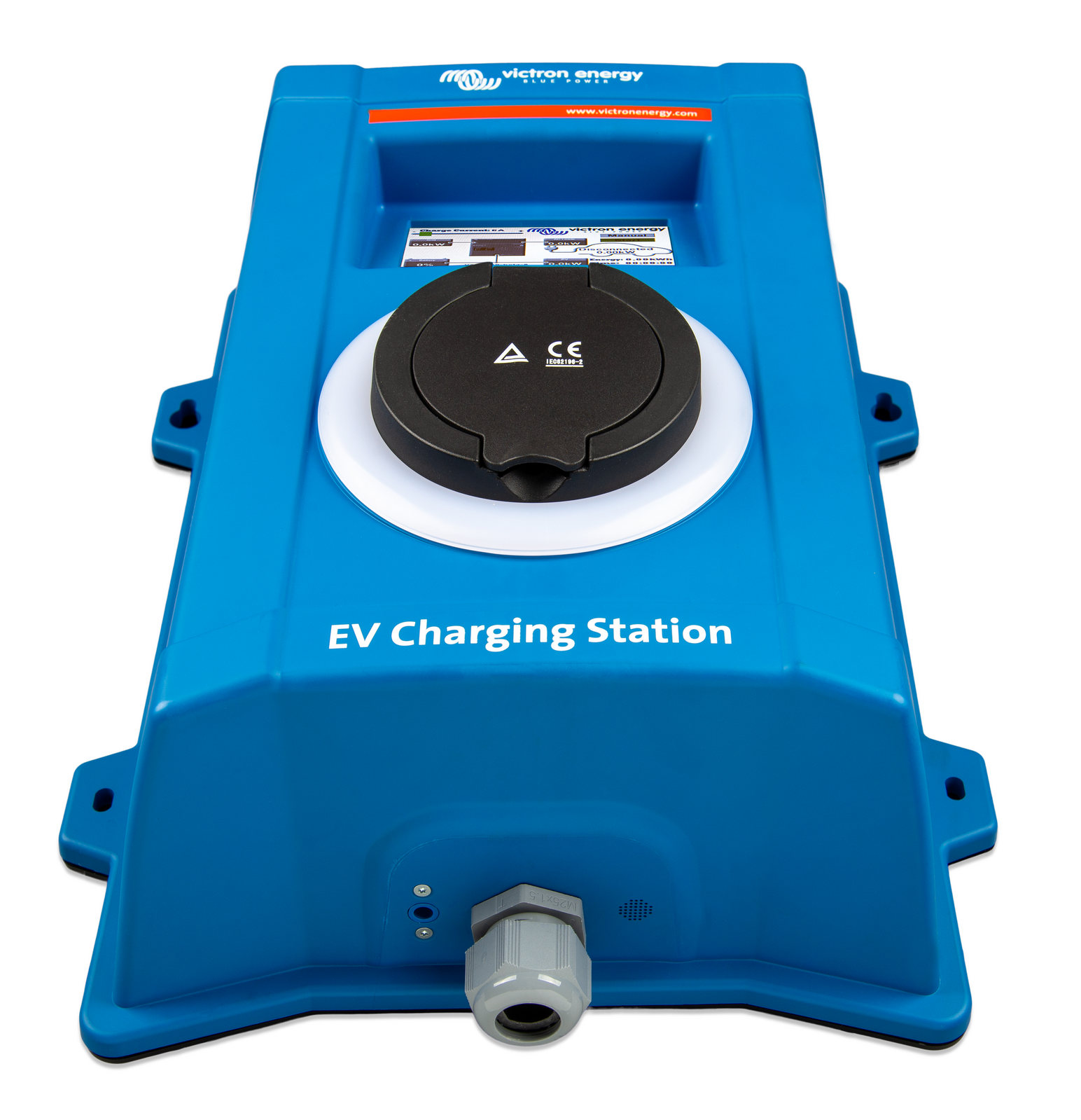

The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode.

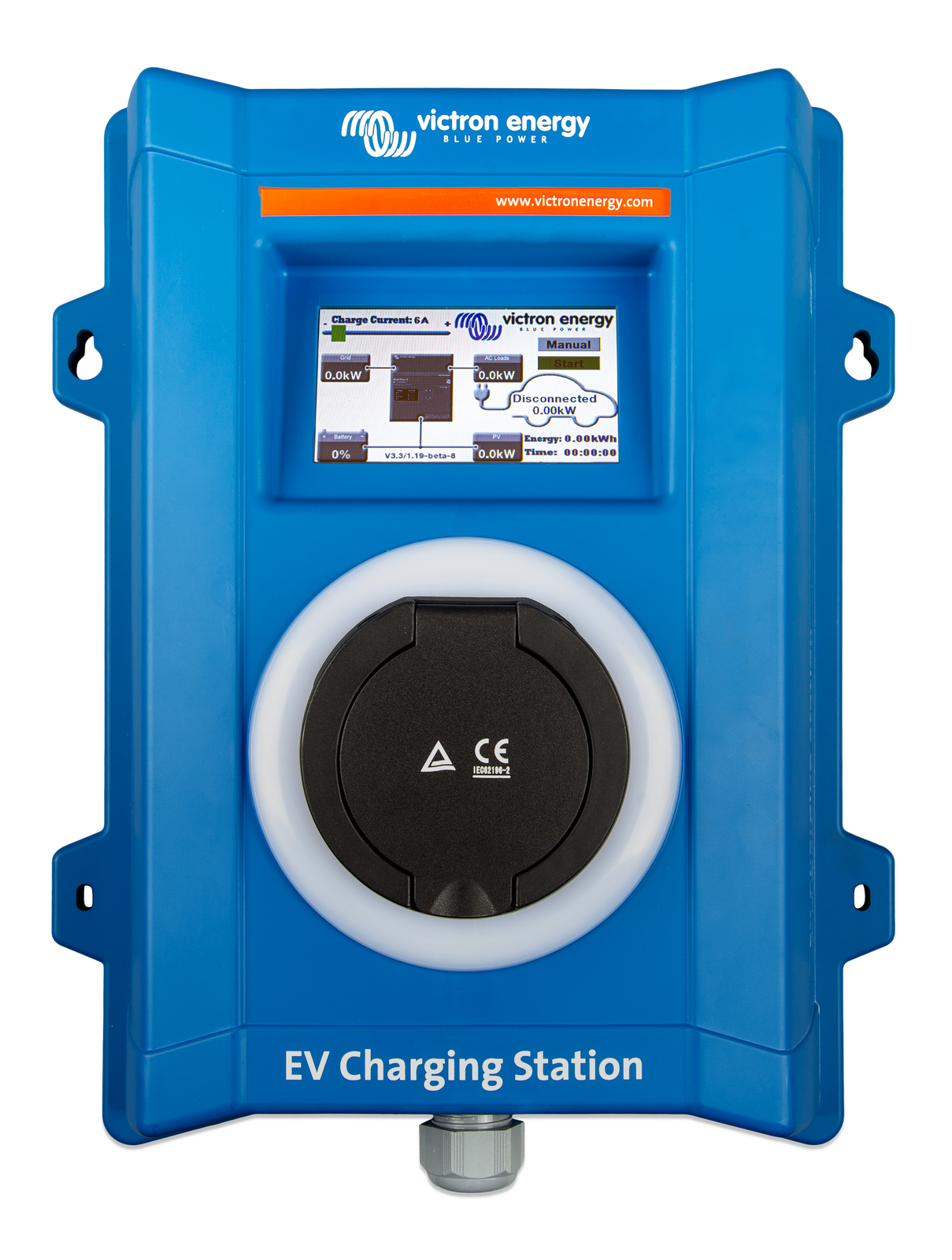

It incorporates 4.3-inch LCD touch screen for monitoring and control.

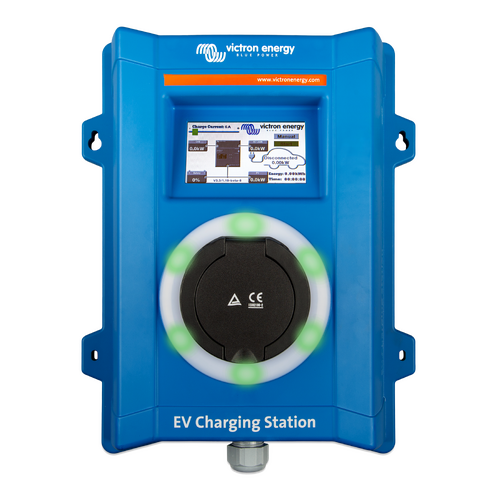

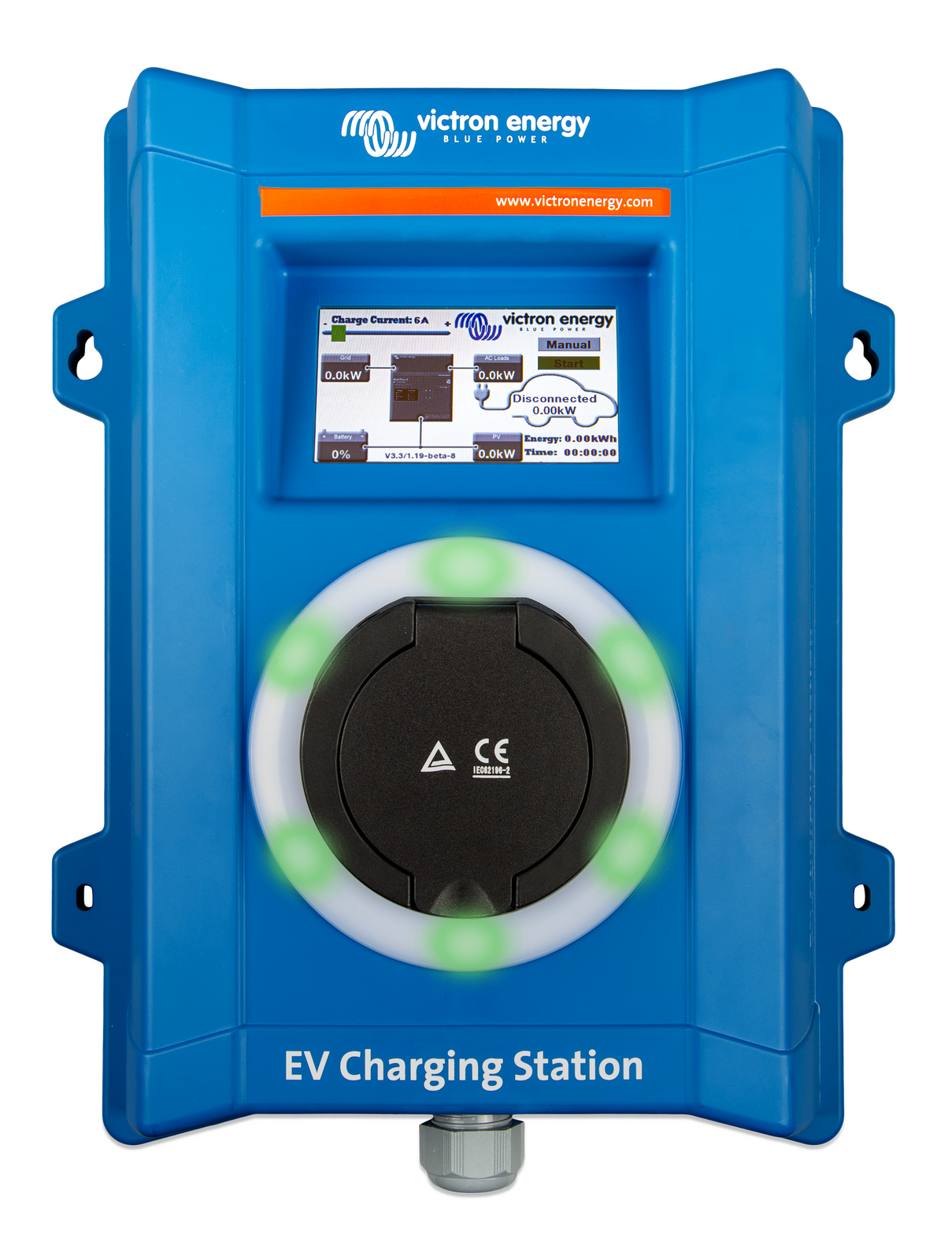

Fully programmable RGB Light Ring around charging port, to quickly determine the device state.
It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.

WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured in Access Point or Station
mode for both the initial setup and monitoring.

Three working modes available:

  1. Manual Mode to configure output current: Manual mode allows configurable output current between 6-32 A. The charging power is controlled in two ways: by using the slider on the LCD touch screen or by using its web page. It allows to manually start or stop the charging process when a vehicle is connected to the charging station.
  2. Automatic Mode to ensure maximum PV system efficiency, Detects when excess power is available and uses only that power to charge the vehicle.
  3. Scheduled Mode to charge the EV at certain time intervals. A fully programmable scheduler allows charging at different time intervals, for example at certain times during the night when grid energy is cheaper.

Integration with GX devices and VRM

Control and monitor the EV Charging Station from a GX device touch display and the Remote Console and the VRM Portal. The VRM
Portal also offers real time and custom reports for configurable time periods

Model EVC300400300
Input voltage range (VAC) 170 – 265 VAC
Rated charge current 32 A / phase
Nominal power 22 kW
Current output range 6 – 32 A
WiFi standards 802.11 b/g/n (2.4 Ghz only)
Self-consumption 15 mA@230 V
Configurable Max. Current 10-32 A

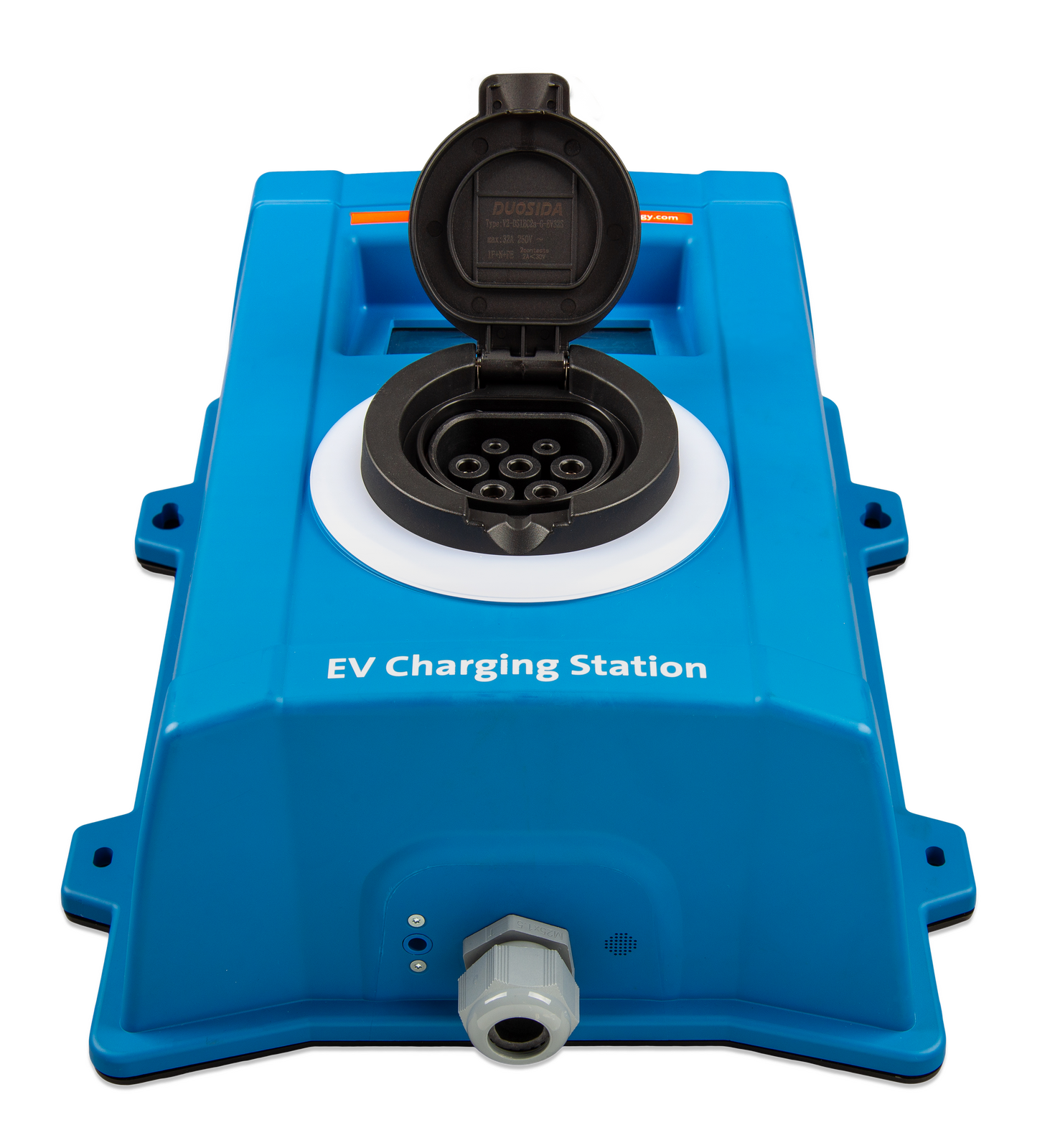

Connector type IEC 62196 Type 2
Means to Disconnect External circuit breaker (40 A recommended)
Configurable price/kWh calculator (Eur) Default setting: 0.13 (adjustable)
Control type ouch Screen, Web page, GX Device over Modbus TCP, VictronConnect
via Bluetooth
Light Ring 55 light configurable light effects available
Protection External RCD is required
Operating temperature -25 °C to +50 °C
Storage temperature -40 °C to +80 °C
Humidity 95 %, non-condensing
Data communication Modbus TCP over WiFi, Bluetooth
Enclosure colour Blue (RAL 5012)
Power terminals 6-10 mm² / AWG 10-8
Protection category IP44
Ventilation not required
Dimensions (h x w x d) 377 x 307 x 148 mm
Weight 3 kg



Barcode # EVC300400300
Shipping Weight 4.0000kg
Shipping Width 0.450m
Shipping Height 0.250m
Shipping Length 0.350m
Shipping Cubic 0.039375000m3
