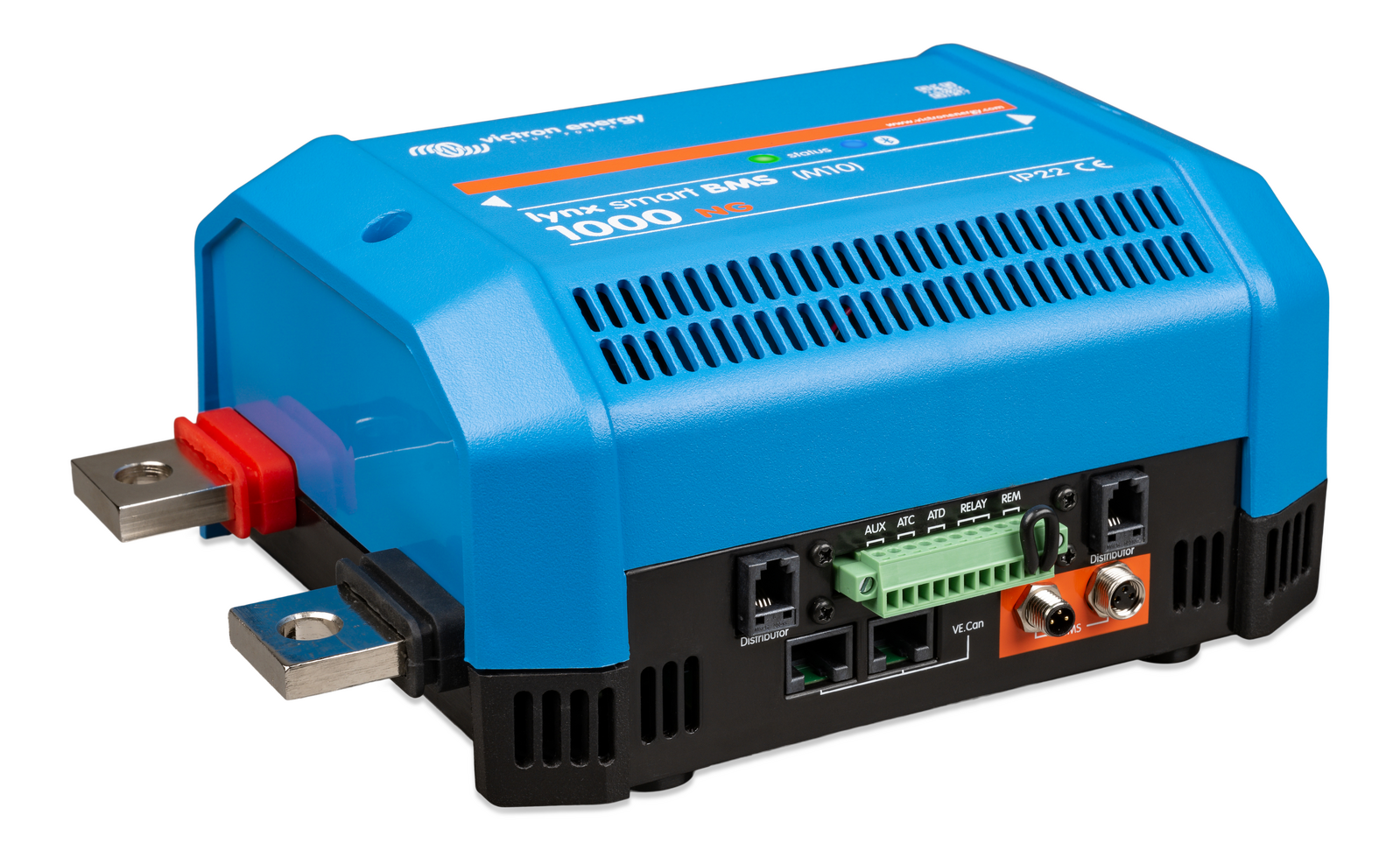

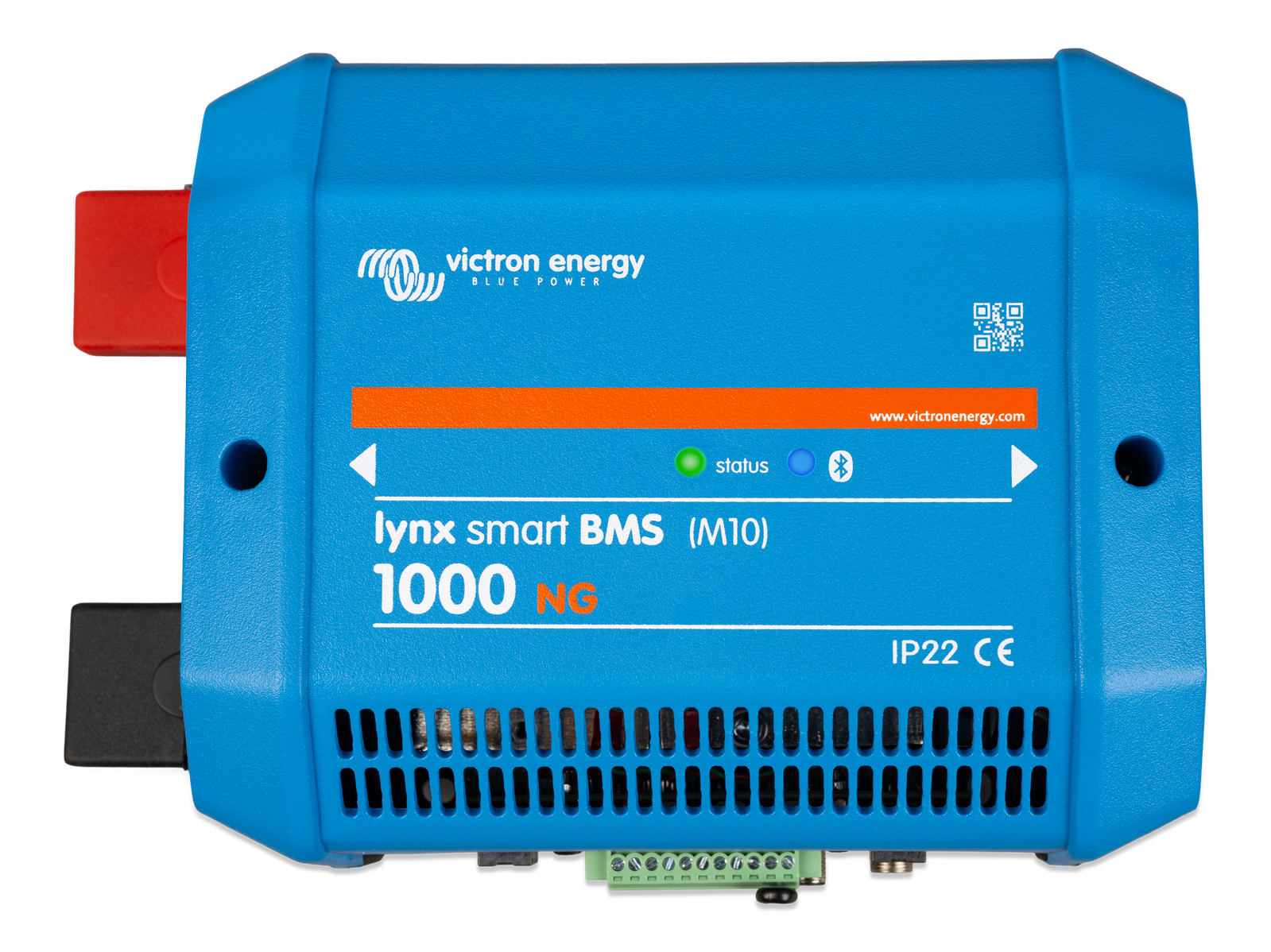

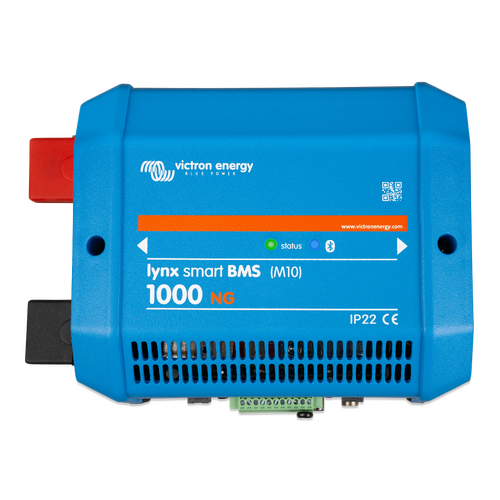

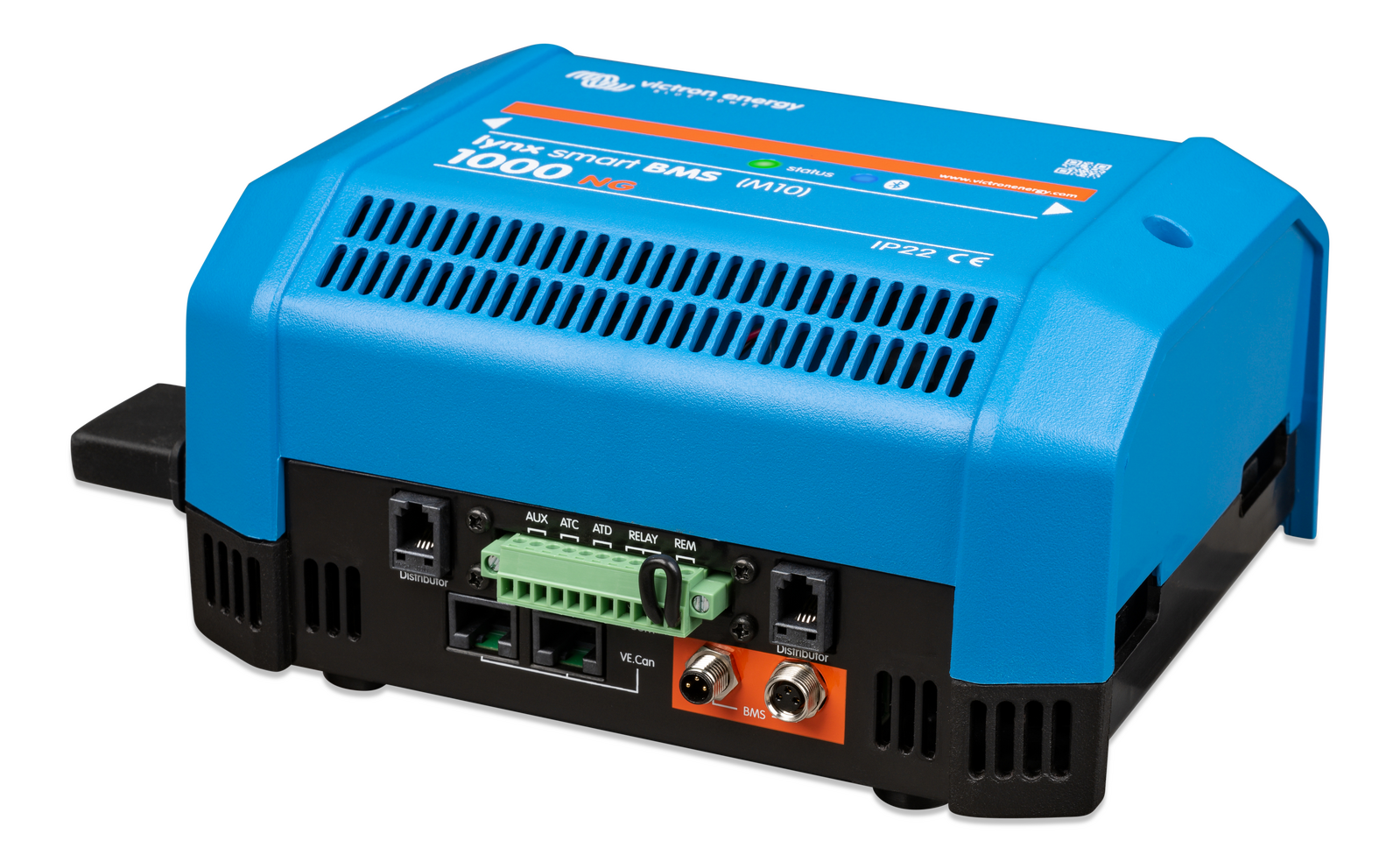

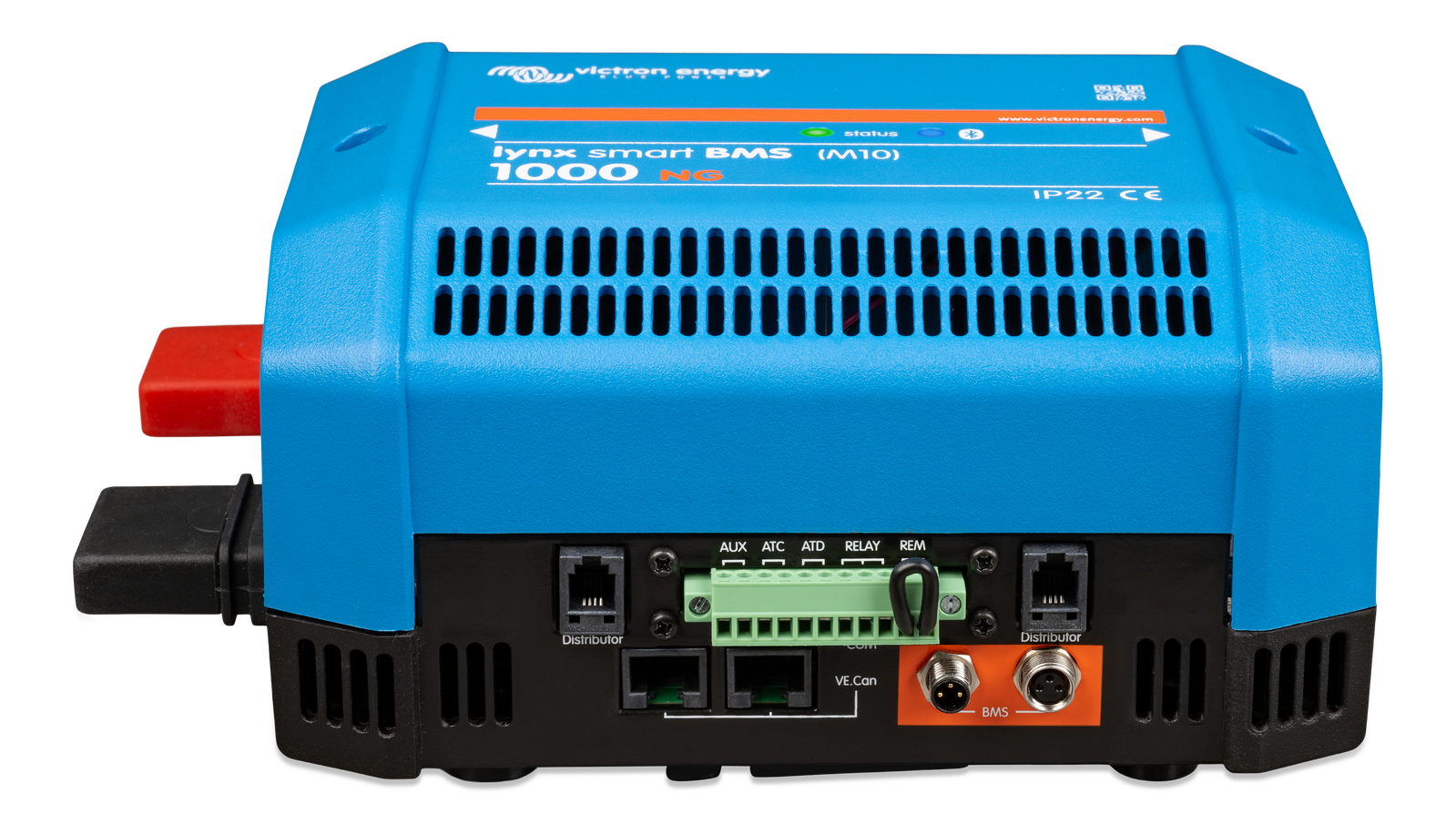

The Lynx Smart BMS NG is a dedicated Battery Management System (BMS) designed specifically for the Victron Lithium NG batteries.
These batteries utilise Lithium Iron Phosphate (LiFePO₄) technology and are available in 12.8 V, 25.6 V and 51.2 V variants with various capacities. They can be connected in series, parallel, or a combination of both to create battery banks for system voltages of 12V, 24V, or 48V. A maximum of 50 batteries can be used when configuring a bank with 12V or 24V batteries, while up to 25 batteries can be used with 48V batteries. This allows for a maximum energy storage capacity of 192 kWh with 12V batteries, up to 384 kWh with 24V batteries, and 128 kWh with 48V batteries. The maximum energy storage capacity can be multiplied by paralleling multiple Lynx
Smart BMSs, which also ensures redundancy should one battery bank fail. For comprehensive details about these batteries, visit the
Victron Lithium NG battery product page.

Out of the various BMSes available for the all new Lithium NG batteries, the Lynx Smart BMS NG is the most feature-rich and complete
option and integrates seamlessly with other M10 products in the Lynx Distributor system. It is available in 500 A (M10) and 1000 A
(M10) versions .

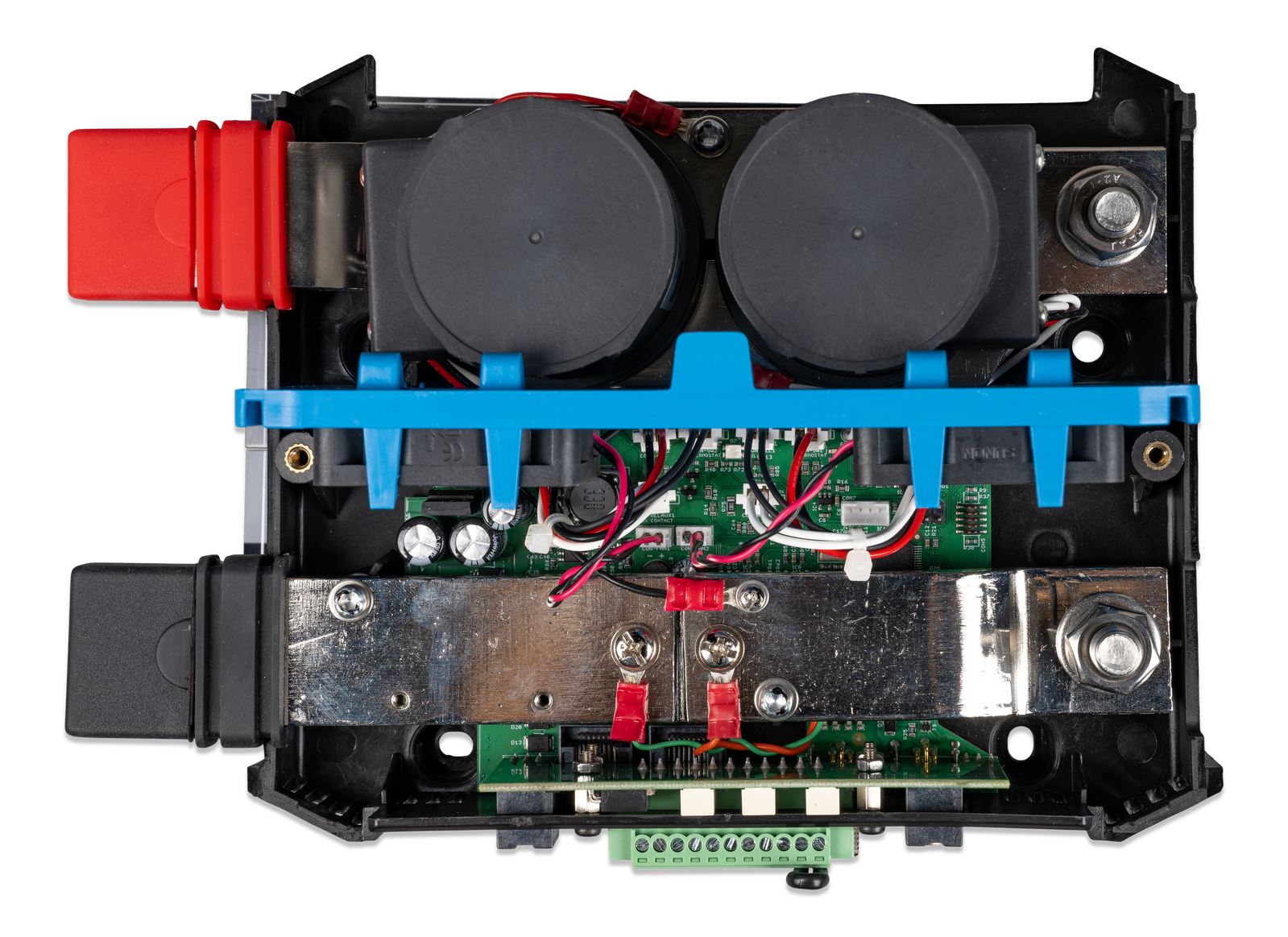

Built-in 500 A or 1000 A contactor

• Available in 500 A (M10) and 1000 A (M10) versions.
• Acts as a secondary safety system to protect the battery in case primary controls (ATC, ATD and/or DVCC) fail.
• Suitable as a remote controllable main system switch

Pre-charge circuit

• Prevents high inrush currents when connecting capacitive loads like inverters.
• Eliminates the need for external pre-charging devices.

Monitoring and control

• Bluetooth connectivity for monitoring and control via the VictronConnect App or VE.Can connectivity in combination with GX devices such as the Cerbo GX or Ekrano GX and the VRM portal.
• Readout of cell voltages and temperatures also on GX devices and the VRM portal.
• Built-in battery monitor provides data such as state of charge, voltage, current, historical data, status info and more in real time.
• Diagnostic at a glance with Instant Readout.

DVCC closed loop control as well as ATC/ATD contacts

• Compatible Victron inverter/chargers, the Orion XS 12/12-50A DC-DC battery charger and solar charge controllers are automatically controlled via a connected GX device and DVCC.
• ATC/ATD contacts can be used to control other chargers and loads that have a remote on/off port.

Programmable relay

• Can be used either as an alarm relay (combined with the pre-alarm) or to control an alternator via its external regulator (ignition cable).
• Features Alternator ATC mode for safe alternator disconnection before battery disconnects.

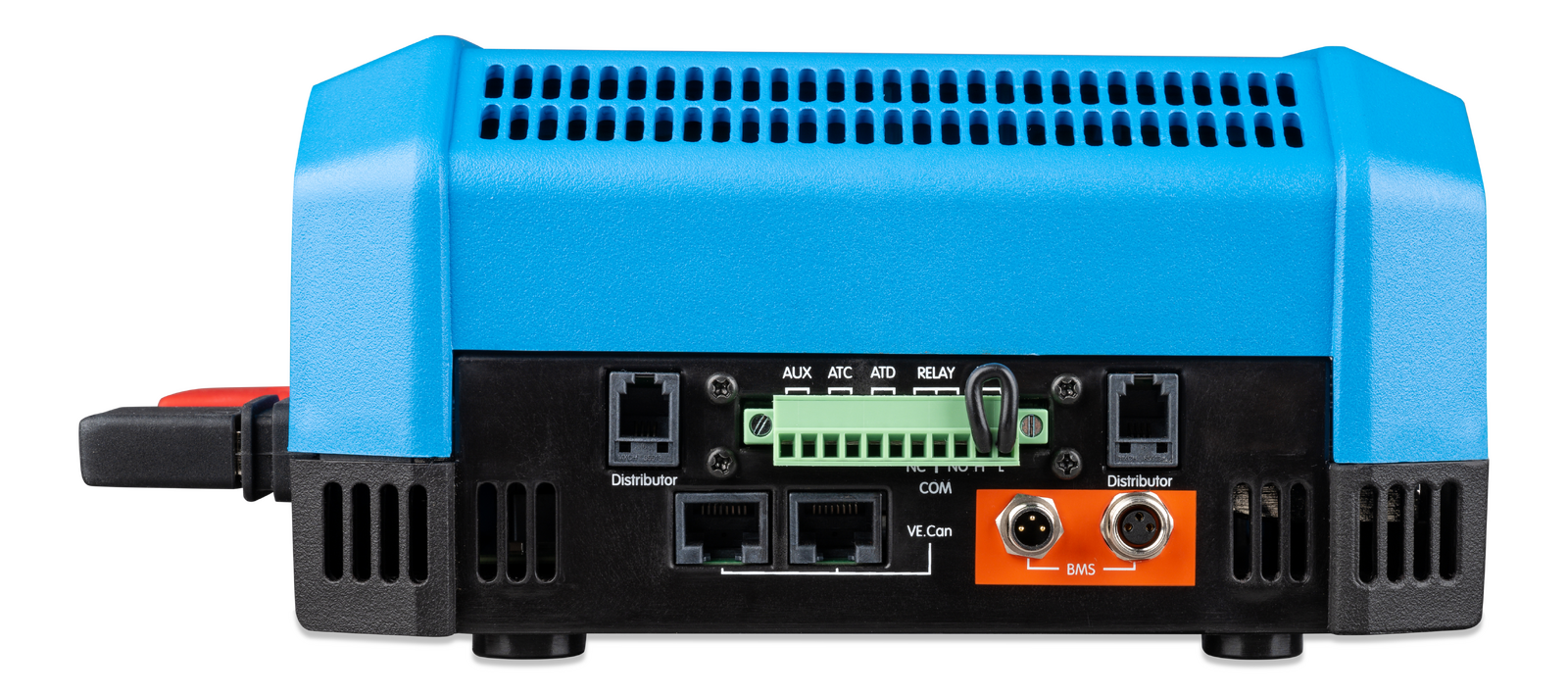

AUX terminal

• Onboard auxiliary power supply (1.1 A @ system voltage) for powering specific loads (i.e. a GX device) post-BMS shutdown.
• Automatic shutdown of BMS and AUX connection if no charge voltage detected within 5 minutes after a low voltage event.

VE.Can and NMEA 2000 data communication

• Easy connection and communication with GX devices via VE.Can using a standard RJ45 network cable.
• Integration into marine networks via NMEA 2000 protocol (requires a VE.Can to NMEA 2000 micro-C male cable).

Lynx Distributor fuse monitoring

• Monitor fuse status of up to 4 connected Lynx Distributors via VictronConnect or GX devices.
• Receive alarms in case of blown fuses.

Parallel redundant Lynx Smart BMS

• The new parallel redundancy feature for the Lynx Smart BMS and Lynx Smart BMS NG series allows multiple Lynx BMSes in one installation. Each has its own battery bank, and together they form a single redundant battery system. Up to 5 BMS's can be paralleled.
