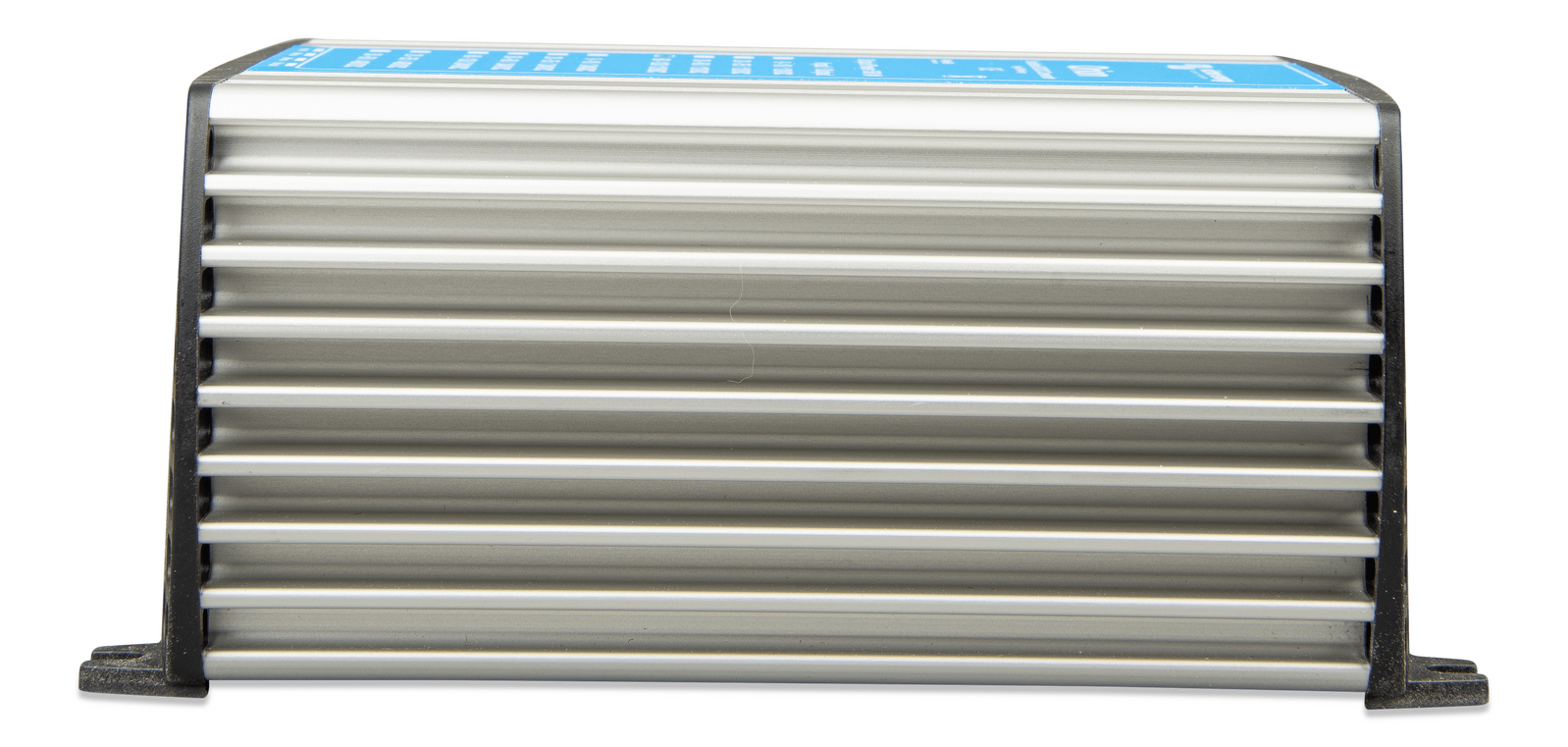

Model Orion 110/24-15A (360W)
Power rating (W) 360W
Galvanic isolation Yes
Temperature increase after 30 minutes at full load (°C) 30
Fan assisted cooling (temp. controlled) Yes
Weight kg (lbs) 1.4kg
Dimensions (HxWxD) mm 82 x 132 x 190
Input voltage 110V (60 – 140V)
Output voltage 12.5V or 24V
Output voltage stability 2%
Output voltage tolerance 3%
Output noise < 50mV rms
Off load current < 25mA
Efficiency appr. 85%
Isolation > 400Vrms between input, output and case
Operating temperature - 20 to + 40°C (0 to 100°F). Derate linearly to 0A at 70°C (160°F)
Humidity Max 95% non-condensing
Casework Anodised aluminium
Connections 6.3mm (0.25 inch) push-on flat blade connectors
Protection: Overcurrent
Reverse polarity connection
Short circuit proof
Reduction of output voltage
Fuse and reverse connected diode across input
Varistor (also protects against load dump)


SKU 8719076022695
Barcode # ORI110243610
Brand Victron
Shipping Weight 1.4700kg
Shipping Width 0.190m
Shipping Height 0.090m
Shipping Length 0.140m
Shipping Cubic 0.002394000m3
