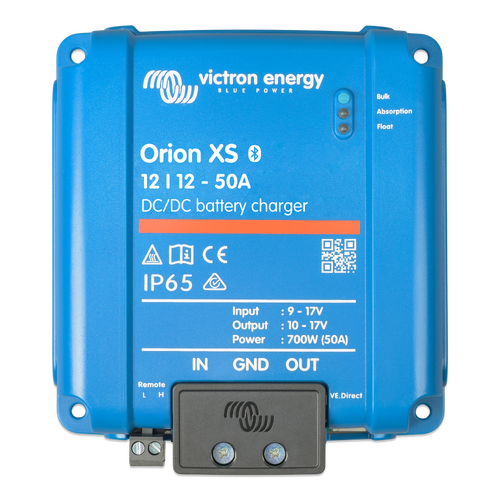

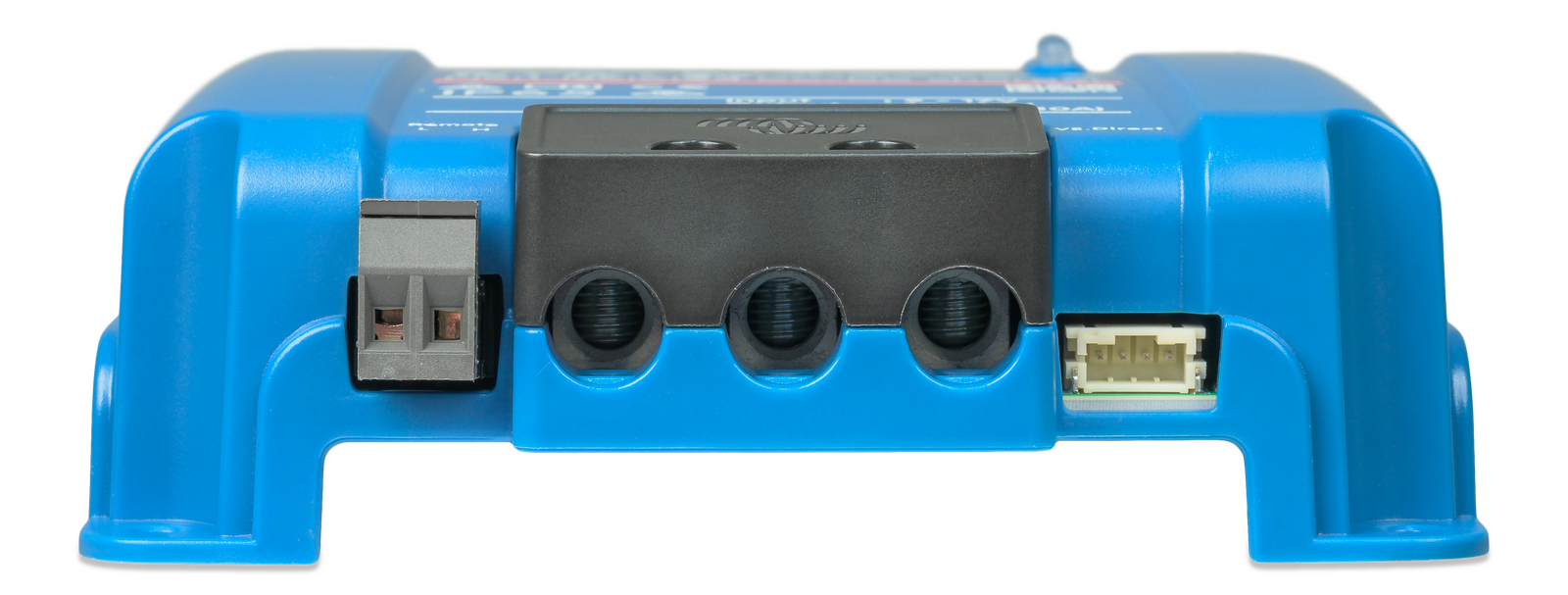

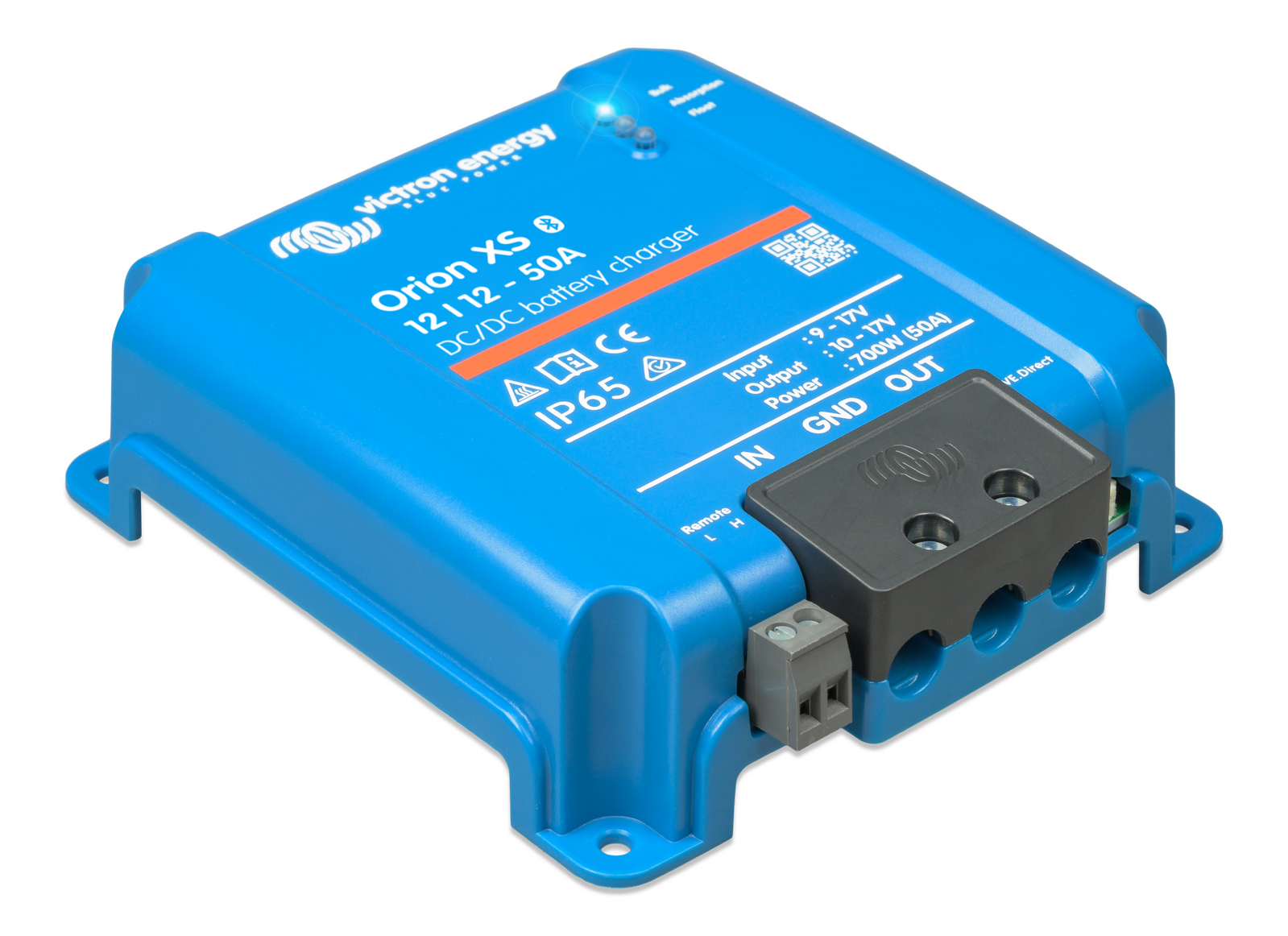

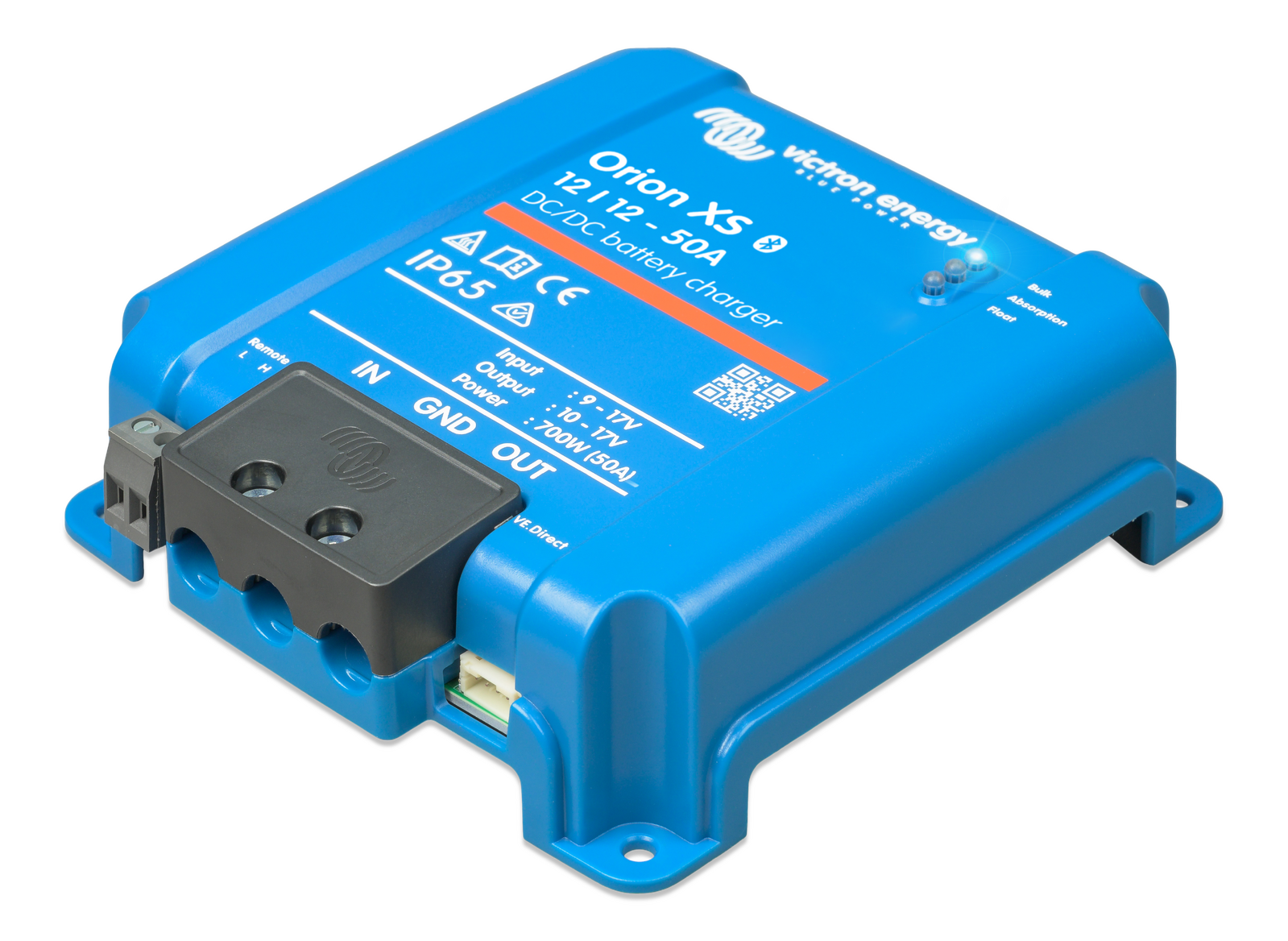

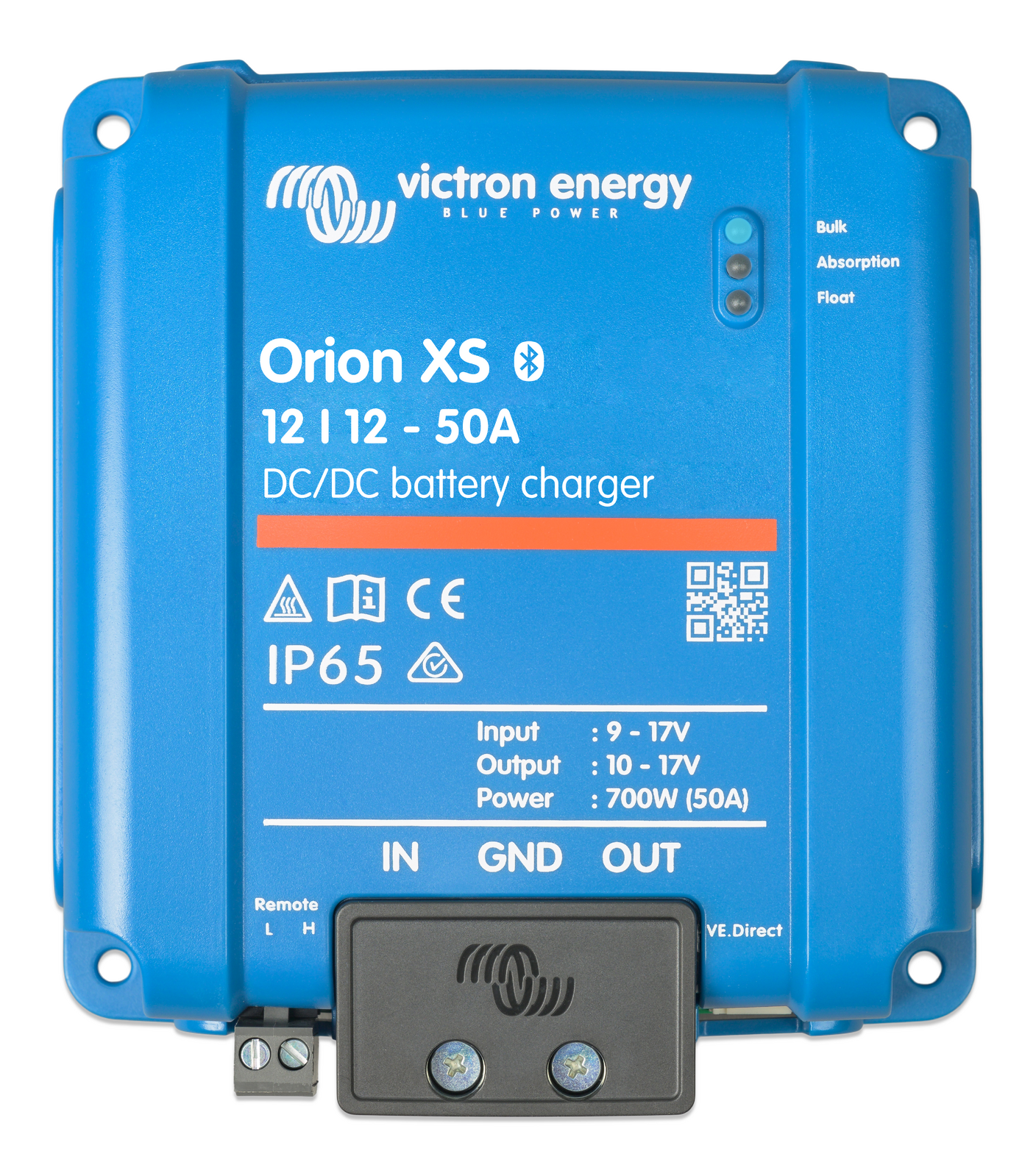

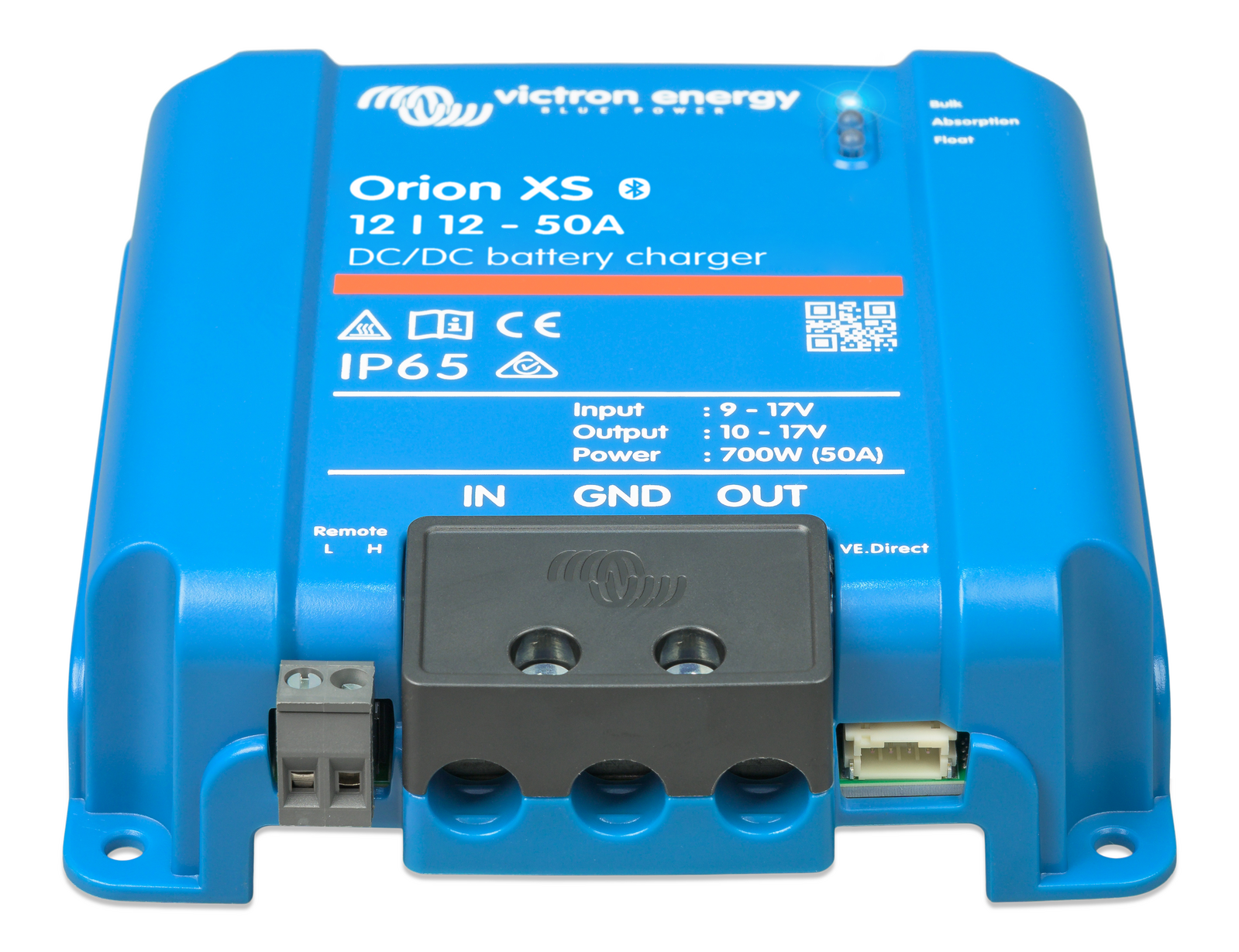

Engineered from the ground up, the Orion XS redefines adaptive DC-DC battery charging. For use in dual battery systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also guarantees the safety of your system. The Orion XS serves as a DC-DC battery charger or as a power supply, offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5
or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Adjustable charging current
The charge current is adjustable with a minimum stepsize of 0.1A. via VictronConnect.
Smart alternator compatibility
An integrated mechanism detects whether the engine is running (engine shutdown detection), which only activates the charger when the alternator supplies power. This ensures that the charger only draws power when the alternator is supplying power, i.e. when the engine is running.
Adaptive 4-stage charge algorithm
For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
The Orion XS includes fully programmable charging algorithms and eight pre-programmed battery settings.
Low temperature shutdown and input undervoltage protection
To prevent damage of lithium batteries the charger will turn off automatically at low temperatures. It will also shut down when the input voltage drops below a configurable lockout value and restart when the input voltage rises above the restart value, this to protect the input source ie. starter battery from deep discharge.
Remote on/off
The Orion XS can be switched on and off remotely via the remote on/off connector or the VictronConnect App. Typical applications include wiring a switch or Battery Management System (BMS).
Comprehensive electronic protection
The protections includes overload, short circuit and excessive temperatures. The charger is protected against over-temperature by reducing the output power when the maximum product temperature is reached.
Can be paralleled to increase output current And unlimited number of units can be connected in parallel.
Bluetooth Smart enabled
Built-in Bluetooth Smart: The wireless solution to change settings, monitor activities and update the Orion XS software using Apple and Android smartphones, tablets or other devices. Various parameters can be adjusted with the VictronConnect App.
Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.
VE.Direct port
For a wired connection to a GX device such as the Cerbo GX or Ekrano GX, PC or other devices. Enables advanced monitoring, control and diagnostics from anywhere (requires a GX device connected to the internet and VRM Portal) or locally via the Remote Console.
IP65 protection
The Orion XS complies with ingress protection rating IP65. This means the product is dust-tight and protected against heavy rain.

Model 24/12-30 NI (360w)
Input voltage range (1) 20-35 v
Under voltage shut down 14 v
Under voltage restart 15 v
Nominal output voltage 24.2 v
Output voltage adjust range 20-30 v
Output voltage tolerance +/- 0.2 v
Output noise 2 mV rms
Cont. output current at nominal output voltage and 40 °C 30 A
Maximum output current (10 s) at nominal output voltage minus 20 % 45 A
Short circuit output current 60 A
Cont. output power at 25 430 W
Cont. output power at 40 360 W
Efficiency 88 %
No load input current < 100 mA
Standby current Less than 1mA
Galvanic isolation No
Operating temperature range & Humidity -20 to +55 °C (derate 3 % per °C above 40 °C) Max. 95 % non-condensing
DC connection Screw terminals
Maximum cable cross-section 16 mm² AWG6
Protection category IP43 (electronic components), IP22 (connection area)
Dimensions H x W x D (mm) 130 x 186 x 70 mm
Weight 1.8 kg (3 lb)
SKU 8719076058519
Barcode # ORI121217040
Brand Victron
Shipping Weight 2.0000kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.130m
Shipping Cubic 0.000975000m3
