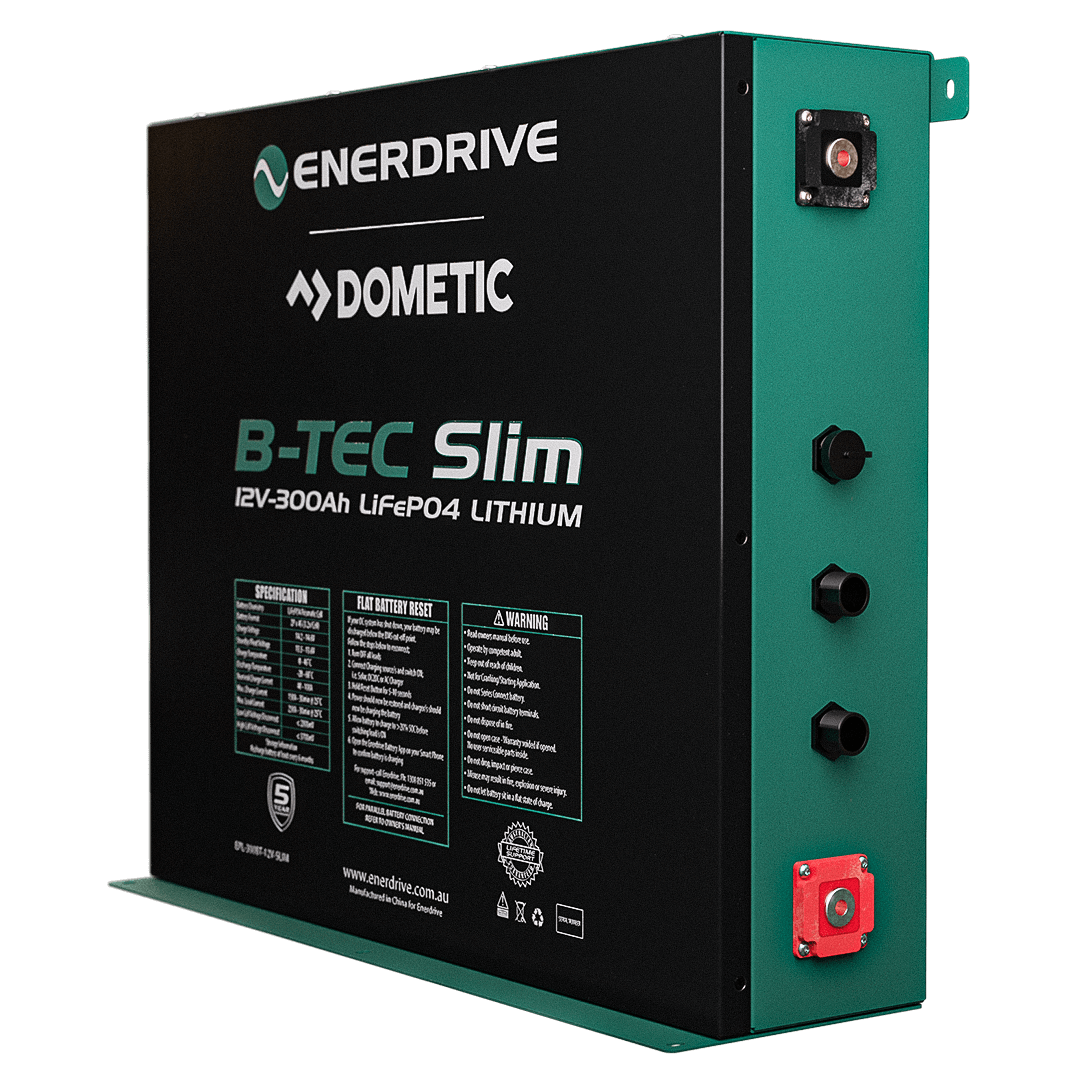

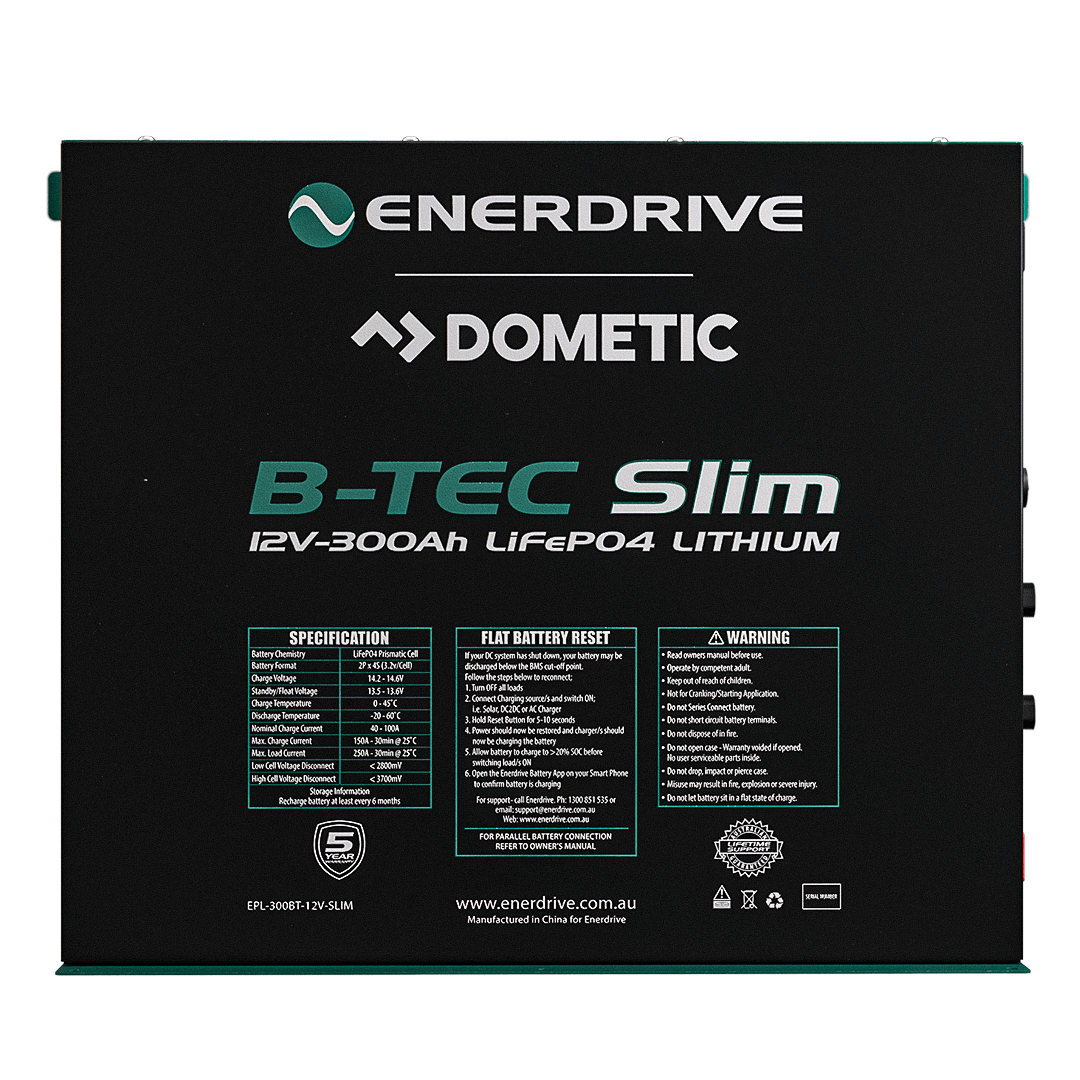

The new 300Ah ePOWER B-TEC Slimline lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

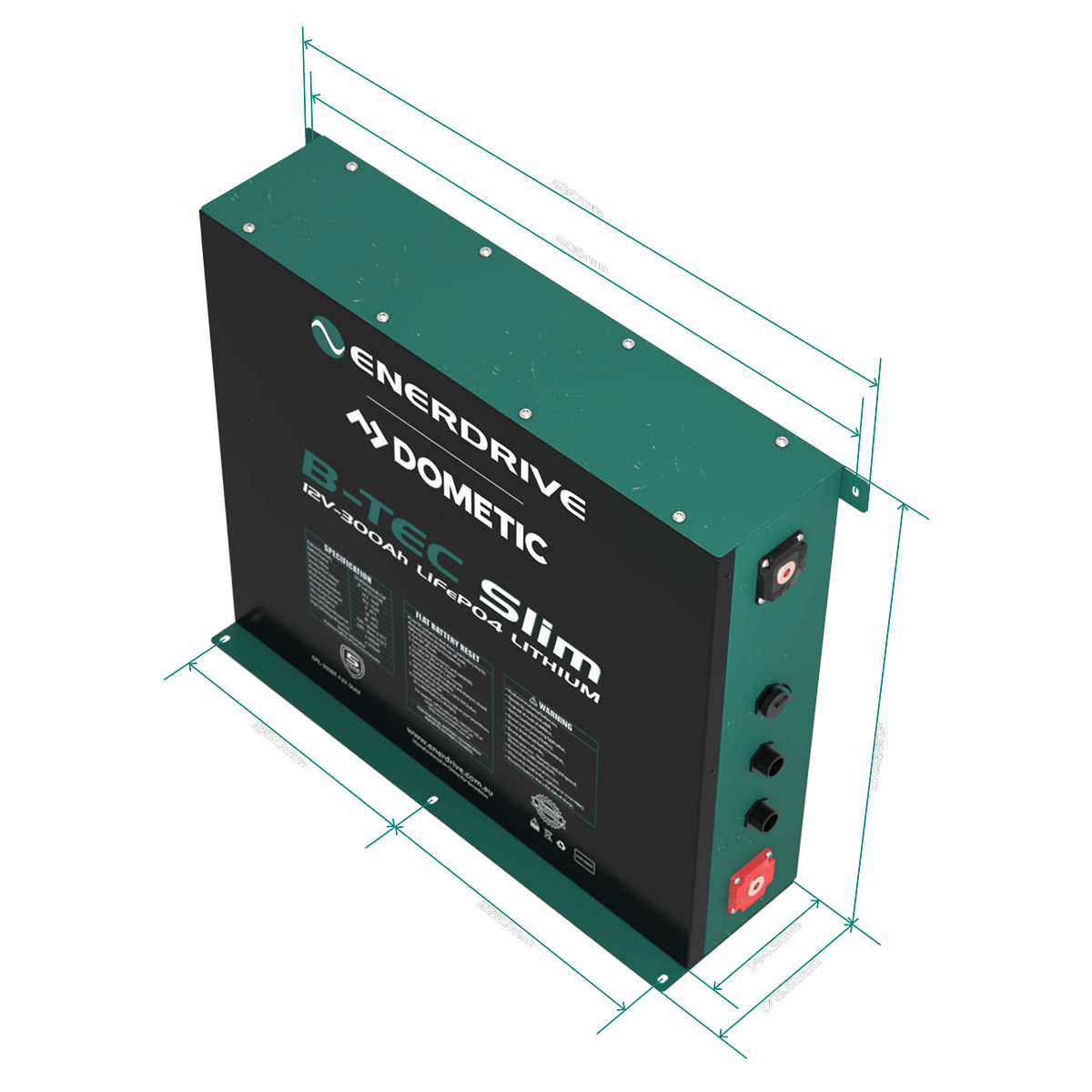

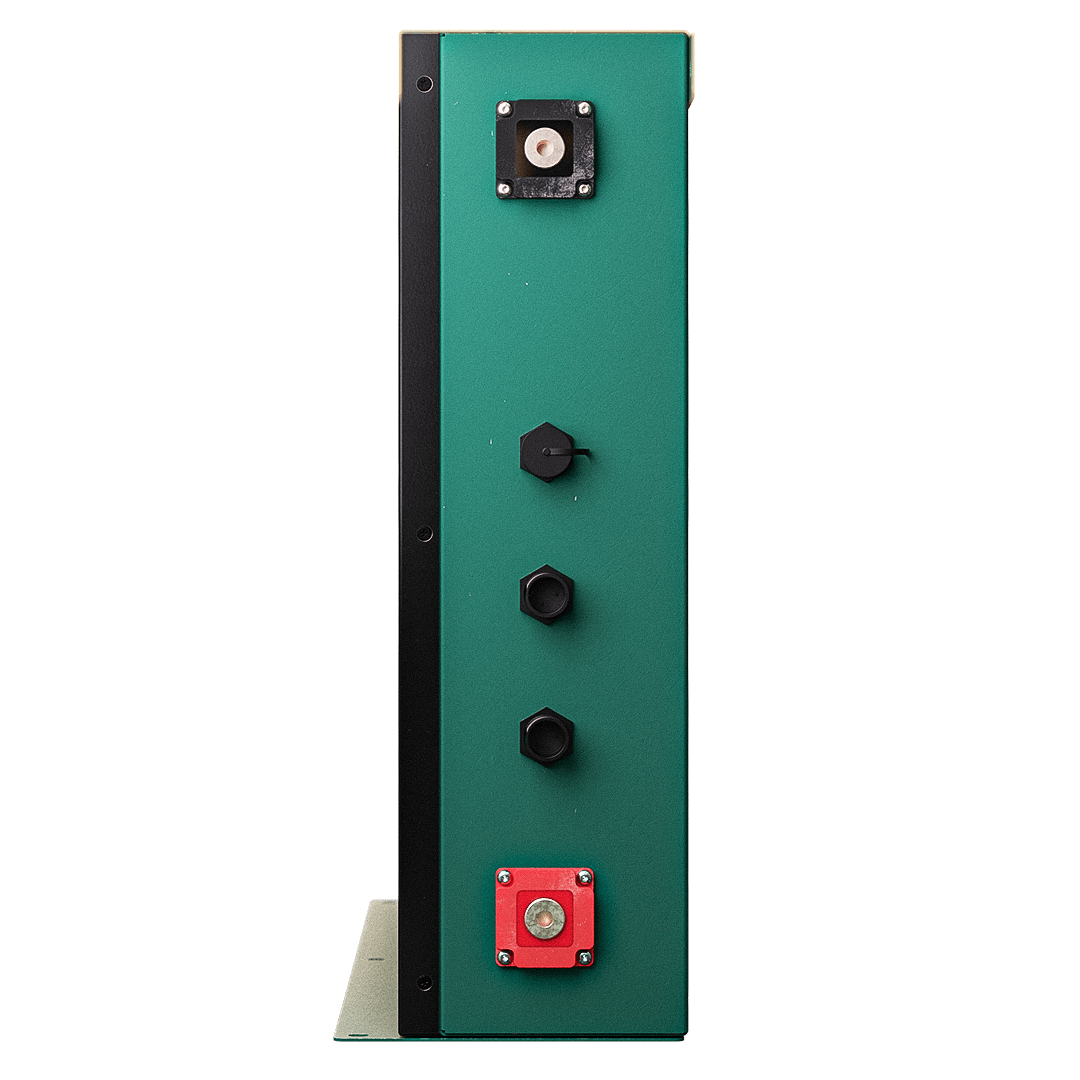

  • Extremely compact size W 630 x H 498 x D 176.5 mm. All connection points for the battery are at one end including all Comms Ports and Reset Port.
  • Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress.
  • Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.
  • Water resistant metal casing meeting IP52 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress.

The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD's (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

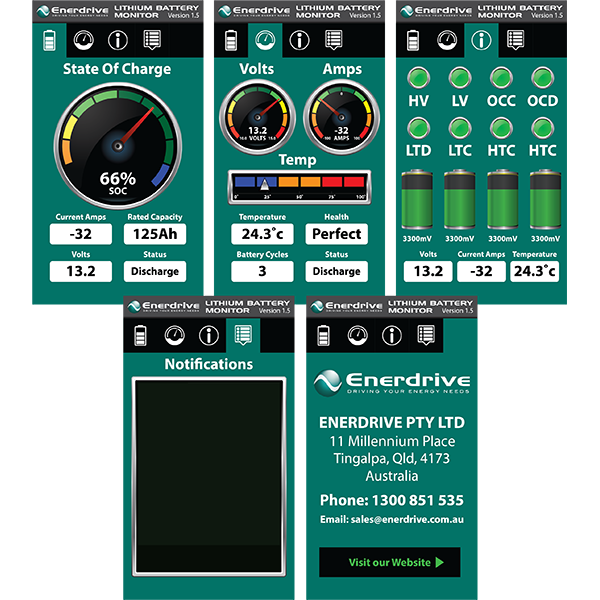

The Enerdrive Enerdrive B-TEC  Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

  • Battery Capacity
  • Battery Voltage
  • Battery Current (Amps)
  • Battery State of Charge (SOC)
  • Battery State of Health (SOH)
  • Battery Status
  • Individual Cell Voltage
  • Battery Temperature
  • Battery Cycles
  • Battery Alarms
  • Battery Event Information
Model EPL-300BTM-12V
Nominal Voltage 12.8v
Nominal Capacity 300Ah
Battery Output Voltage Range 11.00 - 14.60V
Maximum Discharge Current 250A@25°C ± 5°C for 30mins
Standby (Float) Voltage 13.50 - 13.80V
Normal Charge Voltage 14.20 - 14.60v
Maximum Charge Current 150A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 60A-120A
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Length (mm) 630mm
Depth (mm) 176.5mm
Height (mm) 498mm
Weight (kg) 48.0kg
Self-discharge Rate ≤ 3% Per Month

Please Note; The B-TEC Slimline battery is capable to be paralleled to a second B-TEC 12V 300Ah Slimline Lithium Battery. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS.

The 300Ah Slimline battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

Please note B-TEC batteries must not be installed –
• In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.
